Removal Procedure

  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the transfer case from the adapter. Refer to Transfer Case Assembly Replacement .

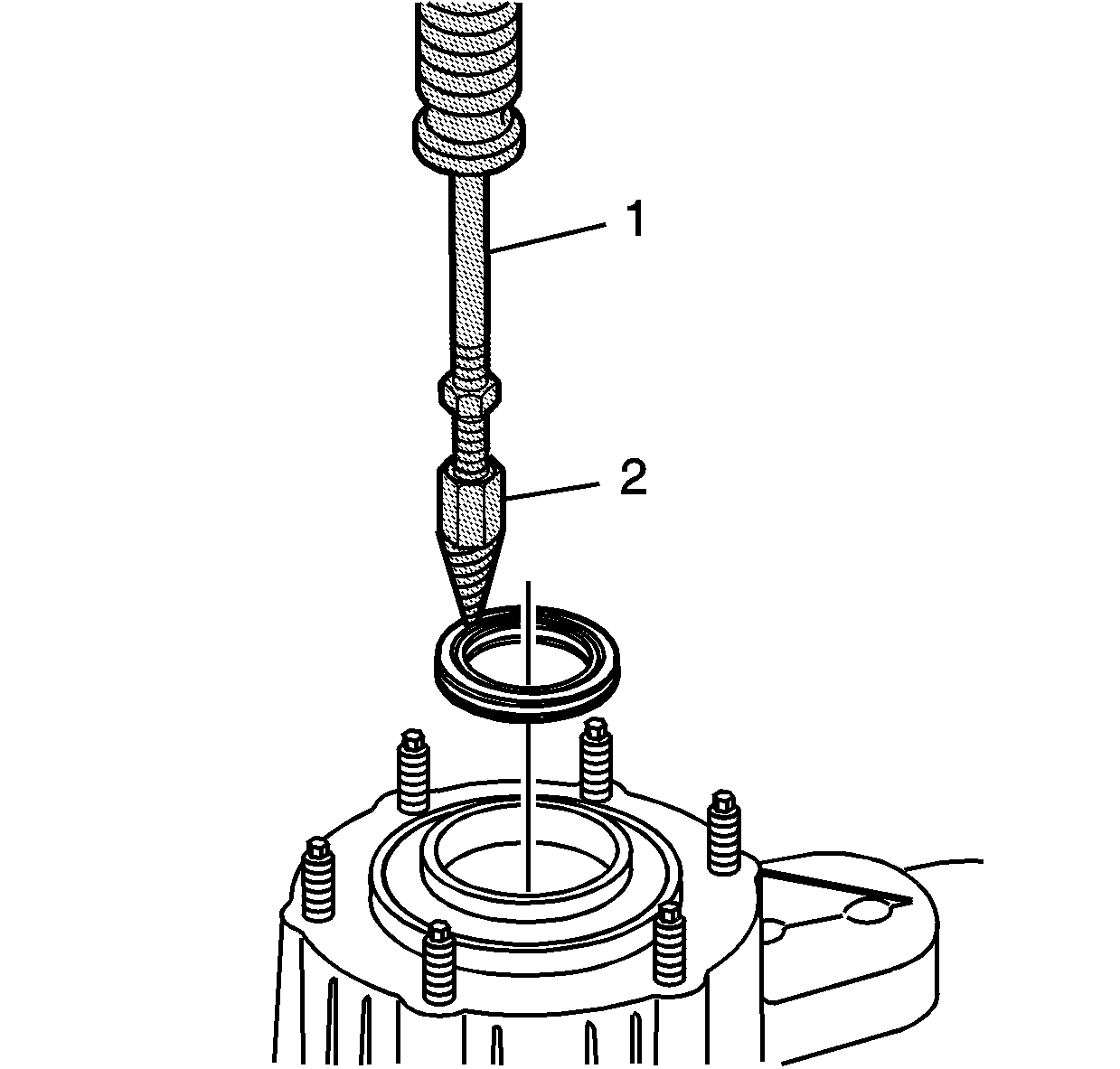

    3. Fig 1: Removing Input Shaft Seal Using J 23907 & J 36825
    GM819621Courtesy of GENERAL MOTORS CORP.
  3. Using the J 36825  remove the input shaft seal from the transfer case by threading the self tapping screw (2) into the seal. See Special Tools .
