Installation Procedure

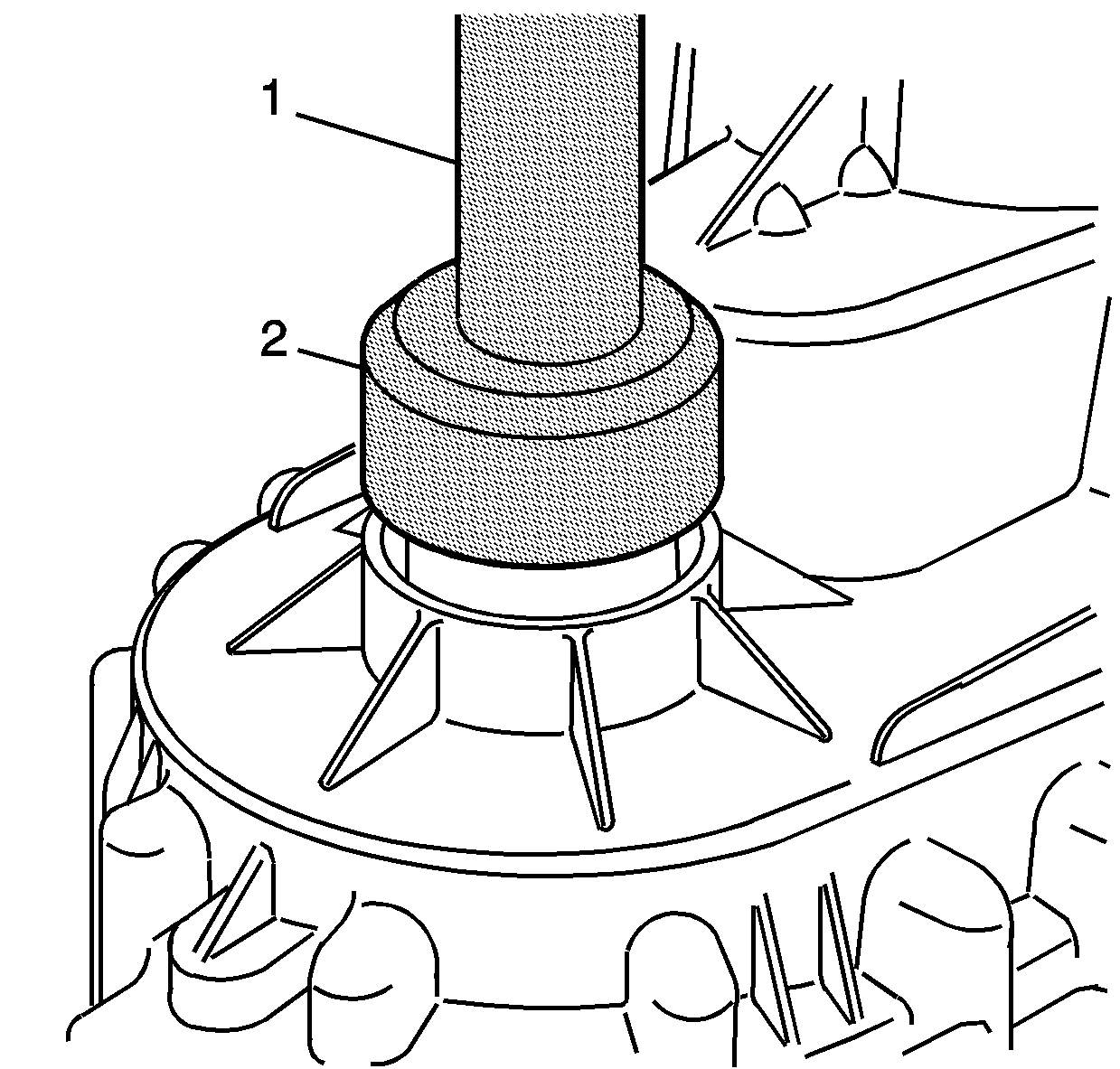

    Fig 1: Installing J 43484 To J 8092
    GM819655Courtesy of GENERAL MOTORS CORP.
  1. Using the J 43484  (2) and the J 8092  (1), install the transfer case output seal. See Special Tools .
  2. Install the front propeller shaft. Refer to Front Propeller Shaft Replacement .
  3. Check the transfer case fluid level. Refer to Transfer Case Fluid Replacement .
  4. Lower the vehicle. Refer to Lifting and Jacking the Vehicle .
