Right Side Steering Linkage

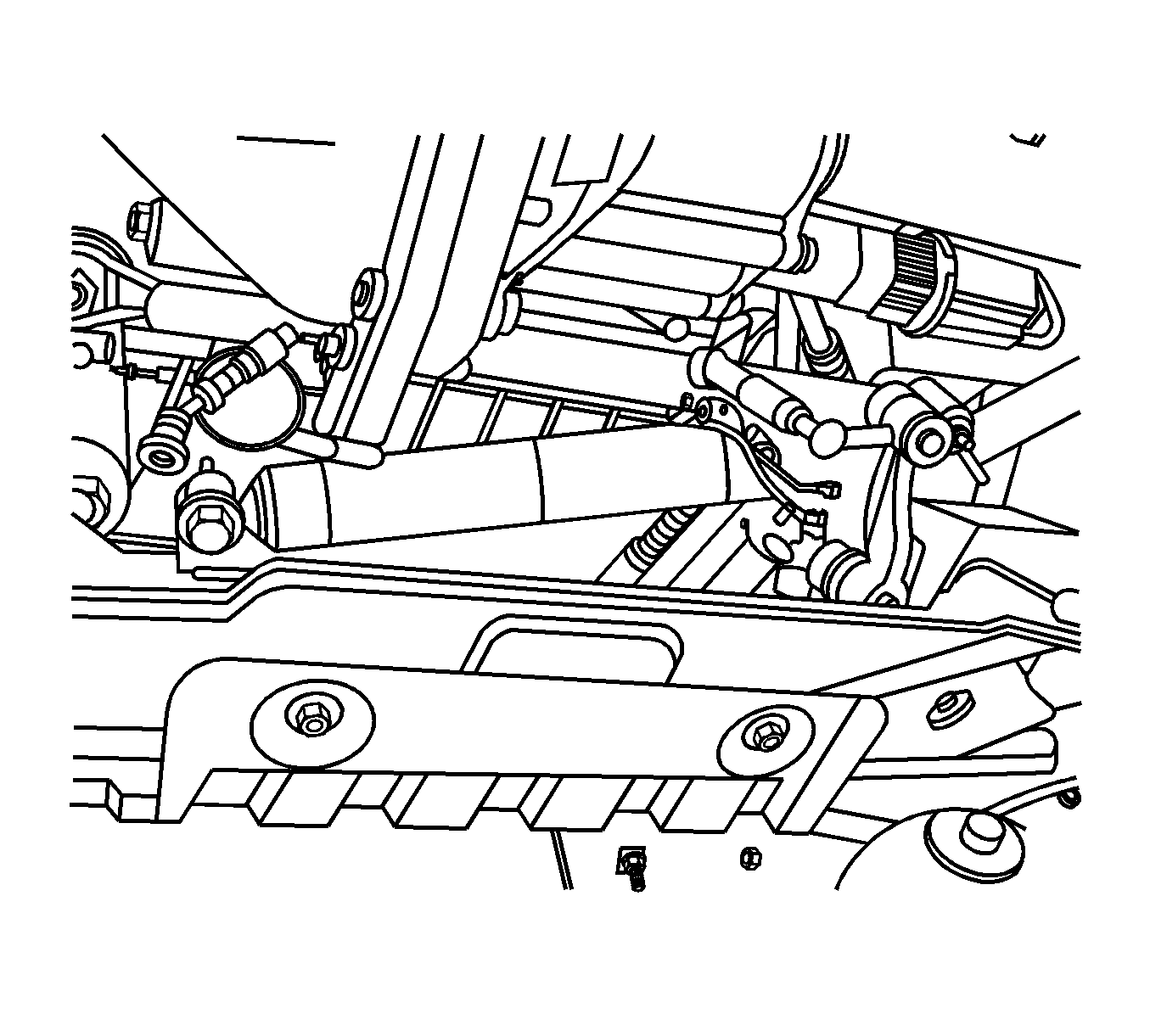

Fig 1: Elevating Right Front Of Vehicle

Courtesy of GENERAL MOTORS CORP.

Elevate the right front of vehicle and install a suitable vehicle support maintaining contact between the left front wheel and the shop floor.

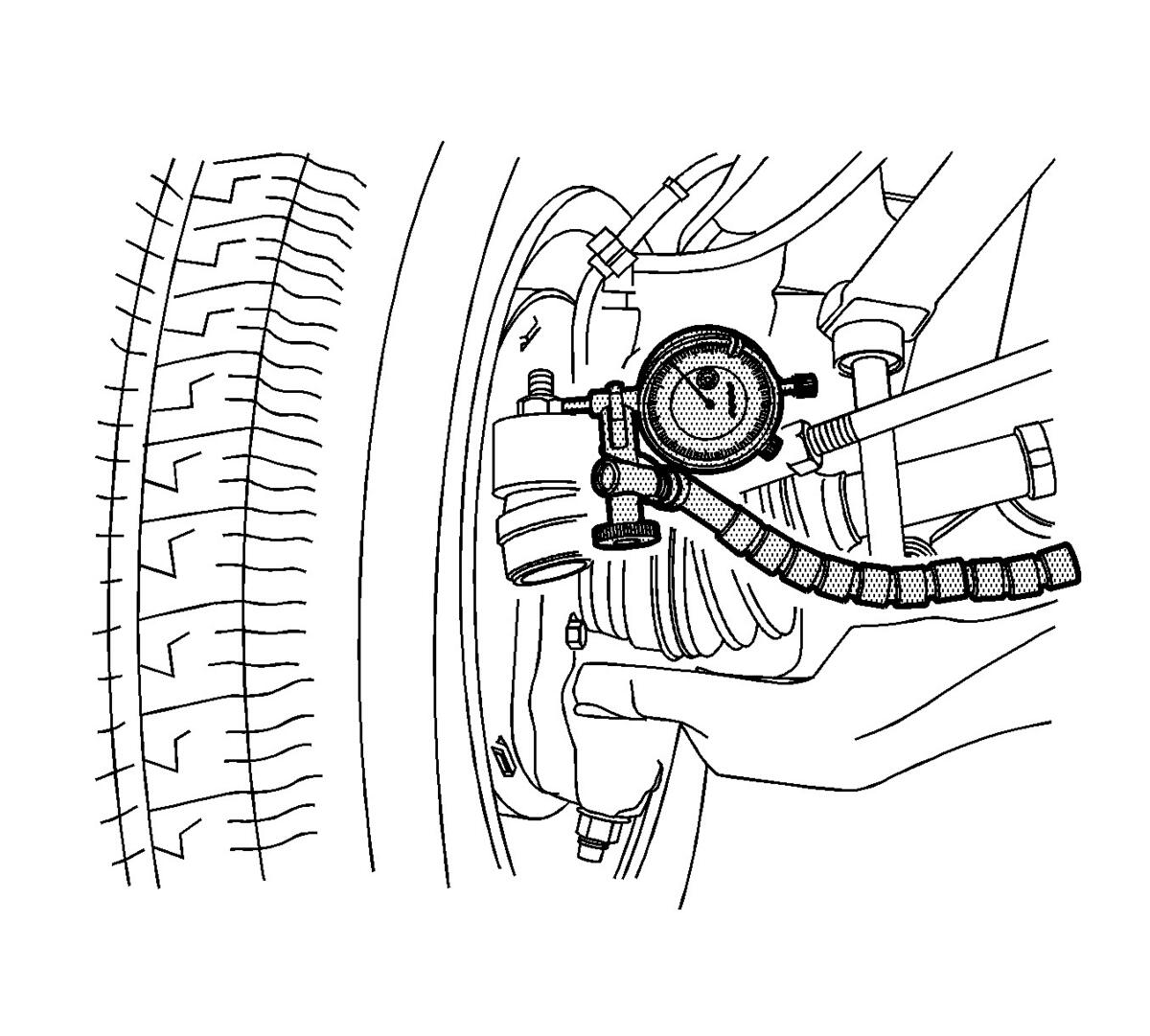

Fig 2: View Of Dial Indicator Between Outer Tie Rod And Steering Knuckle

Courtesy of GENERAL MOTORS CORP.

Install a dial indicator between the outer tie rod and the steering knuckle as shown and push inward to remove the lash slowly with one hand.

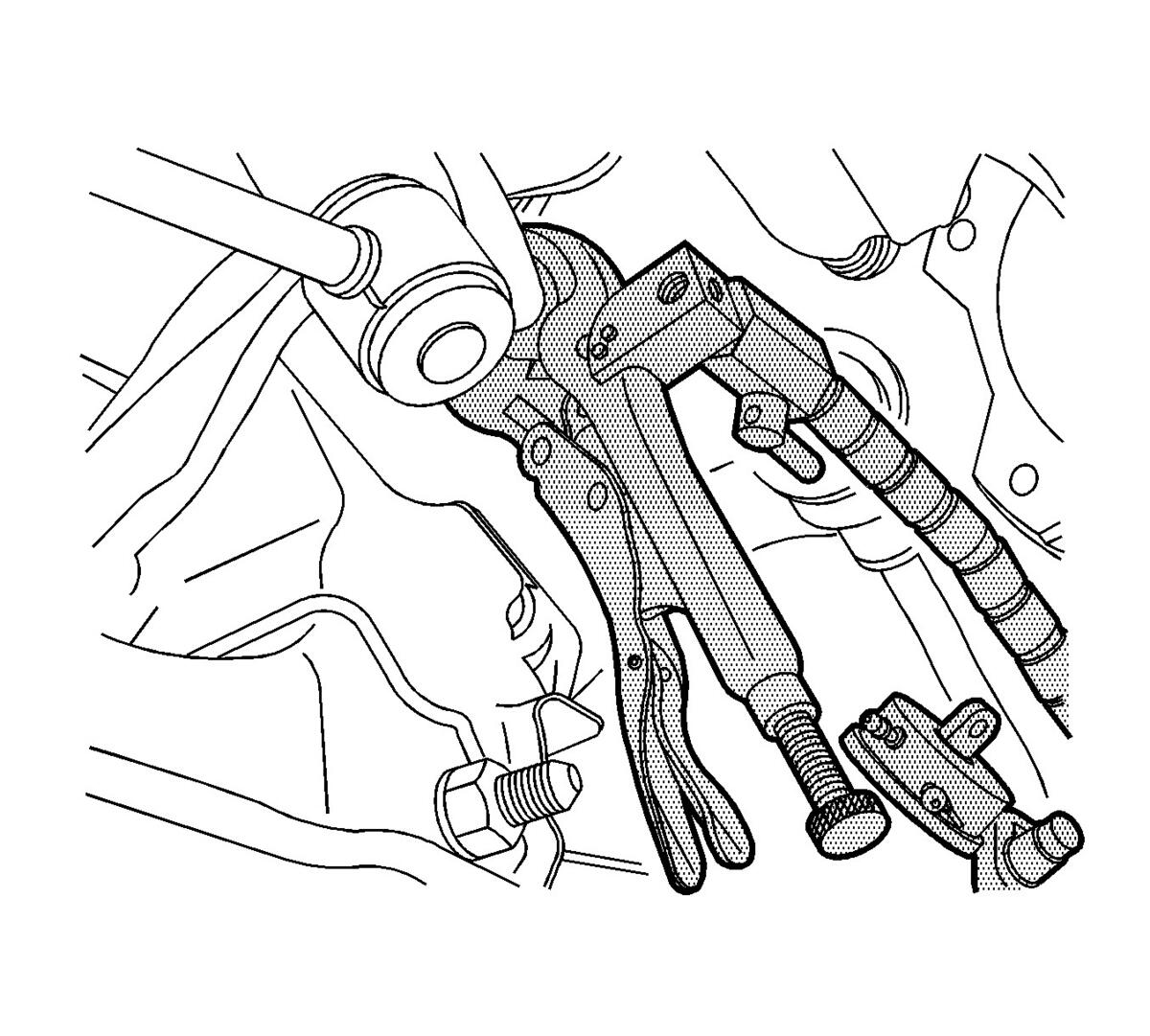

Fig 3: Noting Amount Of Movement In Joint

Courtesy of GENERAL MOTORS CORP.

Place the dial indicator at zero, pull outward, and note the amount of movement in the joint.
The movement should not exceed 1.0 mm (0.039 in).

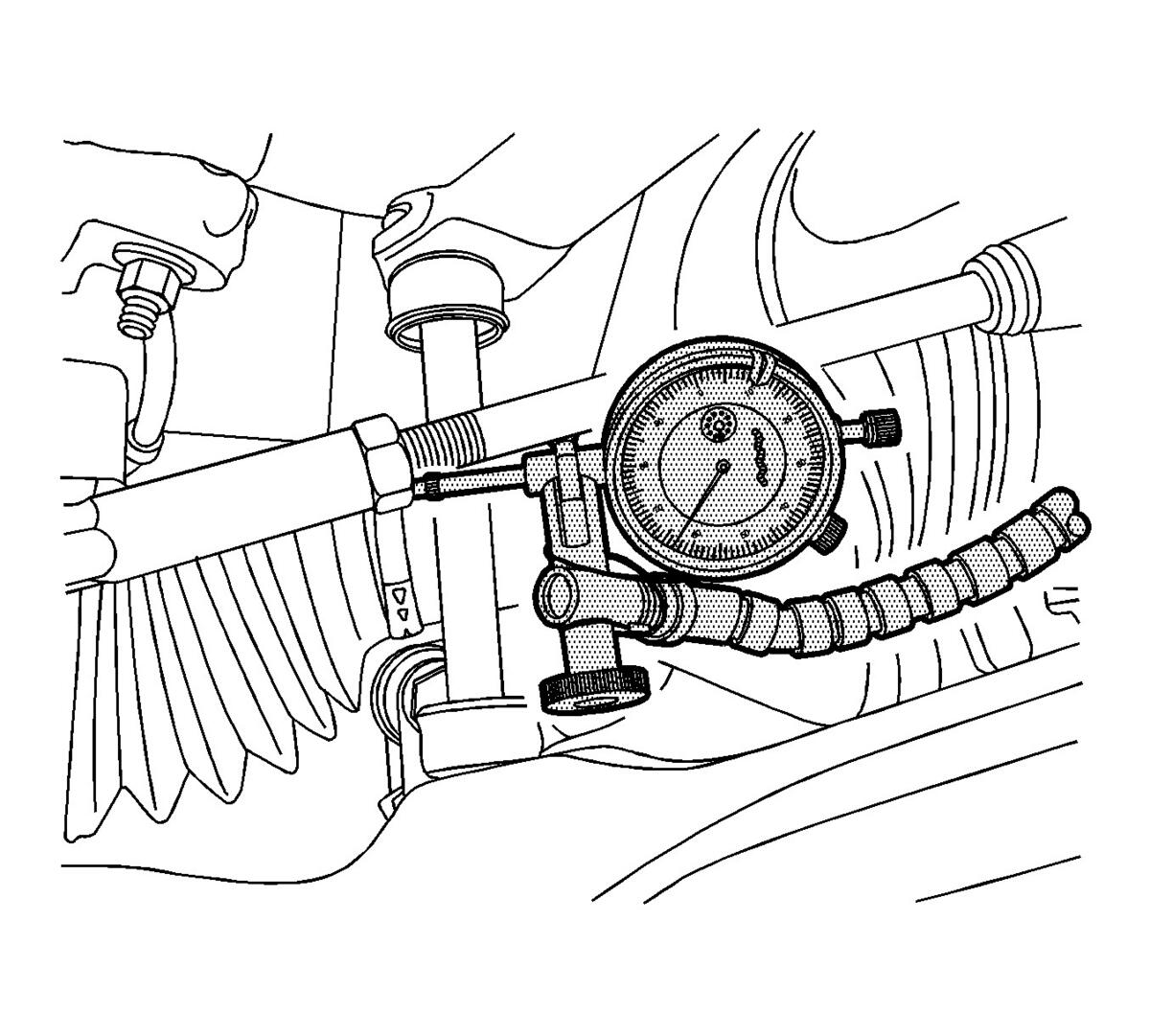

Fig 4: View Of Dial Indicator Between Outer Tie Rod End And Relay Rod

Courtesy of GENERAL MOTORS CORP.

Install the dial indicator between the outer tie rod end and the relay rod as shown and push inward to remove the lash slowly with one hand.

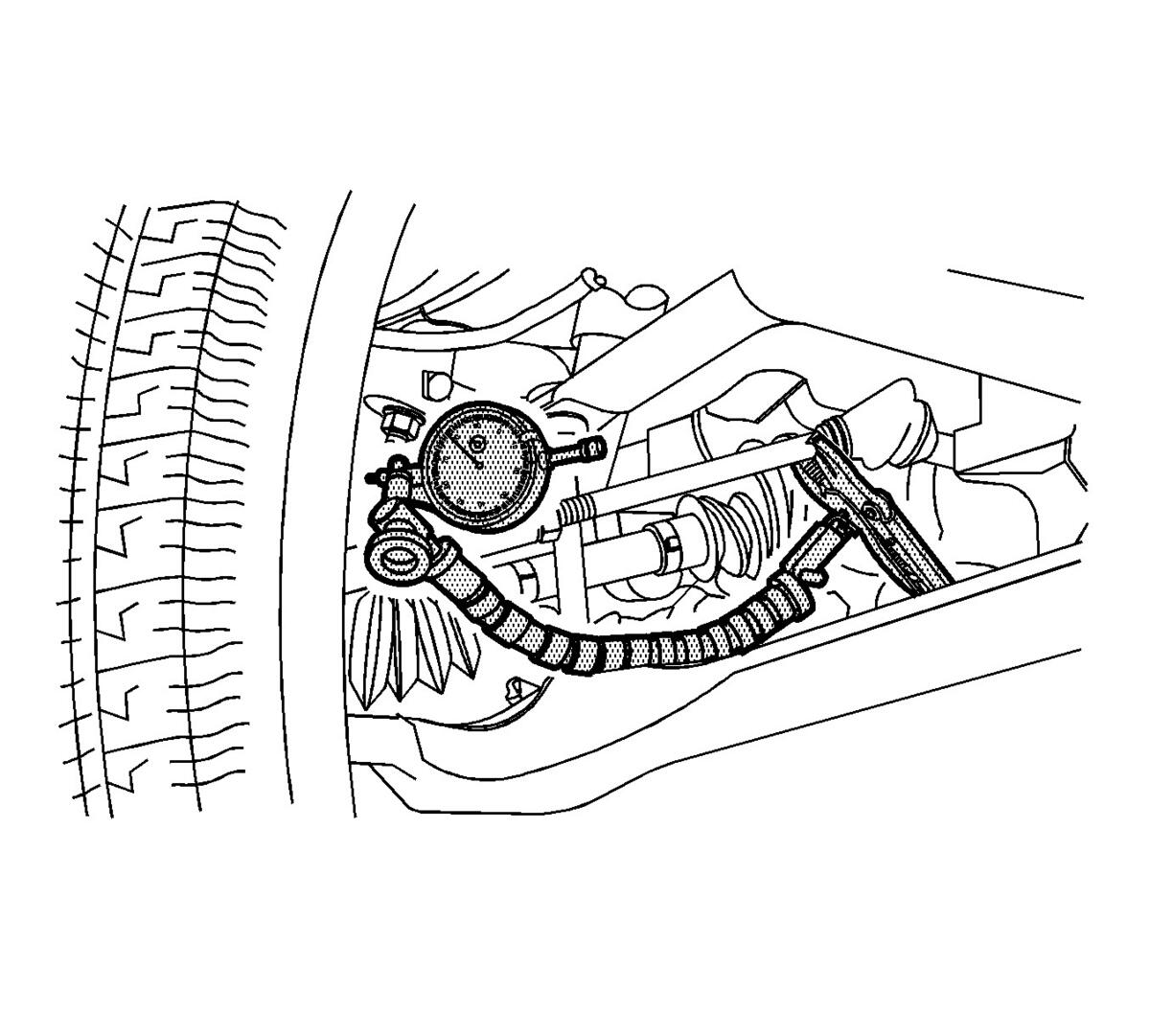

Fig 5: Noting Amount Of Movement In Right Side Tie Rod End

Courtesy of GENERAL MOTORS CORP.

Place the dial indicator at zero, pull outward, and note the amount of movement in the joint.
The movement should not exceed 1.0 mm (0.039 in).
