Steering Wheel Theft Deterrent Lock Replacement

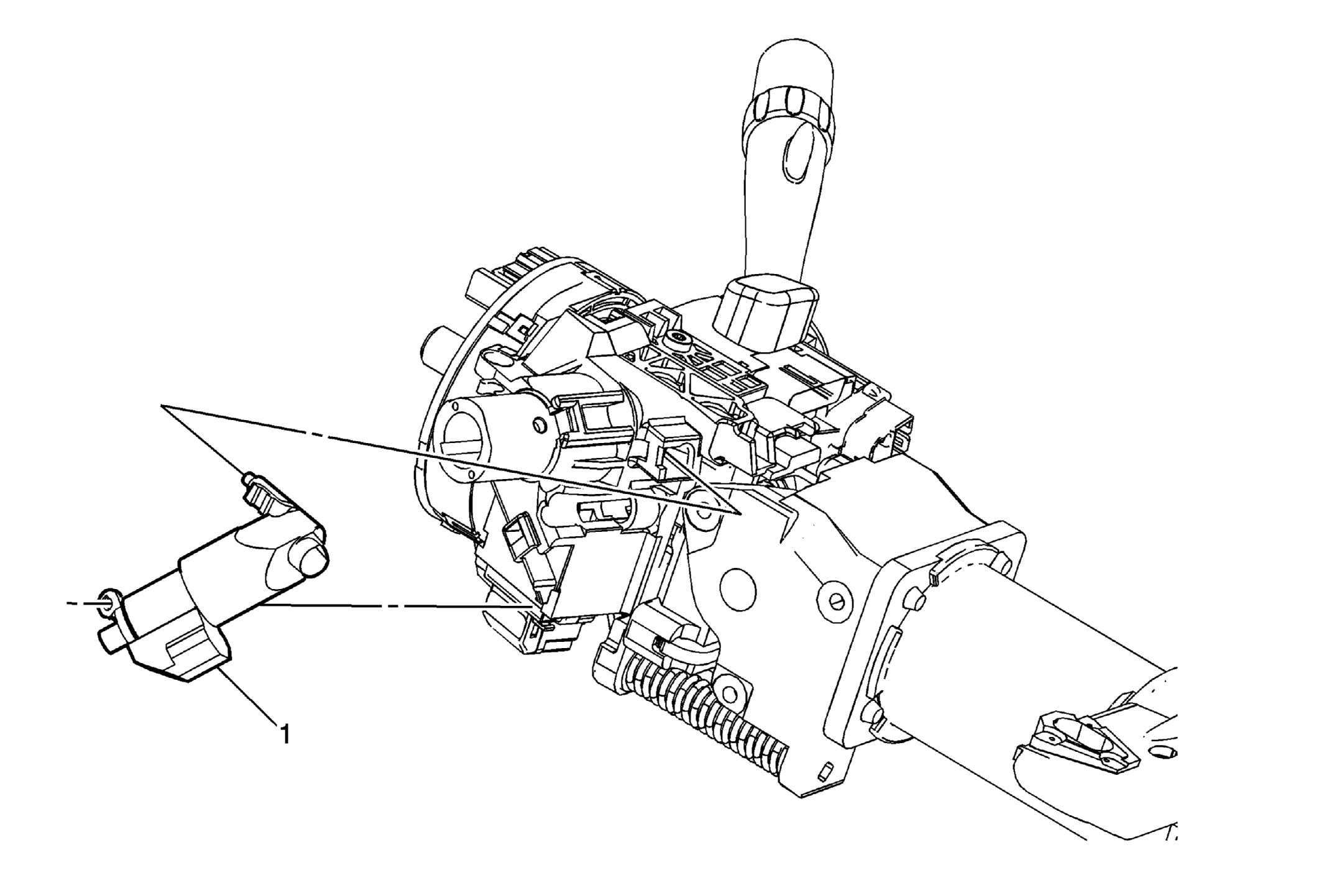

Fig 1: Steering Wheel Theft Deterrent Lock

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the theft deterrent module. Refer to Theft Deterrent Module Replacement .
1	Steering Wheel Theft Deterrent Lock Procedure Disconnect any electrical connectors as needed. Release the steering wheel theft deterrent lock tab using the appropriate tool to remove it from the ignition lock cylinder case.

Callout

Component Name

Preliminary Procedure:
Remove the theft deterrent module. Refer to Theft Deterrent Module Replacement .

Steering Wheel Theft Deterrent Lock

Procedure

Disconnect any electrical connectors as needed.
Release the steering wheel theft deterrent lock tab using the appropriate tool to remove it from the ignition lock cylinder case.
