Steering Shaft Coupling Replacement

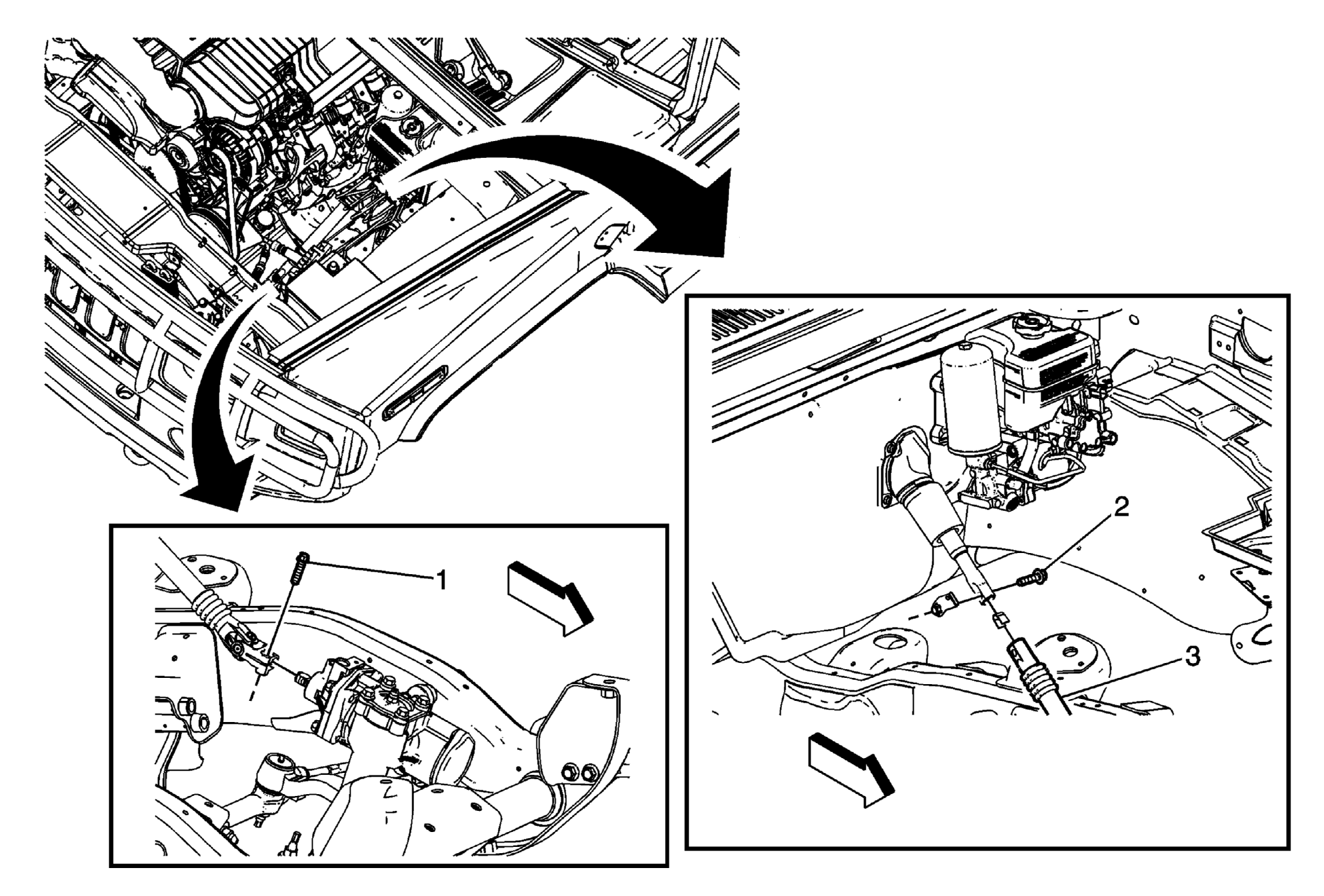

| Callout | Component Name |
|---|---|
|
NOTE:
Secure the steering wheel utilizing a strap to prevent rotation. Locking of the steering column will prevent damage and a possible malfunction of the SIR system. The steering wheel must be secured in position before disconnecting the following components: Preliminary Procedure: Turn the wheels of the vehicle straight ahead and install anti-rotation pin J 42640
into the steering column shroud access hole.
After disconnecting these components, do not move the front tires and wheels. Failure to follow these procedures may cause improper alignment of some components during installation and result in possible damage to the SIR coil. |
|
| 1 | Steering Shaft Coupling Bolt
NOTE:
Refer to Fastener Notice
. Tip: Place scribe marks on the steering shaft coupling and the steering gear prior to removal. These marks will be used for the correct alignment during installation Tighten: 47 N.m (35 lb ft) |
| 2 | Steering Shaft Coupling Bolt Tip: Place scribe marks on the steering shaft coupling and the upper intermediate steering shaft prior to removal. These marks will be used for the correct alignment during installation Tighten: 50 N.m (37 lb ft) |
| 3 | Steering Shaft Coupling Tip: If a new steering shaft coupling is being installed then transfer the position of the alignment marks from the old component to the same locations on the new component. Failure to transfer the alignment marks may result in an off-center steering wheel after installation. Special Tools: J 42640 Steering Column Anti-Rotation Pin |
