Seat Belt Retractor Replacement - No. 2 Rear

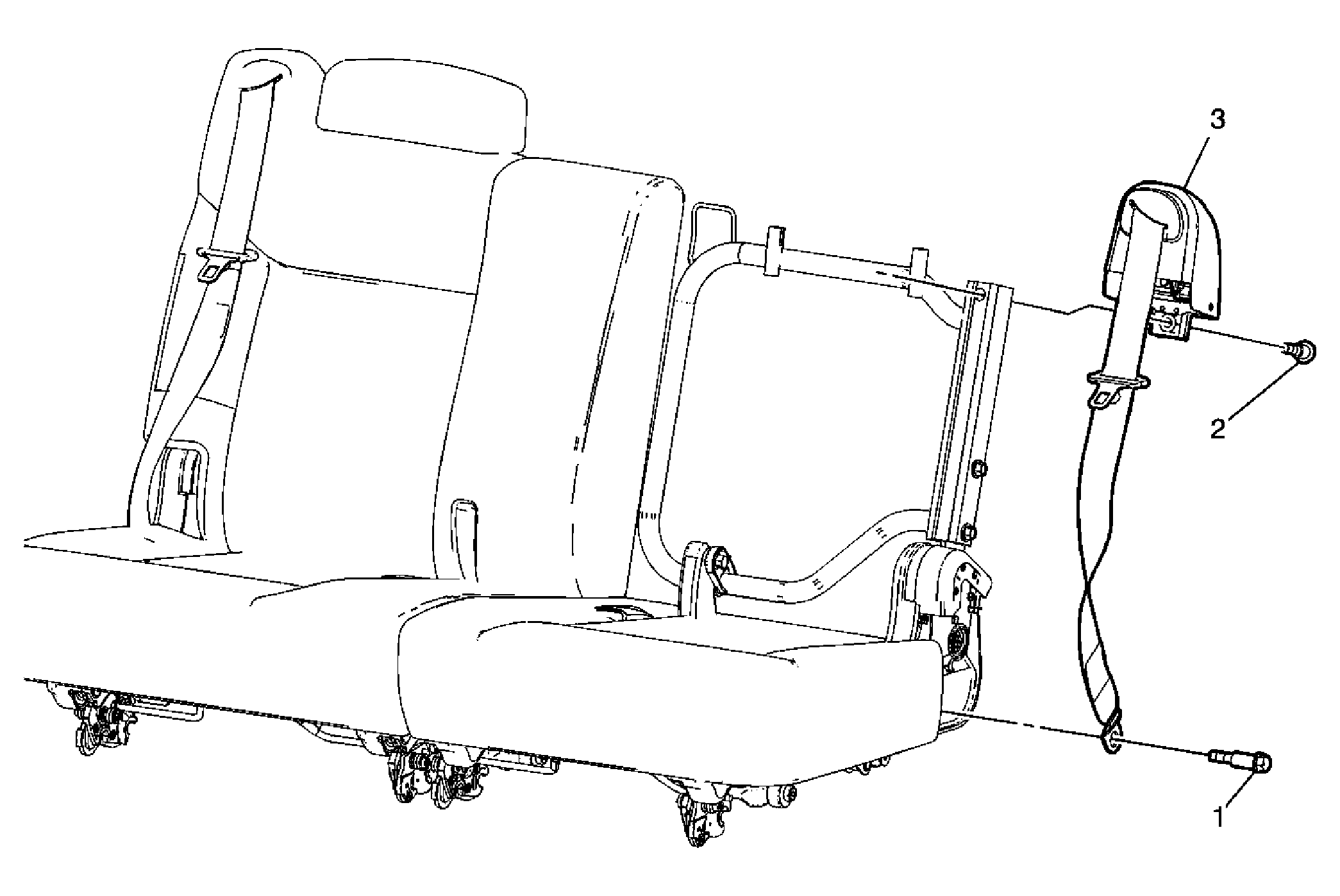

Fig 1: Identifying Seat Belt Retractor Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear seat number 2. Refer to Rear Number 2 Seat Replacement . Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement .
1	Rear Seat Belt Anchor Plate Bolt NOTE: Refer to Fastener Notice . Tighten: 55 N.m (41 lb ft)
2	Rear Seat Belt Retractor Nut Tighten: 55 N.m (41 lb ft)
3	Rear Seat Belt Center Retractor Assembly
