Rear Seat Number 2 Belt Buckle Replacement

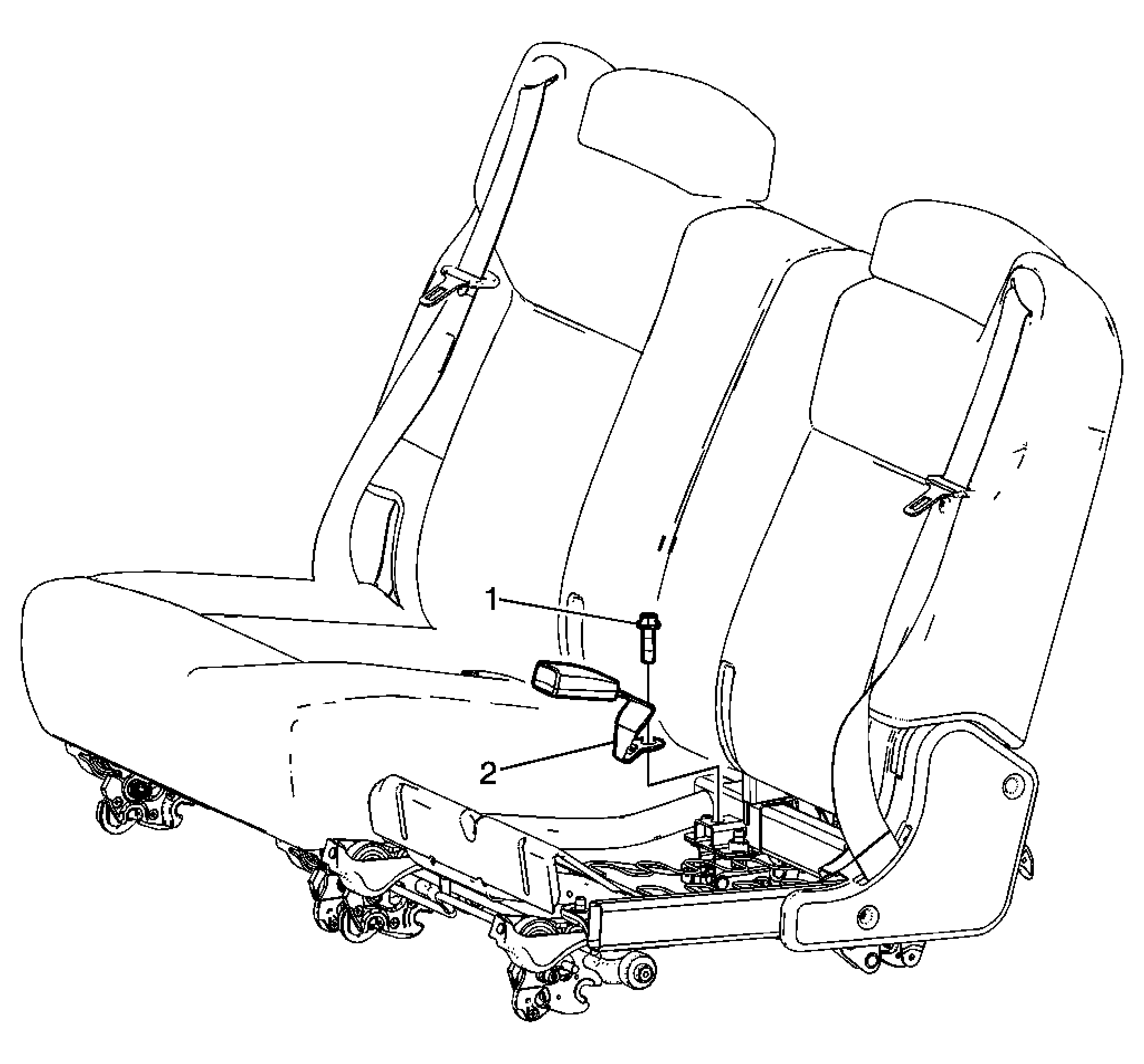

Fig 1: Identifying Bolt For Rear Seat Number 2 Belt Buckle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear seat number 2. Refer to Rear Number 2 Seat Replacement . Remove the rear seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement .
1	Rear Seat Belt Buckle Bolt NOTE: Refer to Fastener Notice . Tighten: 55 N.m (41 lb ft)
2	Rear Seat Belt Buckle

Callout

Component Name

Preliminary Procedures

Remove the rear seat number 2. Refer to Rear Number 2 Seat Replacement .
Remove the rear seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement .

Rear Seat Belt Buckle Bolt

NOTE: Refer to Fastener Notice .

Tighten: 55 N.m (41 lb ft)

Rear Seat Belt Buckle
