Rear Seat Belt Buckle Replacement

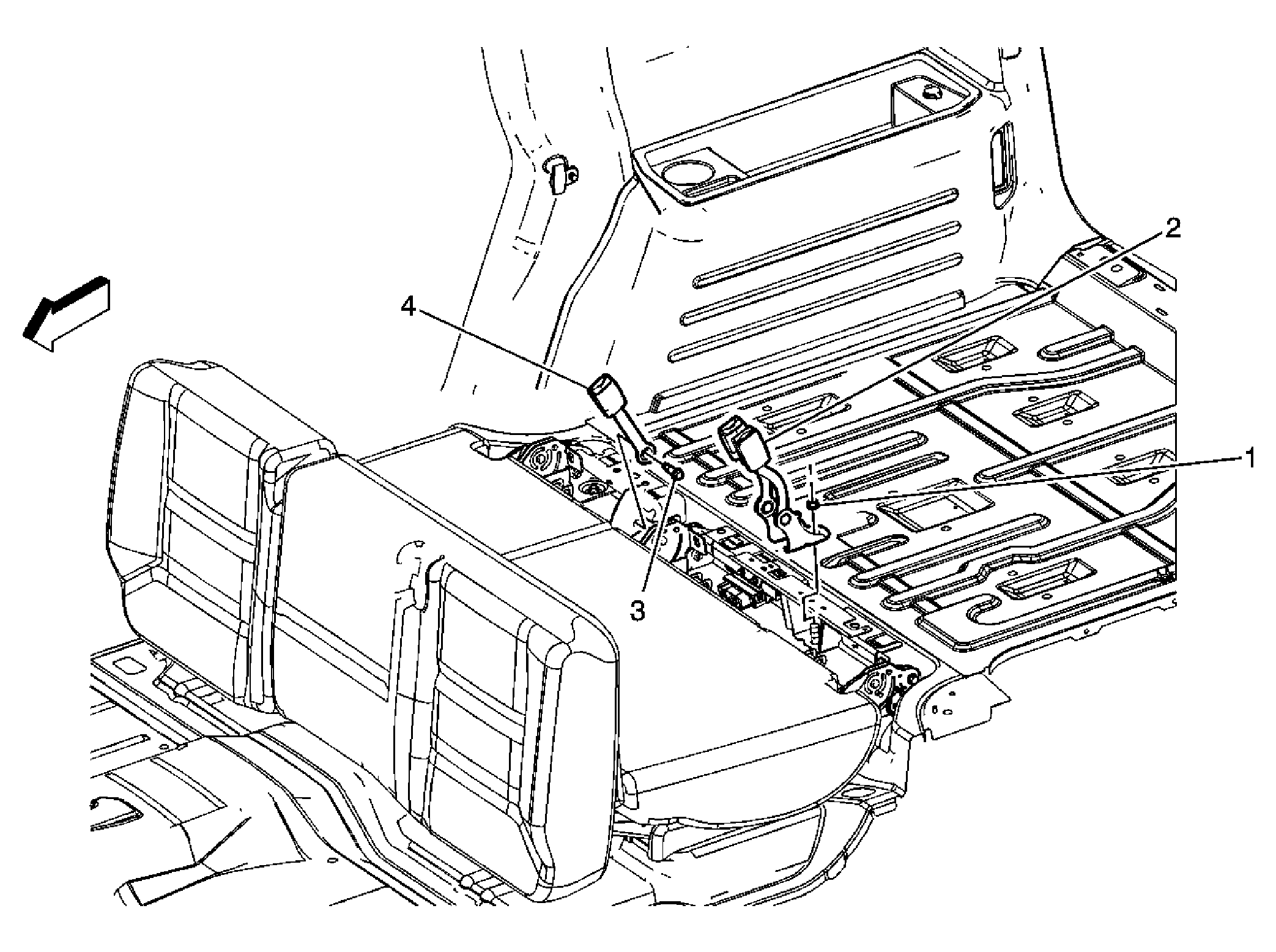

Fig 1: Identifying Bolts For Rear Seat Belt Buckle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Fold the rear seat forward. Remove the rear seat cushion latch covers by pulling upward to disengage the retainers.
1	Rear Seat Belt Buckle Nut NOTE: Refer to Fastener Notice . Tighten: 55 N.m (41 lb ft)
2	Rear Seat Belt Buckle Assembly
3	Rear Seat Belt Buckle Bolt Tighten: 55 N.m (41 lb ft)
4	Rear Seat Belt Buckle Assembly
