SIR Schematics

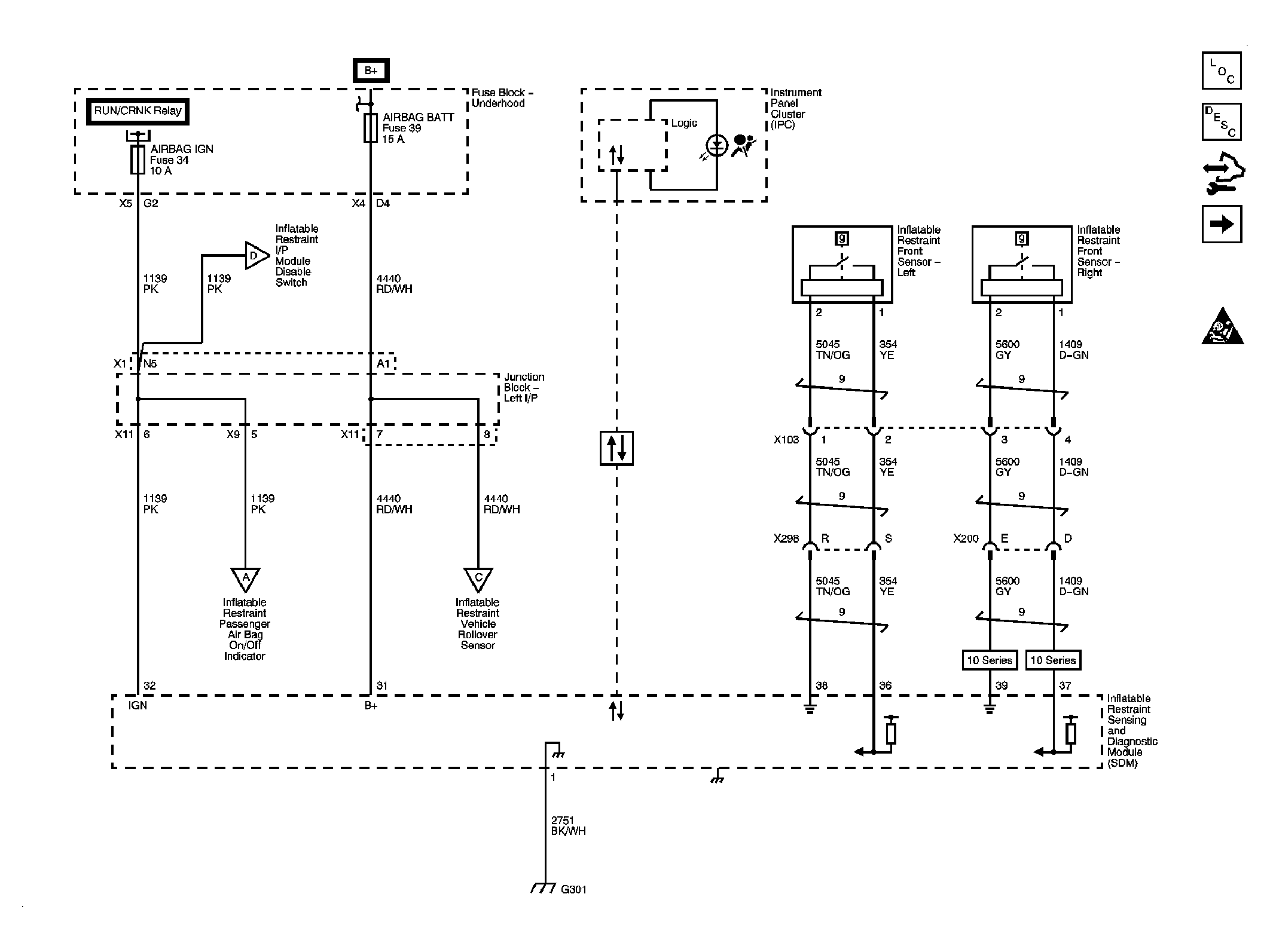

Fig 1: Module Power, Ground, Serial Data and Front Sensors
GM1961098Courtesy of GENERAL MOTORS CORP.
Fig 2: Steering Wheel and I/P Module
GM1961099Courtesy of GENERAL MOTORS CORP.

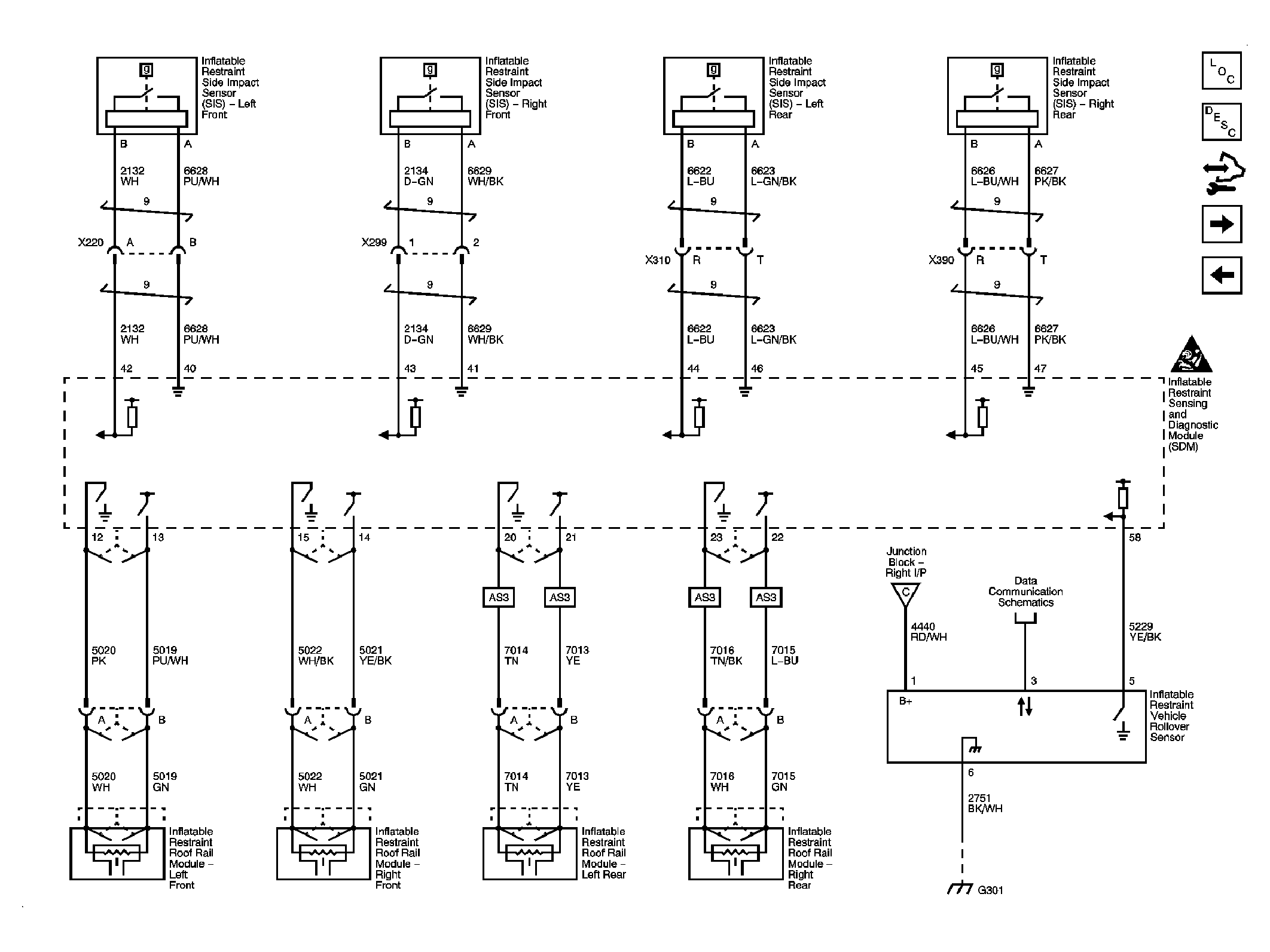

Fig 3: Side Impact Modules and Sensors
GM1961103Courtesy of GENERAL MOTORS CORP.

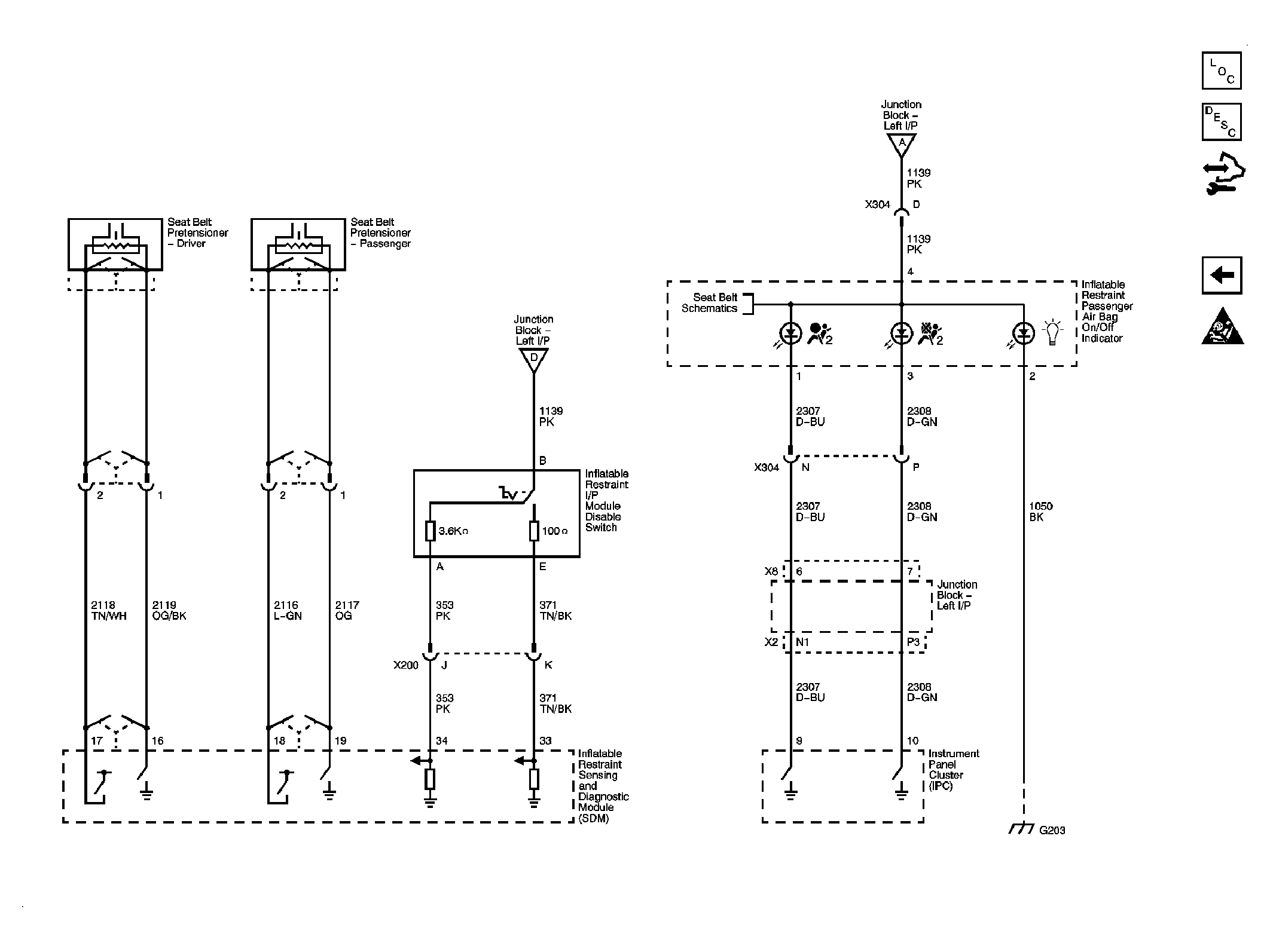

Fig 4: Seat Belt Pretensioners and Air Bag Indicator
GM1961115Courtesy of GENERAL MOTORS CORP.
