Auxiliary Air Conditioning Evaporator Tube Replacement

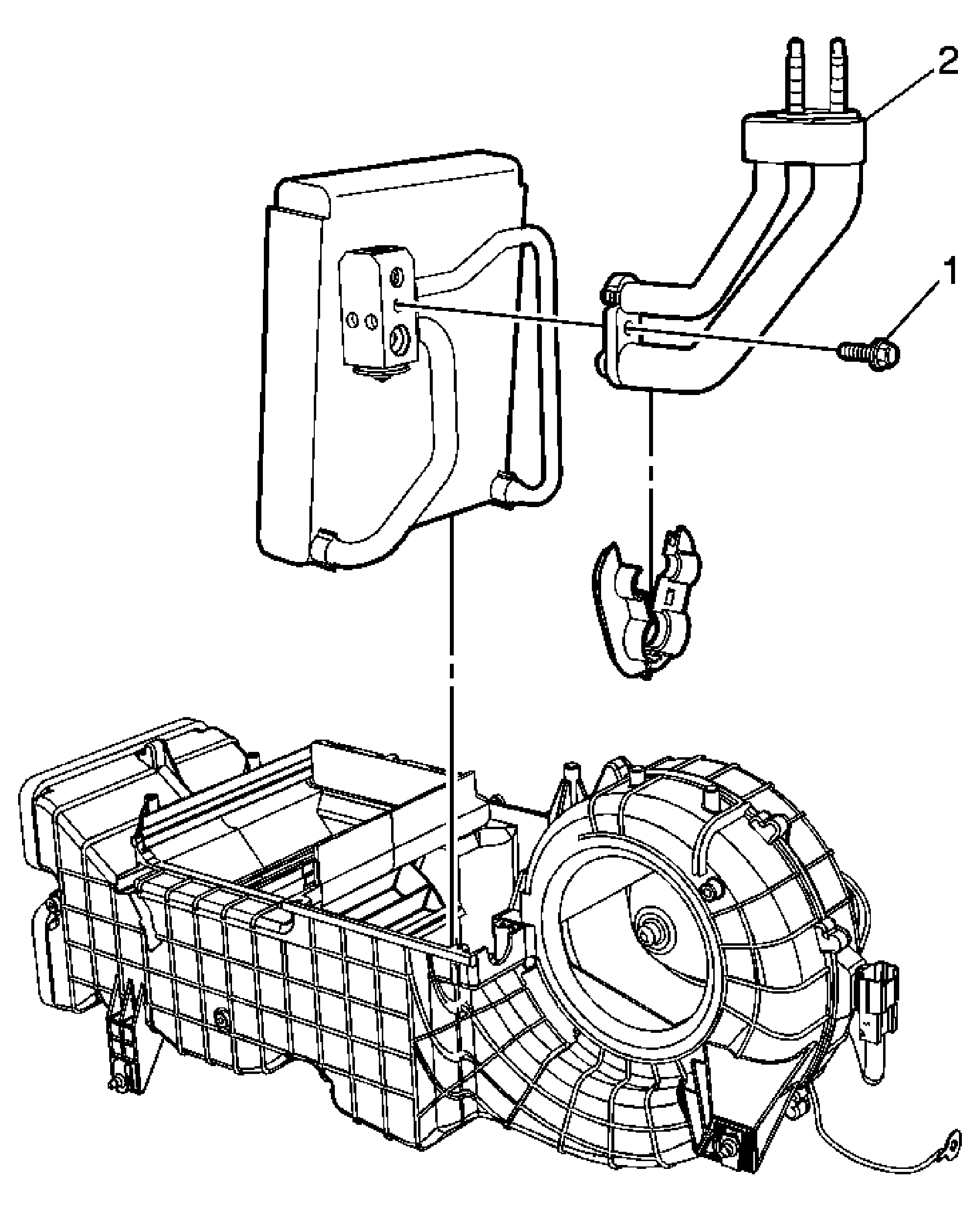

Fig 1: Auxiliary Air Conditioning Evaporator Tube

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the auxiliary evaporator core. Refer to Auxiliary Air Conditioning Evaporator Replacement . Disconnect any wiring connectors.
1	Auxiliary A/C Evaporator Outlet Tube Bolt NOTE: Refer to Fastener Notice . Tighten: 4 N.m (35 lb in)
2	Auxiliary A/C Evaporator Outlet Tube Tip: Ensure new O-rings are used upon installation.

Callout

Component Name

Preliminary Procedure

Remove the auxiliary evaporator core. Refer to Auxiliary Air Conditioning Evaporator Replacement .
Disconnect any wiring connectors.

Auxiliary A/C Evaporator Outlet Tube Bolt

NOTE: Refer to Fastener Notice .

Tighten: 4 N.m (35 lb in)

Auxiliary A/C Evaporator Outlet Tube
Tip: Ensure new O-rings are used upon installation.
