HVAC Schematics

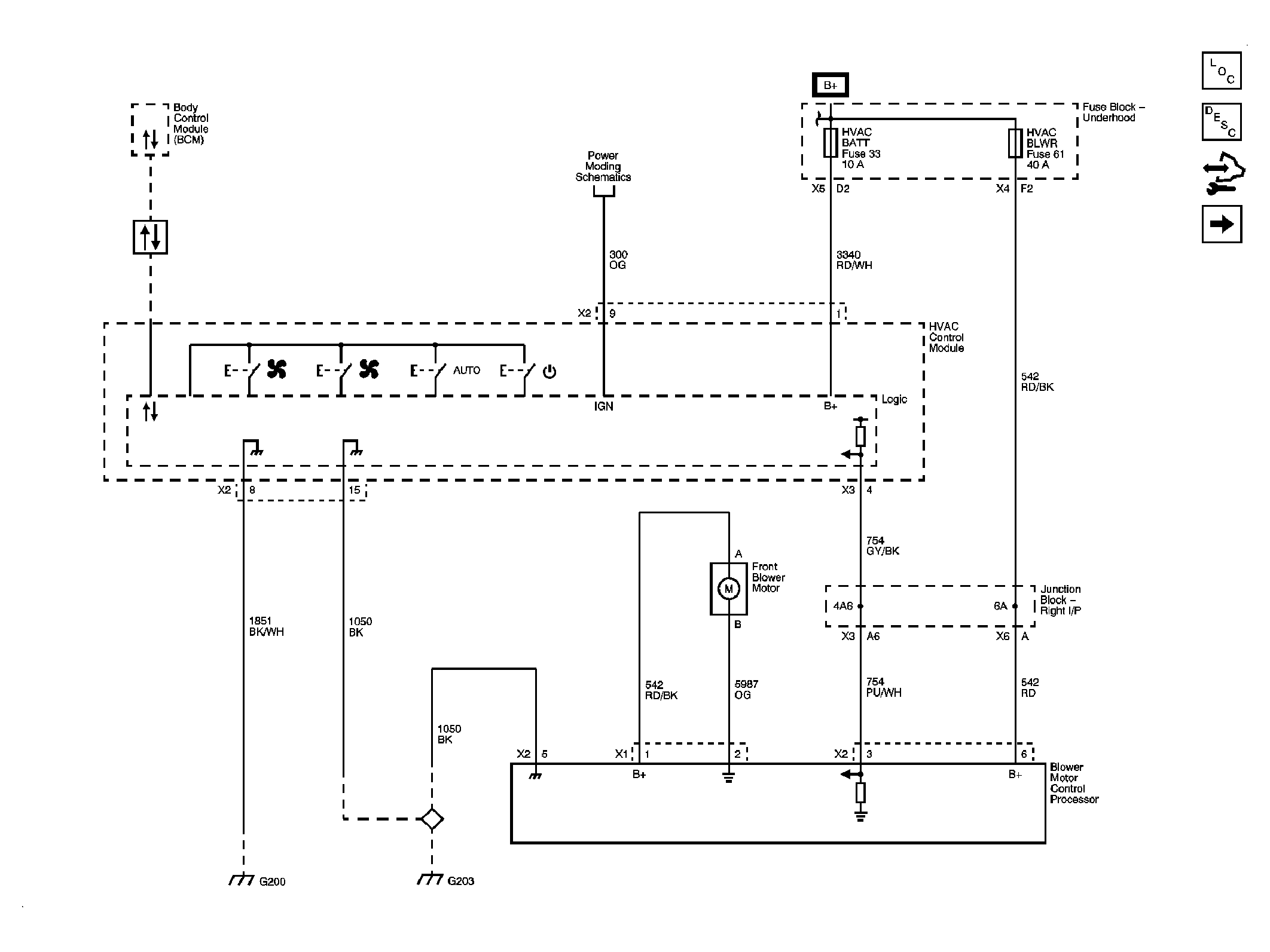

Fig 1: Module Power, Ground, Serial Data and Blower Controls
GM1960980Courtesy of GENERAL MOTORS CORP.

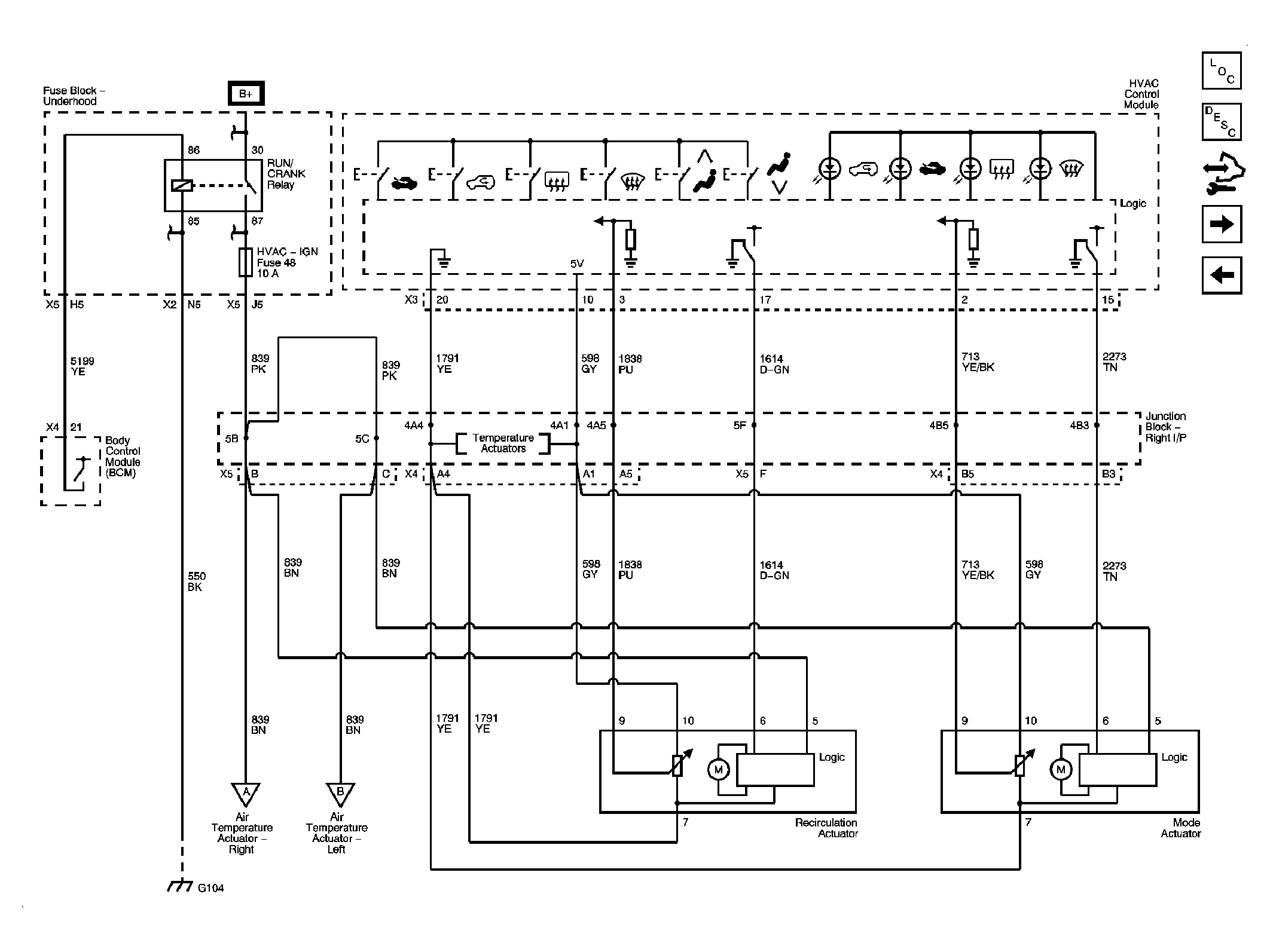

Fig 2: Mode Controls
GM1960984Courtesy of GENERAL MOTORS CORP.

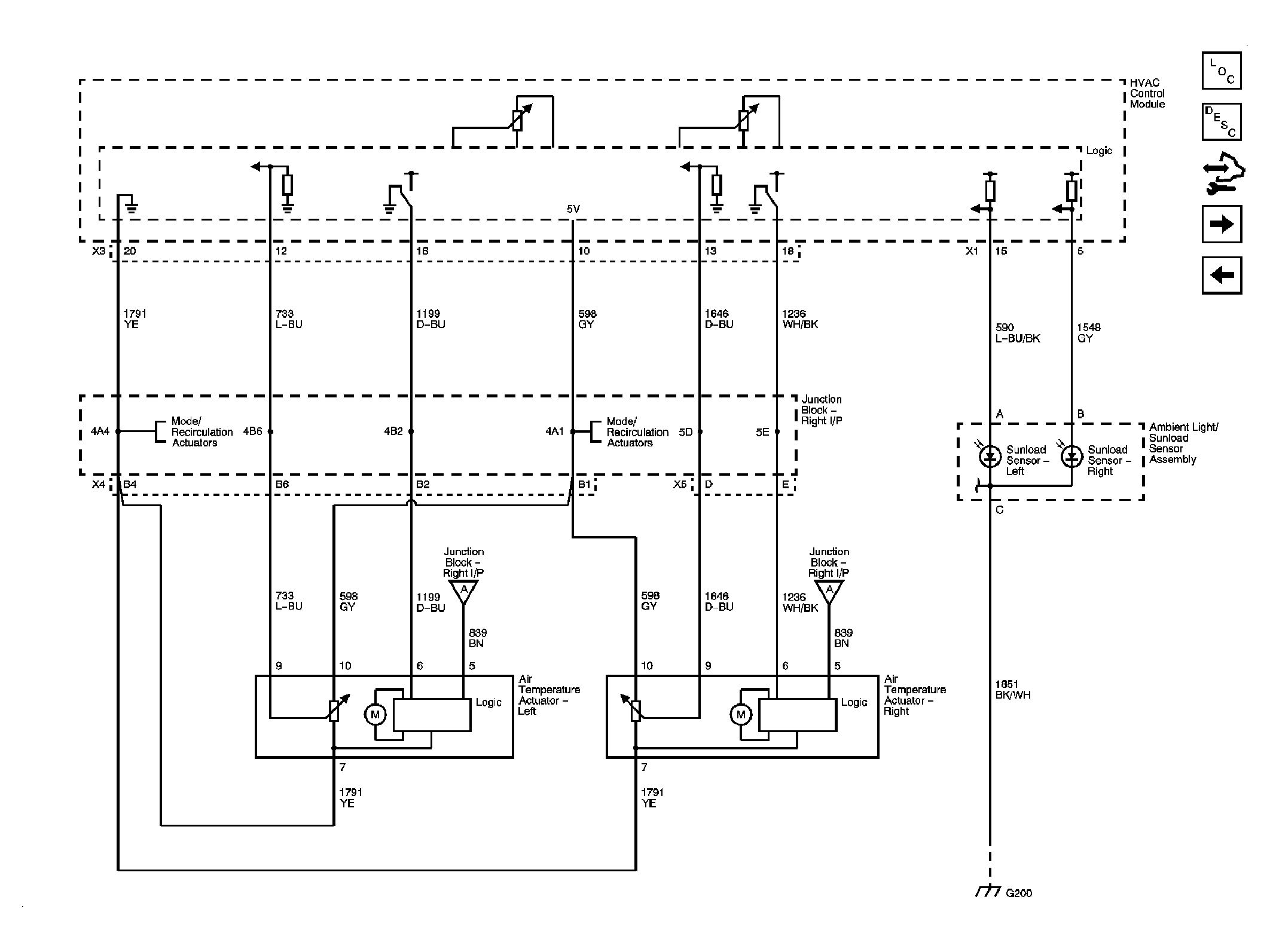

Fig 3: Temperature Controls
GM1960985Courtesy of GENERAL MOTORS CORP.

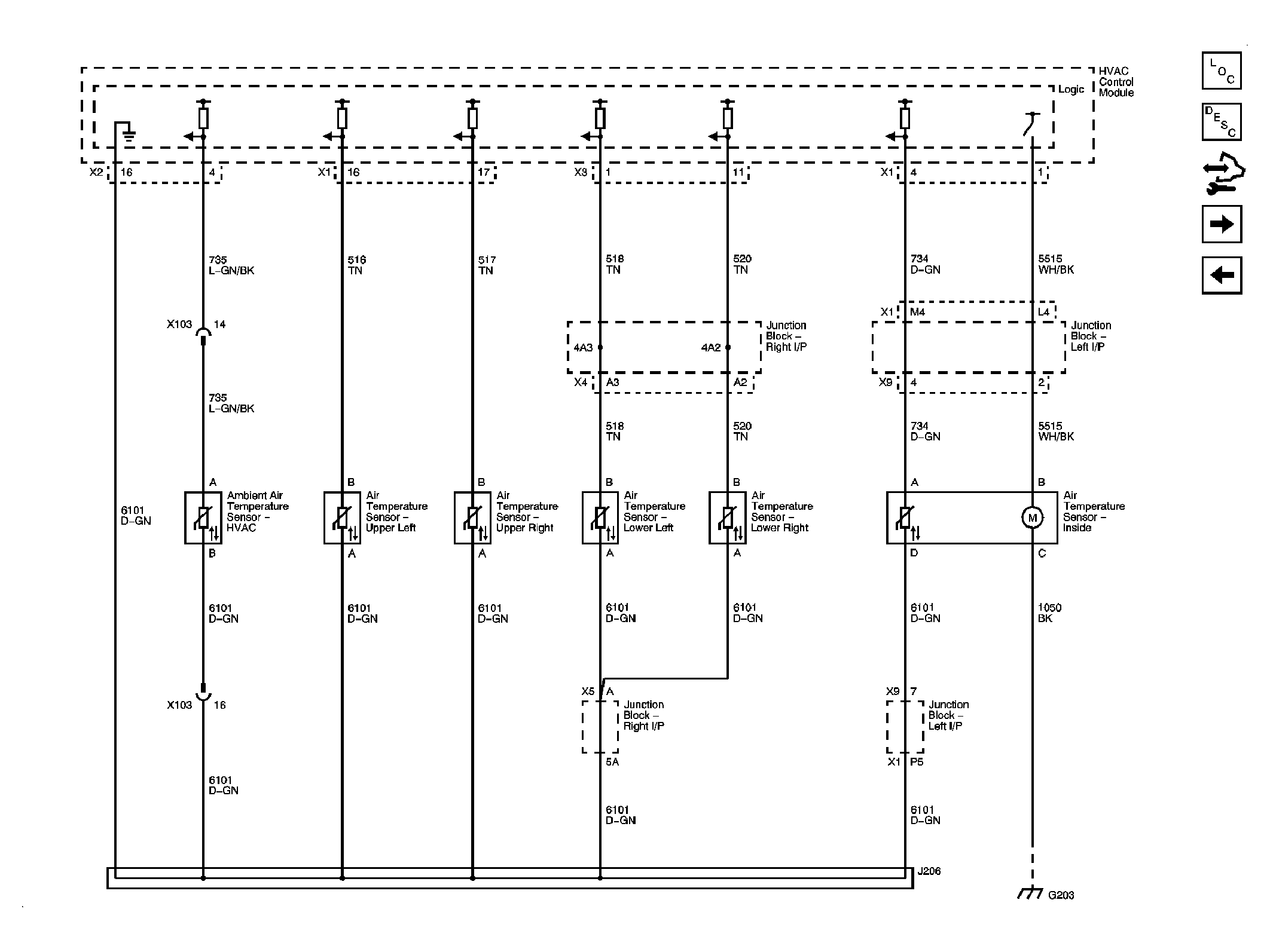

Fig 4: Temperature Sensors
GM1960990Courtesy of GENERAL MOTORS CORP.
Fig 5: A/C Compressor Controls
GM1960992Courtesy of GENERAL MOTORS CORP.
