Ambient Air Temperature Sensor Replacement

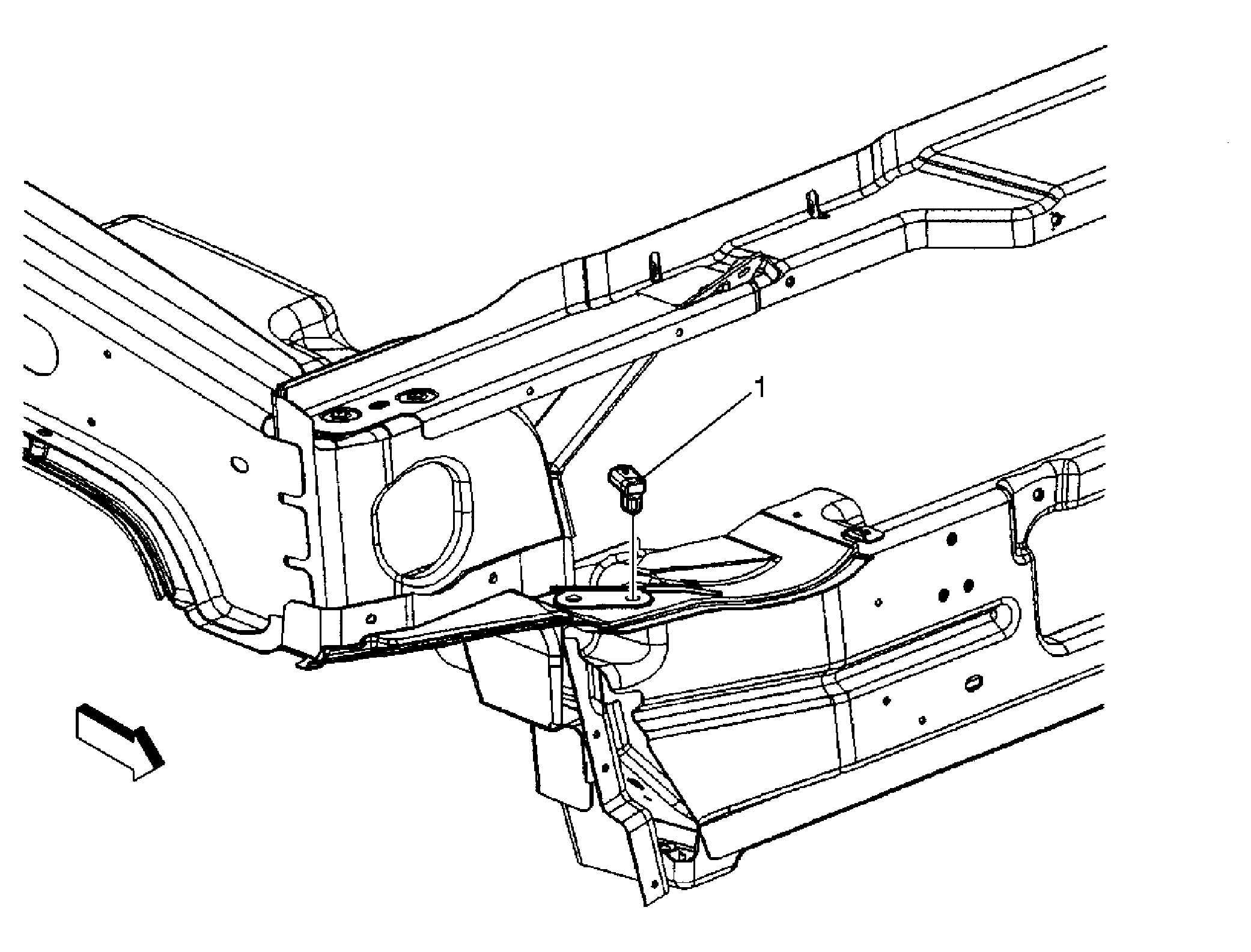

Fig 1: Locating Ambient Air Temperature Sensor
GM1990569Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the Grille Refer to Grille Replacement .
1 Ambient Air Temperature Sensor.
Procedure:
Disconnect electrical connector.
