Trailer Connector/Provision Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

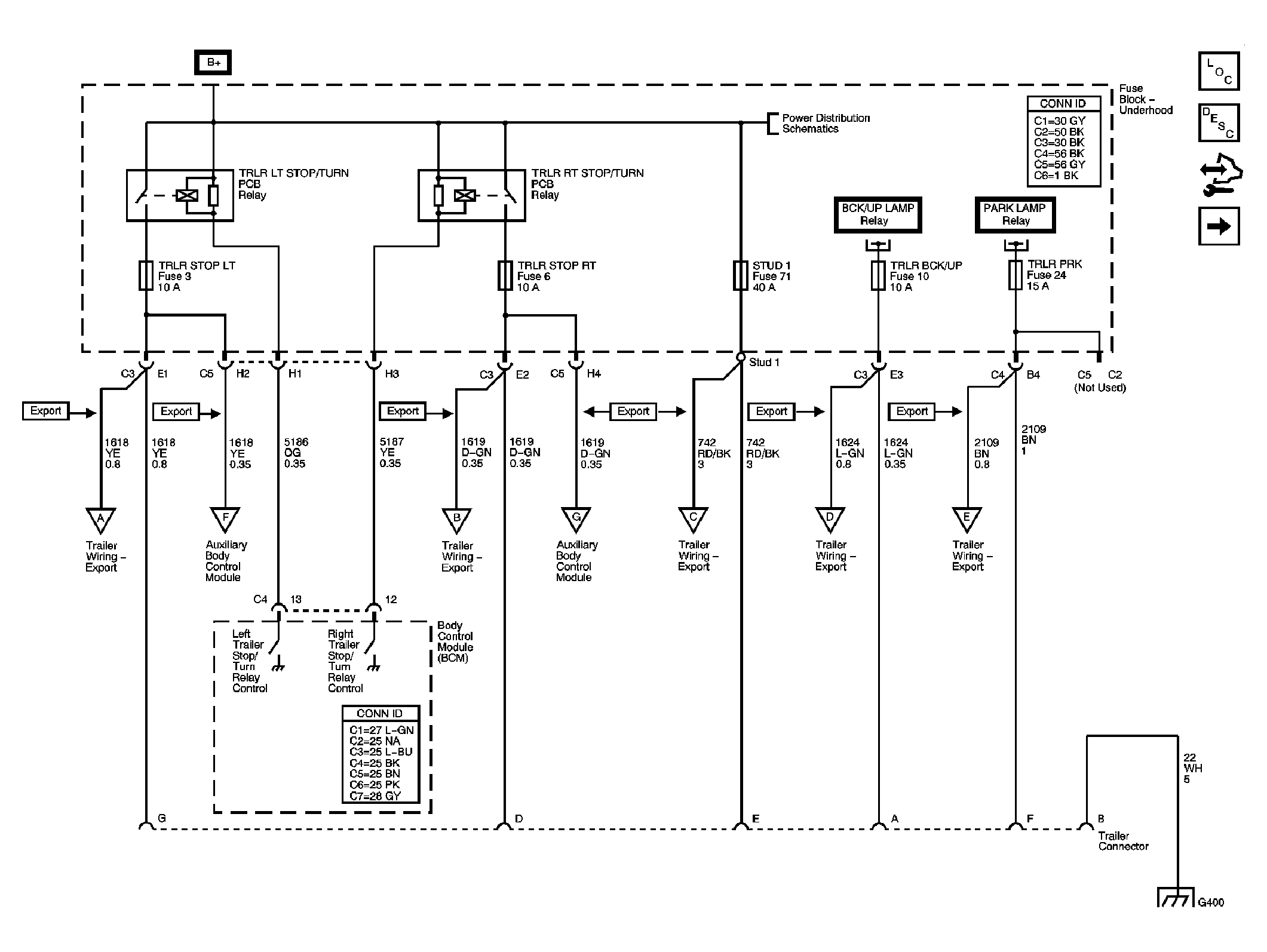

Fig 1: Trailer Lighting Control - Export 1 of 2 & all Domestic Schematic
GM1762153Courtesy of GENERAL MOTORS CORP.

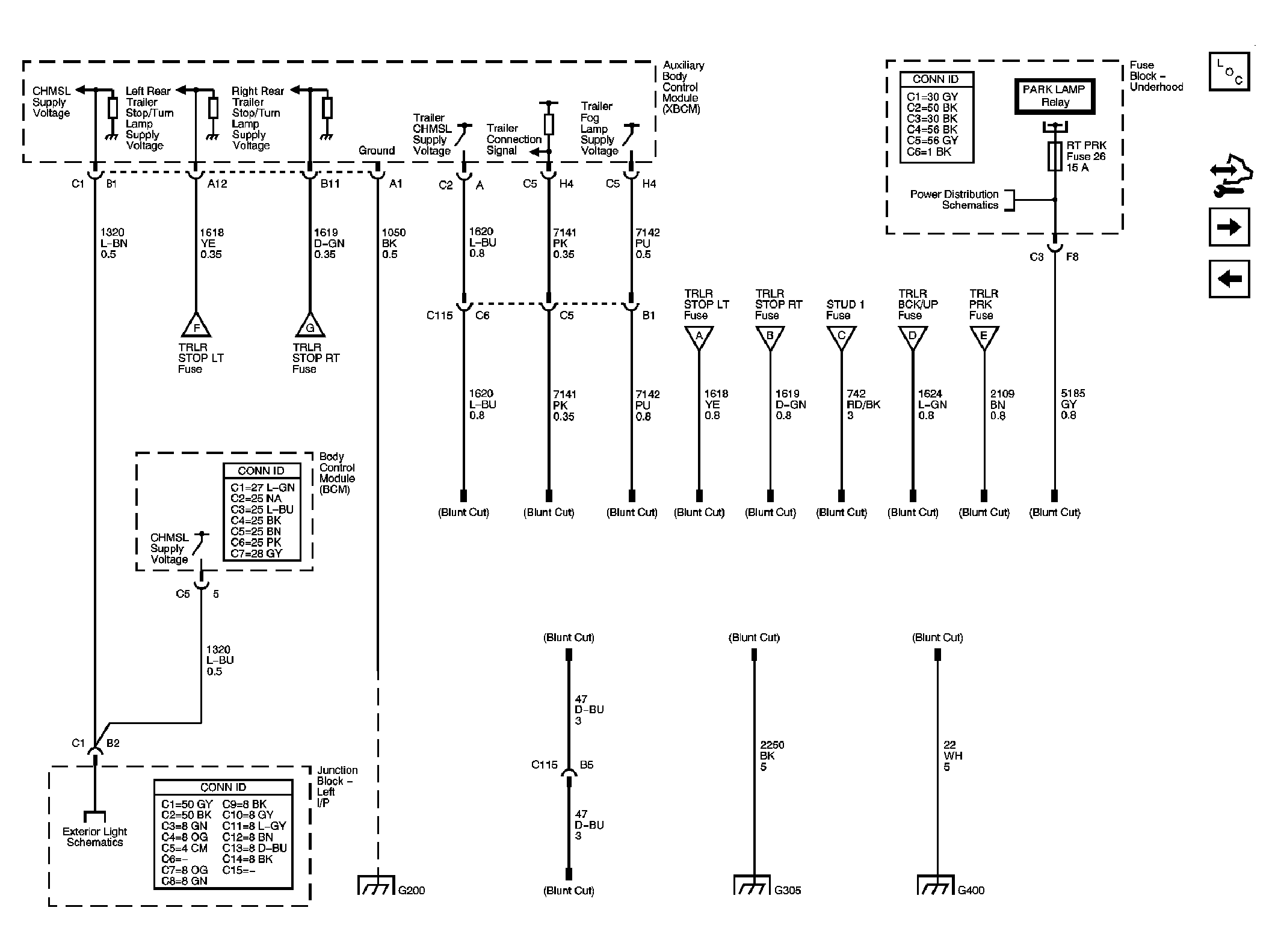

Fig 2: Export Trailer Wiring - 2 of 2 Schematic
GM1762156Courtesy of GENERAL MOTORS CORP.

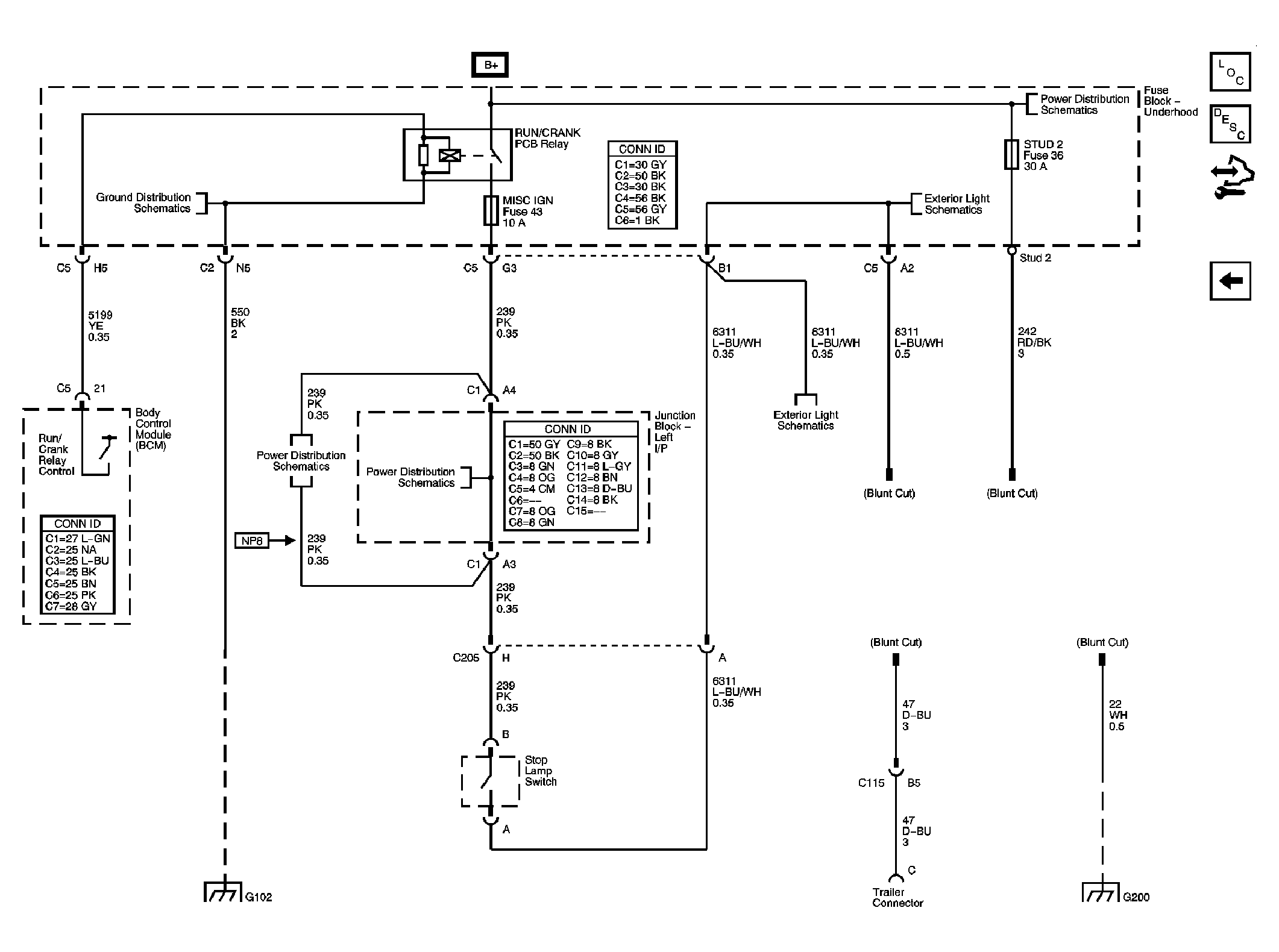

Fig 3: Trailer Brake Control - Domestic Schematic
GM1762154Courtesy of GENERAL MOTORS CORP.
