Power Distribution Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

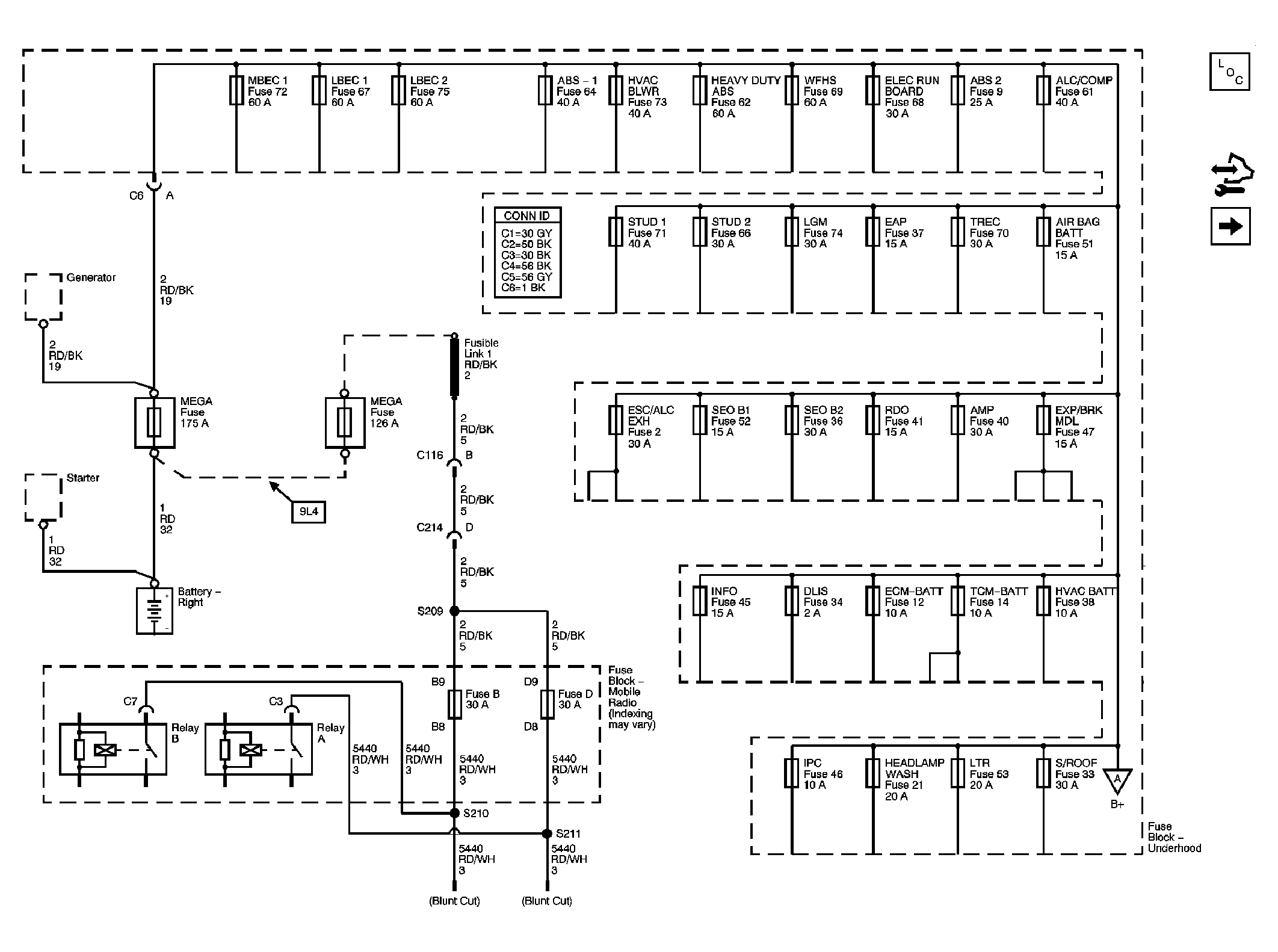

Fig 1: B+ Bus - 1 of 3 Schematic

GM1689677

Courtesy of GENERAL MOTORS CORP.

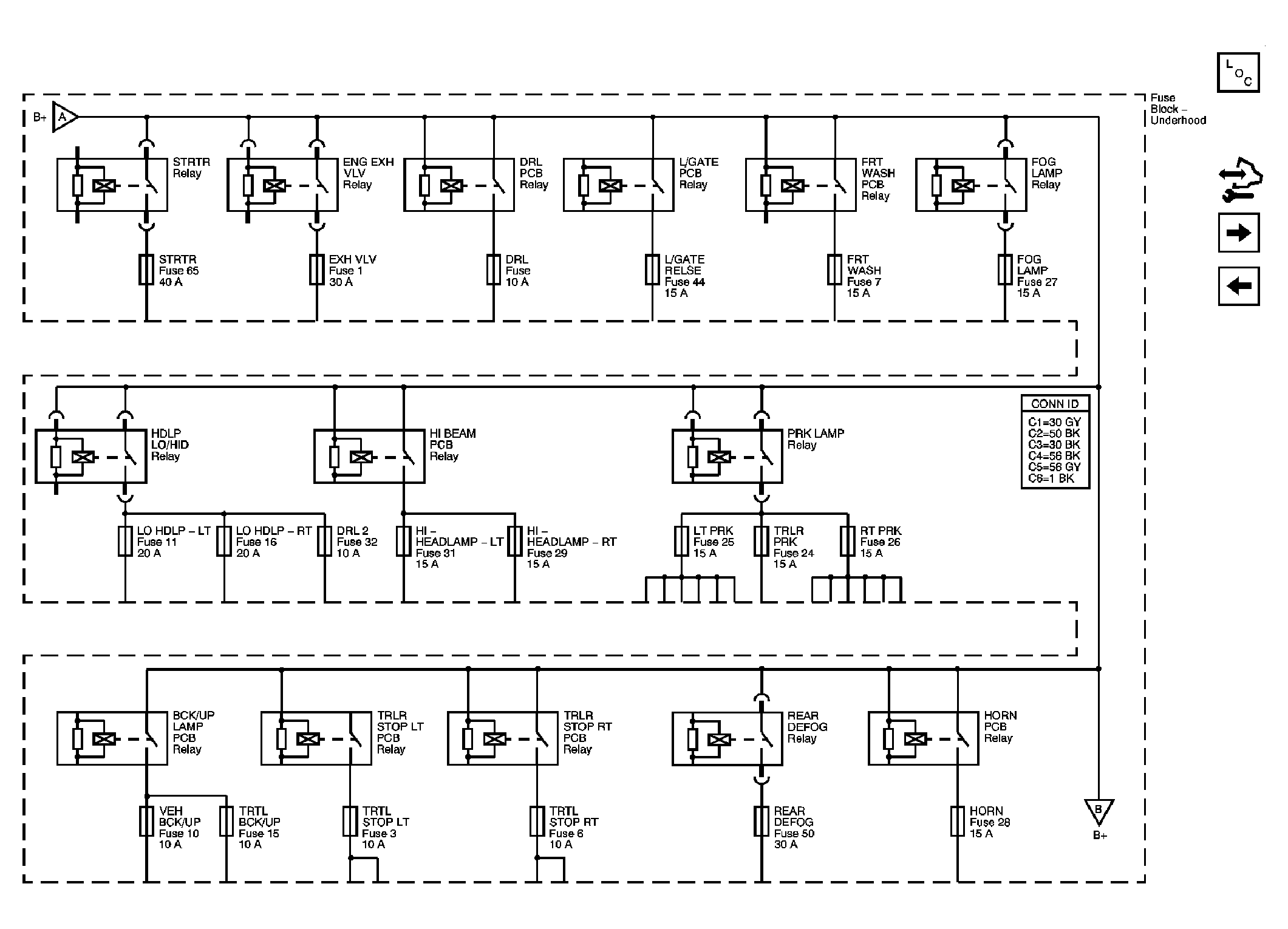

Fig 2: B+ Bus - 2 of 3 Schematic

GM1689680

Courtesy of GENERAL MOTORS CORP.

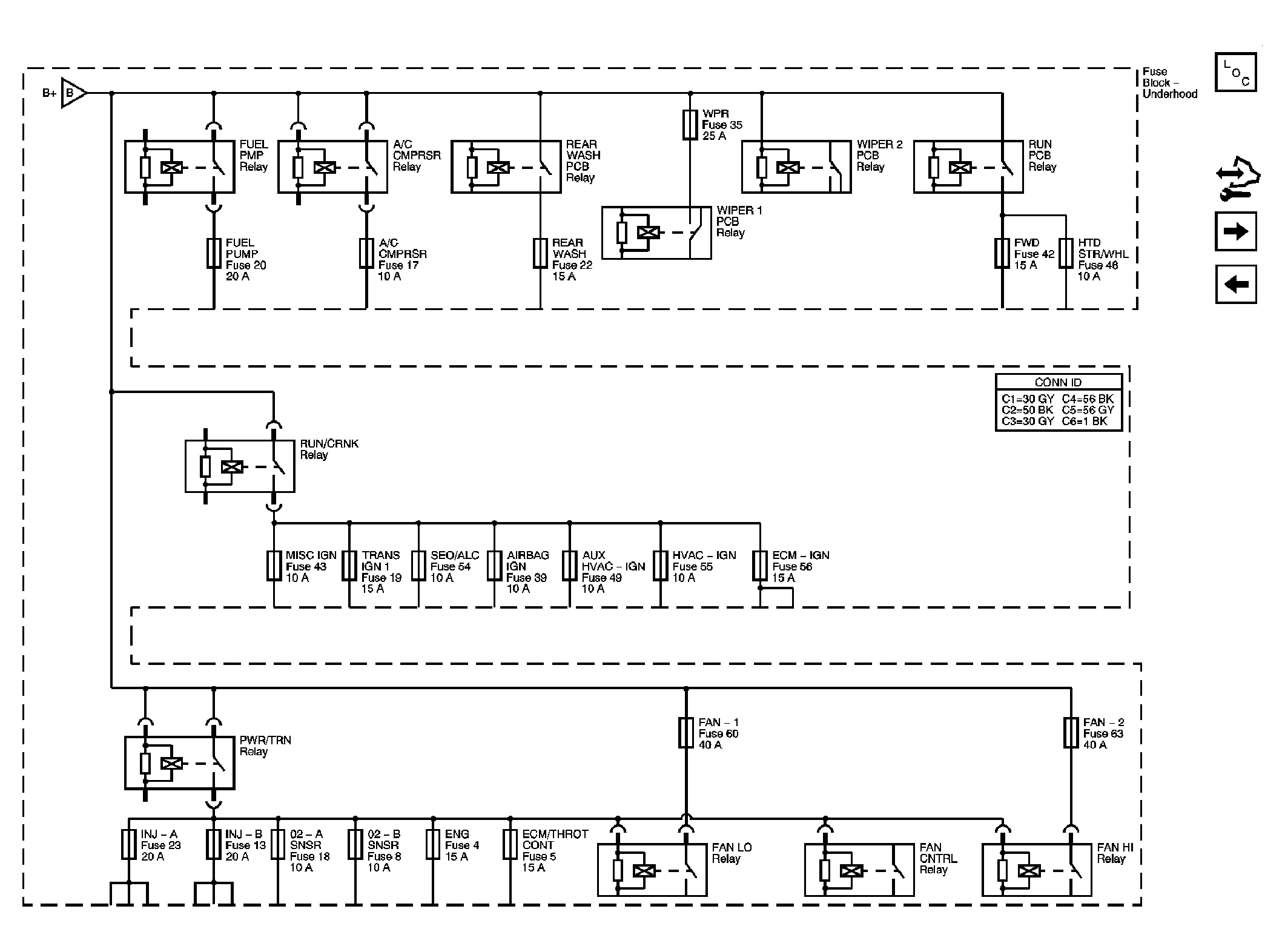

Fig 3: B+ Bus - 3 of 3 Schematic

GM1689681

Courtesy of GENERAL MOTORS CORP.

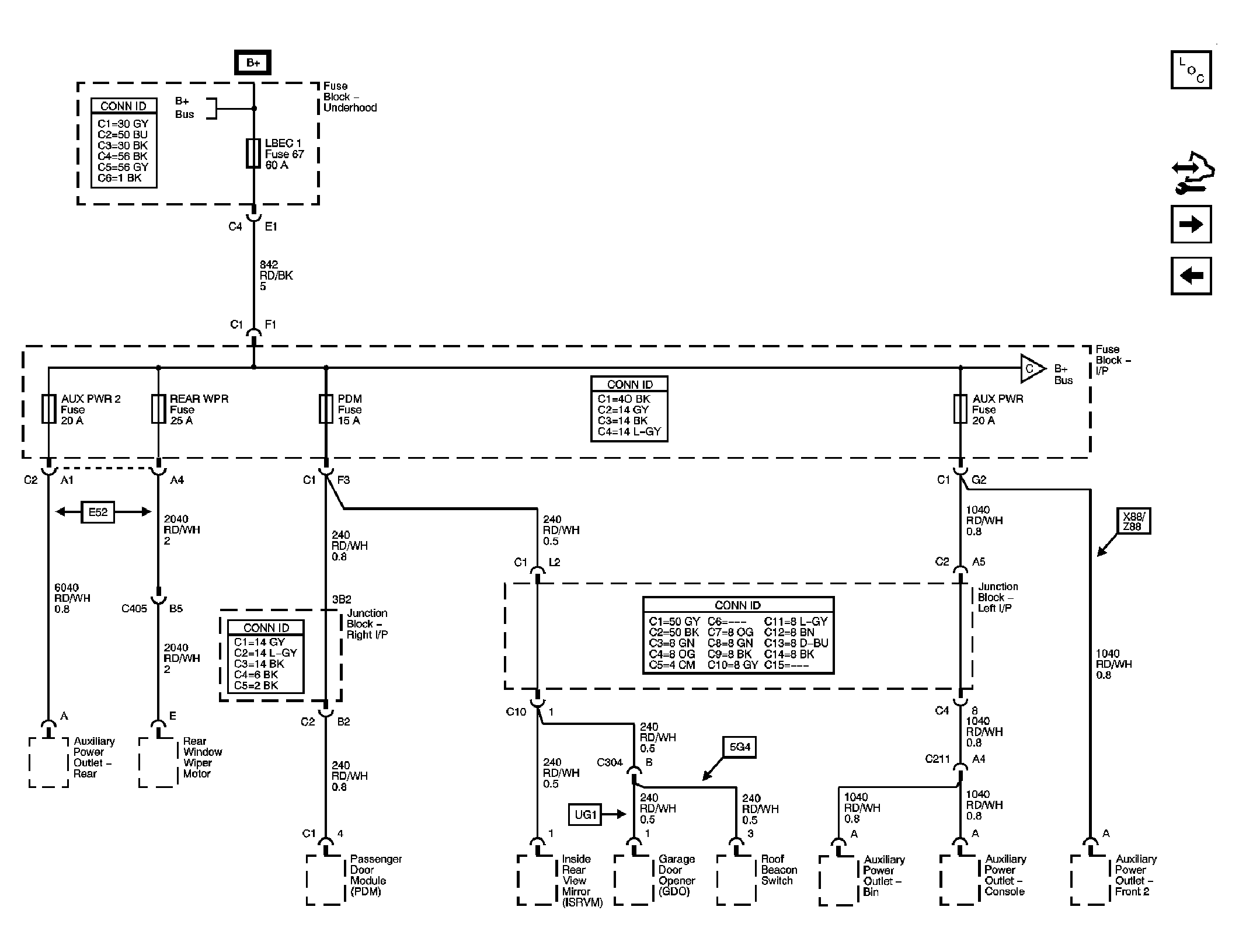

Fig 4: AUX PWR, AUX PWR 2, LBEC 1, PDM, & REAR WPR Fuses Schematic

GM1689682

Courtesy of GENERAL MOTORS CORP.

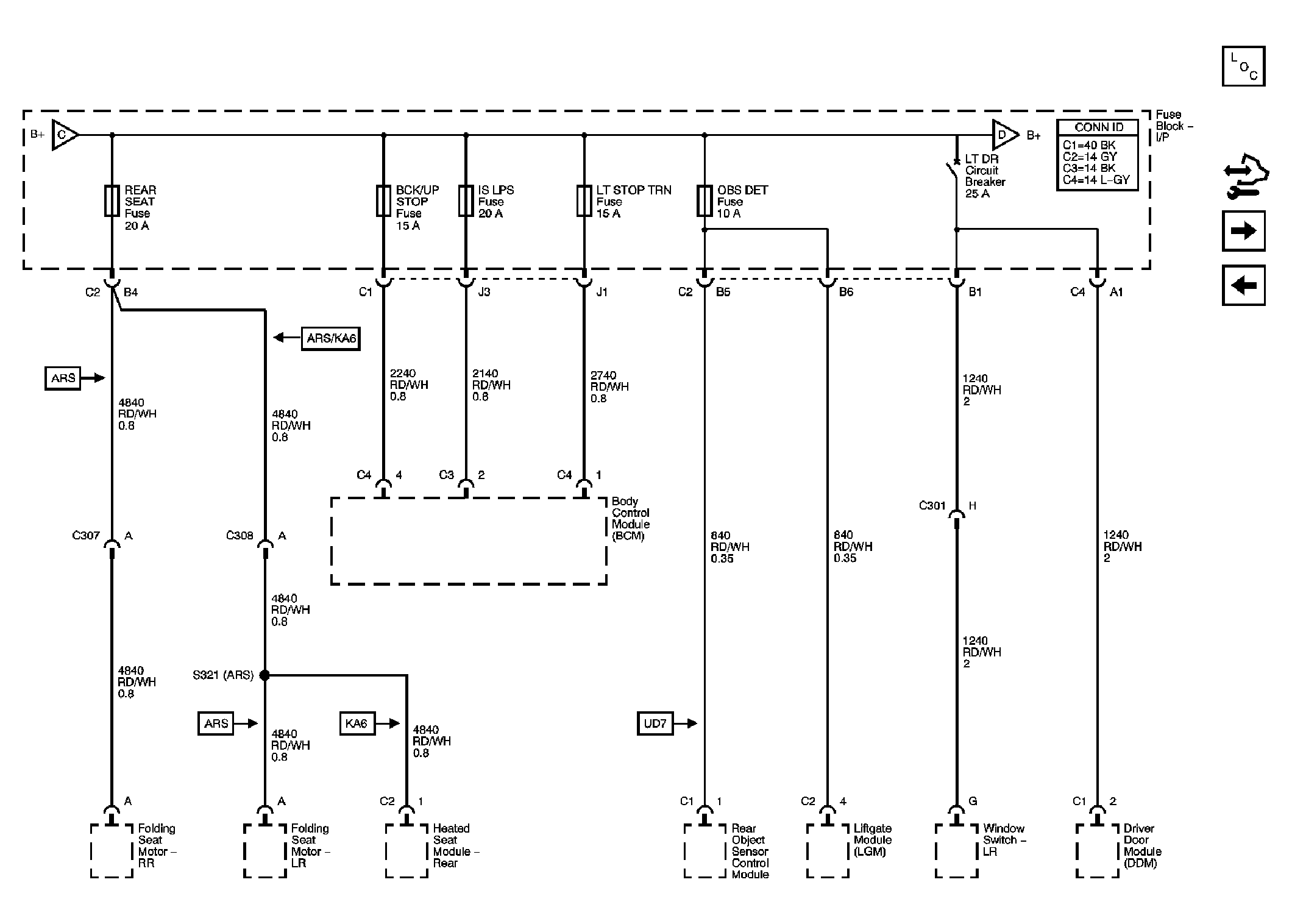

Fig 5: BCK/UP STOP, IS LPS, LT STOP TRN, OBS DET, & REAR SEAT Fuses & LT DR Circuit Breaker Schematic

GM1689684

Courtesy of GENERAL MOTORS CORP.

Fig 6: LCK 1, LCK2, UNLCK 1, & UNLCK2 Fuses Schematic

GM1689686

Courtesy of GENERAL MOTORS CORP.

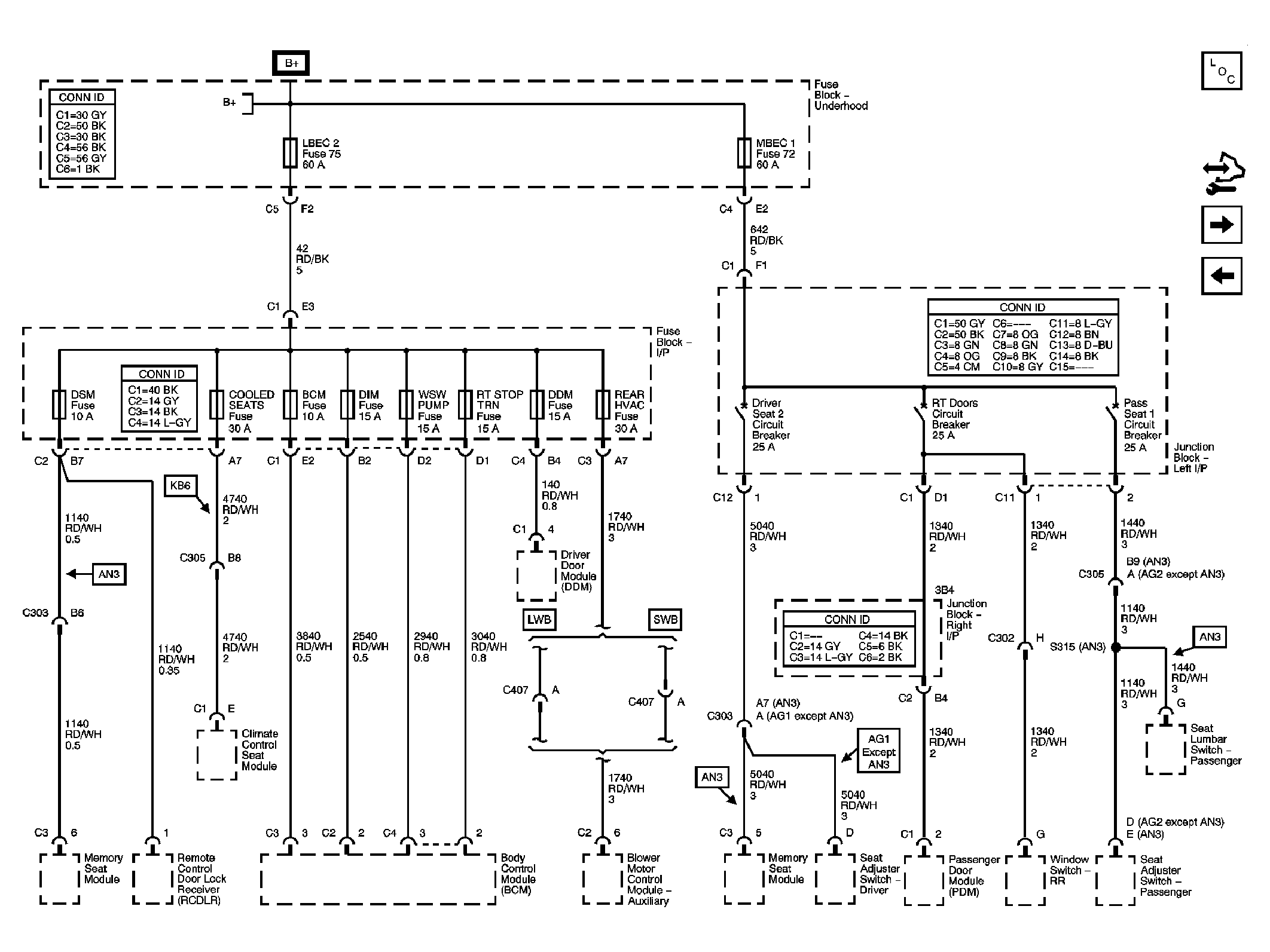

Fig 7: BCM, COOLED SEATS, DDM, DIM, DSM, LBEC 2, MBEC 1, REAR HVAC, RT STOP TRN, & WSW PUMP Fuses & DRIVER SEAT 2, PASS SEAT 1, & RT DOORS Circuit Breakers Schematic

GM1689688

Courtesy of GENERAL MOTORS CORP.

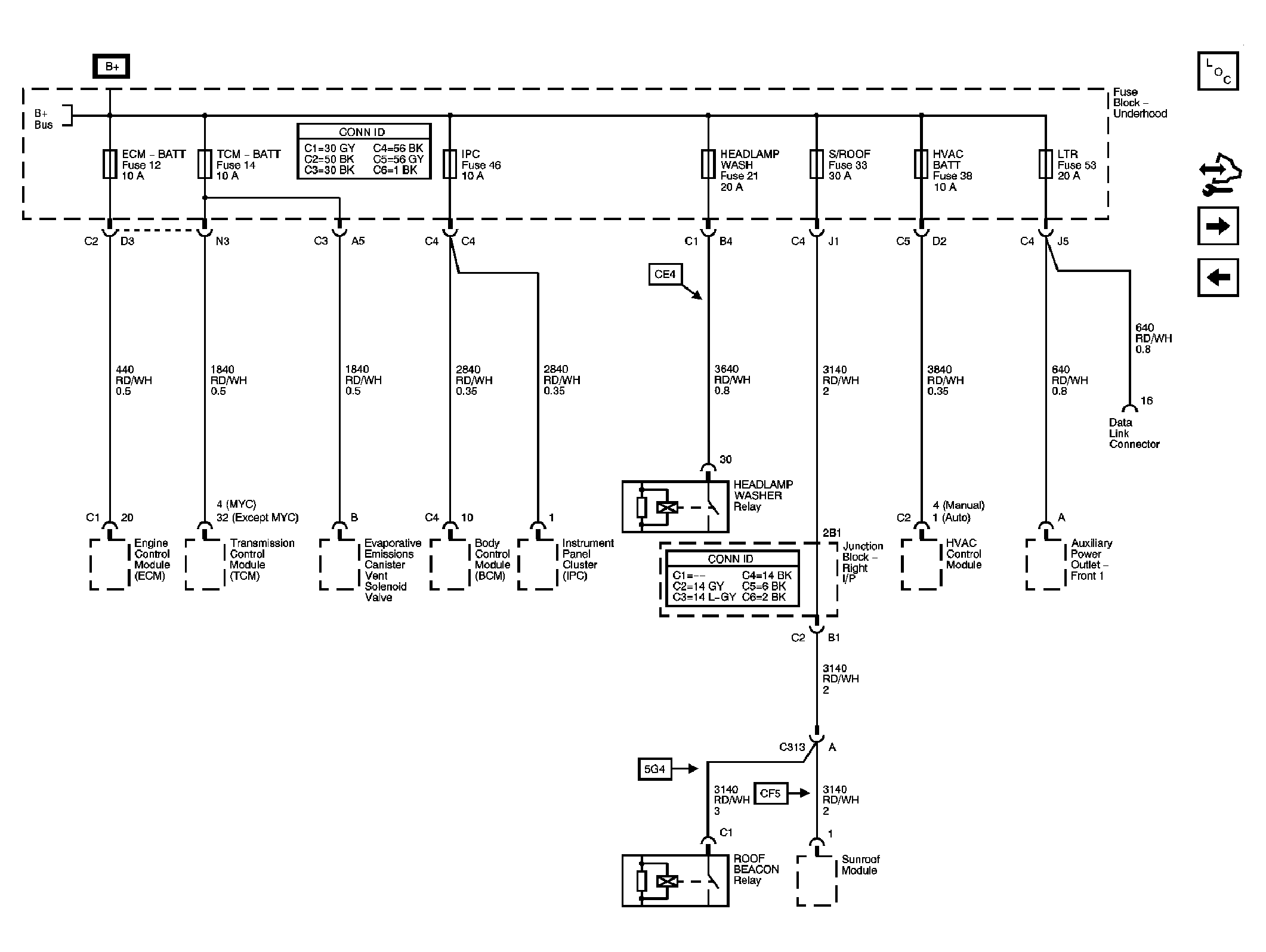

Fig 8: ECM-BATT, HEADLAMP WASH, HVAC BATT, IPC, LTR, S/ROOF, & TCM-BATT Fuses Schematic

GM1689691

Courtesy of GENERAL MOTORS CORP.

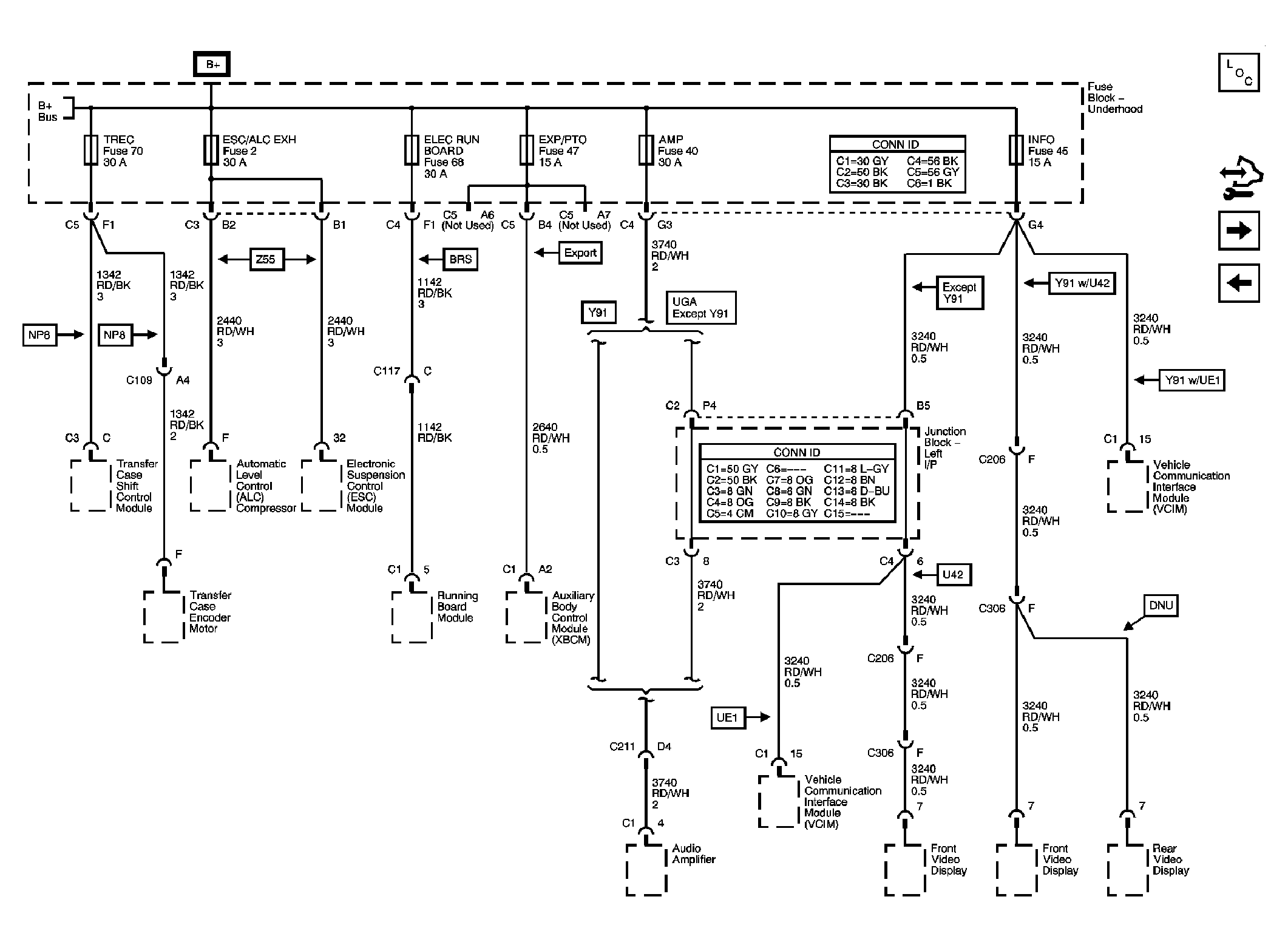

Fig 9: AMP, ELEC RUN BOARD, ESC/ALC EXH, EXP/BRK MDL, INFO, & TREC Fuses Schematic

GM1689694

Courtesy of GENERAL MOTORS CORP.

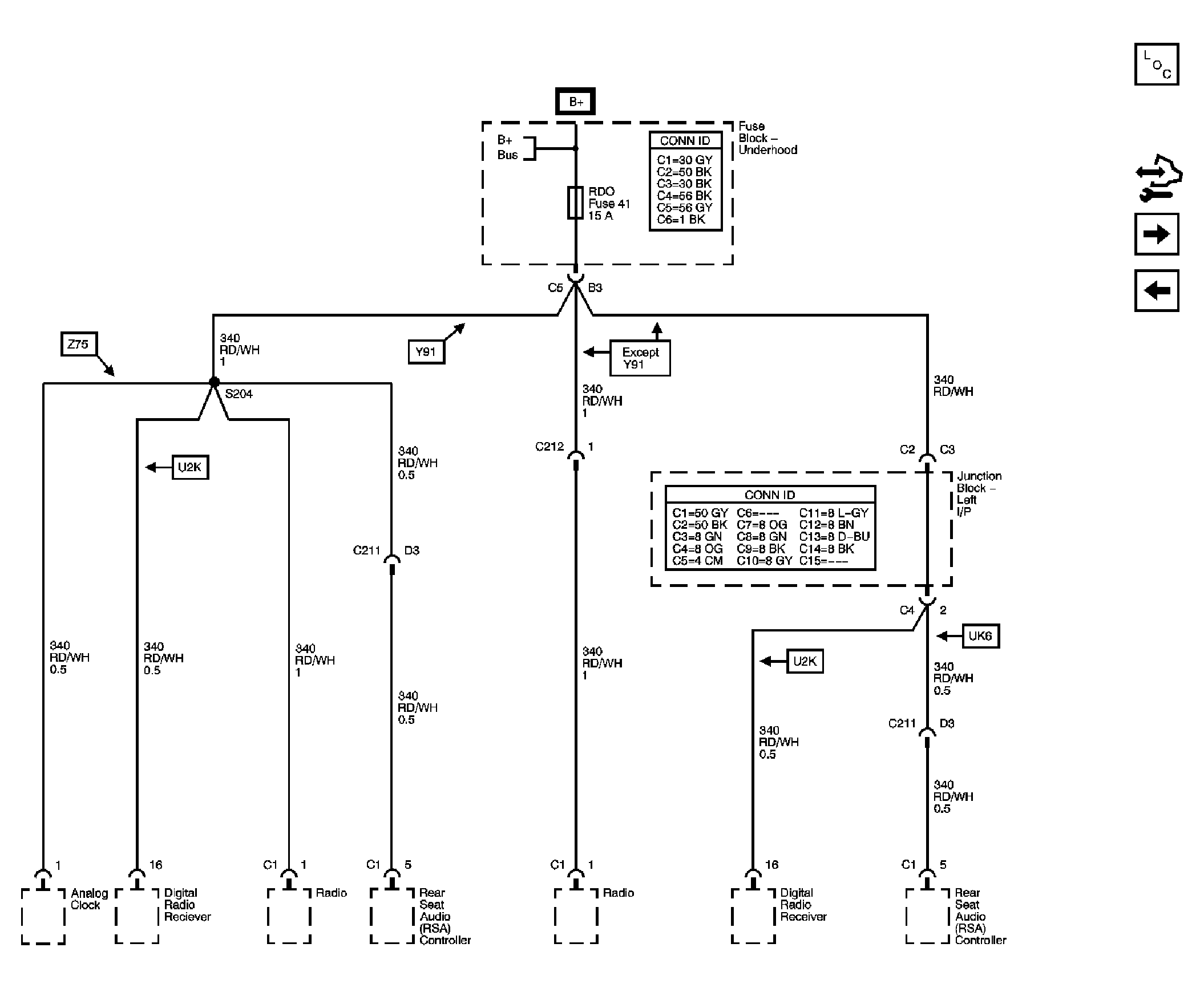

Fig 10: RDO Fuse Schematic

GM1689696

Courtesy of GENERAL MOTORS CORP.

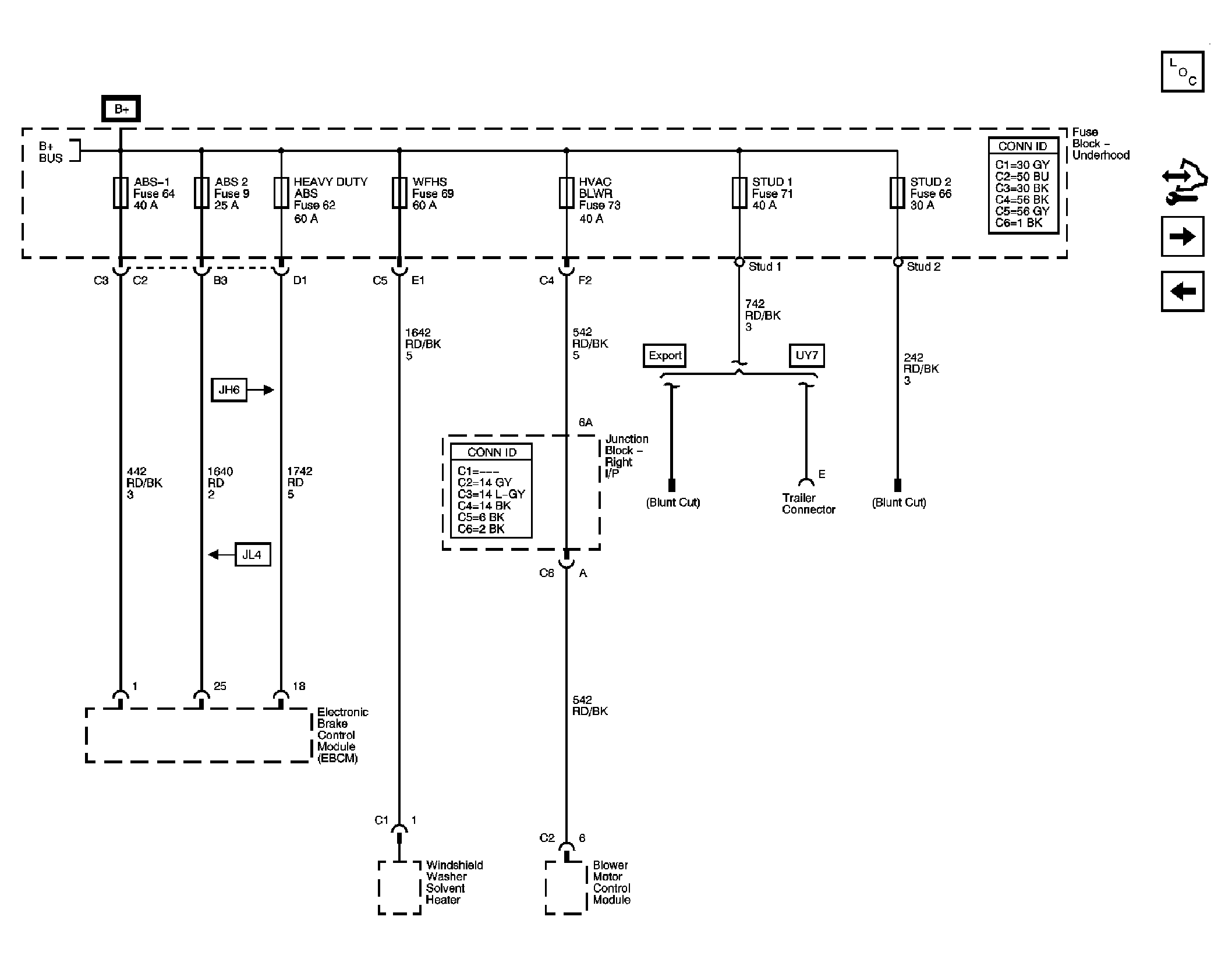

Fig 11: ABS-1, ABS 2, HEAVY DUTY ABS, HVAC BLWR, STUD 1, STUD 2, & WFHS Fuses Schematic

GM1689698

Courtesy of GENERAL MOTORS CORP.

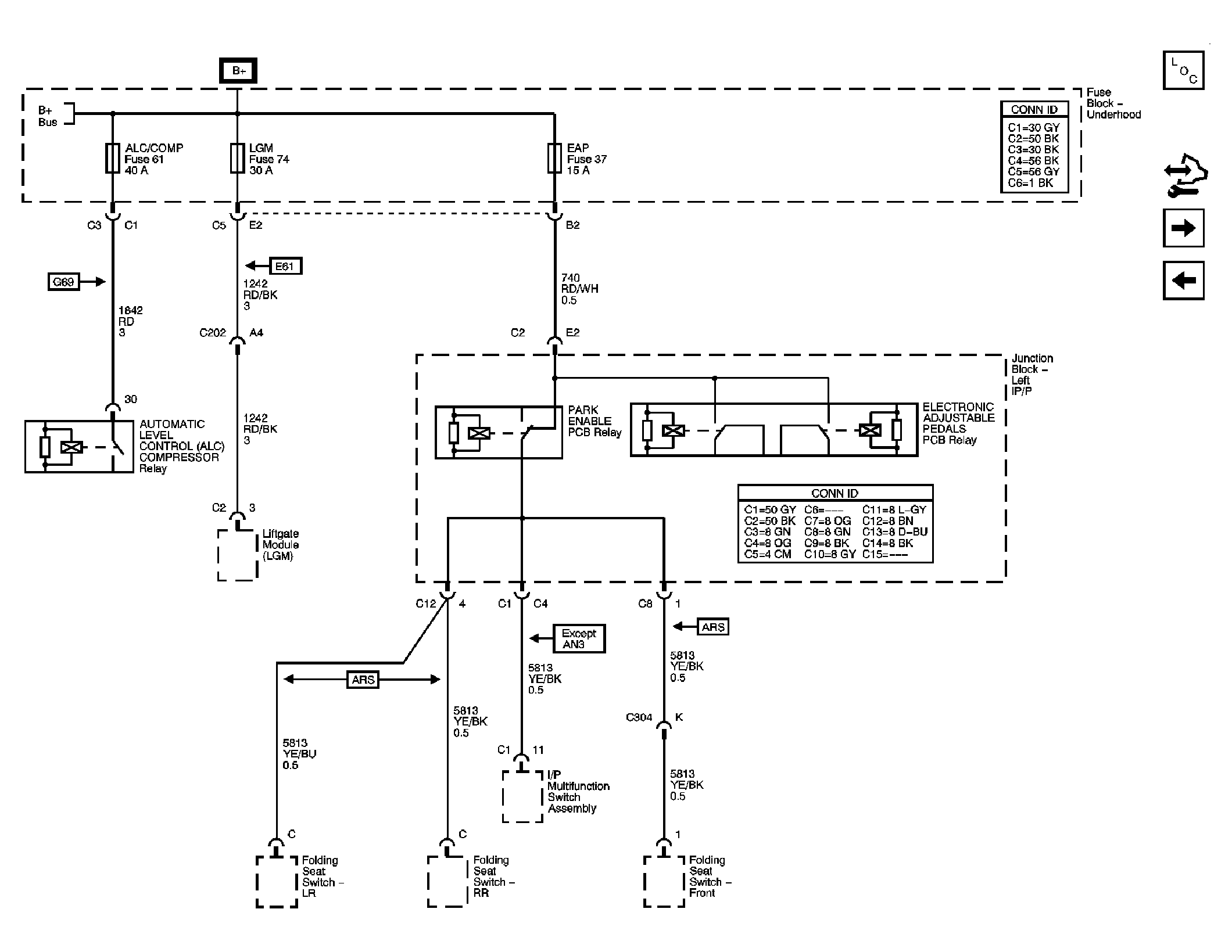

Fig 12: ALC/COMP, EAP, & LGM Fuses Schematic

GM1689701

Courtesy of GENERAL MOTORS CORP.

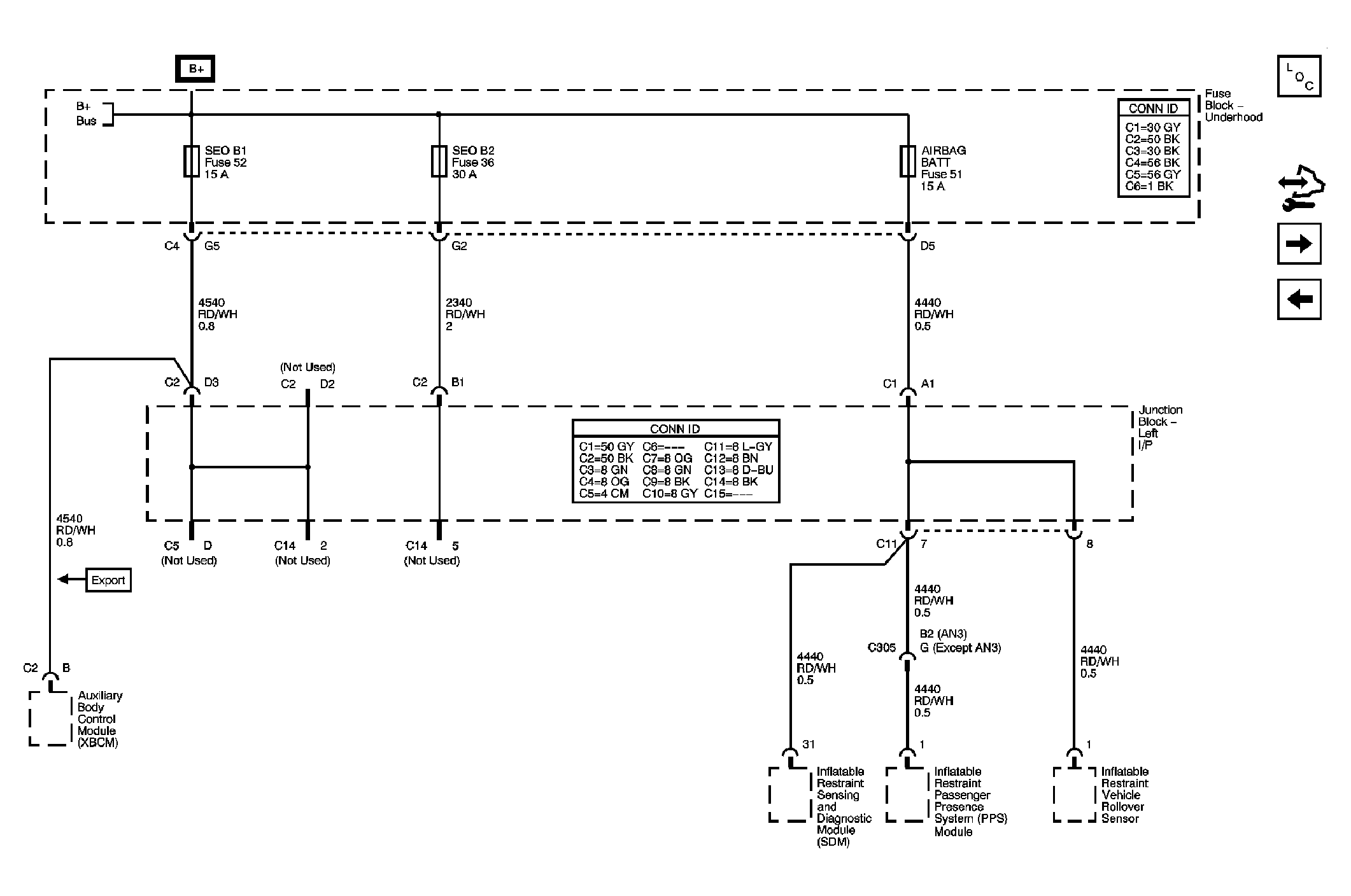

Fig 13: AIRBAG, SEO B1, & SEO B2 Fuses Schematic

GM1689704

Courtesy of GENERAL MOTORS CORP.

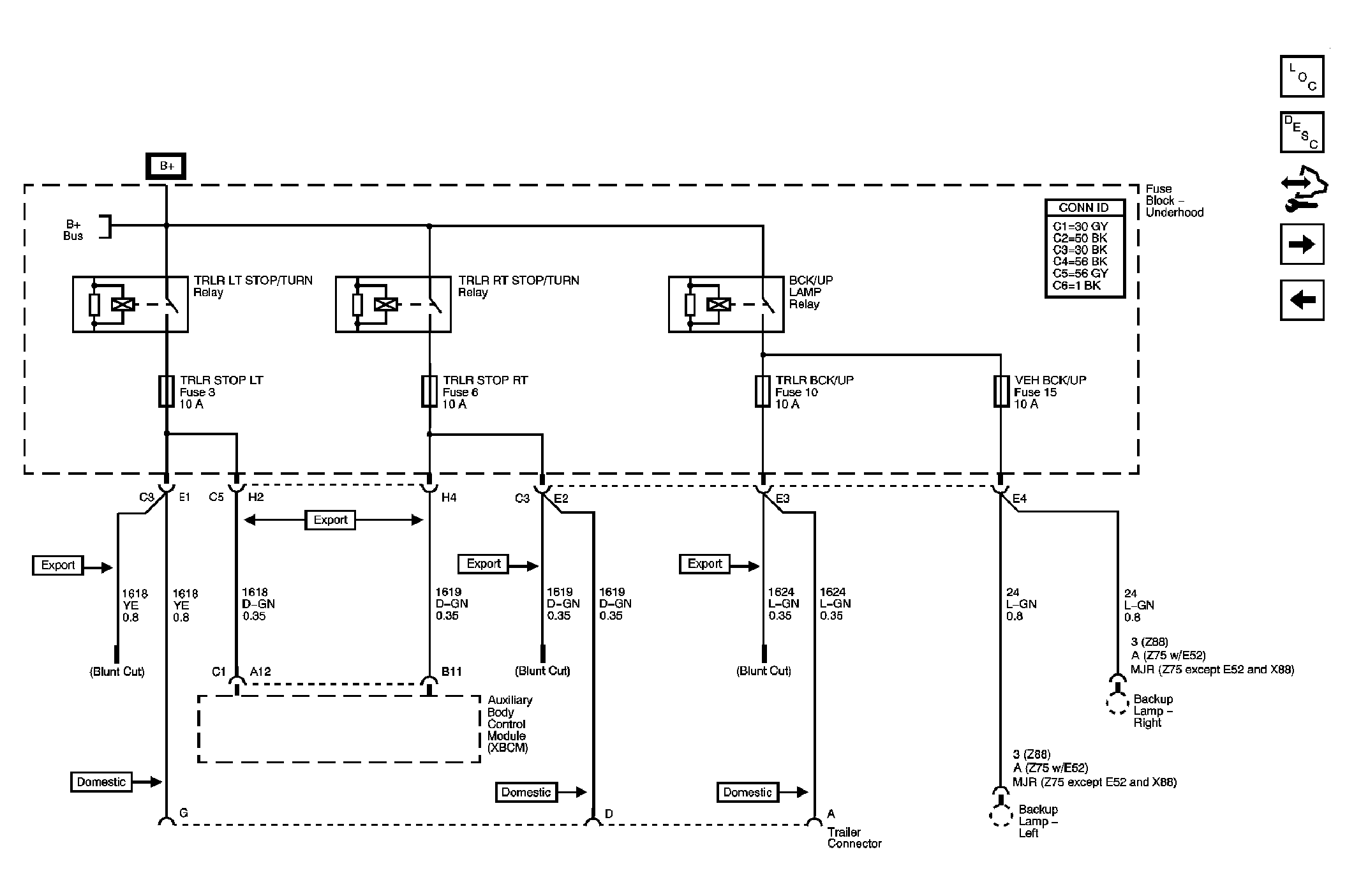

Fig 14: TRLR BCK/UP, TRLR STOP LT, TRAILER STOP RT, & VEH BCK/UP Fuses Schematic

GM1689721

Courtesy of GENERAL MOTORS CORP.

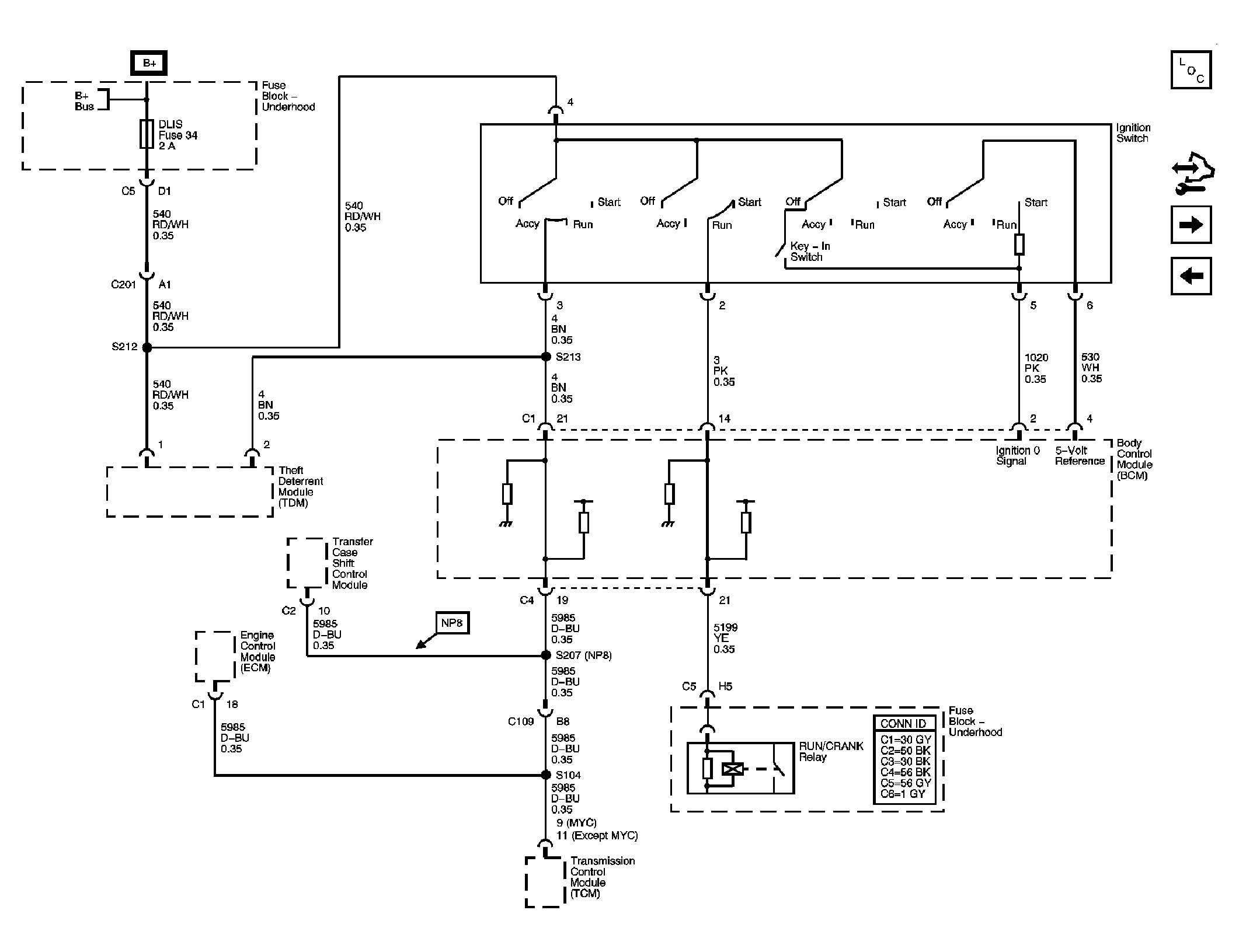

Fig 15: DLIS Fuse & Ignition Switch Schematic

GM1689706

Courtesy of GENERAL MOTORS CORP.

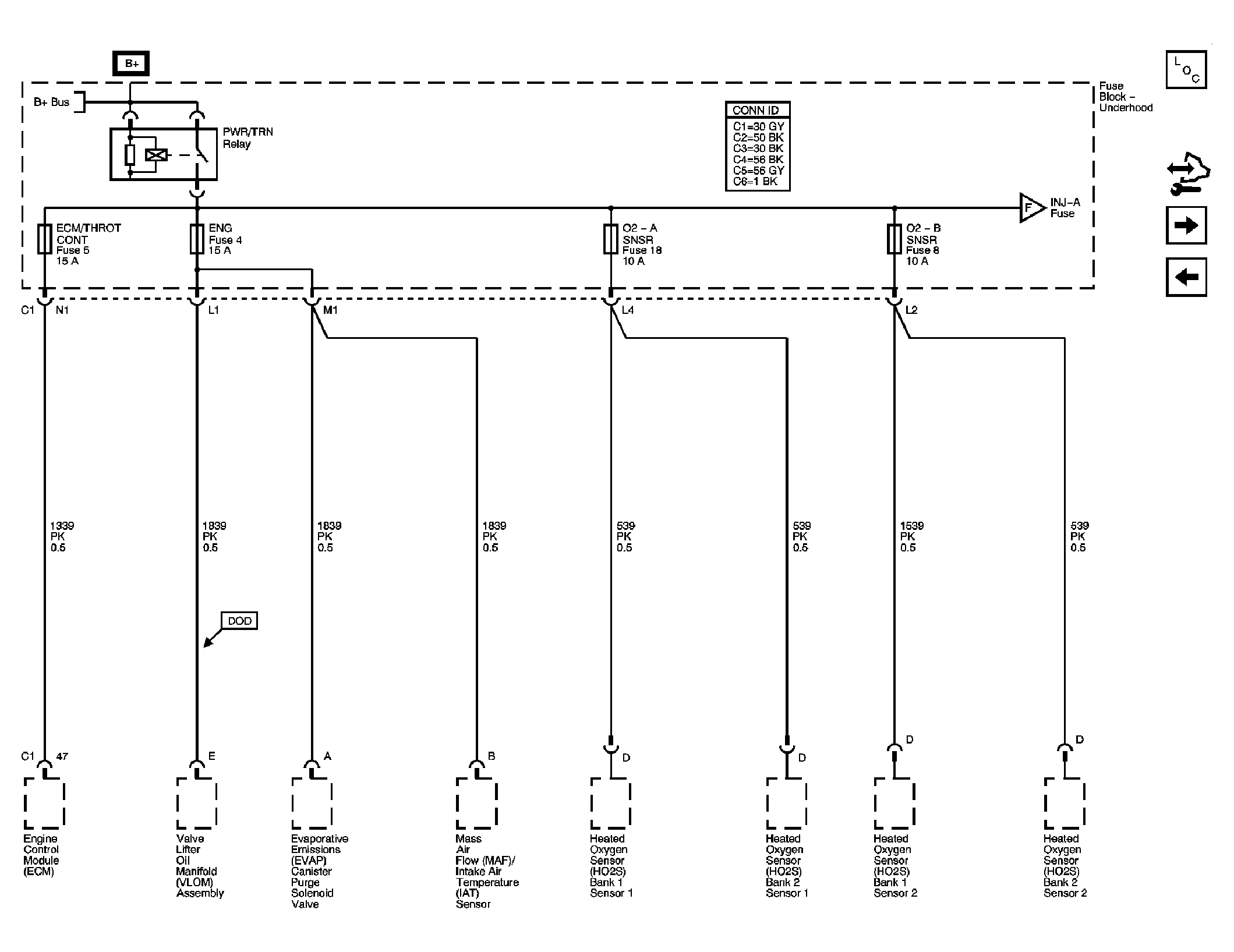

Fig 16: PWR/TRN Bus - ECM/THROT, ENG, O2-A SNSR, & O2-B SNSR Fuses Schematic

GM1689725

Courtesy of GENERAL MOTORS CORP.

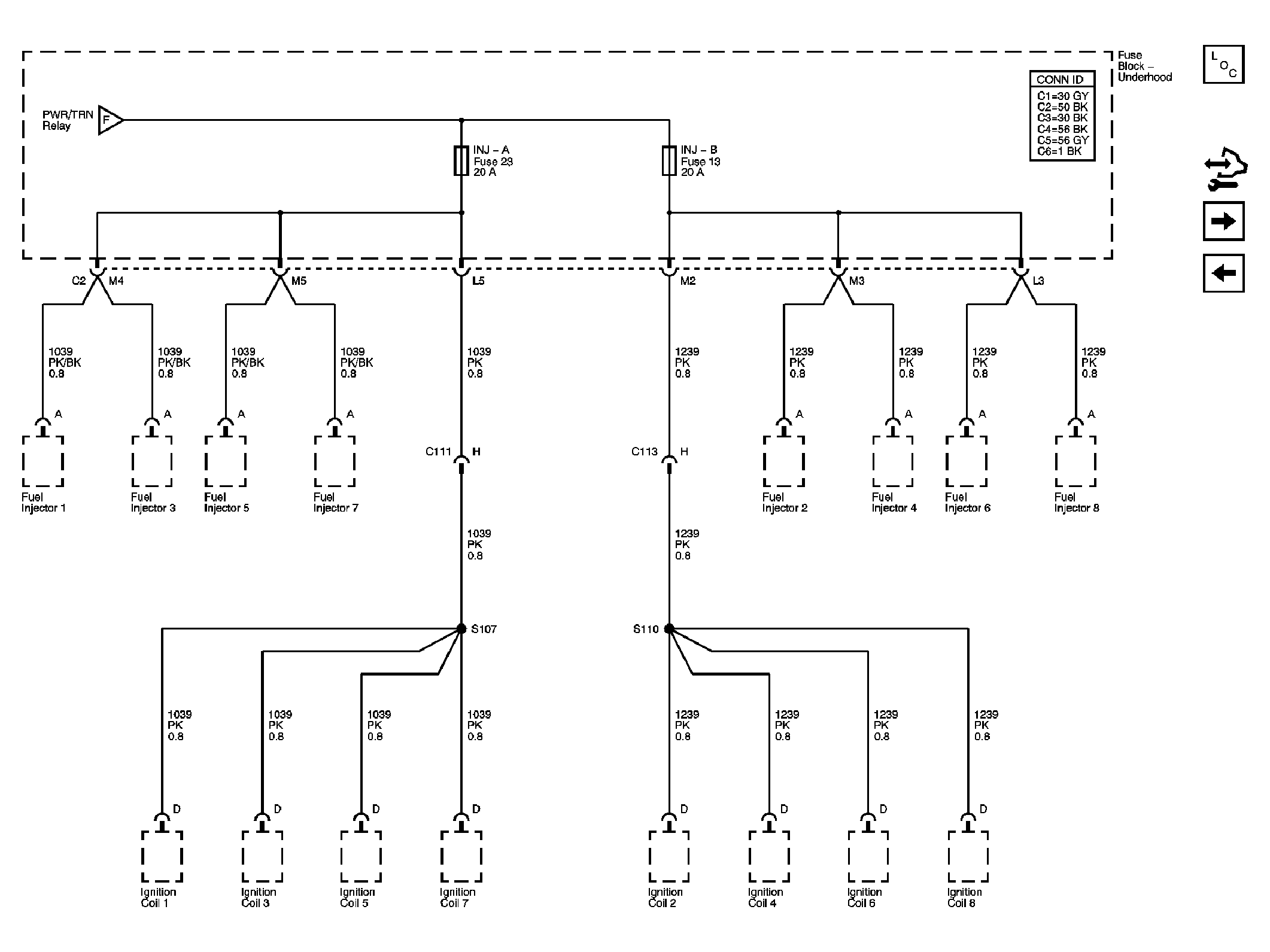

Fig 17: PWR/TRN Bus - INJ- A & INJ-B Fuses Schematic

GM1689728

Courtesy of GENERAL MOTORS CORP.

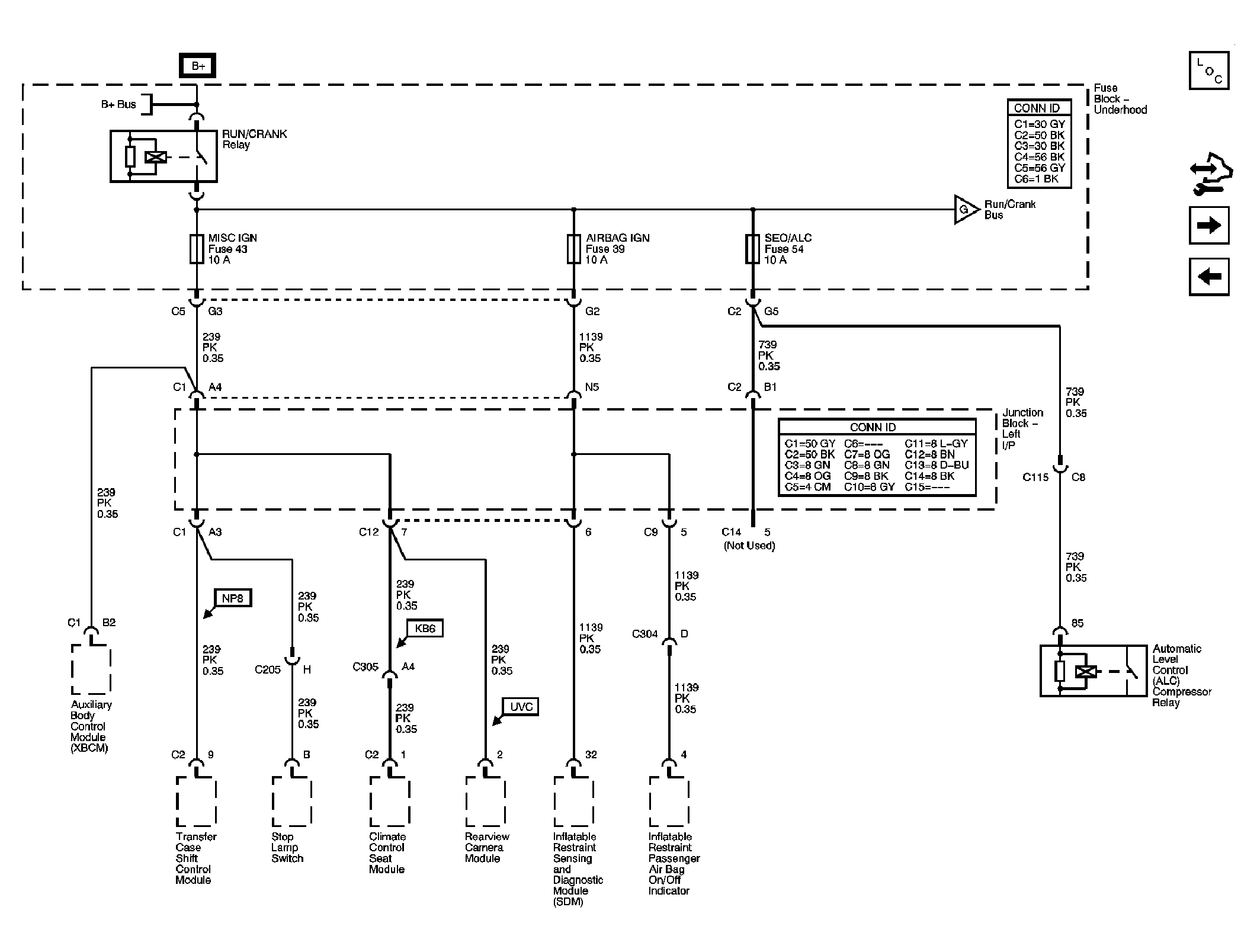

Fig 18: RUN/CRANK Bus - AIRBAG IGN, MISC IGN, & SEO/ALC Fuses Schematic

GM1689730

Courtesy of GENERAL MOTORS CORP.

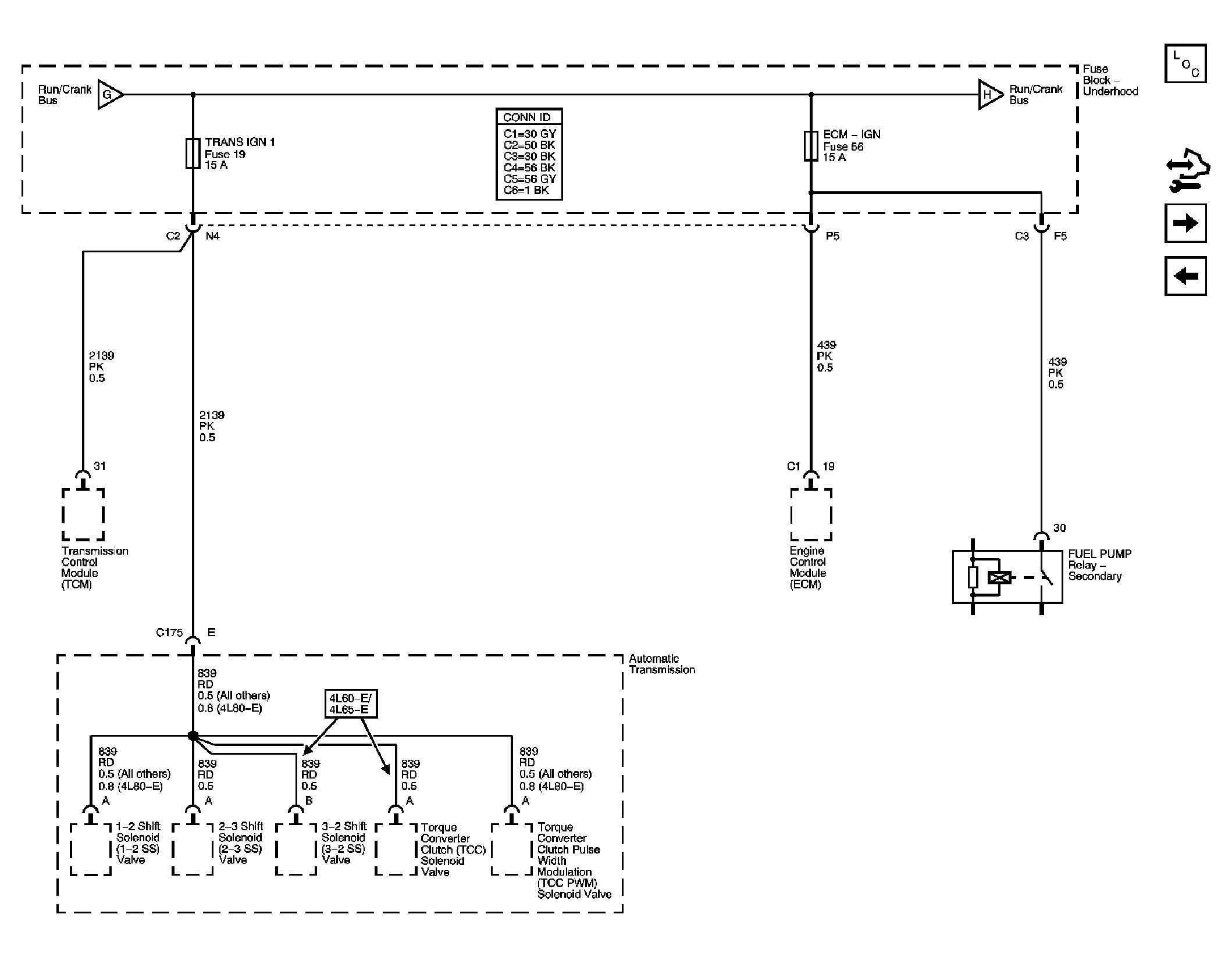

Fig 19: RUN/CRANK Bus - ECM-IGN AND TRANS IGN 1 Fuses Schematic

GM1689731

Courtesy of GENERAL MOTORS CORP.

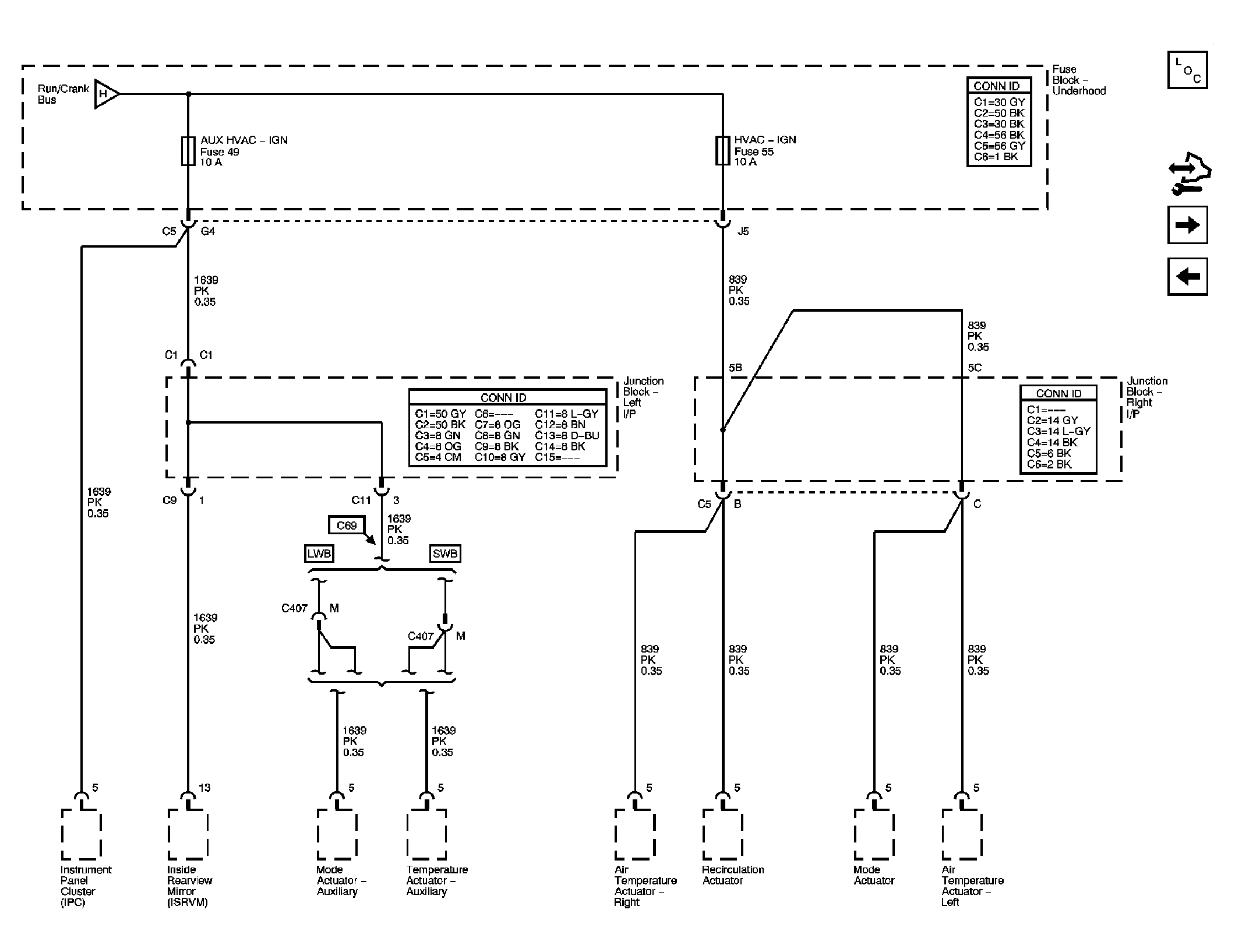

Fig 20: RUN/CRANK Bus - AUX HVAC - IGN, & HVAC - IGN Fuses Schematic

GM1689734

Courtesy of GENERAL MOTORS CORP.

Fig 21: FWD & HTD STR/WHL Fuses Schematic

GM1689736

Courtesy of GENERAL MOTORS CORP.

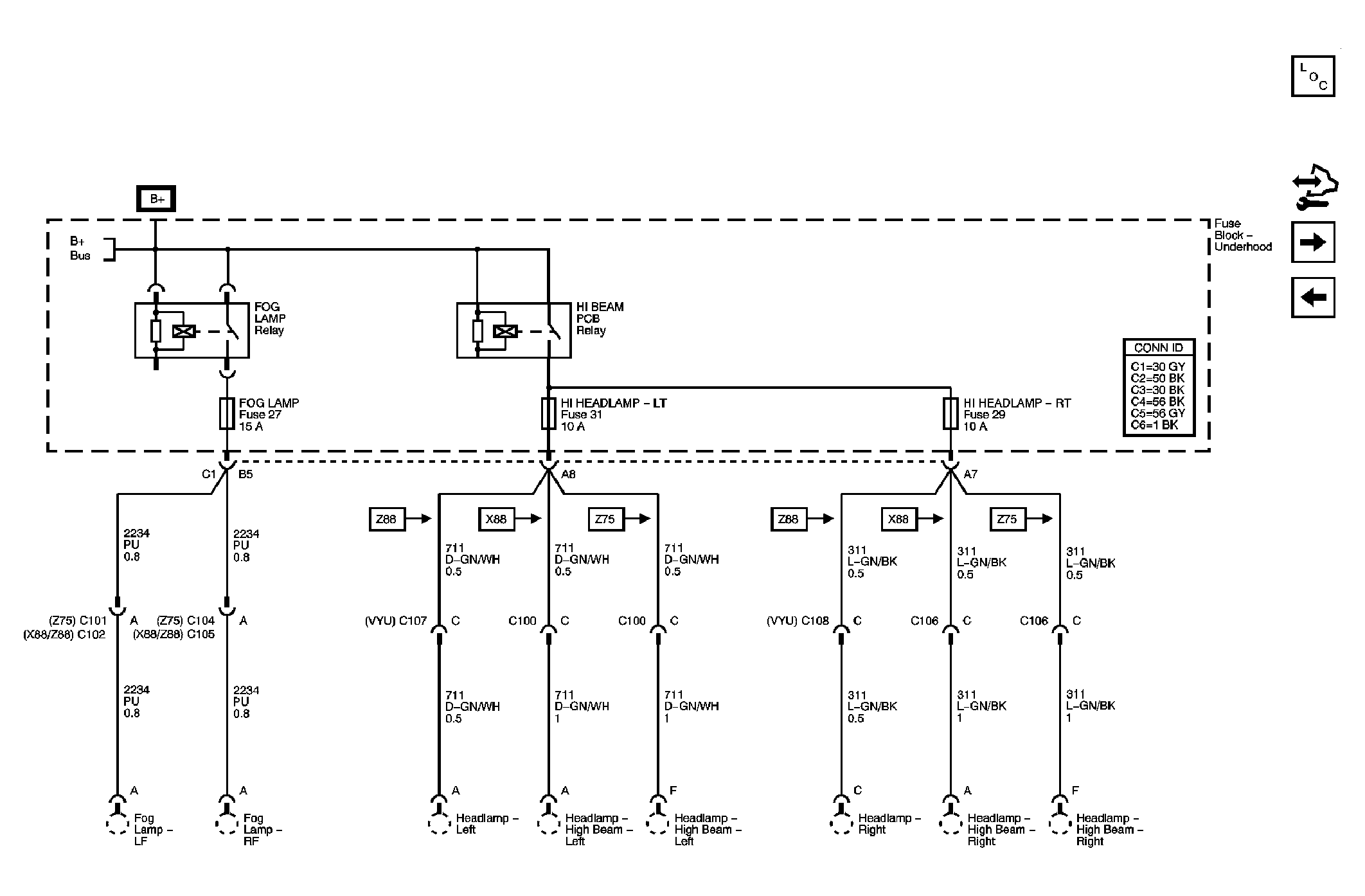

Fig 22: FOG LAMP, HI HEADLAMP - LT, & HI HEADLAMP - RT Fuses Schematic

GM1689707

Courtesy of GENERAL MOTORS CORP.

Fig 23: DRL, DRL 2, LO HDLP-LT, LO HDLP-RT, & STRTR Fuses Schematic

GM1689709

Courtesy of GENERAL MOTORS CORP.

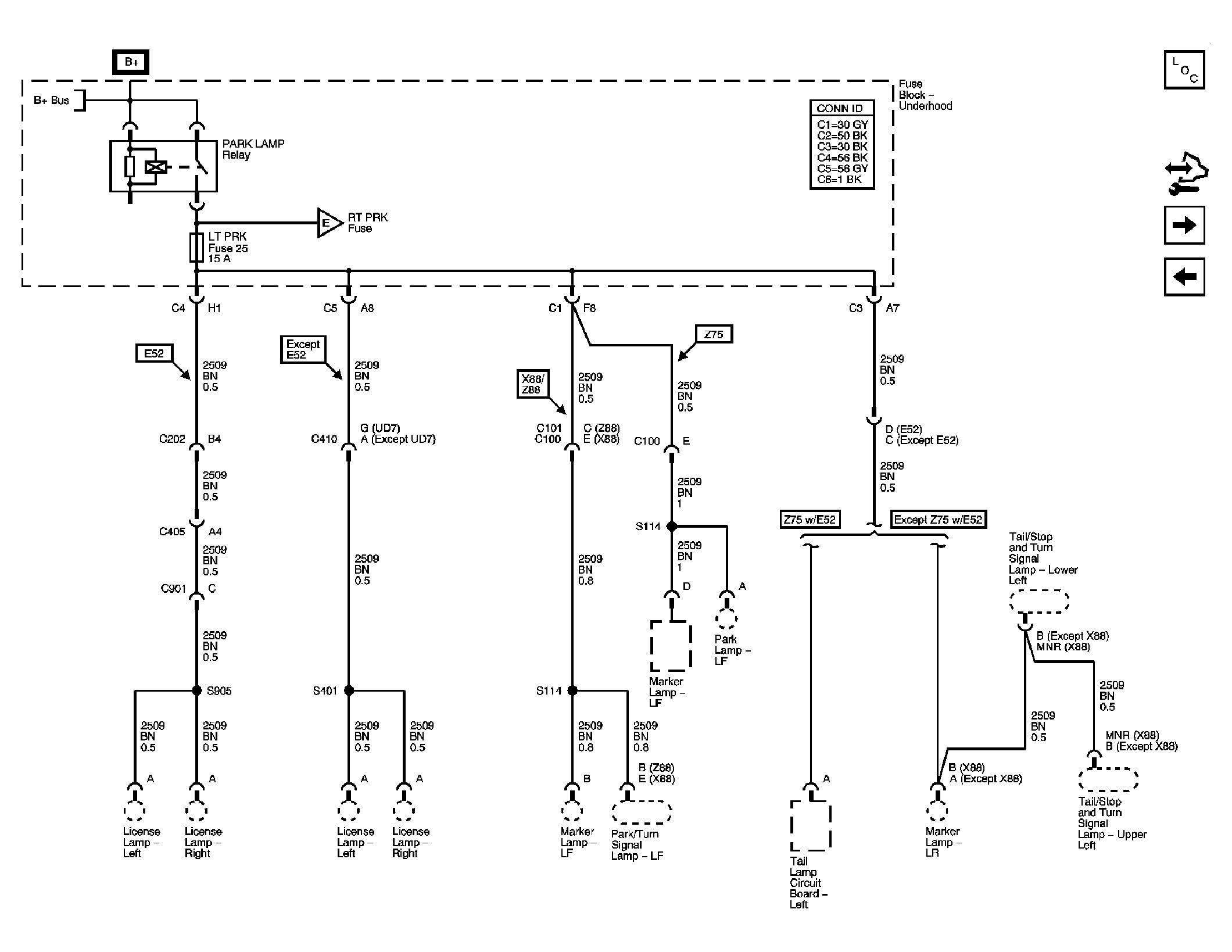

Fig 24: LT PRK Fuse Schematic

GM1689715

Courtesy of GENERAL MOTORS CORP.

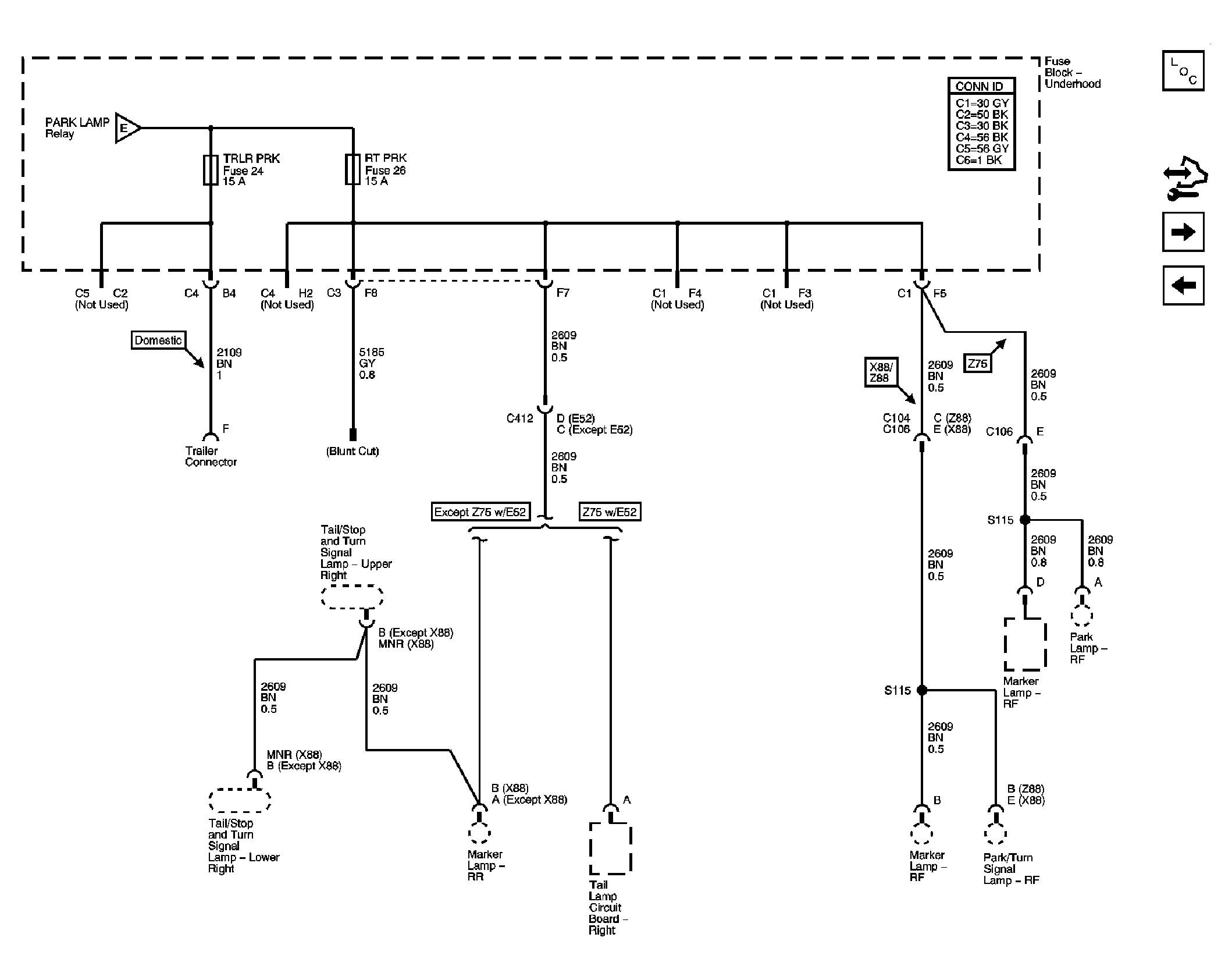

Fig 25: RT PRK AND TRLR PRK Fuses Schematic

GM1689718

Courtesy of GENERAL MOTORS CORP.

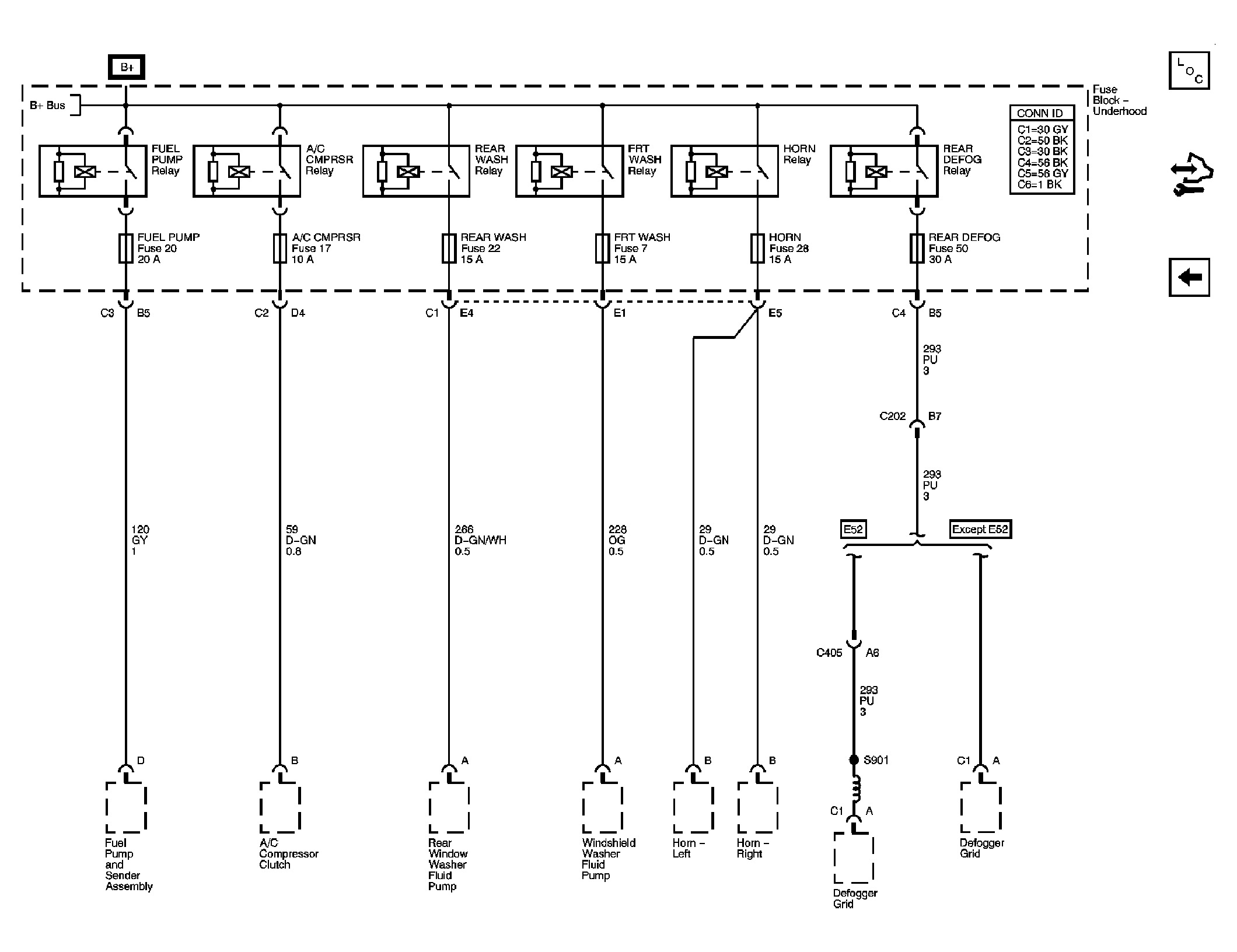

Fig 26: A/C CMPRSR, FRT WASH FUEL PUMP, HORN, REAR DEFOG, & REAR WASH Fuses Schematic

GM1689723

Courtesy of GENERAL MOTORS CORP.
