Ground Distribution Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

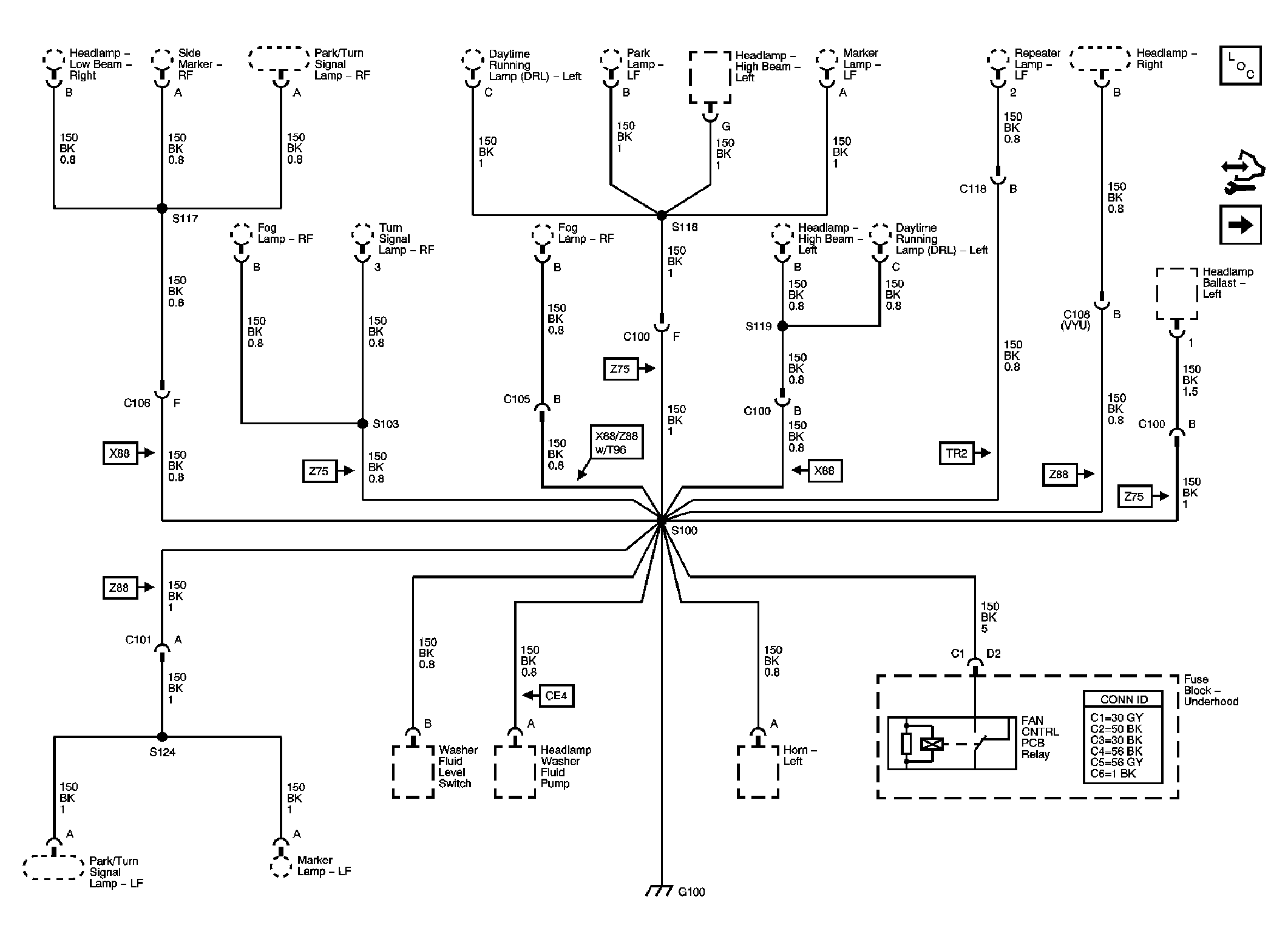

Fig 1: G100 Schematic

GM1699366

Courtesy of GENERAL MOTORS CORP.

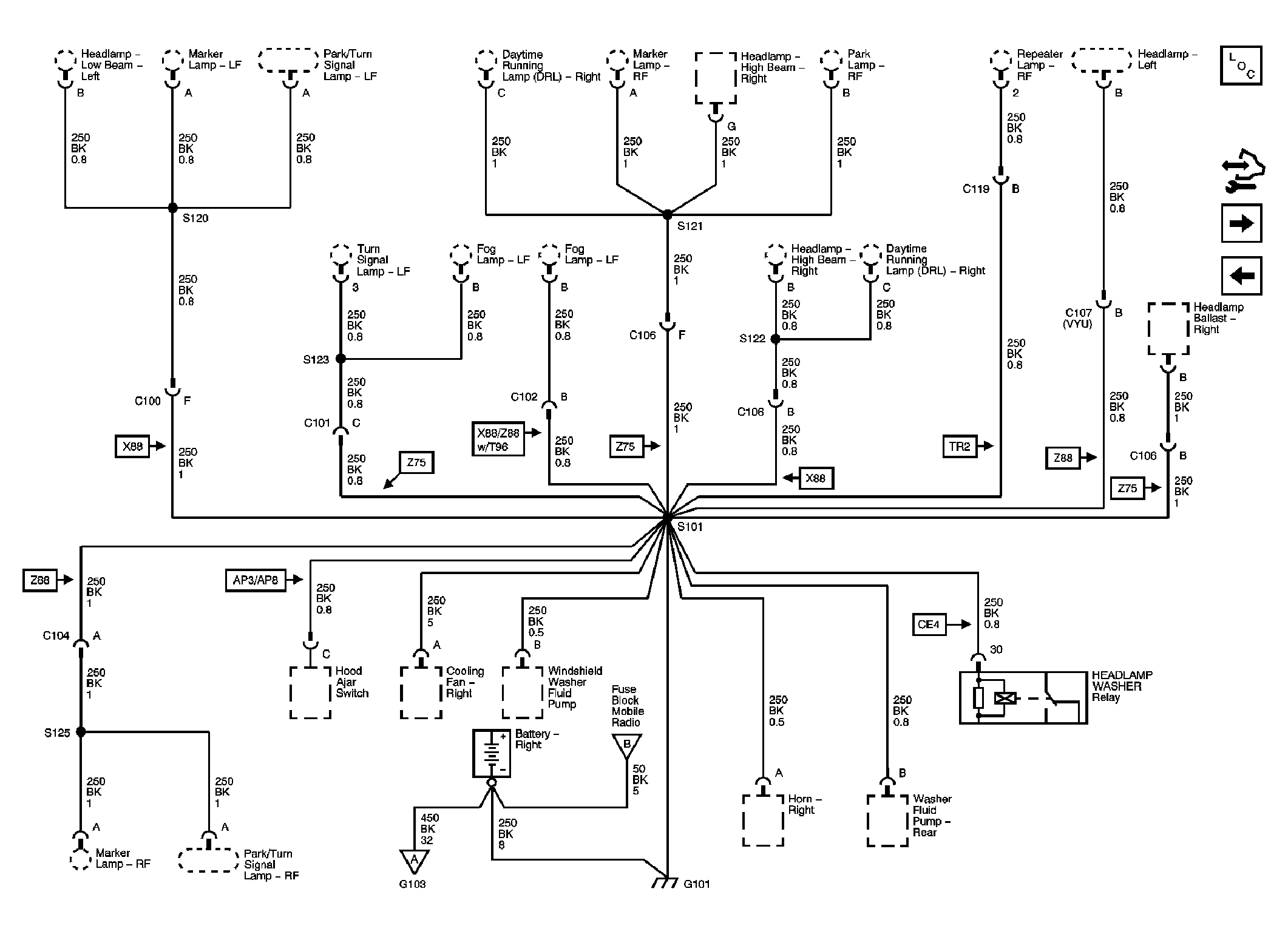

Fig 2: G101 Schematic

GM1699367

Courtesy of GENERAL MOTORS CORP.

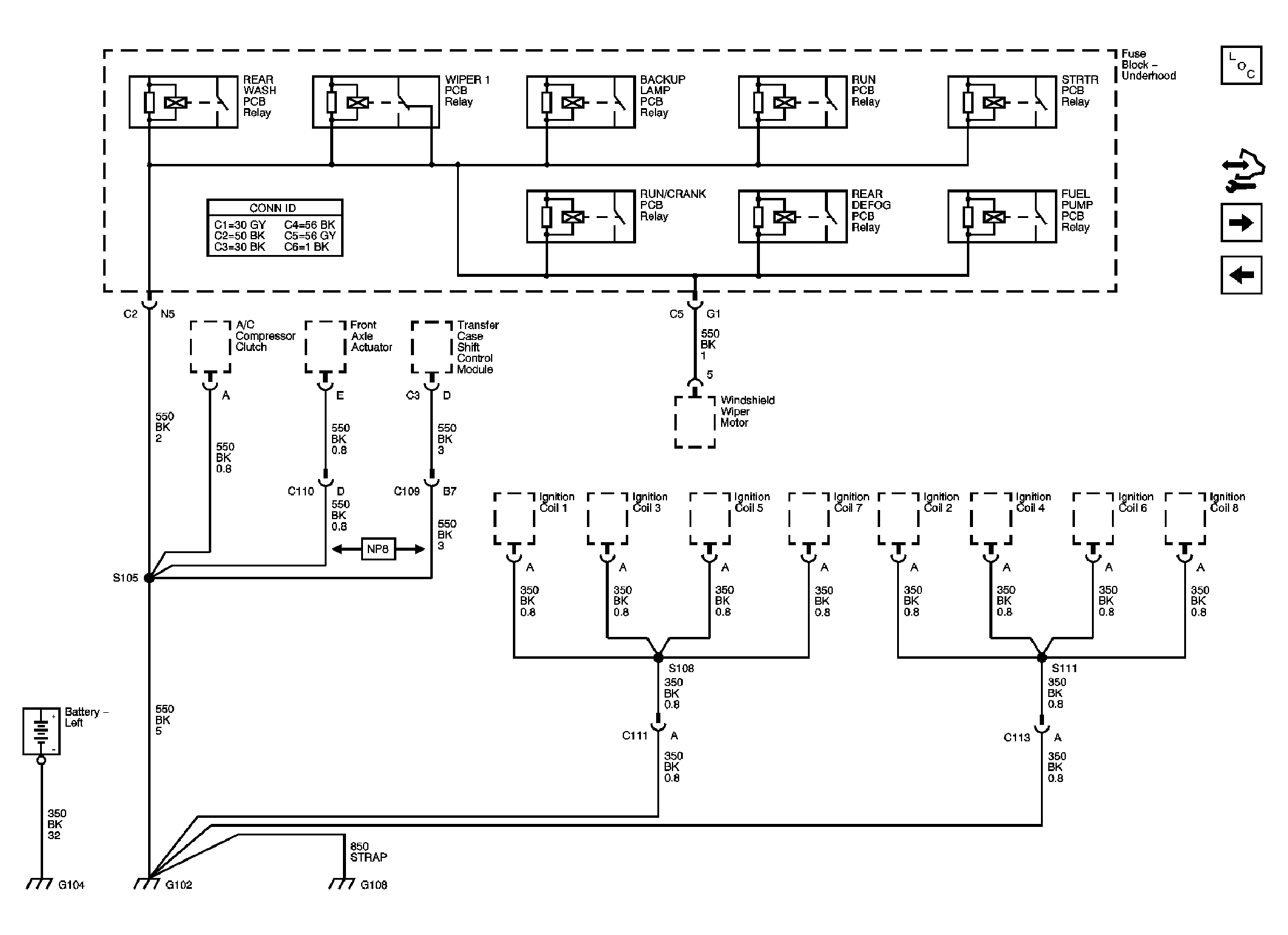

Fig 3: G102 & G108 Schematic

GM1699368

Courtesy of GENERAL MOTORS CORP.

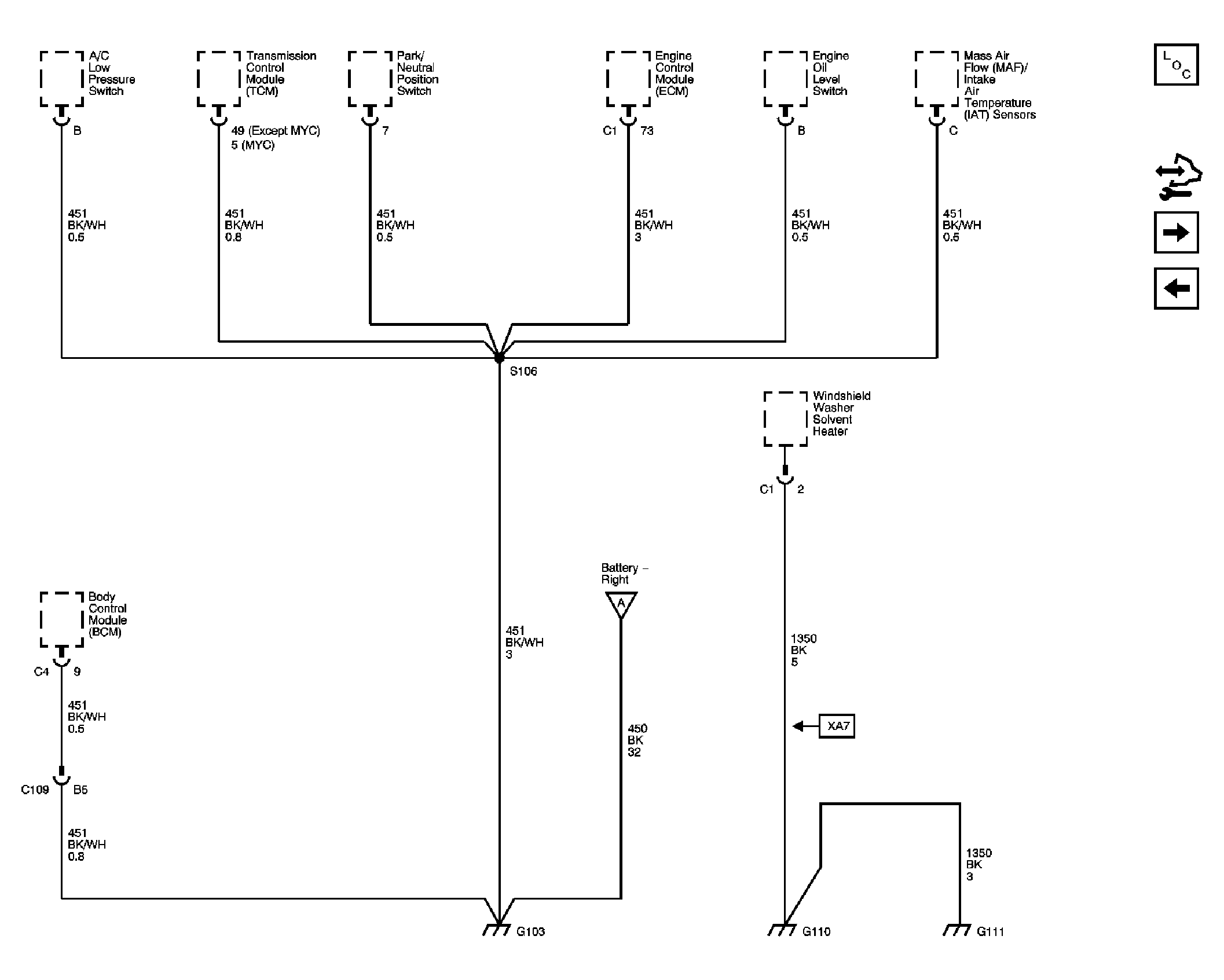

Fig 4: G103, G110, & G111 Schematic

GM1699369

Courtesy of GENERAL MOTORS CORP.

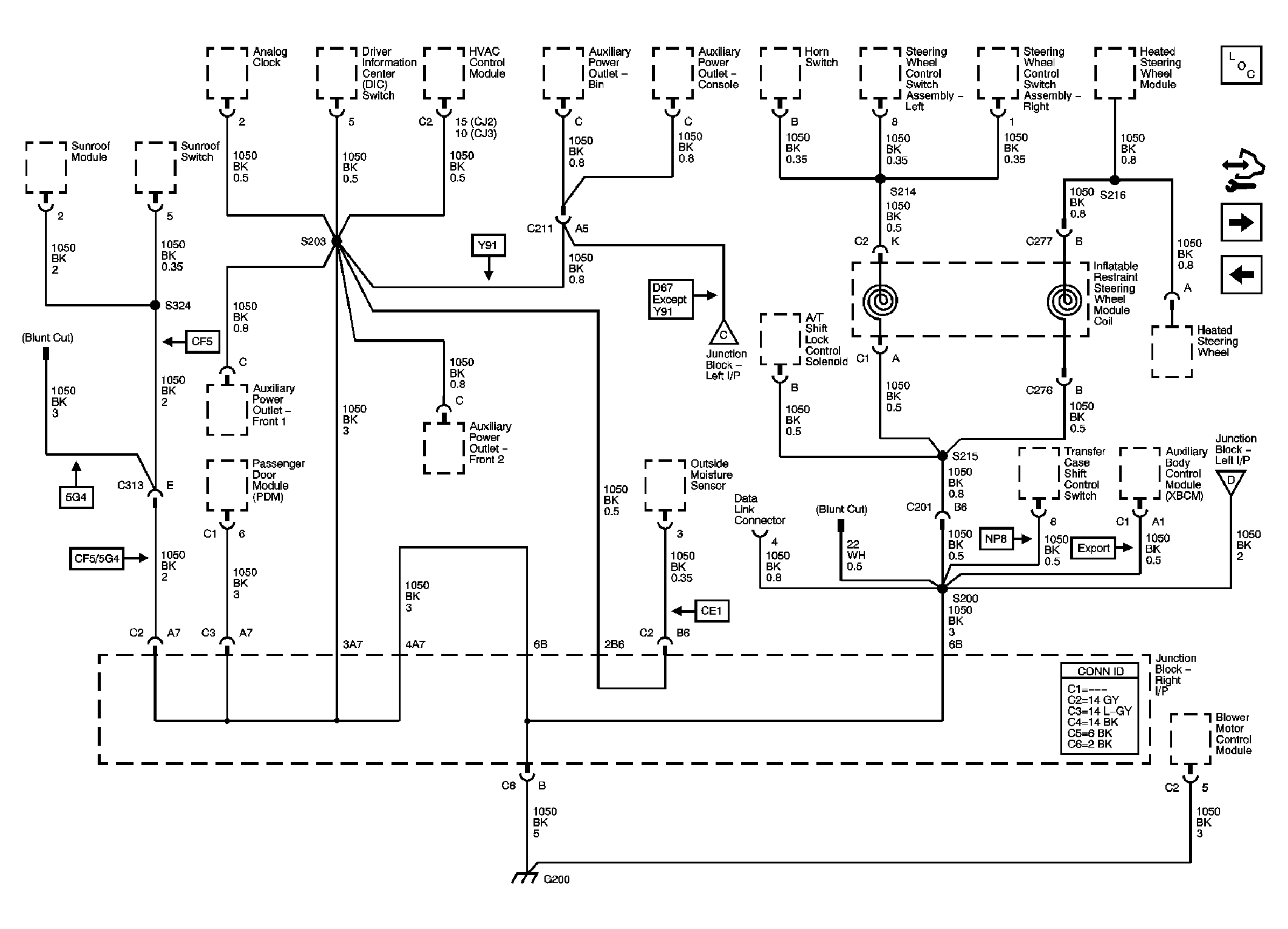

Fig 5: G200 - 1 of 2 Schematic

GM1699371

Courtesy of GENERAL MOTORS CORP.

Fig 6: G200 - 2 of 2 Schematic

GM1699372

Courtesy of GENERAL MOTORS CORP.

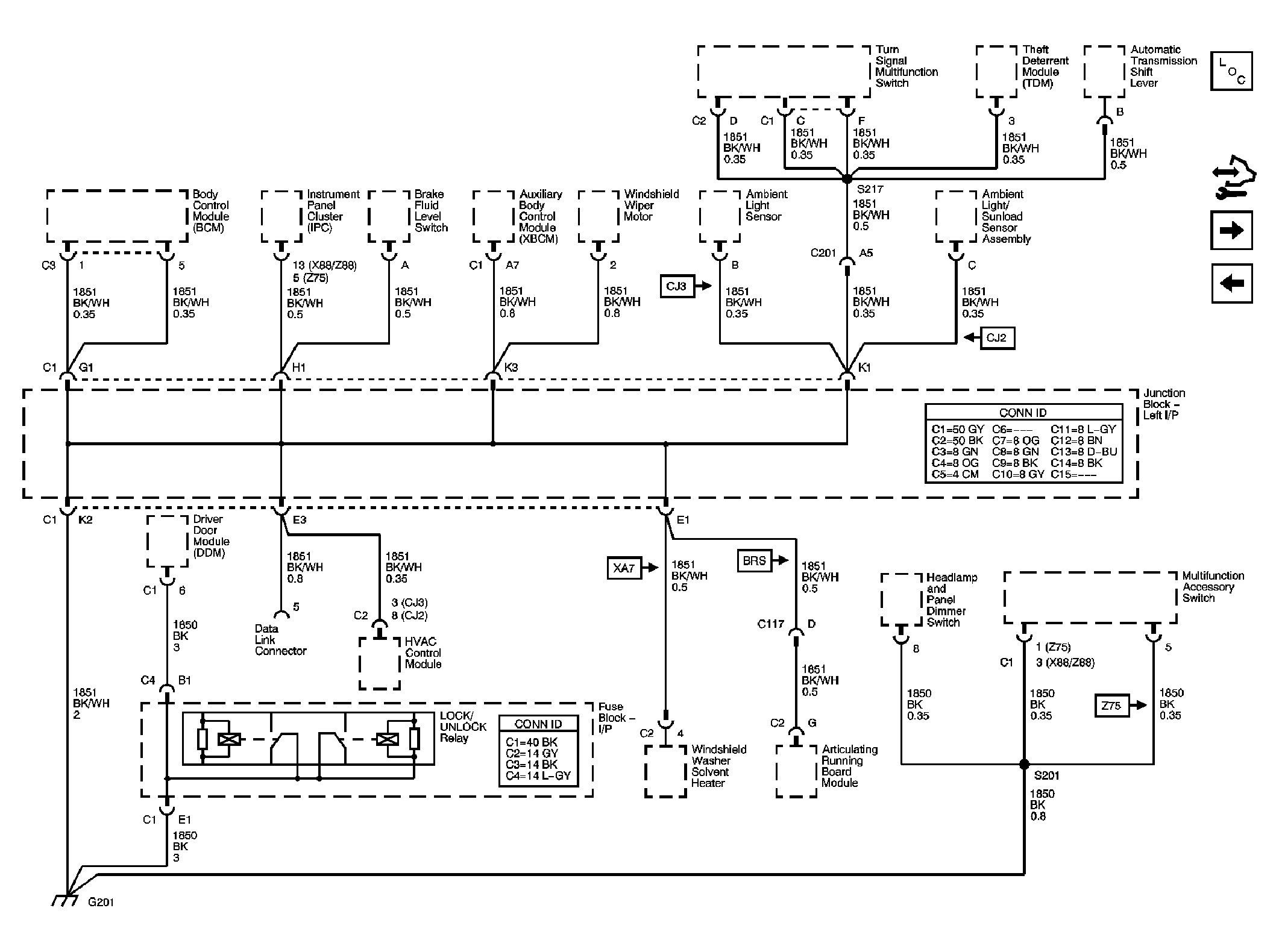

Fig 7: G201 Schematic

GM1699373

Courtesy of GENERAL MOTORS CORP.

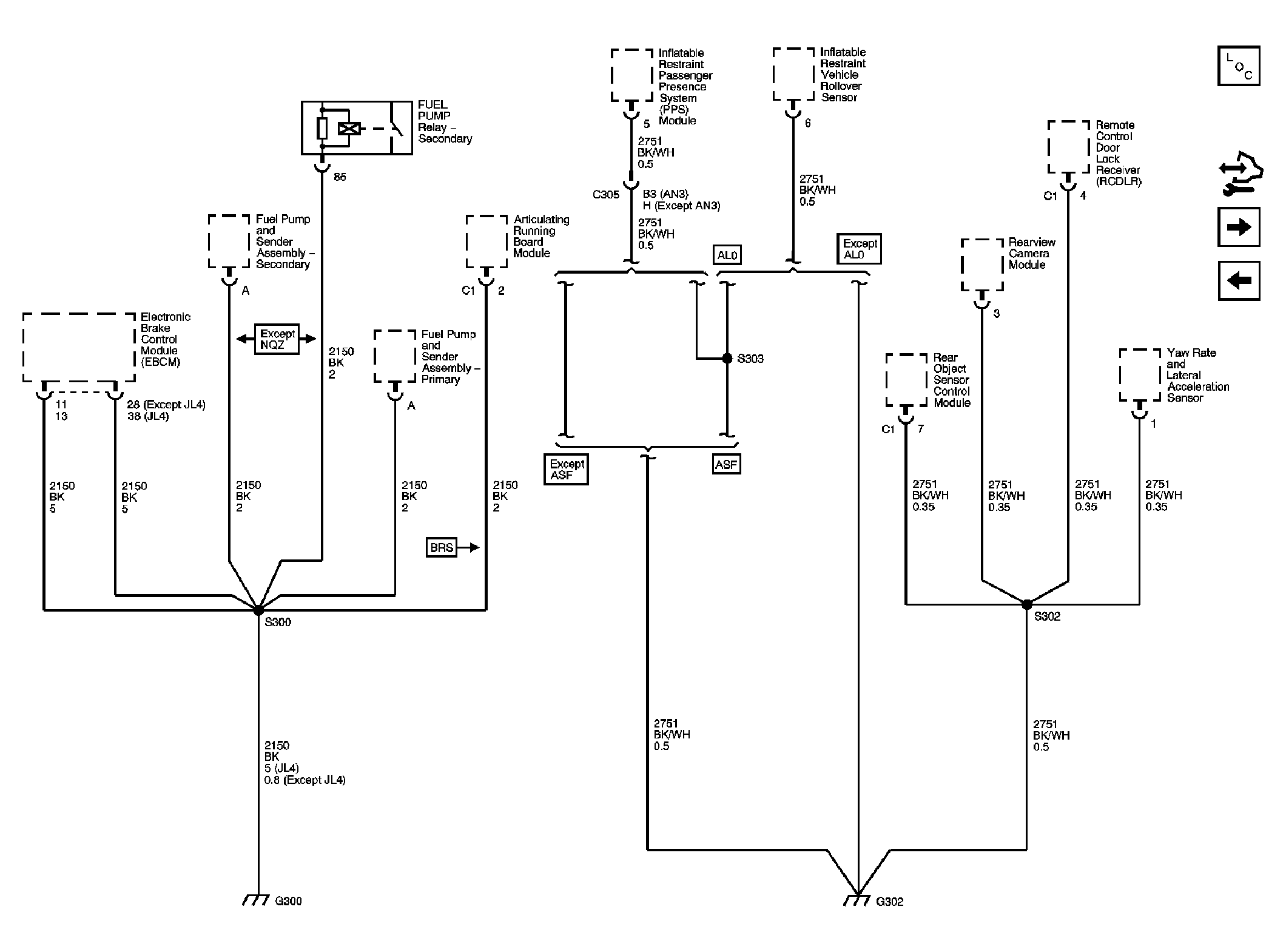

Fig 8: G300 & G302 Schematic

GM1699375

Courtesy of GENERAL MOTORS CORP.

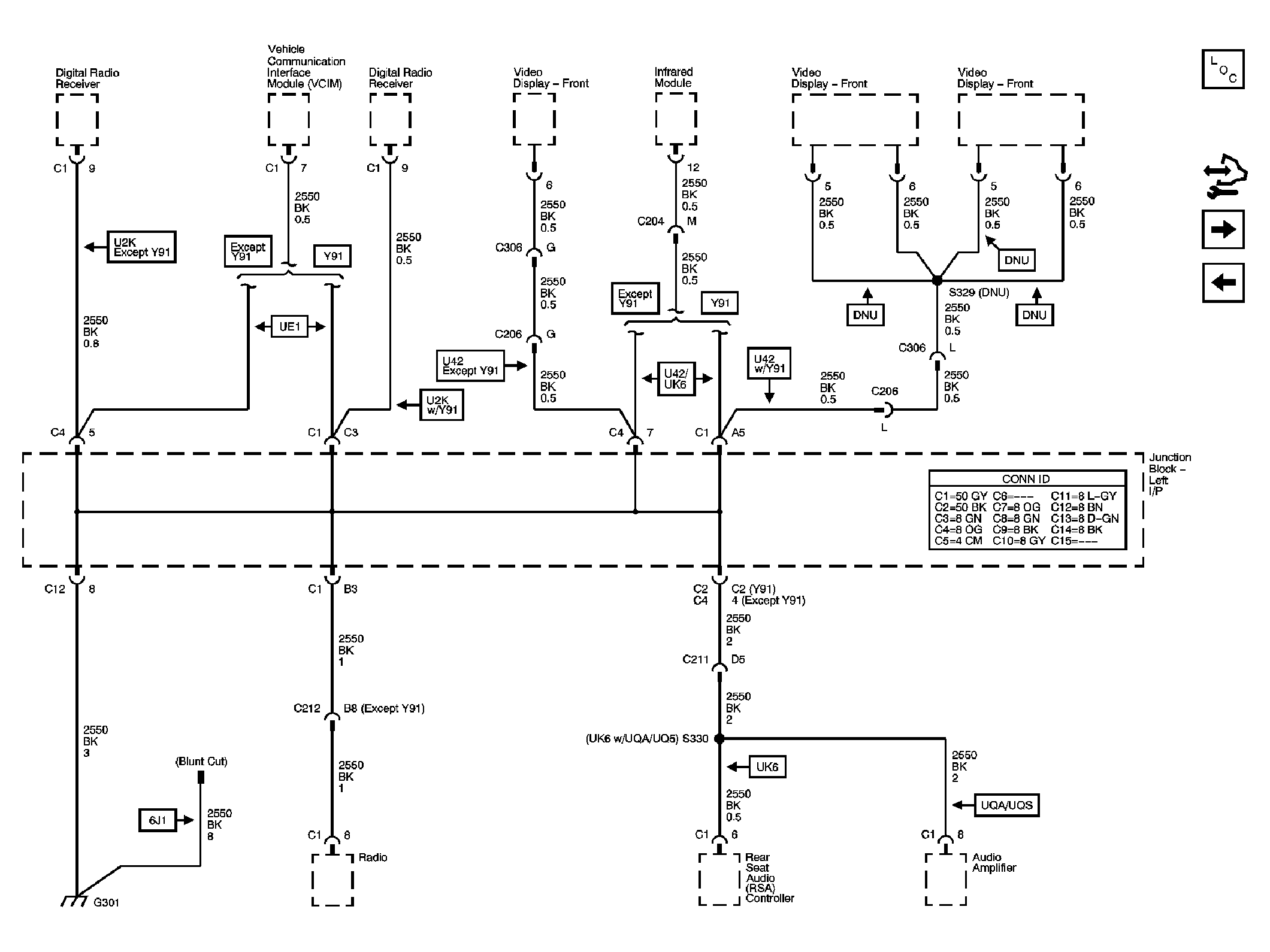

Fig 9: G301 Schematic

GM1699378

Courtesy of GENERAL MOTORS CORP.

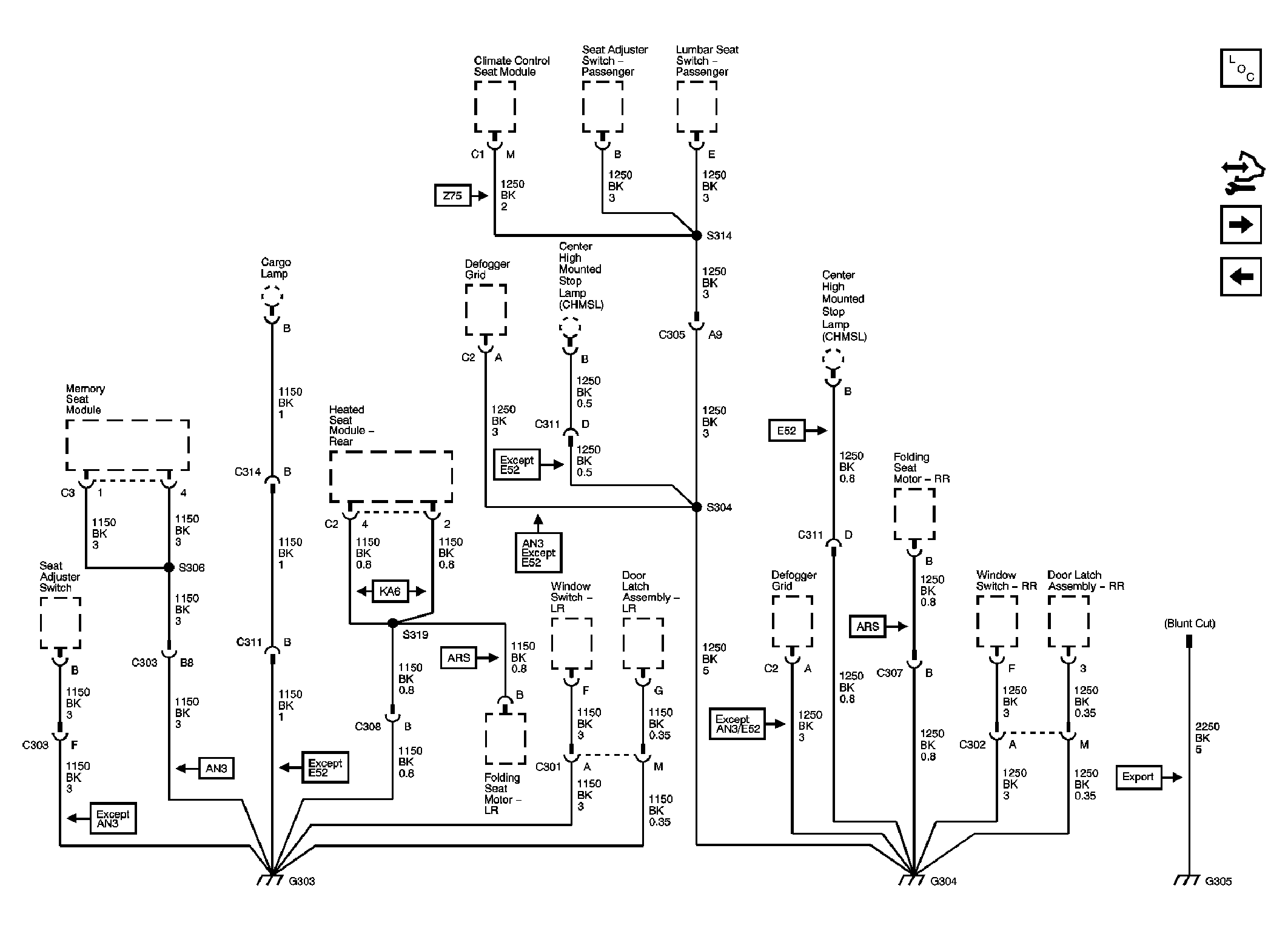

Fig 10: G303, G304, & G305 Schematic

GM1699379

Courtesy of GENERAL MOTORS CORP.

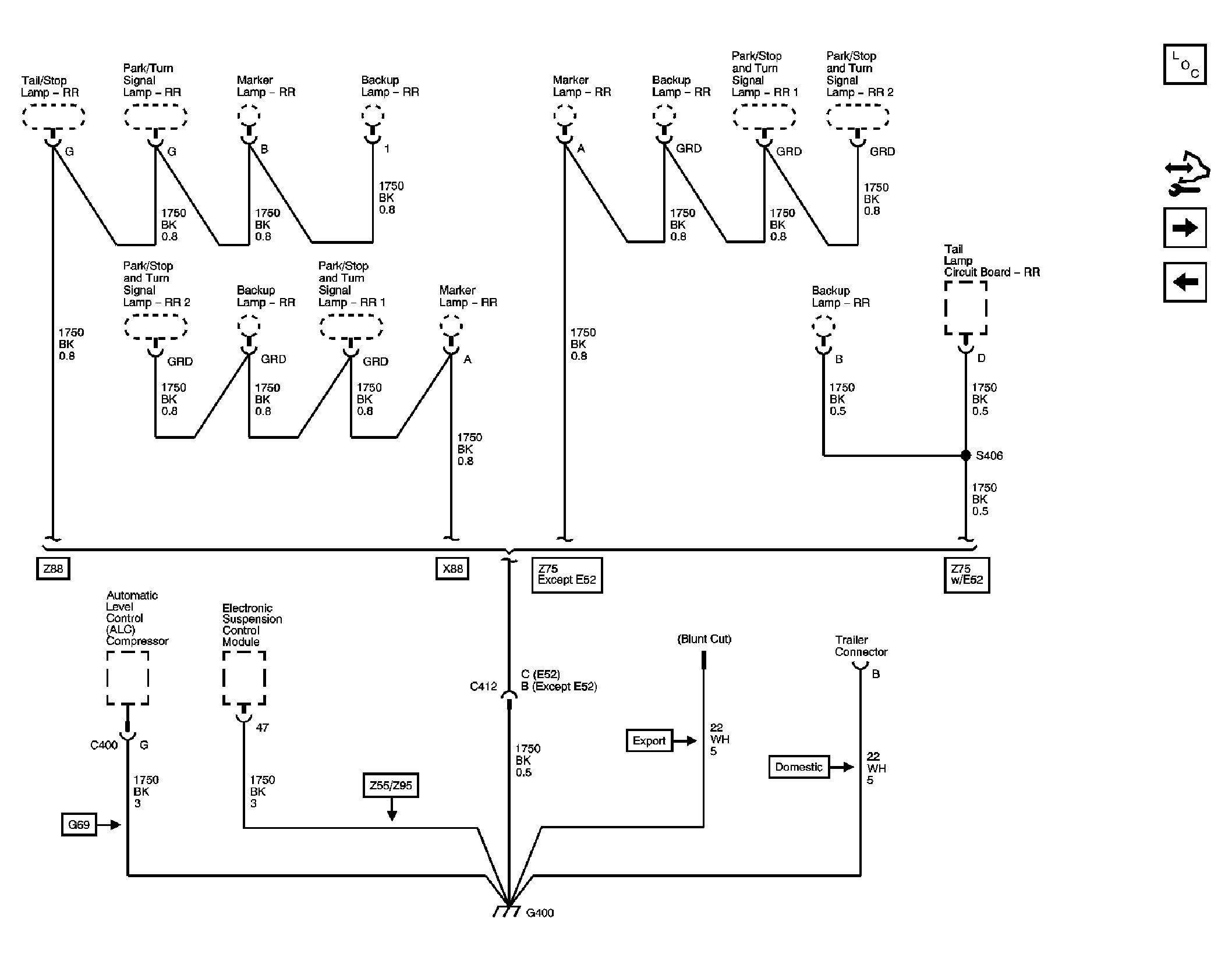

Fig 11: G400 Schematic

GM1699382

Courtesy of GENERAL MOTORS CORP.

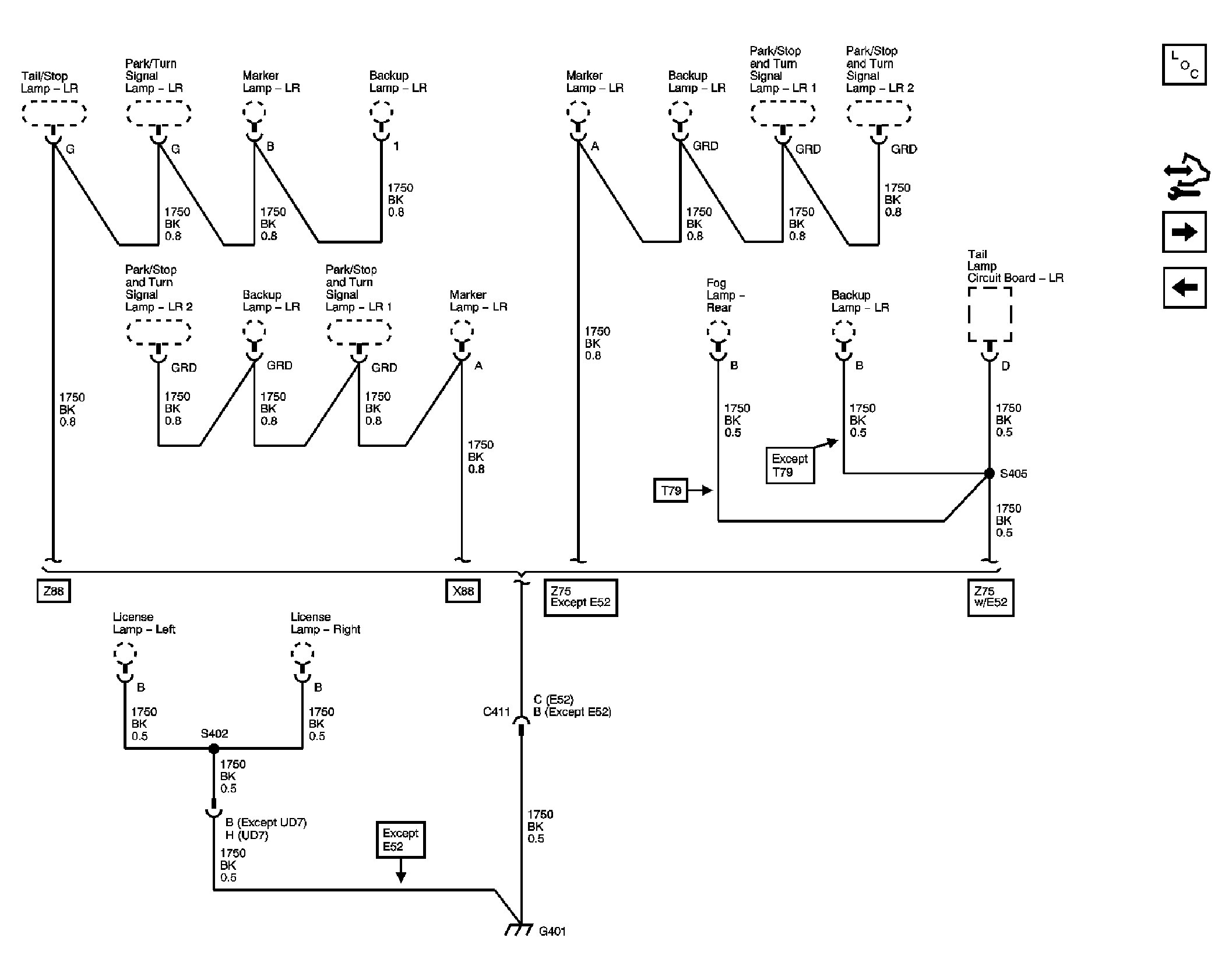

Fig 12: G401 Schematic

GM1699384

Courtesy of GENERAL MOTORS CORP.

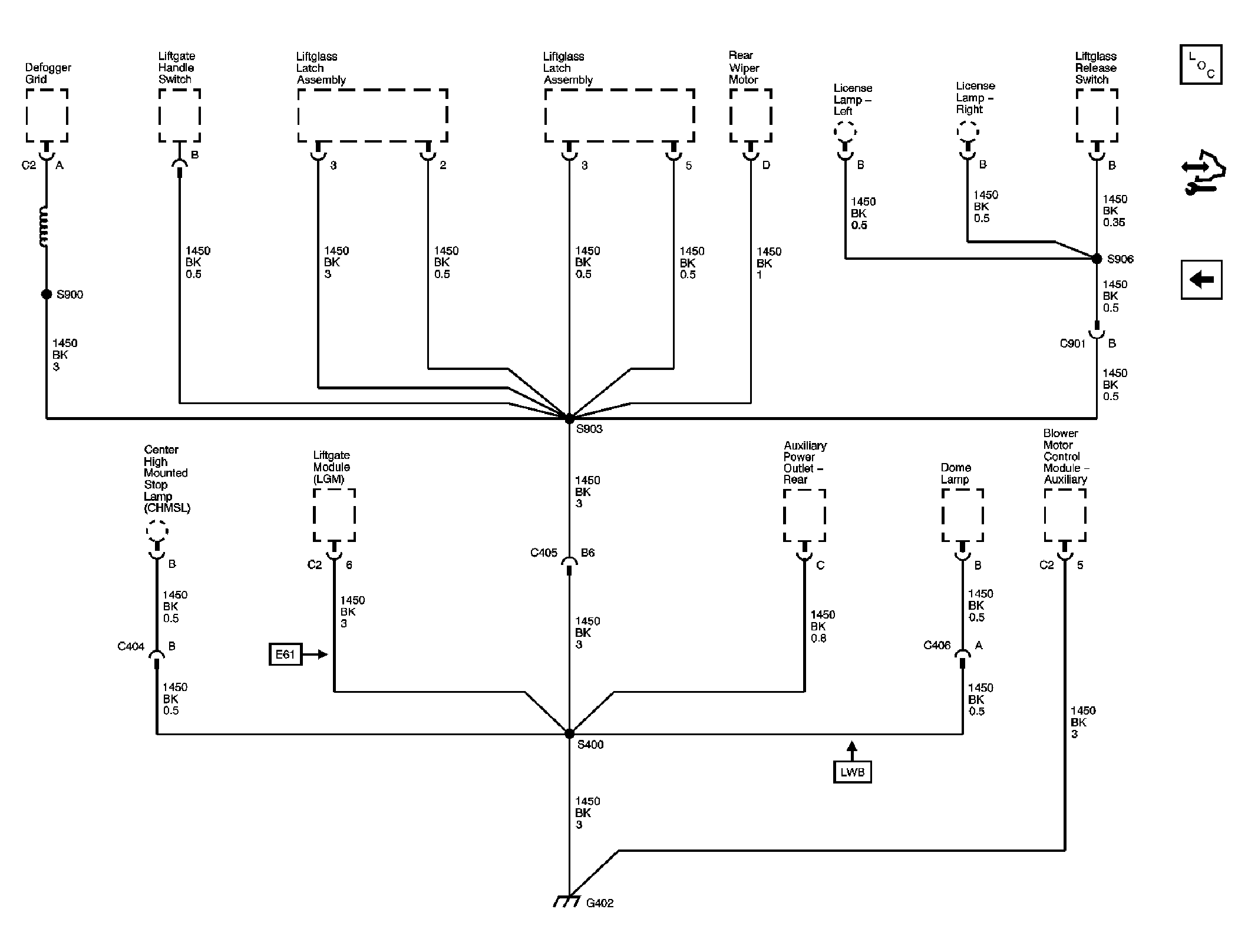

Fig 13: G402 - E52 Schematic

GM1699387

Courtesy of GENERAL MOTORS CORP.
