Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The optional oil cooler is either an integral part of the radiator or a separate unit placed in front of the radiator. The cooler lines and hoses are serviceable.

    Fig 1: Locating Quick Connect Fitting
    GM1702524Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the engine oil cooler quick connect fittings. Refer to Engine Oil Cooler Pipe/Hose Quick Connect Fitting .
  2. If equipped with regular production option (RPO) L76 (6.0L) engine, perform the following.
    1. Open the oil cooler hose clip located on the lower fan shroud.
    2. Remove the oil cooler hoses from the clip.
  3. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .

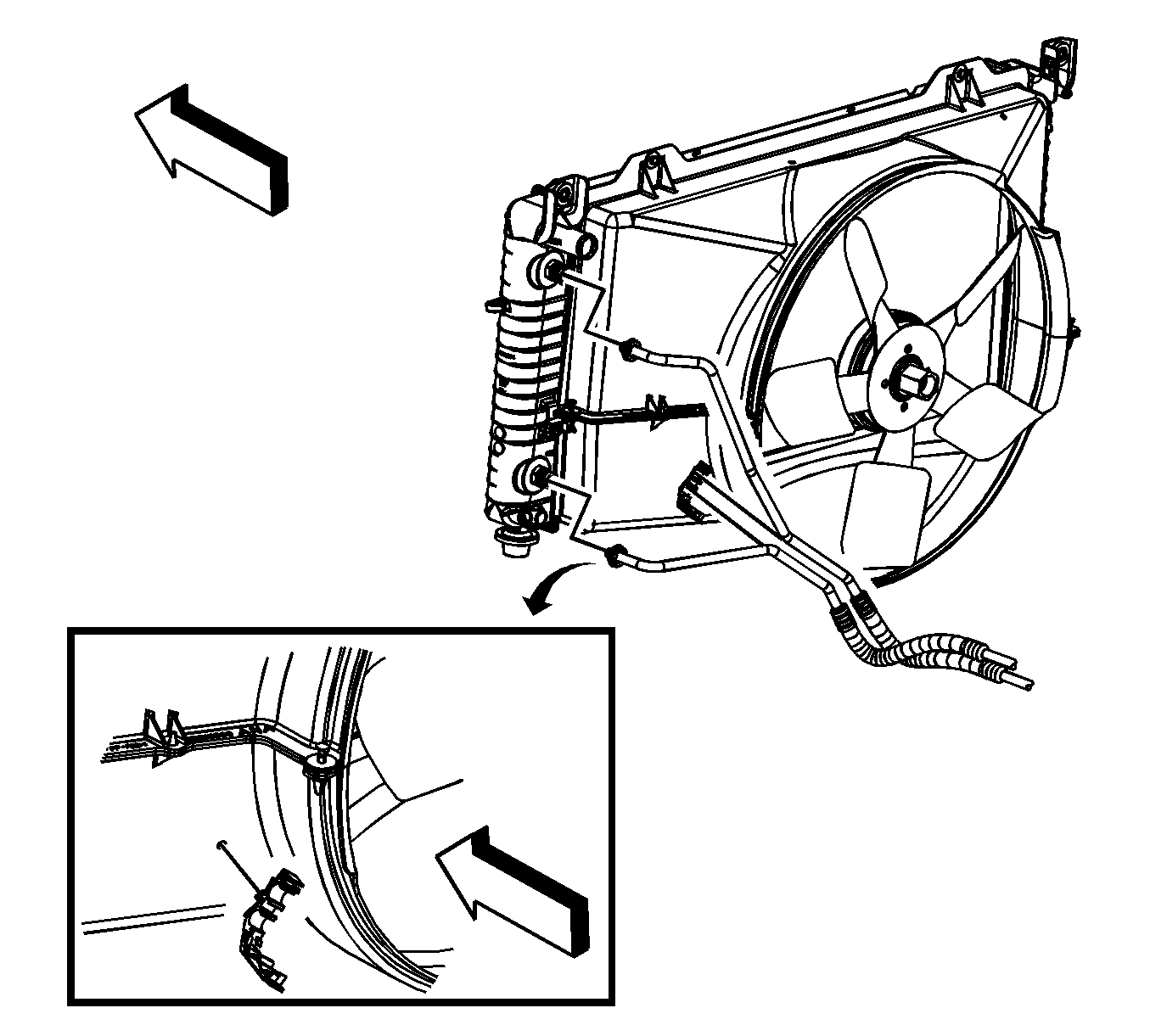

    4. Fig 2: View Of Oil Cooler Hoses & Clips
    GM1702526Courtesy of GENERAL MOTORS CORP.
  4. If equipped with RPO LY6 (6.0L) engine, remove the oil cooler hoses from the clip.
  5. Place a jack or utility stands at the rear of the vehicle.
  6. If equipped, remove the engine protection shield. Refer to Engine Shield Replacement .
  7. If equipped, remove the front differential carrier shield. Refer to Shield Replacement .

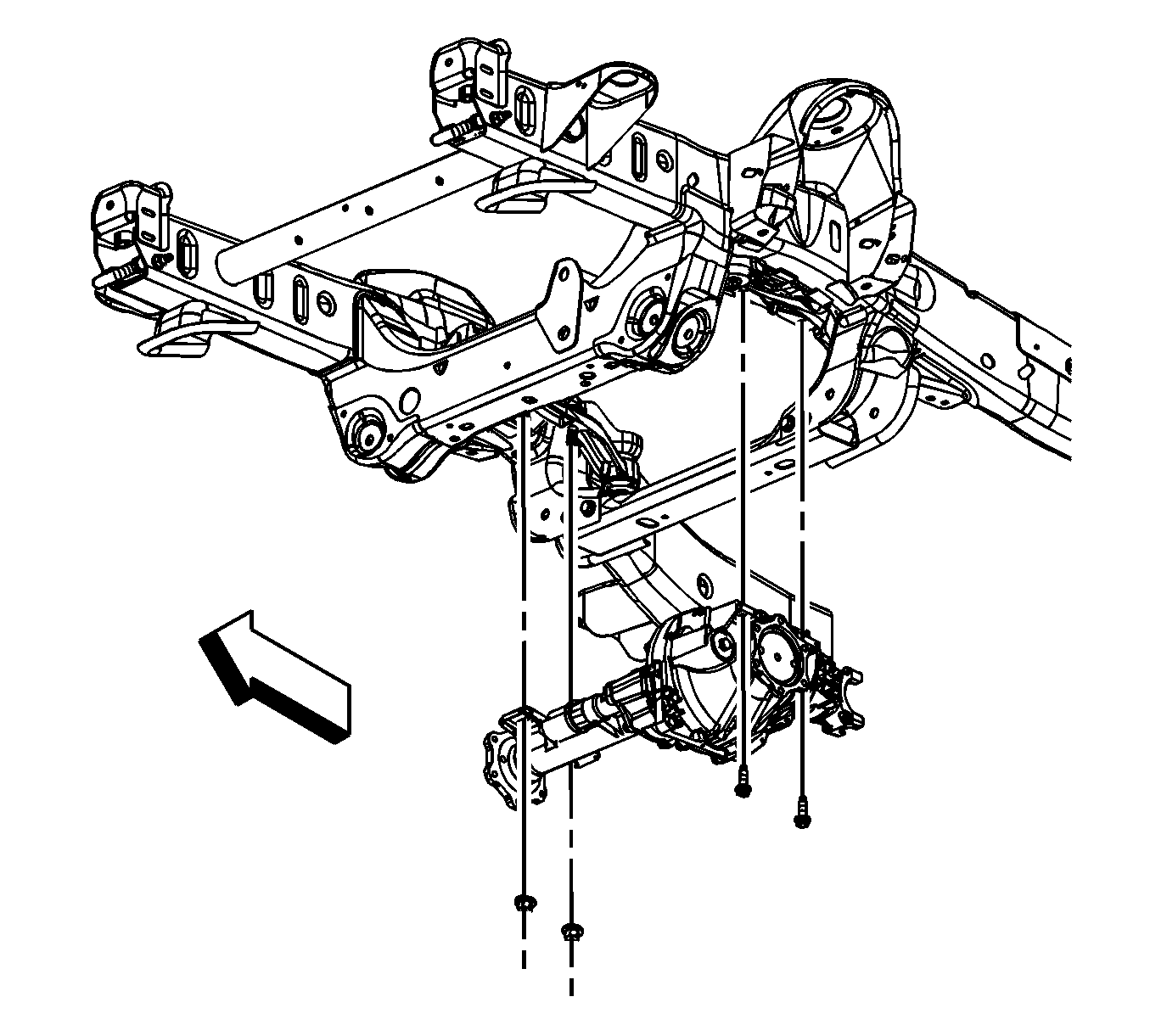

    8. Fig 3: Locating Differential Carrier Nuts
    GM1698067Courtesy of GENERAL MOTORS CORP.
  8. For both 1500 and 2500 series, support the front differential carrier with a suitable adjustable jack.
  9. For 1500 series vehicles, remove the differential carrier right side nuts.
    10. Fig 4: View Of Differential Carrier Bolts
    GM1698068Courtesy of GENERAL MOTORS CORP.
  10. Remove the differential carrier left side bolts.
  11. Lower the differential carrier.
  12. For 2500 series vehicles, remove the differential carrier right side nuts.
    13. Fig 5: View Of Differential Carrier Lower Mounting Bolt
    GM834278Courtesy of GENERAL MOTORS CORP.
  13. Remove the differential carrier upper mounting bolt and nut.
  14. Remove the differential carrier lower mounting bolt and nut.

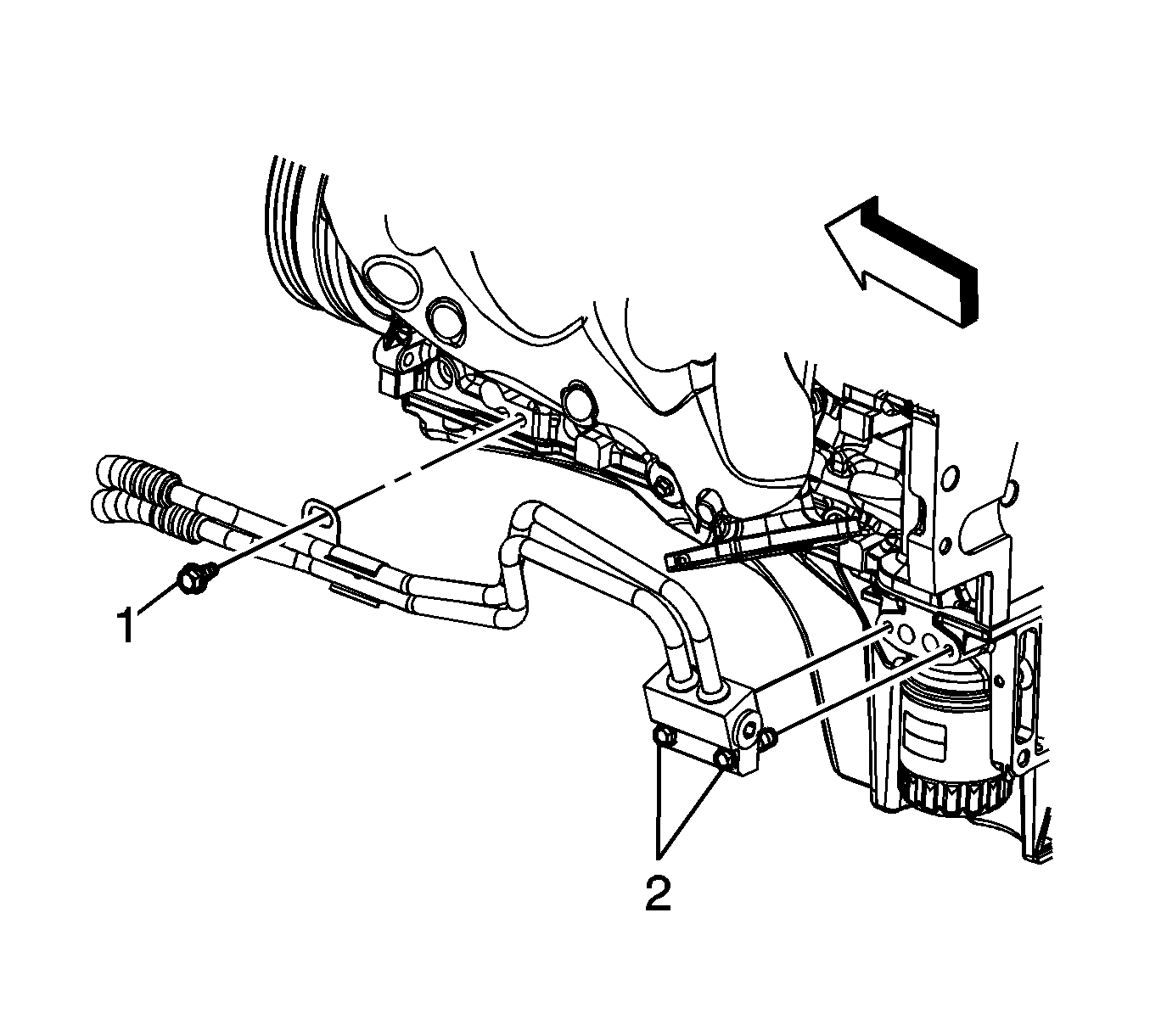

    15. Fig 6: Locating Oil Cooler Hose Bracket & Adapter Bolts
    GM1702199Courtesy of GENERAL MOTORS CORP.
  15. If equipped with RPO L76 (6.0L) engine, perform the following:
    1. Lower the differential carrier.
    2. Remove the oil cooler hose adapter bolts (2).
    3. Remove the oil cooler hose assembly and gasket. Discard the gasket.
    4. Inspect the fittings, connectors, and cooler hoses for damage or distortion.

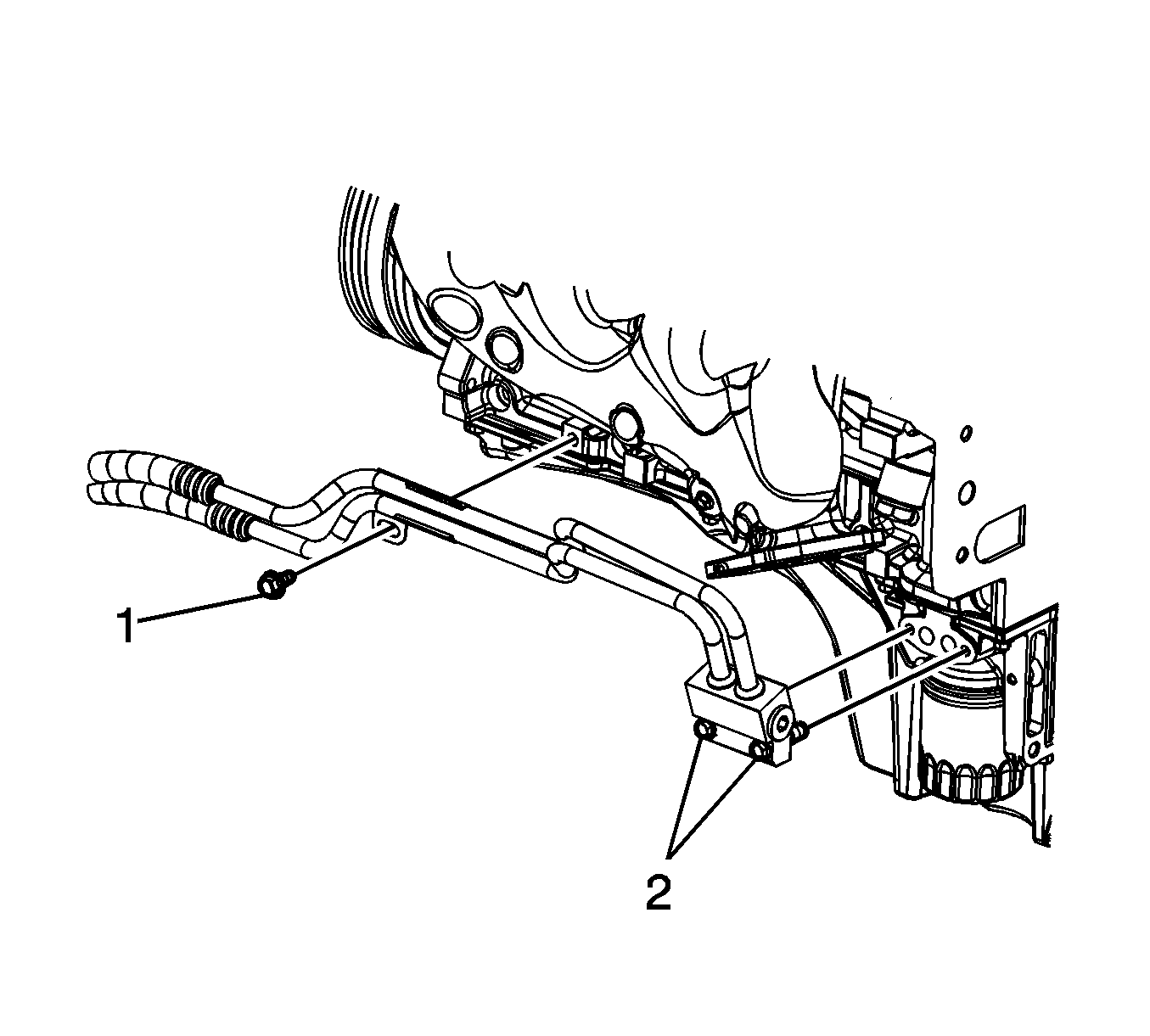

    16. Fig 7: Locating Oil Cooler Hose Bracket & Adapter Bolts
    GM1702200Courtesy of GENERAL MOTORS CORP.
  16. If equipped with RPO LY6 (6.0L) engine, perform the following:
    1. Remove the oil cooler hose bracket bolt. (1)
    2. Remove the oil cooler hose adapter bolts. (2)
    3. Remove the oil cooler hose assembly. Discard the gasket.
    4. Inspect the fittings, connectors, and cooler hoses for damage or distortion.
