Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Coolant Air Bleed Pipe Seal

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Position the O-ring seal (308) onto the nipple portion of the pipe.

Install the seals onto the coolant air bleed pipe and/or covers.

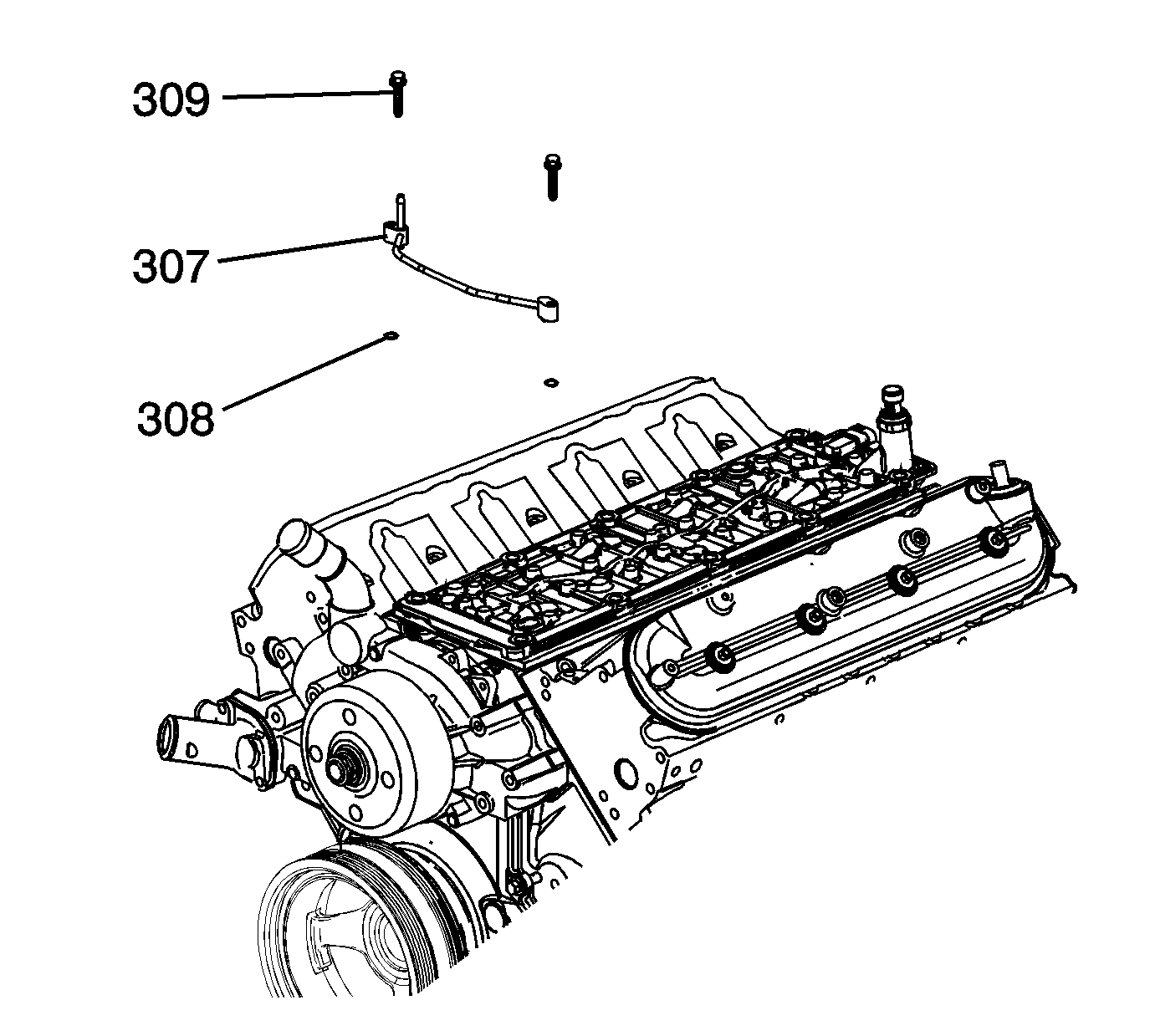

Fig 2: Engine Coolant Air Bleed Pipe

Courtesy of GENERAL MOTORS CORP.

Install the coolant air bleed pipe (307) and seals (308) onto the cylinder heads.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the coolant air bleed pipe bolts (309).
Tighten: Tighten the bolts to 12 N.m (106 lb in).

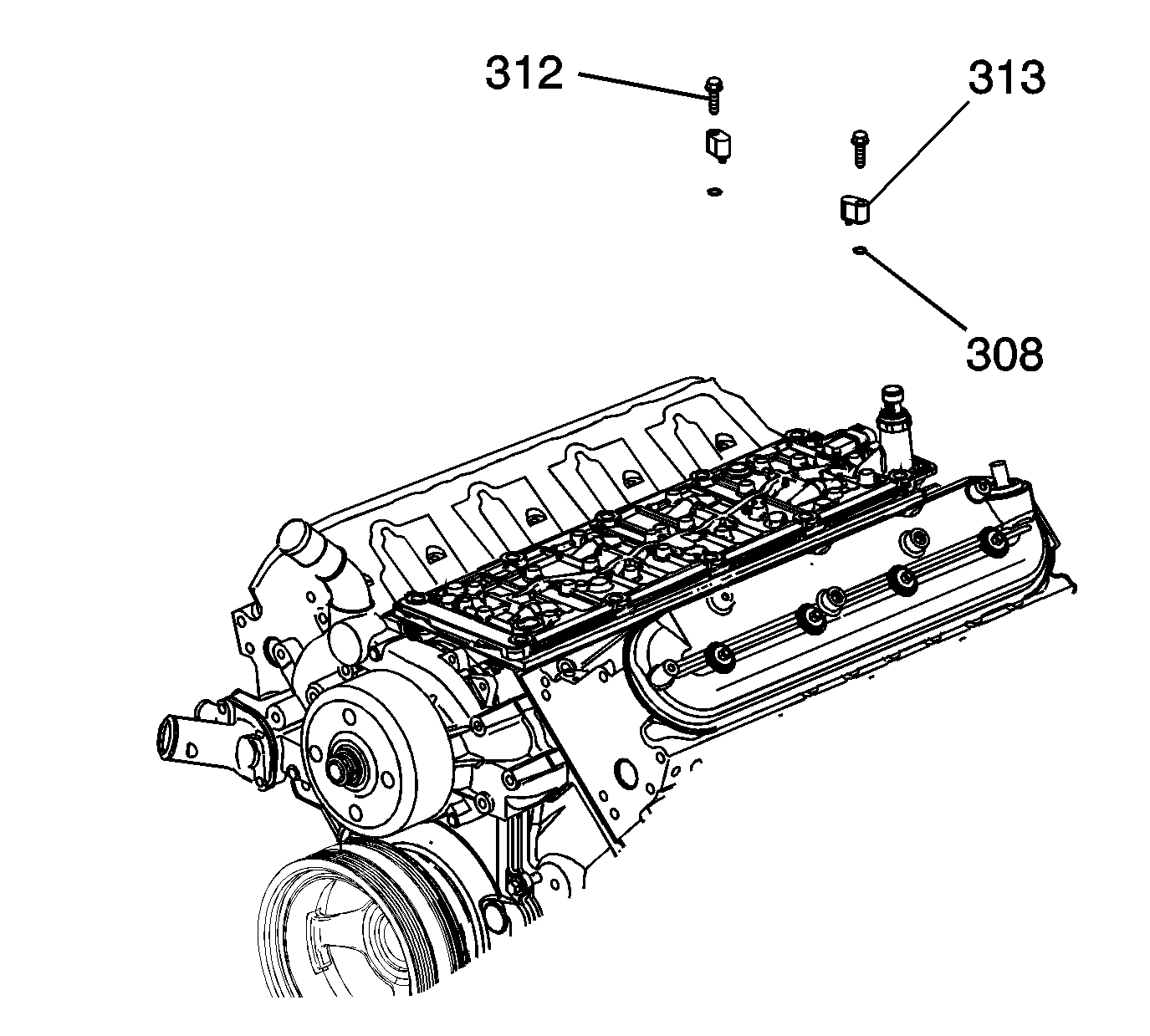

Fig 3: Engine Coolant Air Bleed Cover Bolts

Courtesy of GENERAL MOTORS CORP.

Install the coolant air bleed covers (313) and seals (308), if required.
Install the coolant air bleed cover bolts (312), if required.
Tighten: Tighten the bolts to 12 N.m (106 lb in).

Fig 4: View Of Radiator Vent Inlet Hose & Clamps

Courtesy of GENERAL MOTORS CORP.

Install the radiator vent inlet hose (2) to the coolant air bleed pipe fitting.
Position the radiator vent inlet hose clamp (1) at the coolant air bleed pipe fitting.
Install the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
Fill the cooling system. Refer to Draining and Filling Cooling System .
If the rear coolant air bleed covers were replaced, install the intake manifold. Refer to Intake Manifold Replacement (RPOs LC9/LMG/LY5/L76/L92) or Intake Manifold Replacement (RPOs LY2/LY6) .
