Door Lock Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

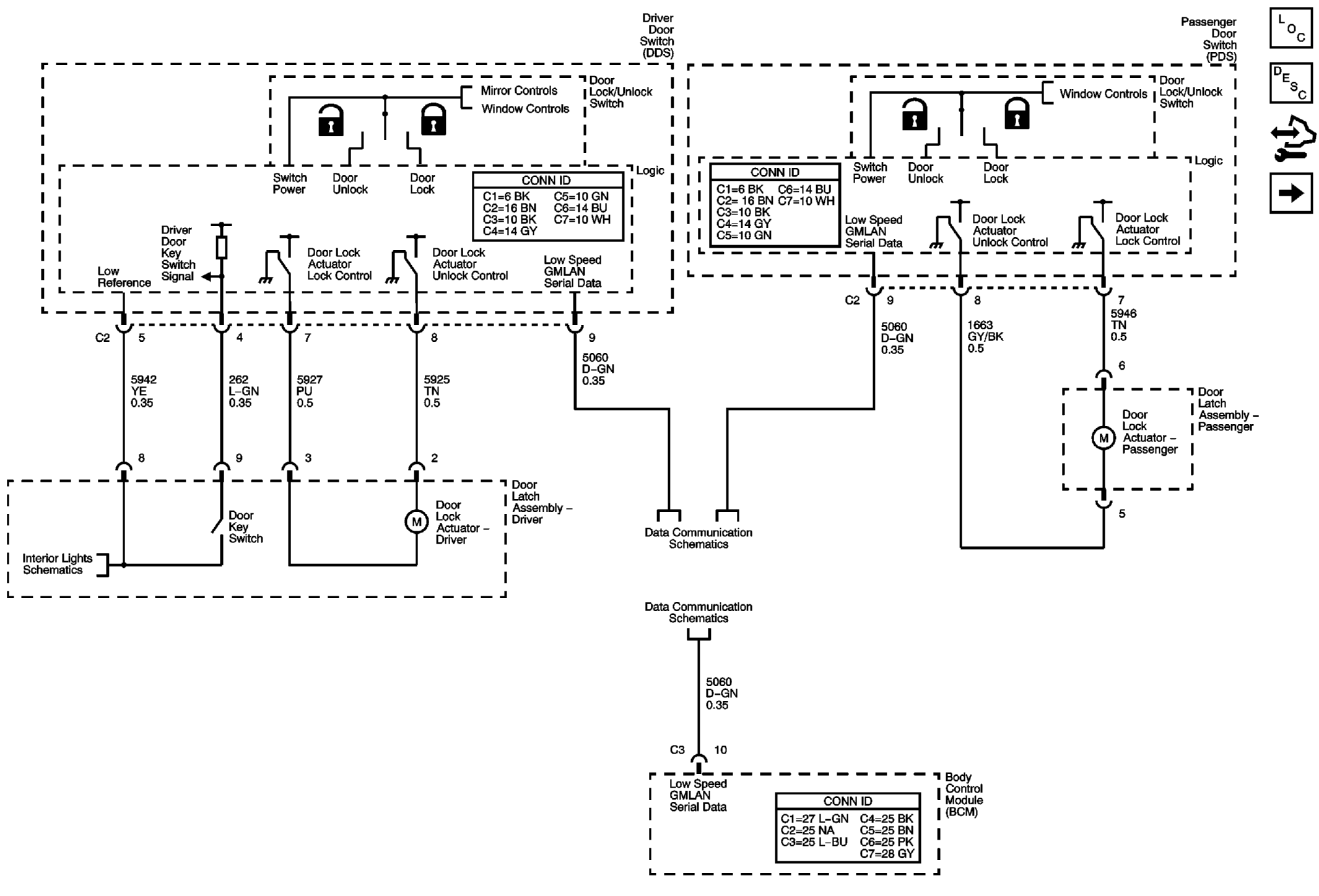

Fig 1: Front Door Lock Schematic

Courtesy of GENERAL MOTORS CORP.

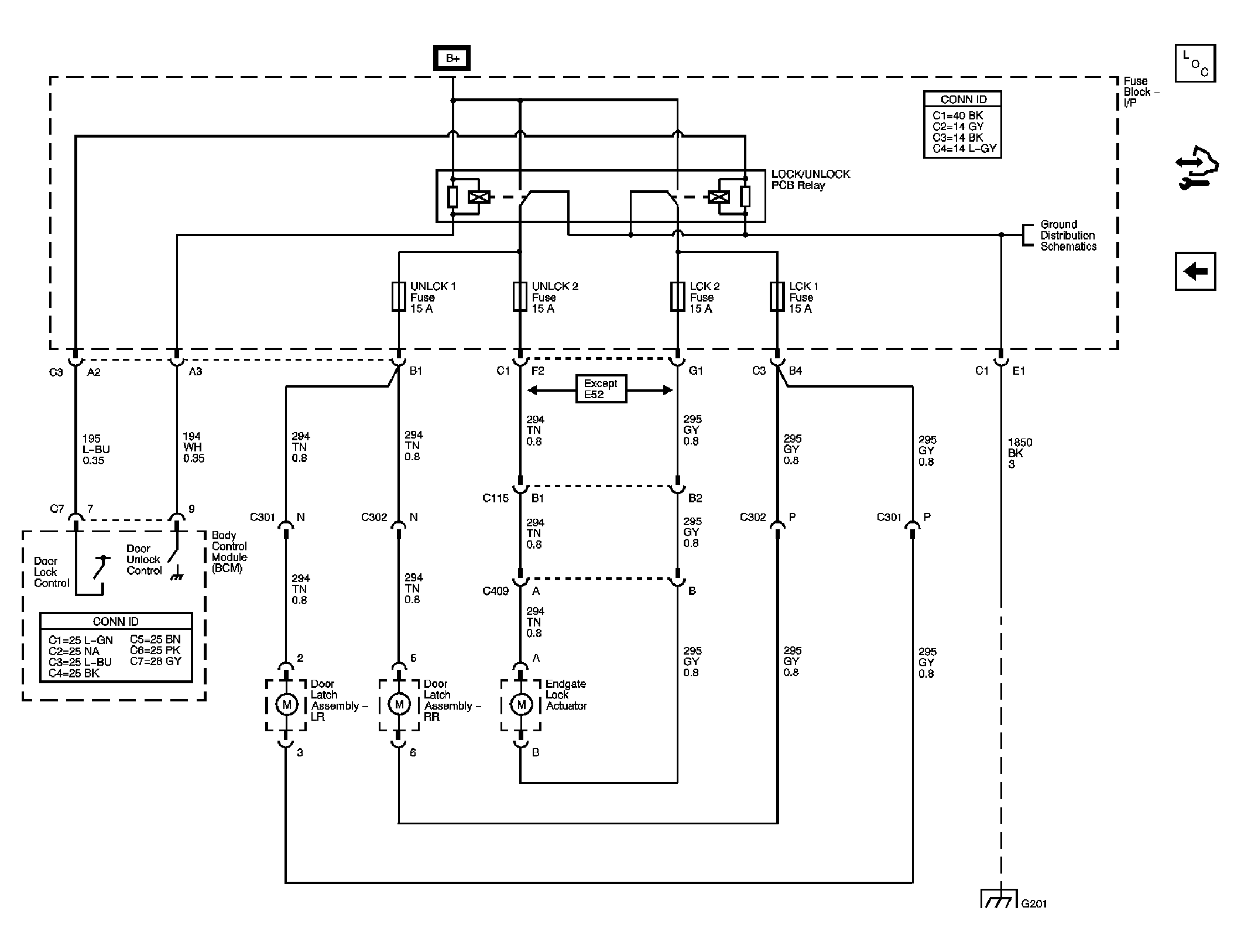

Fig 2: Rear Door Lock Schematic

Courtesy of GENERAL MOTORS CORP.
