Door Control Module Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

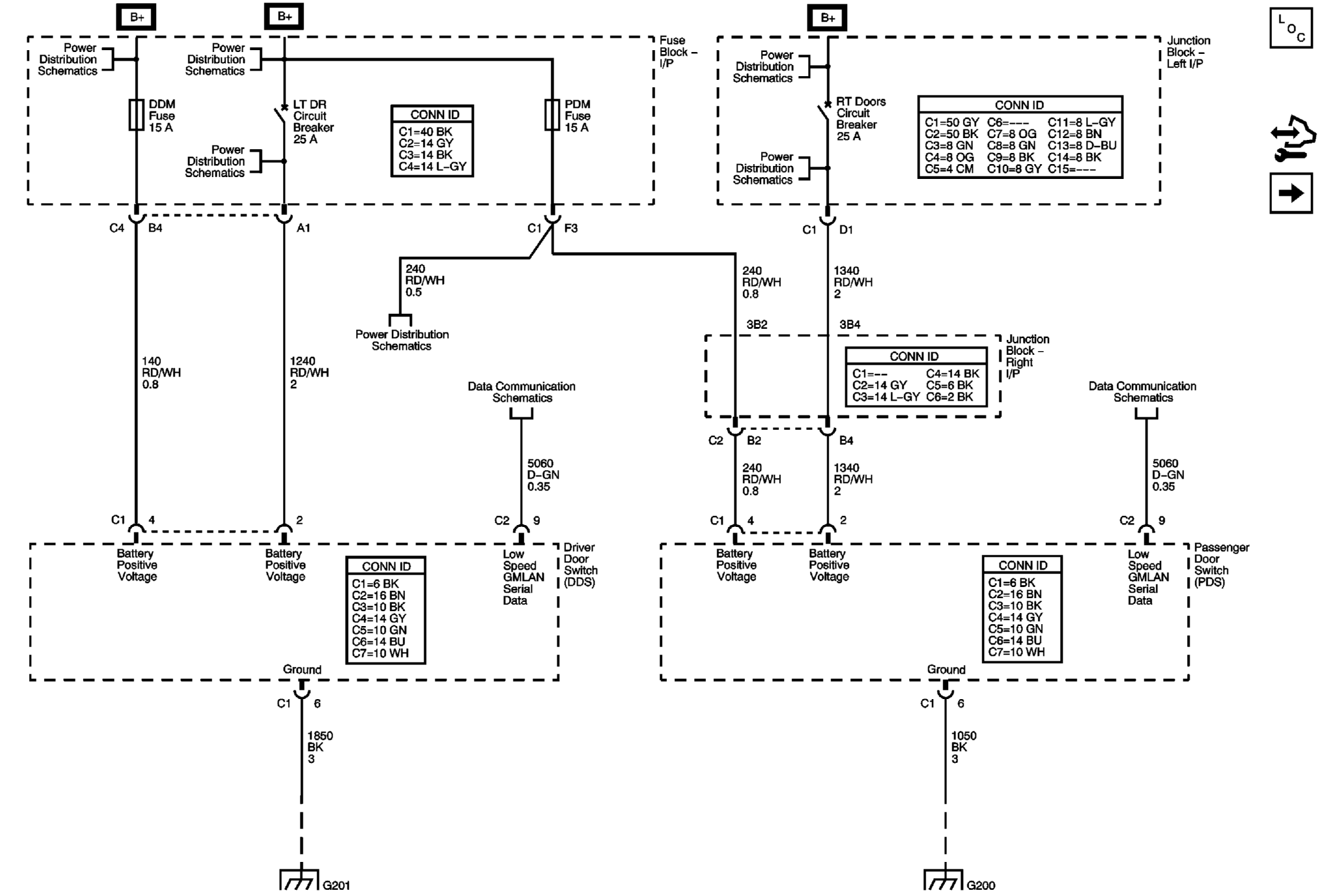

Fig 1: Module Power, Ground, and Serial Data Schematic

Courtesy of GENERAL MOTORS CORP.

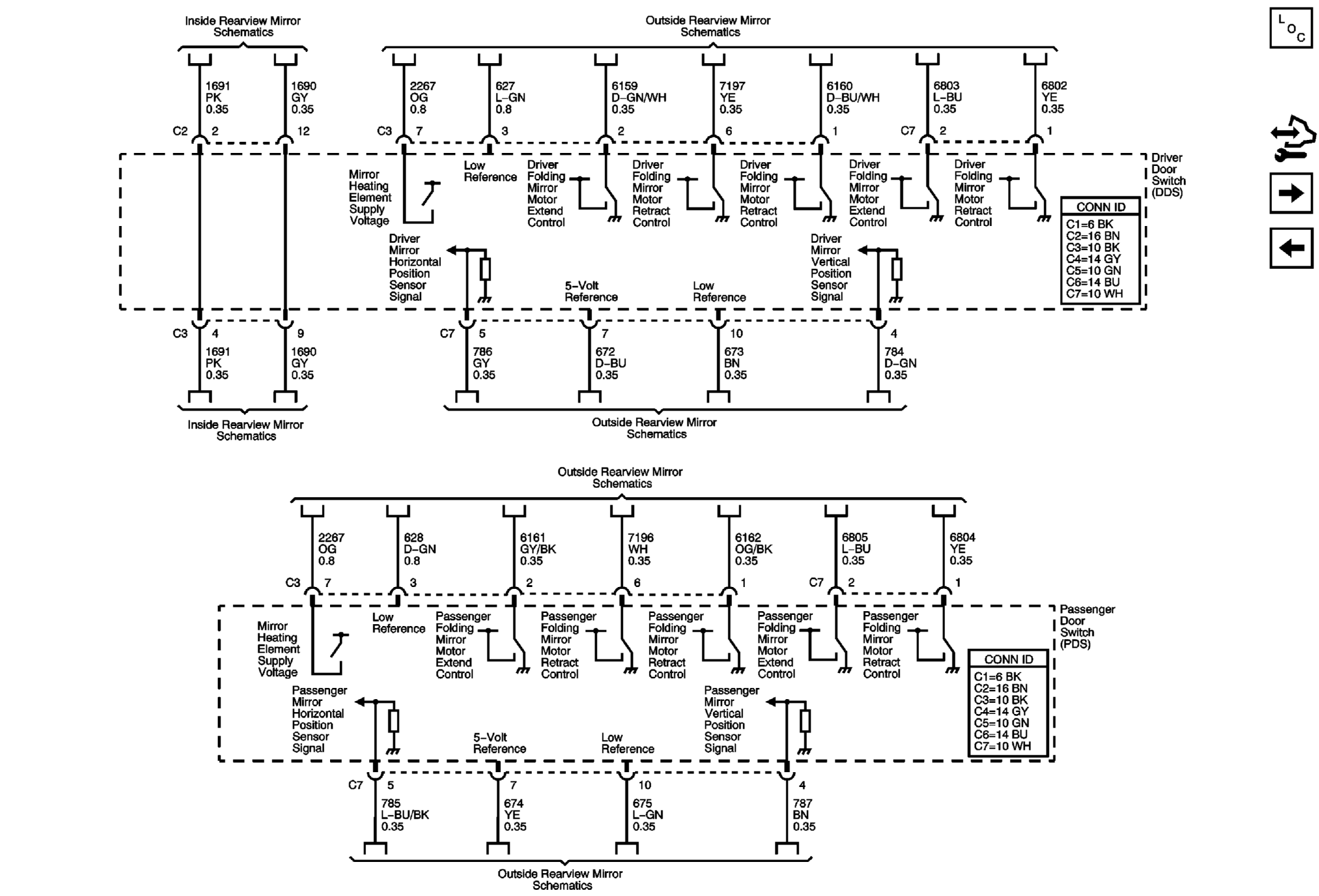

Fig 2: Outside Rearview Mirror References Schematic

Courtesy of GENERAL MOTORS CORP.

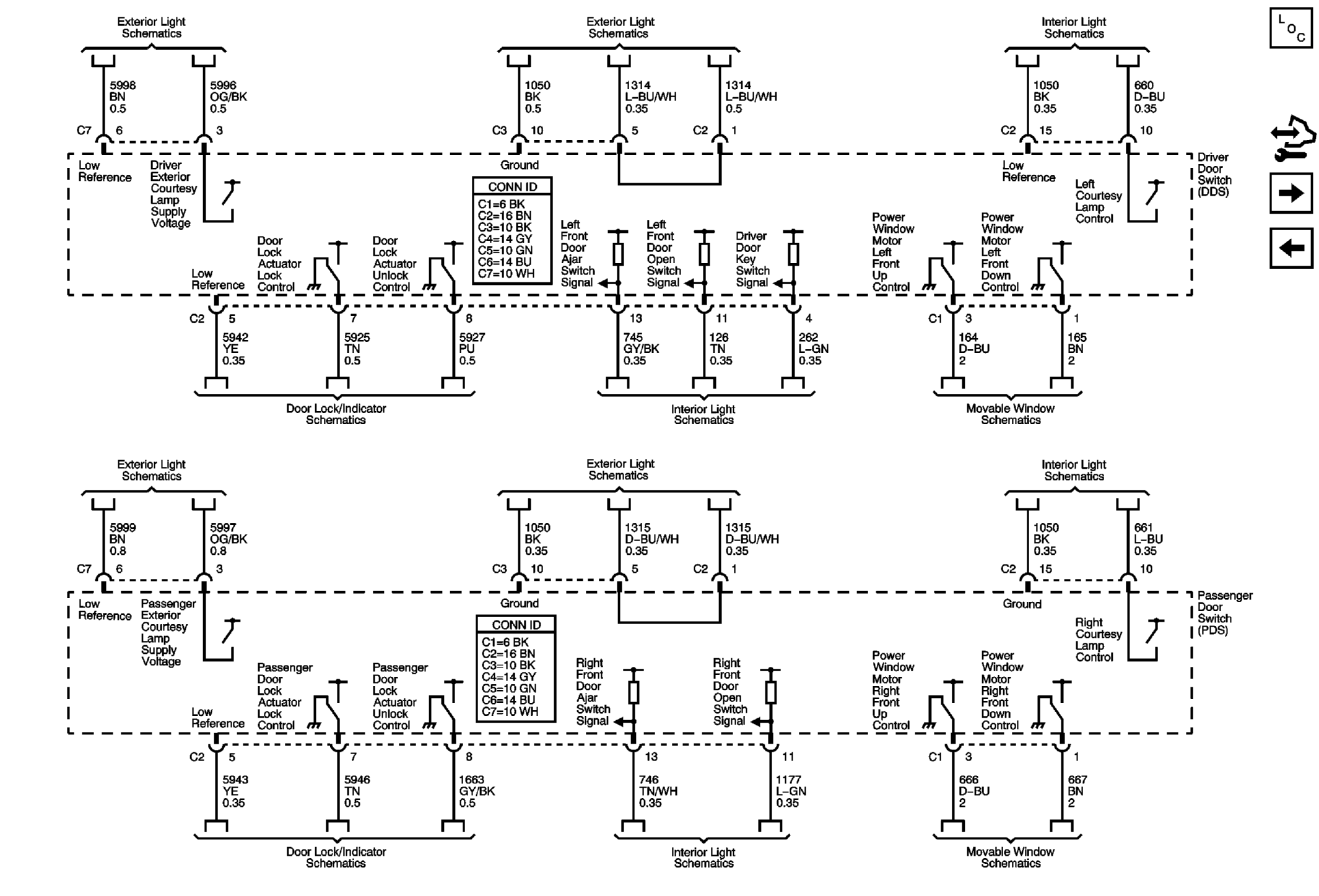

Fig 3: Door Lock, Window, and Lighting System References Schematic

Courtesy of GENERAL MOTORS CORP.

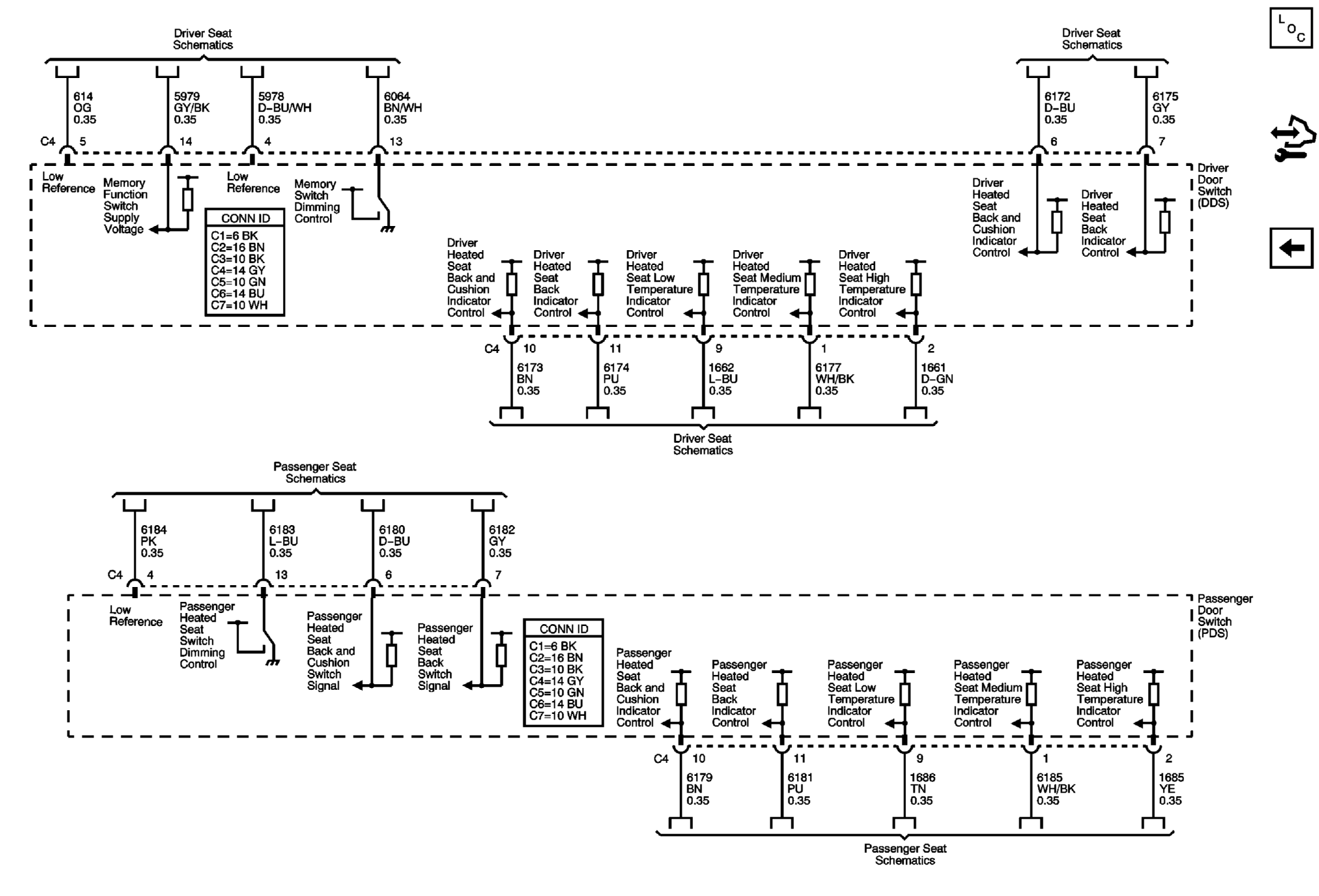

Fig 4: Heated Seat References Schematic

Courtesy of GENERAL MOTORS CORP.
