Door Handle Replacement - Front Outside

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

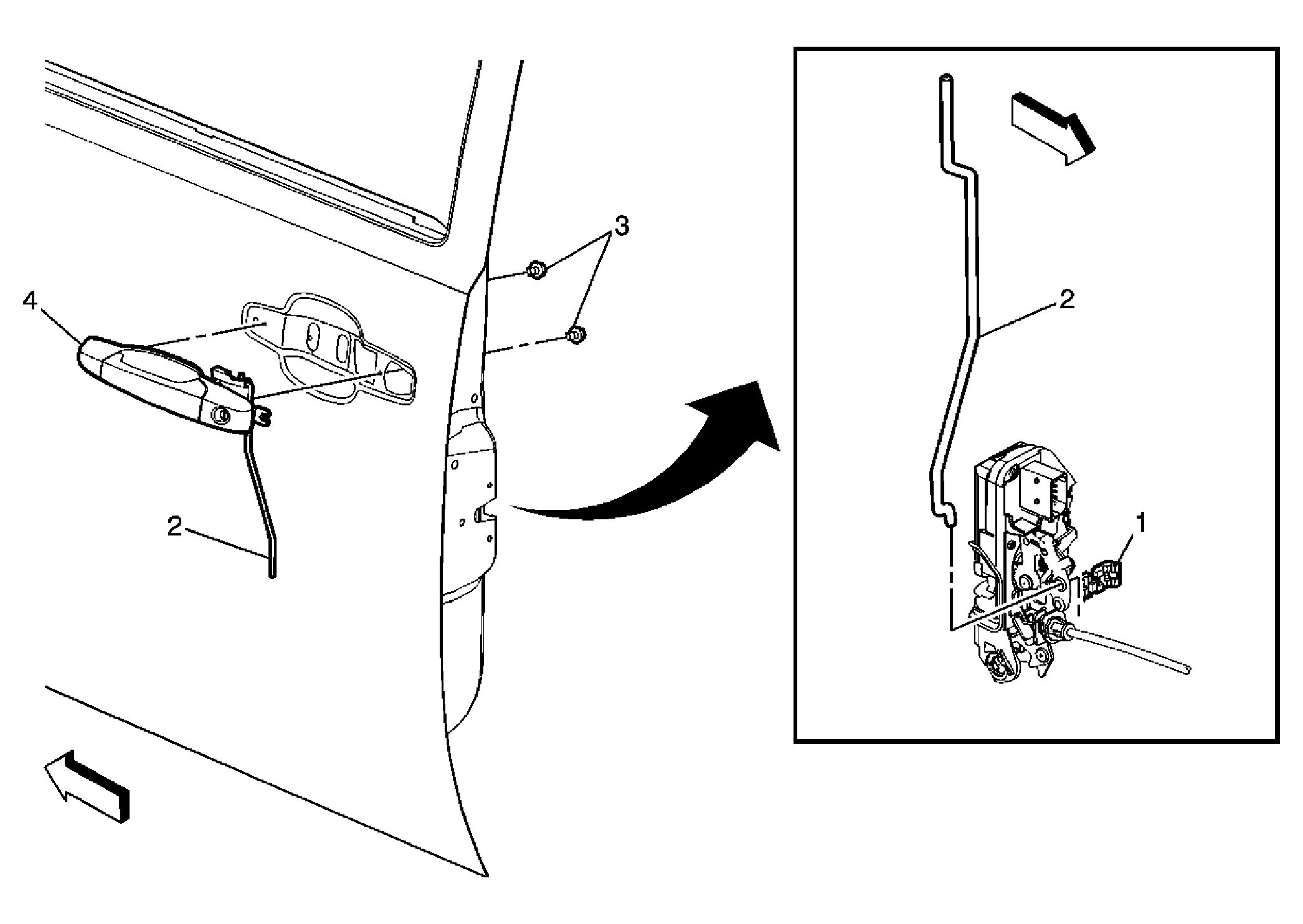

Fig 1: View Of Front Side Door Outside Handle Assembly & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
1	Front Side Door Lock Rod Retaining Clip Tip: Remove the rubber grommet to access the bolts. Plug in the window switch and raise the window. Release the handle lock rod from the door lock. Release the door handle lock cylinder rod.
2	Front Side Door Outside Handle Lock Rod
3	Front Side Door Outside Handle Bolts (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 7 N.m (62 lb in)
4	Front Side Door Outside Handle Tip: Transfer the handle lock rod to the new handle.
