Vehicle Access Component Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Driver Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror - Driver
3	Memory/Heated Seat Switch (AN3 Except KB6) / Memory Seat Switch (KB6)
4	Driver Door Switch (DDS)
5	Speaker - LF Door
6	Window Motor - Driver
7	Inflatable Restraint Side Impact Sensor (SIS) - LF (ASF)
8	Door Latch Assembly - Driver

Fig 2: Passenger Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	Passenger Door Switch (PDS)
3	Door Latch Assembly - Passenger
4	Inflatable Restraint Side Impact Sensor (SIS) - RF (ASF)
5	Speaker - RF Door
6	Window Motor - Passenger
7	Heated Seat Switch (KA6)

Fig 3: LR Door

Courtesy of GENERAL MOTORS CORP.

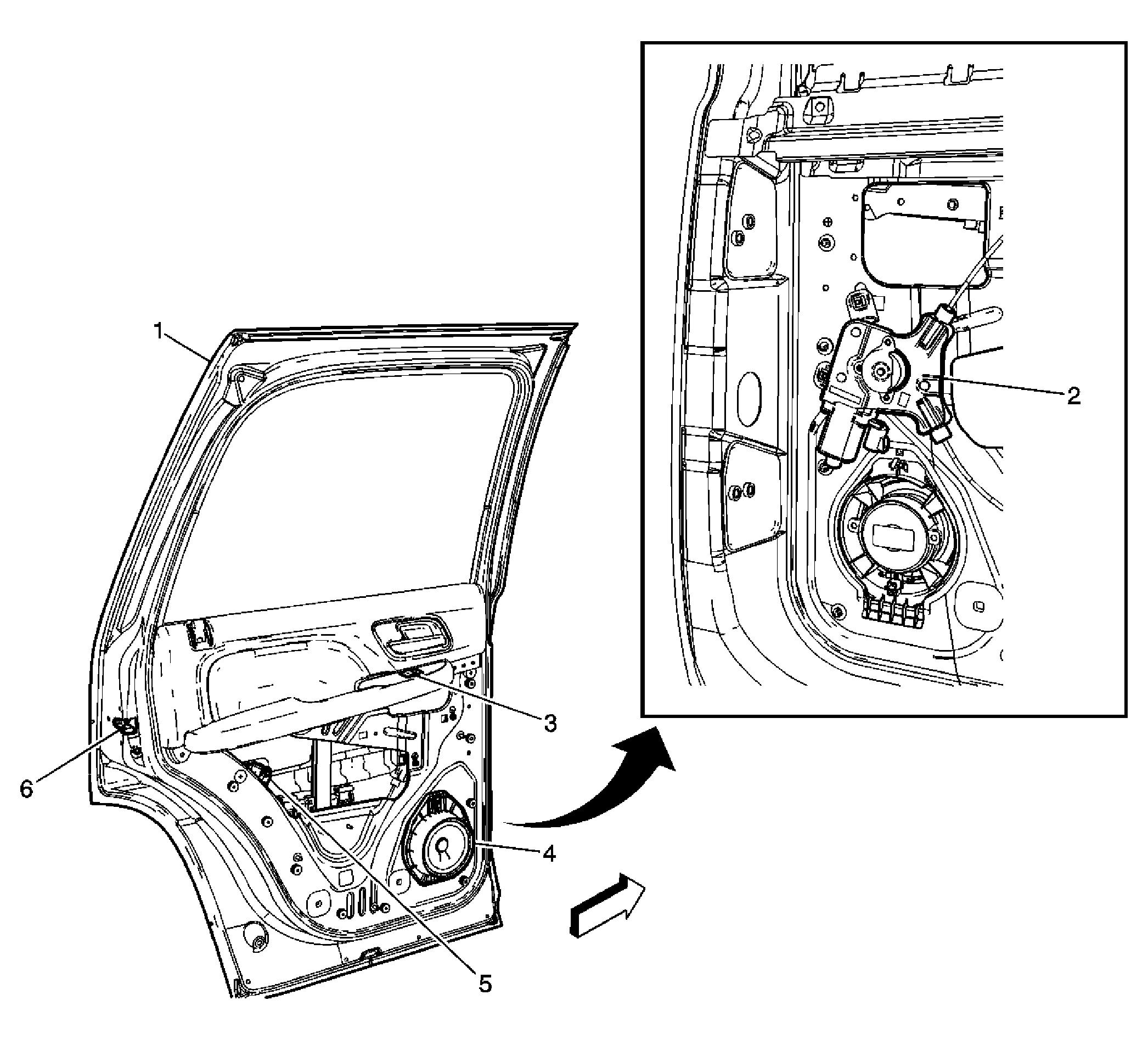

Callout	Component Name
1	Door Frame
2	Window Motor - LR
3	Window Switch - LR
4	Speaker - LR Door
5	Inflatable Restraint Side Impact Sensor (SIS) - LR (ASF)
6	Door Latch Assembly - LR

Fig 4: RR Door

Courtesy of GENERAL MOTORS CORP.

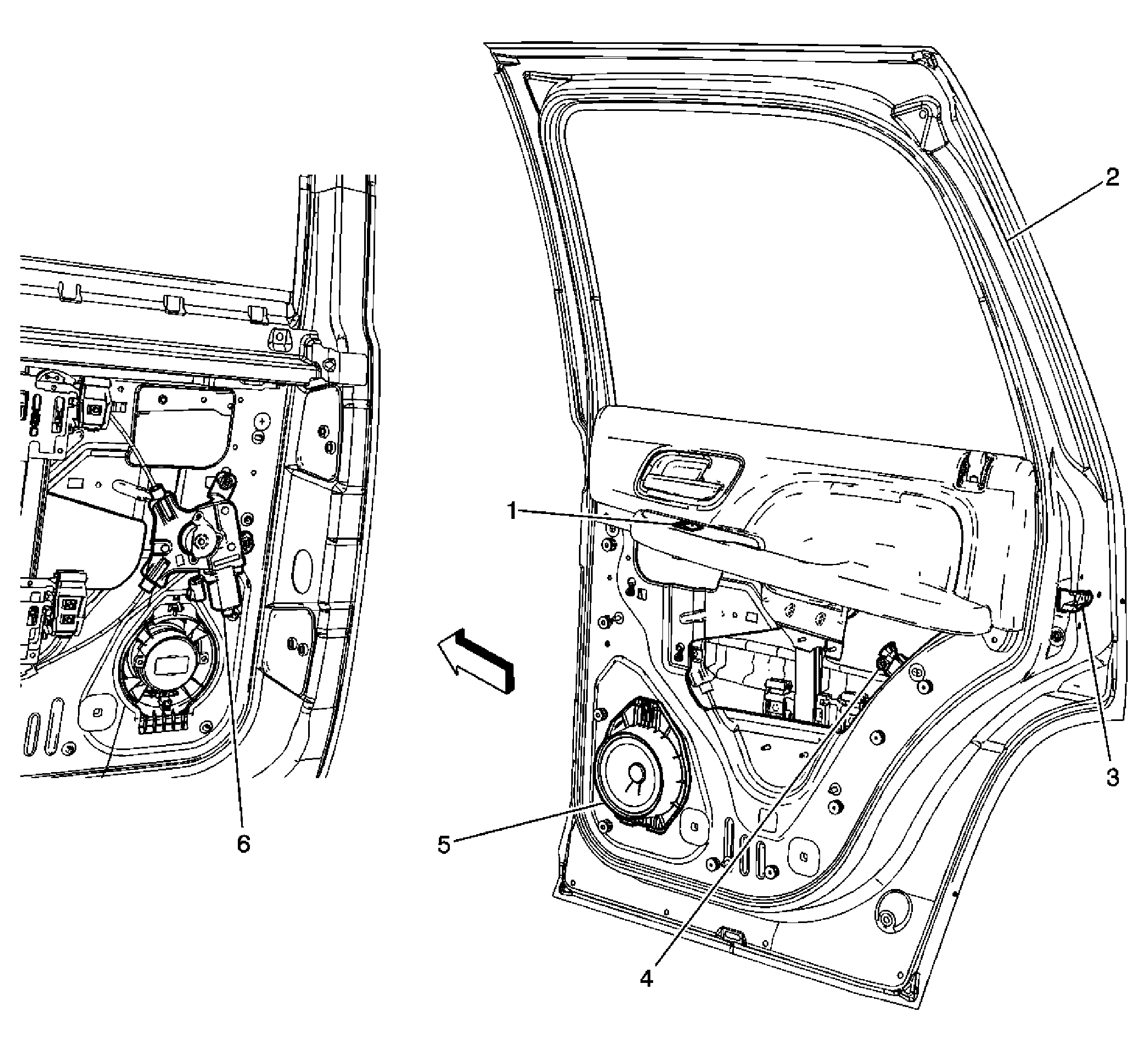

Callout	Component Name
1	Window Switch - RR
2	Door Frame
3	Inflatable Restraint Side Impact Sensor (SIS) - RR (ASF)
4	Speaker - RR Door
5	Window Motor - RR

Fig 5: Top Front of the Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Switch (CF5)
2	Courtesy/Reading Lamps - Second Row
3	Power Liftgate Switch (E61)
4	Folding Seat Switch - Front (ARS)
5	Garage Door Opener (UG1)
6	Onstar Button Assembly (UE1)
7	Inside Rearview Mirror (ISRVM)
8	Inflatable Restraint Passenger Air Bag ON/OFF Indicator
9	Courtesy/Reading Lamp - Front
10	Inside Air Temperature Sensor - Front (CJ2)

Fig 6: Liftgate Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftglass Latch Assembly
2	Liftgate Object Sensor - Left (E61)
3	Liftgate Handle Switch (E61)
4	Liftgate Latch Assembly
5	Rear Window Wiper Motor
6	Liftgate Object Sensor - Right (E61)

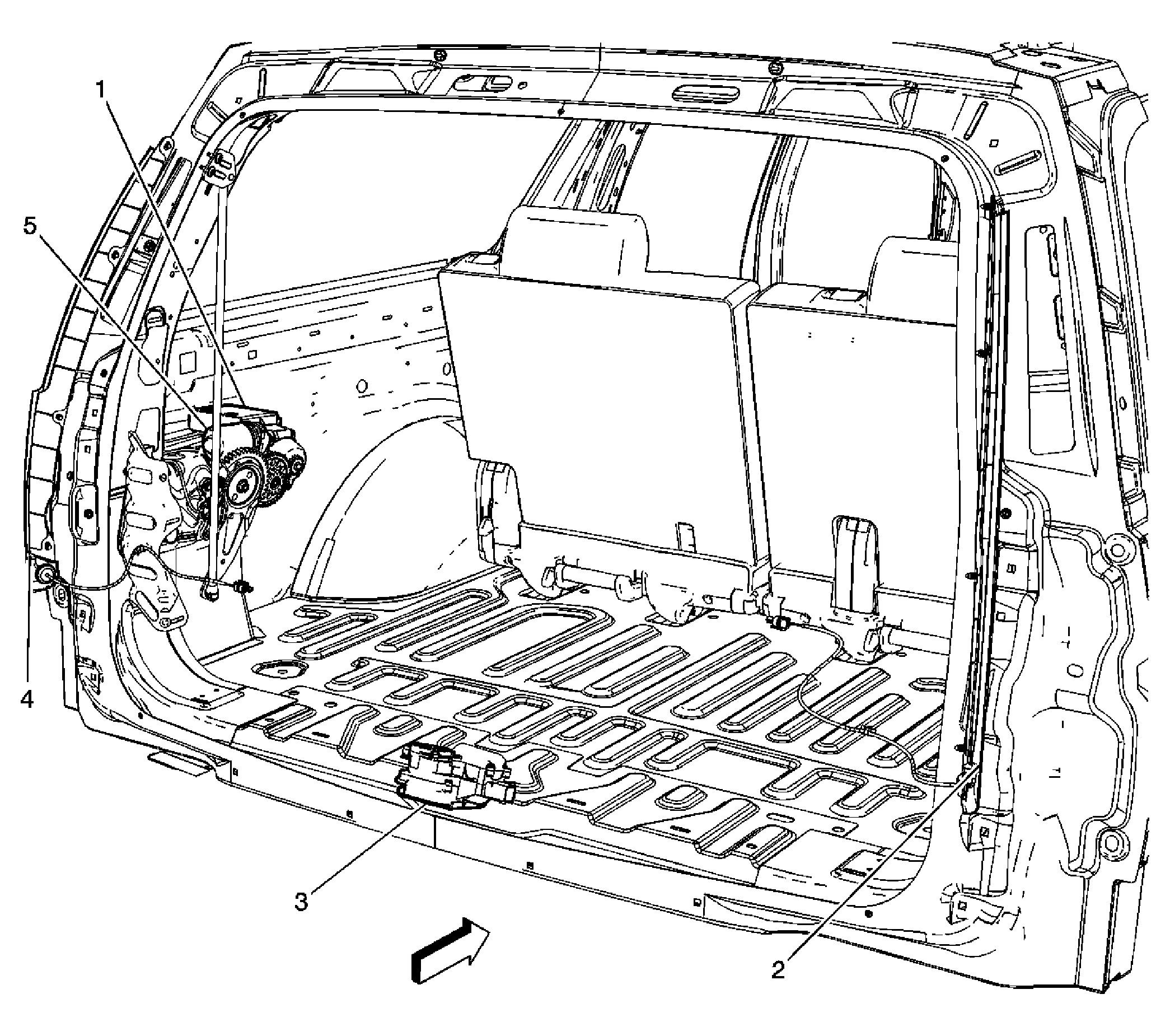

Fig 7: Power Liftgate Components (E61)

Courtesy of GENERAL MOTORS CORP.

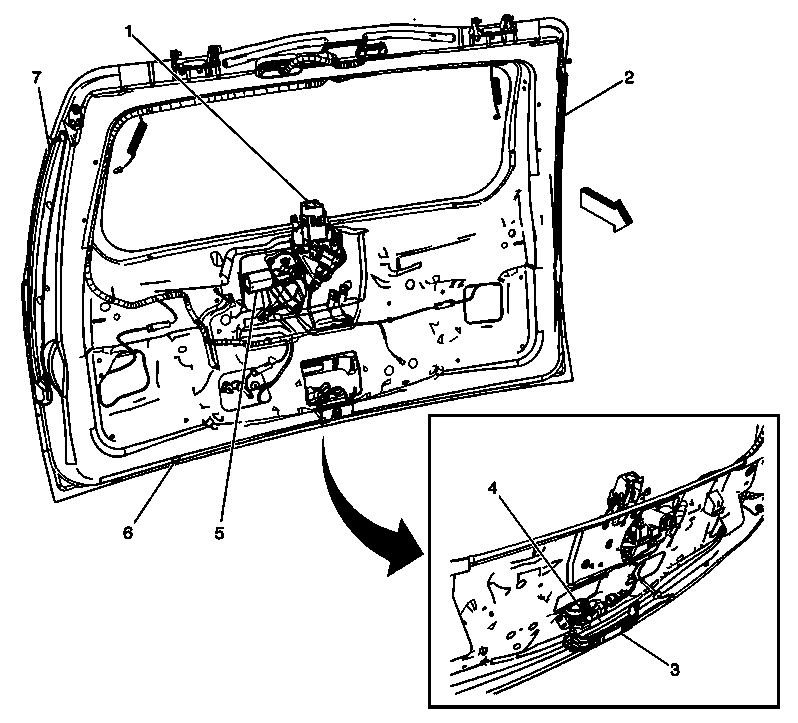

Callout	Component Name
1	Power Liftgate Module
2	Liftgate Object Sensor - Right
3	Liftgate Latch Assembly
4	Liftgate Object Sensor - Left
5	Liftgate Motor Assembly
