Front Side Door Window Channel Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

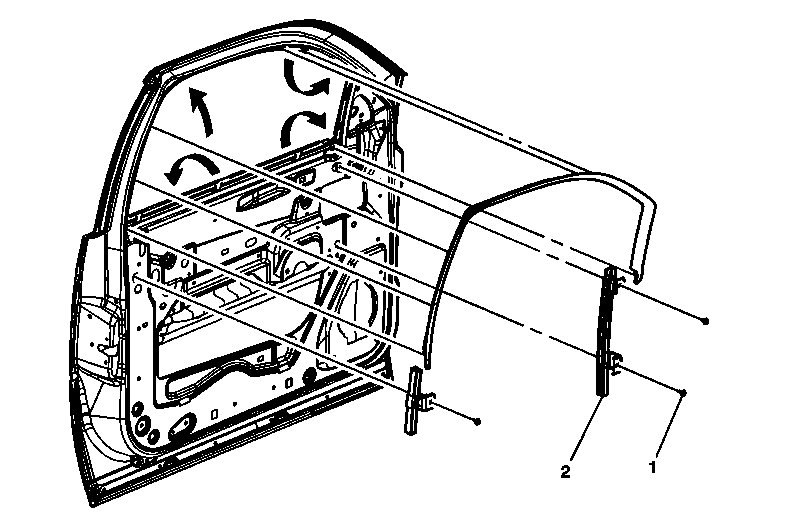

Fig 1: View Of Front Door Window Run Channel & Bolts
GM1673250Courtesy of GENERAL MOTORS CORP.
Front Side Door Window Channel Replacement

Callout Component Name
Preliminary Procedures:
Remove the front door window regulator. Refer to Front Side Door Window Regulator Replacement (Power) .
1 Front Door Window Run Channel Bolts
NOTE: Refer to Fastener Notice .

Tighten:  9 N.m (80 lb in)
2 Front Door Window Run Channel
Tip:  Apply tape to the molding to prevent scratches.
