Intermediate Steering Shaft Boot Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

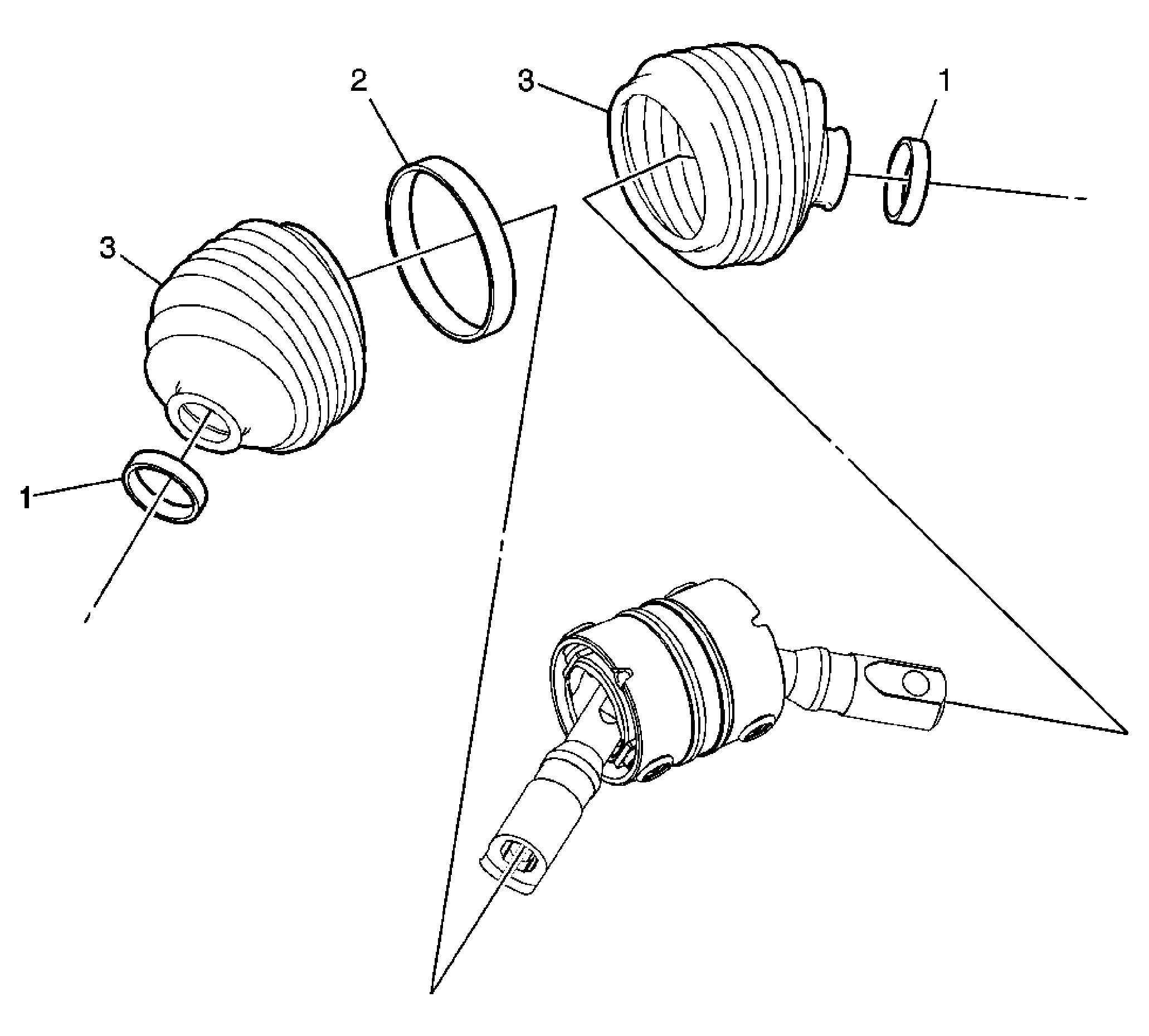

Fig 1: View Of Intermediate Steering Shaft Boots & Clamps

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the lower intermediate steering shaft. Refer to Lower Intermediate Steering Shaft Replacement .
1	Small Intermediate Steering Shaft Clamp (Qty: 2) Tip: For installation use J 43218 Clamp Pliers - Narrow Jaw or equivalent.
2	Large Intermediate Steering Shaft Clamp Tip: For installation use J 46588 Axle Seal Crimp Tool or equivalent. See Special Tools .
3	Intermediate Steering Shaft Boots (Qty: 2)
