Displays and Gages Component Views
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

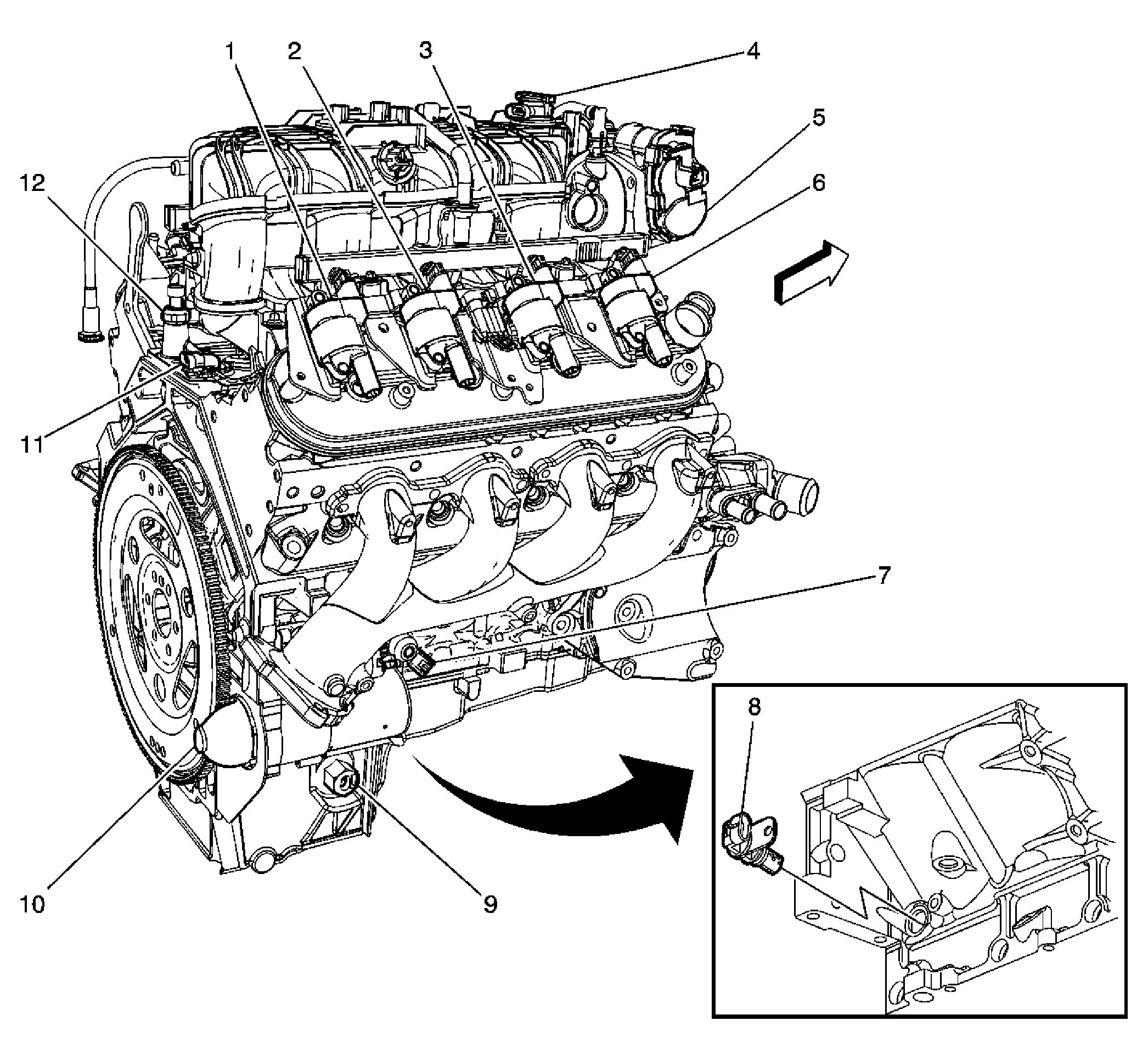

| Callout | Component Name |
|---|---|
| 1 | Ignition Coil 8 |
| 2 | Ignition Coil 6 |
| 3 | Ignition Coil 4 |
| 4 | Manifold Absolute Pressure (MAP) Sensor |
| 5 | Throttle Body |
| 6 | Ignition Coil 2 |
| 7 | Knock Sensor (KS) - 2 |
| 8 | Oil Level Switch |
| 9 | Starter |
| 10 | Valve Lifter Oil Manifold (VLOM) Assembly (DOD) |
| 11 | Engine Oil Pressure (EOP) Sensor |
| Callout | Component Name |
|---|---|
| 1 | Turn Signal Multifunction Switch |
| 2 | Inflatable Restraint Steering Wheel Module Coil |
| 3 | Instrument Panel Cluster (IPC) |
| 4 | Tow/Haul Switch |
| 5 | Driver Information Center (DIC) Switch |
| 6 | Ambient Light/Sunload Sensor Assembly (CJ2) or Ambient Light Sensor (CJ3) |
| 7 | HVAC Control Module |
| 8 | Auxiliary Power Outlet - Front 2 |
| 9 | I/P Multifunction Switch Assembly |
| 10 | Auxiliary Power Outlet - Front 1 |
| 11 | Radio |
| 12 | Transfer Case Shift Control Switch |
| 13 | Headlamp and Panel Dimmer Switch |
| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Cluster (IPC) |
| 2 | Driver Information Center (DIC) Switch |
| 3 | Ambient Light/Sunload Sensor Assembly (CJ2) |
| 4 | Speaker - Center |
| 5 | Analog Clock |
| 6 | Radio |
| 7 | Traction Control / Rear Object Detection Switch |
| 8 | HVAC Control Module |
| 9 | I/P Multifunction Switch Assembly |
| 10 | Auxiliary Power Outlet - Front 1 |
| 11 | Noise Compensation Microphone (Y91) |
| 12 | Transfer Case Shift Control Switch |
| 13 | Fuse Block - I/P |
| 14 | Headlamp and Panel Dimmer Switch |
| Callout | Component Name |
|---|---|
| 1 | Chassis |
| 2 | Evaporative Emissions (EVAP) Canister Vent Solenoid Valve |
| 3 | Fuel Tank Pressure (FTP) Sensor |
| 4 | Fuel Pump and Sender Assembly |
| Callout | Component Name |
|---|---|
| 1 | Fuel Pump and Sender Assembly - Primary |
| 2 | Fuel Tank Pressure (FTP) Sensor |
| 3 | Fuel Pump and Sender Assembly - Secondary (Except NQZ) |
| 4 | EVAP Canister |
| 5 | Evaporative Emission (EVAP) Canister Vent Solenoid Valve |
| 6 | Electronic Suspension control (ESC) Module |
