Thermal Expansion Valve Replacement - Auxiliary

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

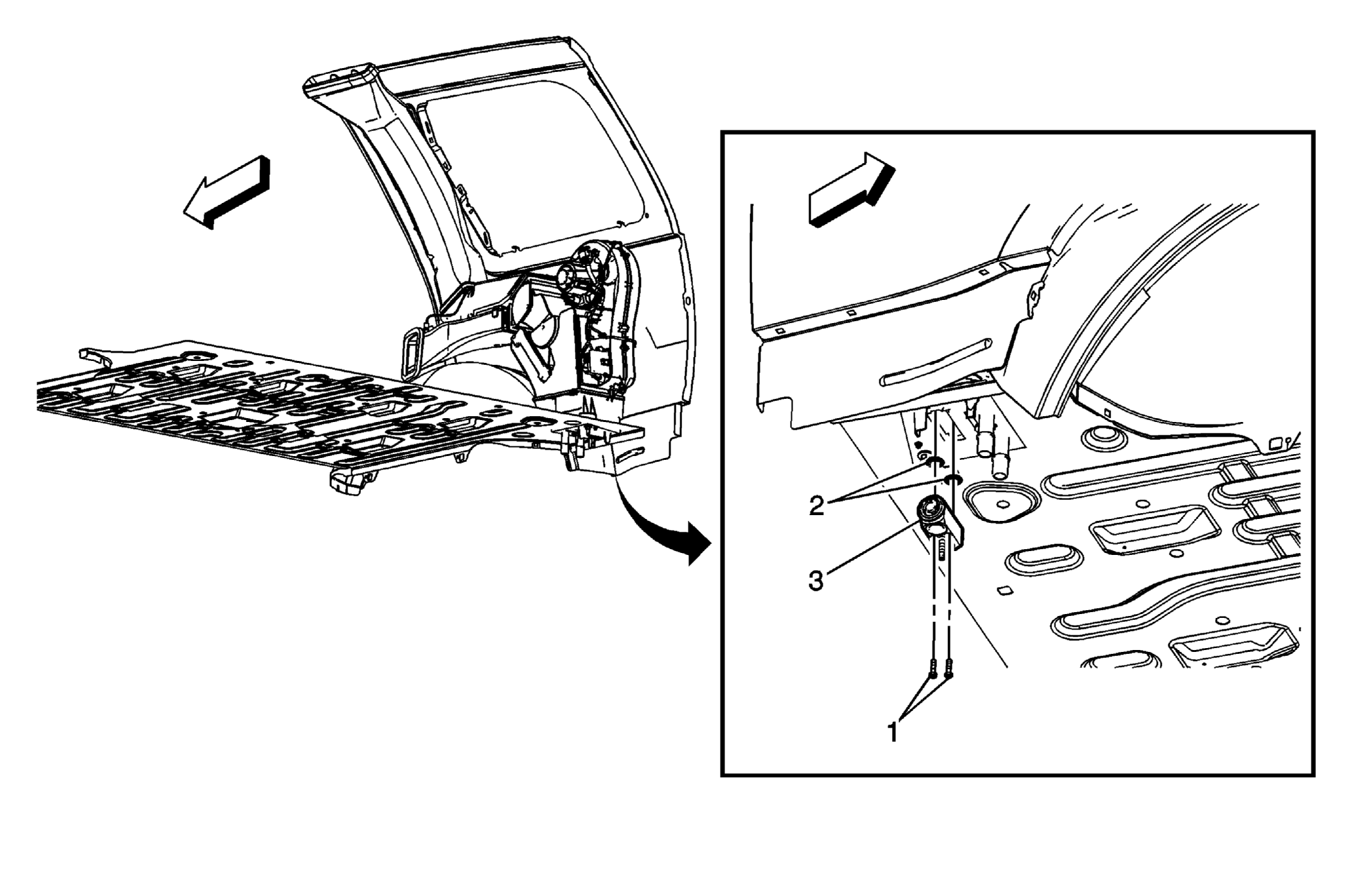

Fig 1: Identifying Auxiliary Evaporator Thermal Expansion Valve & Components
GM1689842Courtesy of GENERAL MOTORS CORP.
Thermal Expansion Valve Replacement - Auxiliary

Callout Component Name

Preliminary Procedure

  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
  2. Remove the retaining nut (2) and the auxiliary A/C evaporator tubes (3) from the auxiliary HVAC module. Refer to Evaporator Tube Replacement - Auxiliary .
1 Thermal Expansion Valve Bolt (Qty: 2)
NOTE: Refer to Fastener Notice .

Tighten:  16 N.m (12 lb ft)
2 Sealing Washer
Tip:  Remove and discard the sealing washer. Refer to Sealing Washer Replacement .
3 Thermal Expansion Valve
