Accumulator Replacement
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Accumulator Replacement

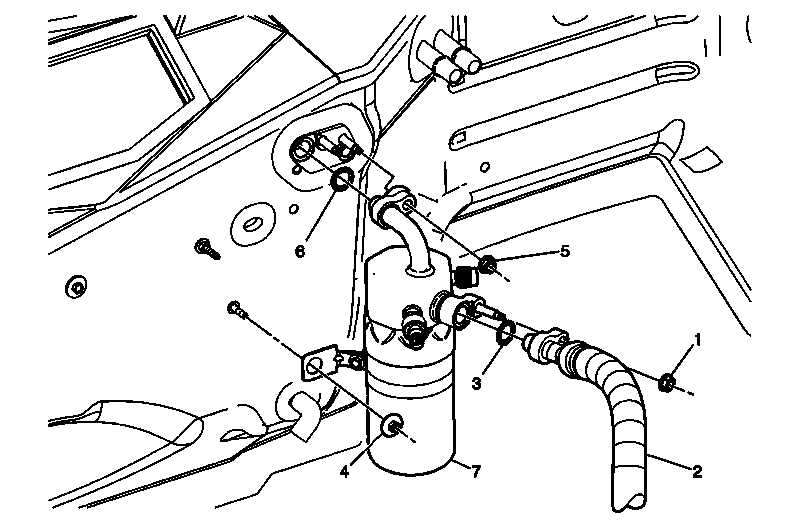

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Recover the refrigerant. Refer to Refrigerant Recovery and Recharging . |
|
| 1 | Nut, Suction Hose
NOTE:
Refer to Fastener Notice
.
Tighten: 16 N.m (12 lb in) Tip: Large A/C compressor hose to A/C evaporator. |
| 2 | Hose, A/C Suction Hose |
| 3 | Washer, Sealing Tip: Remove and discard sealing washer. Refer to Sealing Washer Replacement . |
| 4 | Nut, Accumulator Mounting Bracket Tighten: 16 N.m (12 lb in) |
| 5 | Nut, Accumulator Tighten: 16 N.m (12 lb in) |
| 6 | Washer, Sealing Tip: Remove and discard sealing washer. Refer to Sealing Washer Replacement . |
| 7 | Accumulator Tip: Replacement service Accumulators are shipped dry (no PAG oil). Add proper amount of oil to system before operating. Refer to Refrigerant System Capacities |
