Installation Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

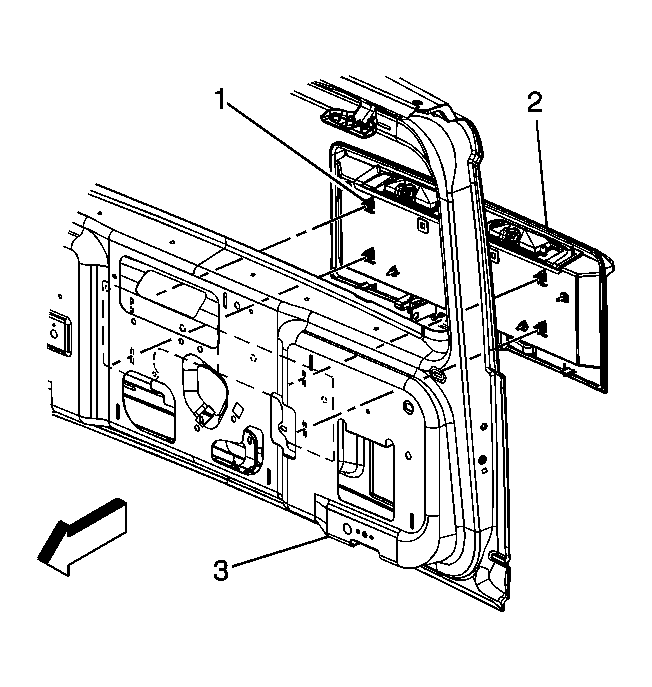

    Fig 1: License Plate Pocket & Liftgate (SUV)
    GM1453815Courtesy of GENERAL MOTORS CORP.
  1. Place the license plate pocket (2) in position on the liftgate (3), ensuring all of the retaining clips are fully seated.
    2. Fig 2: License Plate Pocket Nuts (SUV)
    GM1453816Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the 6 nuts (5) retaining the license plate pocket to the liftgate.

    Tighten:  Tighten the nuts to 4.5 N.m (40 lb in).

  3. Connect the 2 license plate electrical connectors.
    4. Fig 3: Latch Cable Handle Connection
    GM832874Courtesy of GENERAL MOTORS CORP.
  4. Attach the latch control cable handle connection by installing the cable end into the handle arm (2) and securing the retainer (1).
  5. Install the liftgate trim panel. Refer to Liftgate Trim Panel Replacement .
