Installation Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

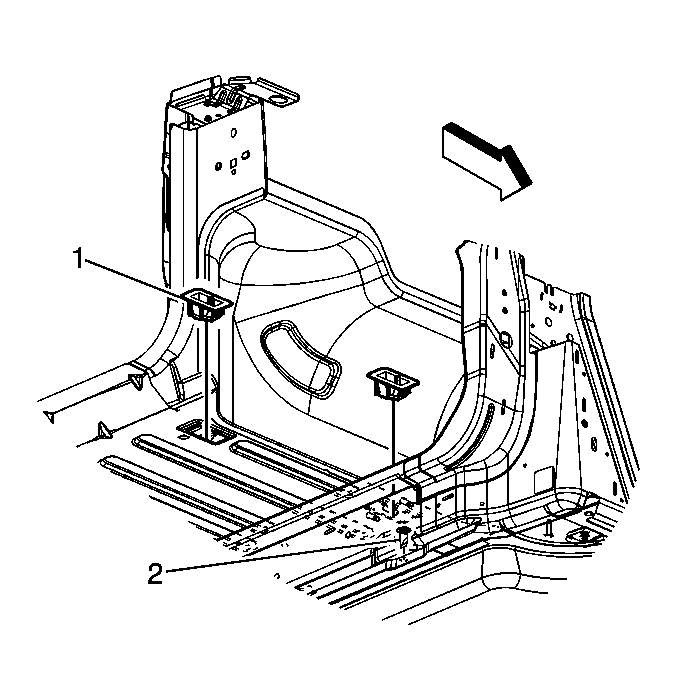

    Fig 1: Identifying Floor Drains
    GM1412529Courtesy of GENERAL MOTORS CORP.
  1. Position the drain valve (2) to the floor opening.
  2. Push downward in order to secure the drain valve (1).
  3. Position the rear body opening frame floor to the body.
    4. Fig 2: Cargo Tie Down Loops
    GM1412532Courtesy of GENERAL MOTORS CORP.
  4. Install the cargo tie down loops (2).
    5. NOTE: Refer to Fastener Notice .
  5. Install the floor tie down loop bolts (1).

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  6. Reposition the lower midgate weatherstrip onto the lower pinch-weld flange.
  7. Close the midgate.
  8. Close the endgate.
  9. Secure the spare tire carrier to the latch assembly.
