Spare Wheel Hoist Crossmember Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

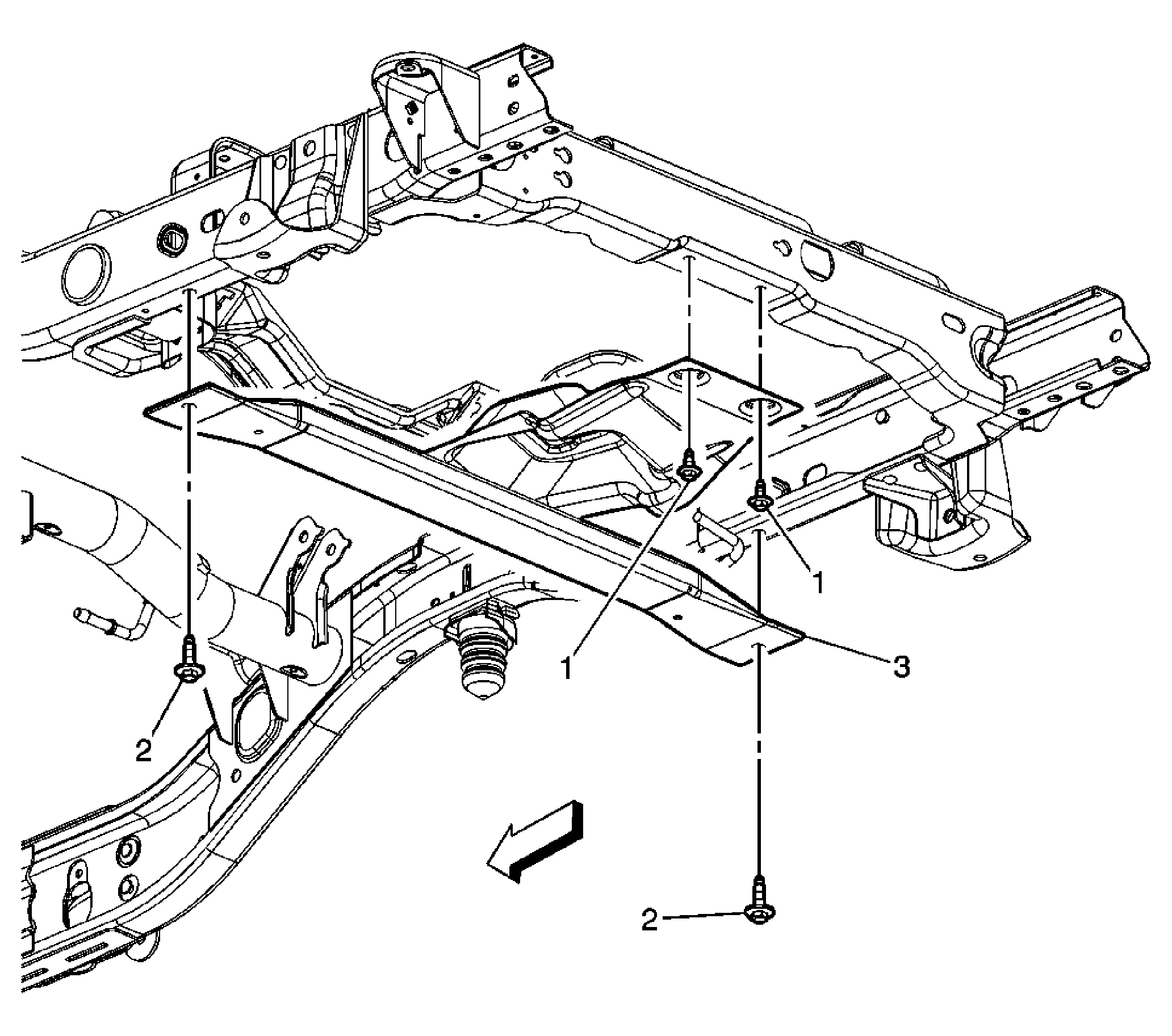

Fig 1: View Of Spare Wheel Hoist Crossmember & Bolts
GM1702265Courtesy of GENERAL MOTORS CORP.
Spare Wheel Hoist Crossmember Replacement

Callout Component Name

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the spare wheel.
1 Spare Wheel Hoist Crossmember Bolt (Qty: 4)
NOTE: Refer to Fastener Notice .

Tighten:  50 N.m (37 lb ft)
2 Spare Wheel Hoist Crossmember Bolt (Qty: 4)

Tighten:  70 N.m (52 lb ft)
3 Spare Wheel Hoist Crossmember
