Assist Step Replacement (Manual)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

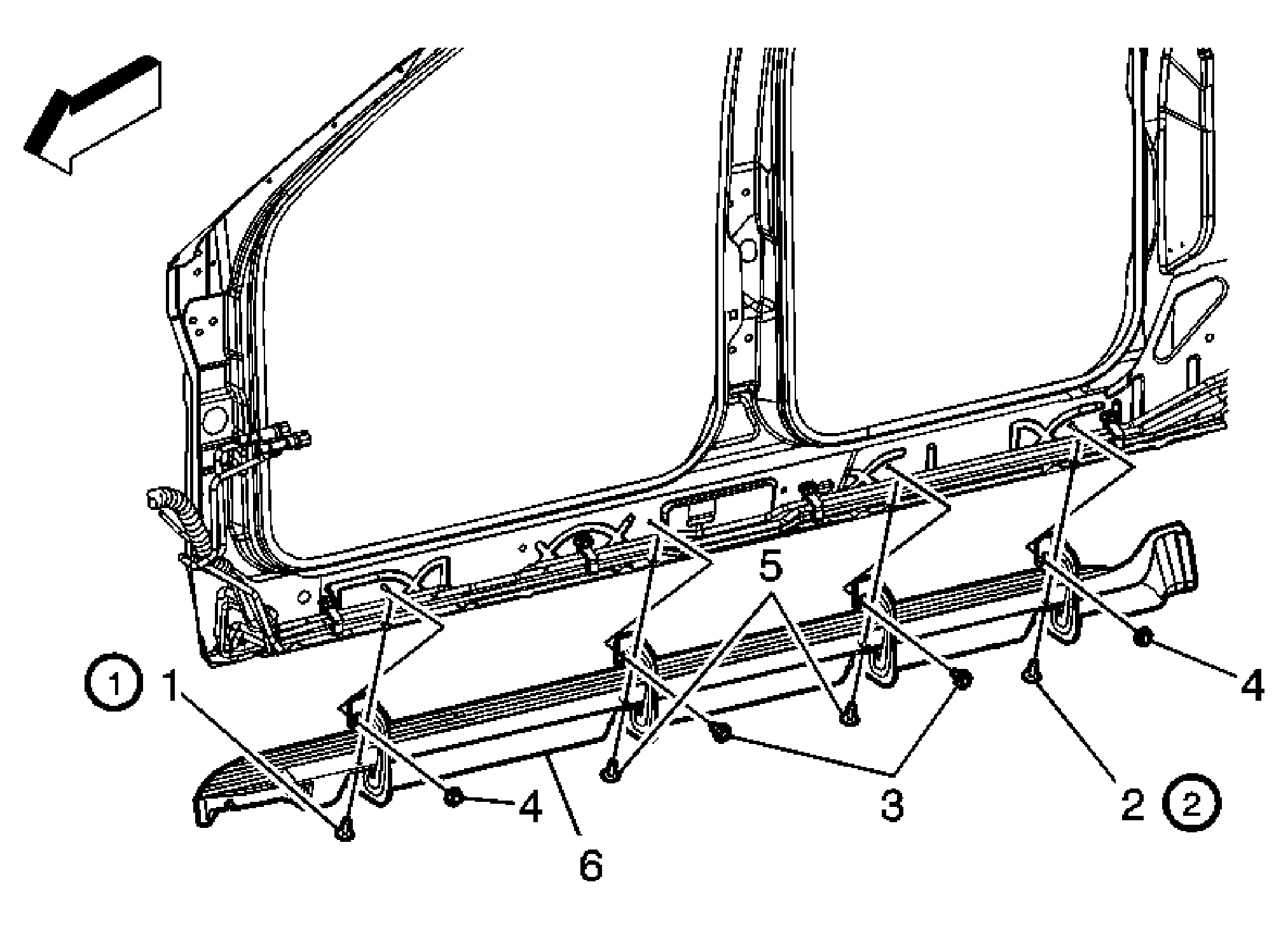

Fig 1: View Of Assist Step & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Bracket to Assist Step Bolt NOTE: Refer to Fastener Notice . Tighten: 25 N.m (18 lb ft)
2	Bracket to Assist Step Bolt Tighten: 6 N.m (53 lb in)
3	Bracket to Rocker Panel Bolts (Qty: 2) Tighten: 25 N.m (18 lb ft)
4	Bracket to Rocker Panel Nuts (Qty: 2) Tighten: 25 N.m (18 lb ft)
5	Bracket to Assist Step Bolt (Qty: 2) Tighten: 6 N.m (53 lb in)
6	Assist Step Tip: Install the brackets to the assist step prior to installing the assist step to the vehicle.
