Rear Bumper Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

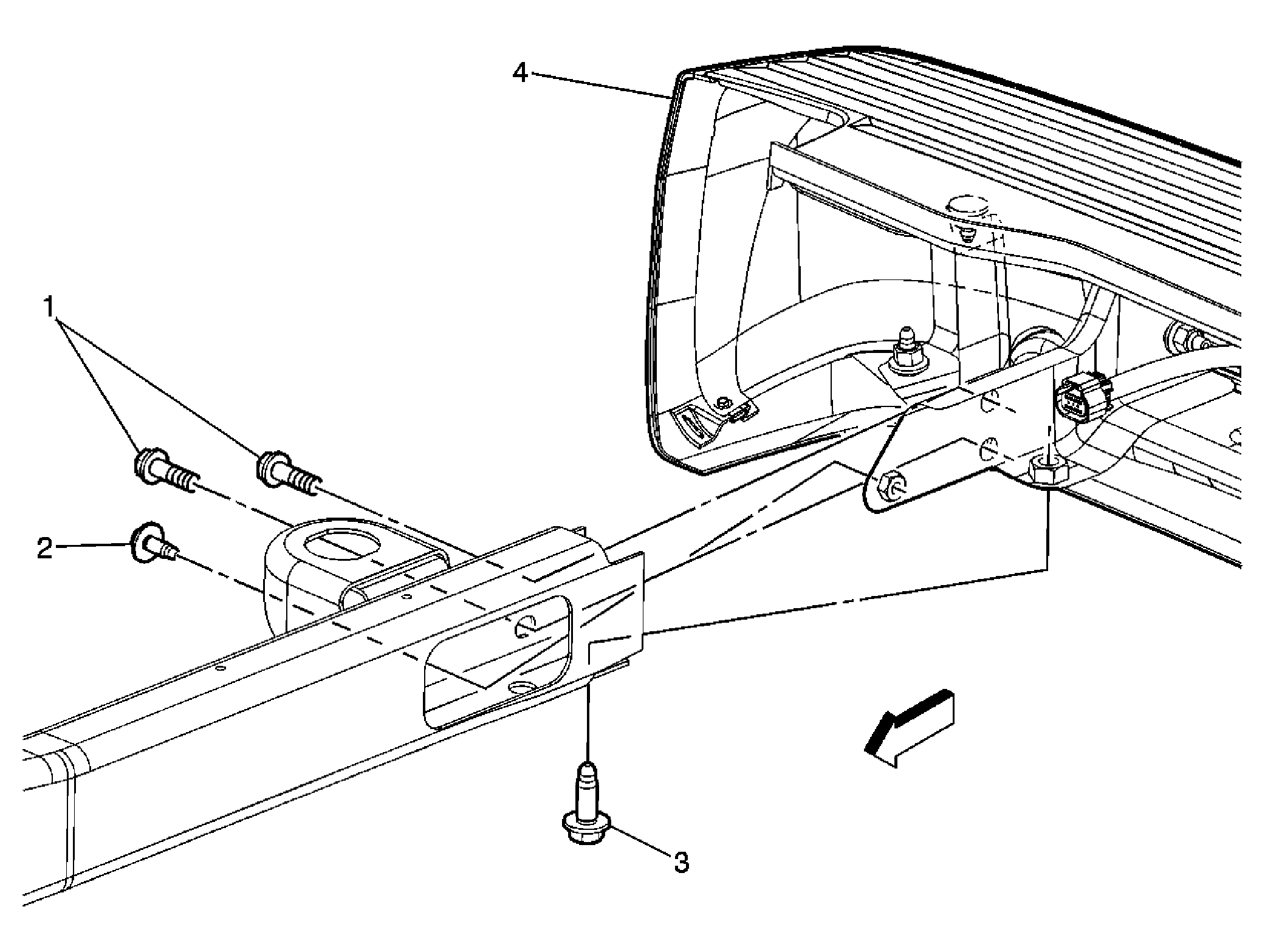

Fig 1: View Of Rear Bumper & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Bumper Bolts (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 90 N.m (66 lb ft)
2	Rear Bumper Bolts (Qty: 2) Tighten: 40 N.m (30 lb ft)
3	Rear Bumper Bolts (Qty: 2) Tighten: 100 N.m (74 lb ft)
4	Rear Bumper Bracket Nuts (Qty: 4) Tighten: 70 N.m (52 lb ft)
5	Rear Bumper Tip: Disconnect the rear lighting harness connector before removing.
