Weatherstrip Replacement - Drip Rail
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

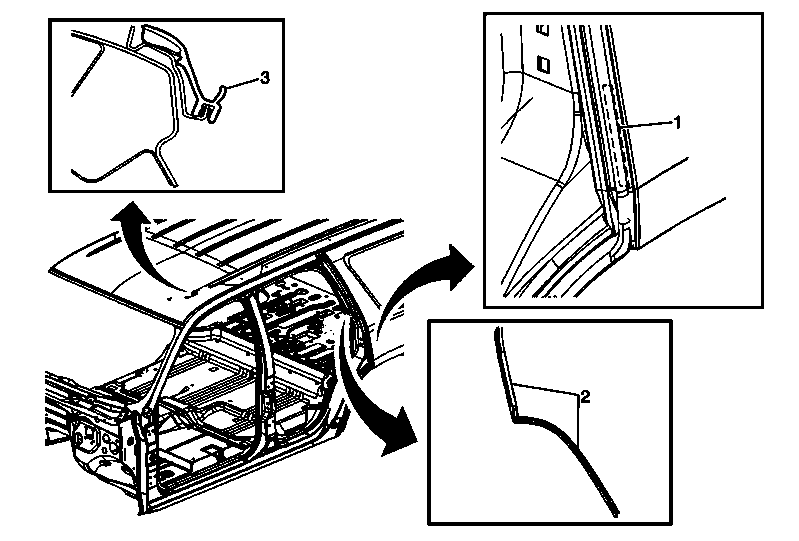

Courtesy of GENERAL MOTORS CORP. Weatherstrip Replacement - Drip Rail
| Callout |
Component Name |
| 1 |
Weatherstrip Drip Rail Push Pin Retainers
Tip:
- The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength.
- Use a J 25070
Heat Gun or equivalent to remove the old weatherstrip. Clean all adhesive residue from the door opening and wipe the surface dry with a clean lint-free towel prior to installing the new weatherstrip.
- When removing protective liners from the adhesive backed weatherstrip, be careful not to touch the tape with hands. Do not allow the tape to come in contact with dirt or any foreign matter prior to adhesion.
- Press the weatherstrip firmly to the top side of the door opening to ensure full adhesion is made to the door opening.
|
| 2 |
Weatherstrip Drip Rail |
| 3 |
Weatherstrip Drip Rail |
