Midgate Panel Replacement - Inner

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

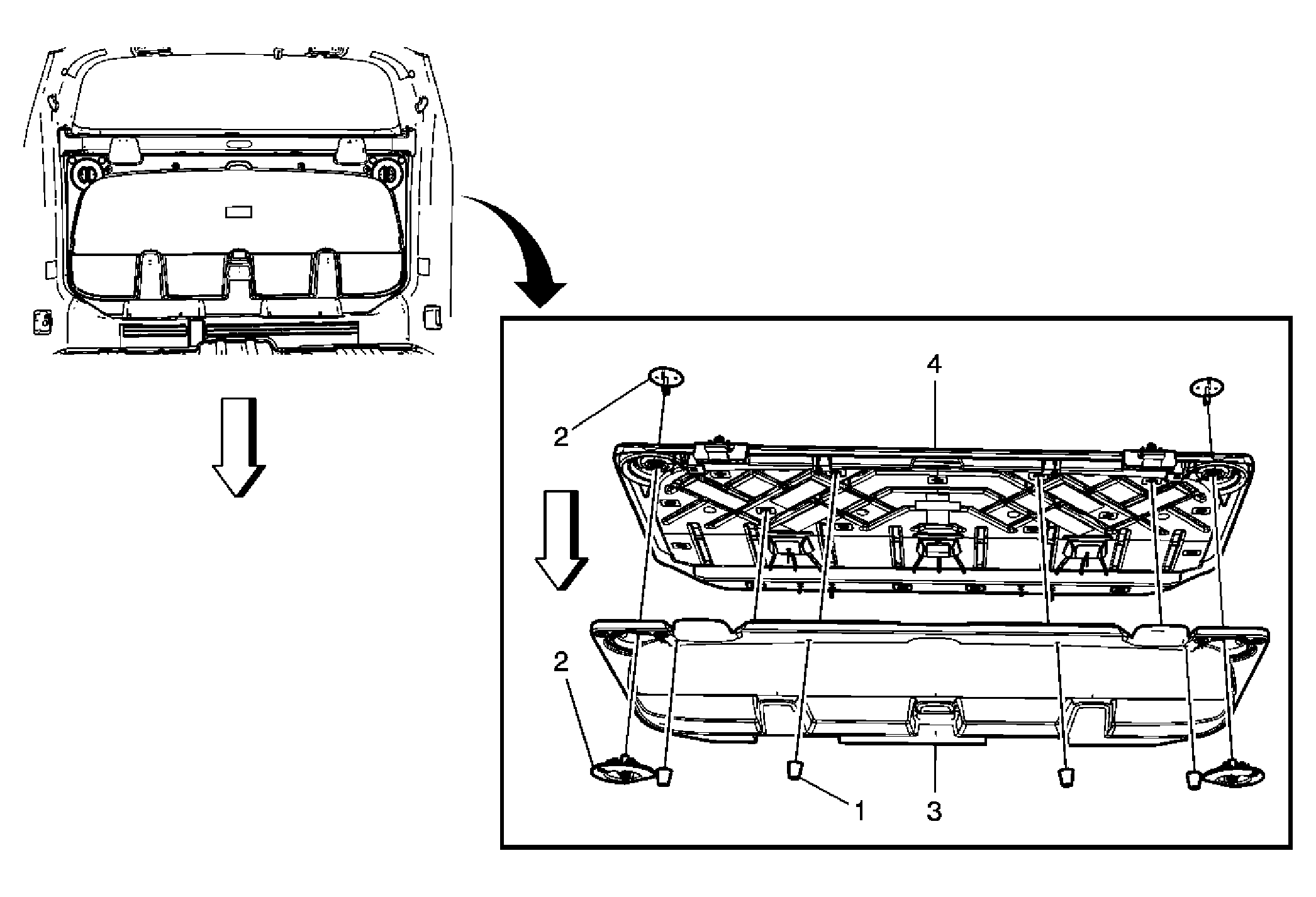

Fig 1: View Of Inner Midgate Panel & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the midgate outer panel. Refer to Midgate Panel Replacement - Outer .
1	Midgate Assembly Bumper (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Glass Retention Latch (Qty: 2) Tighten: 2 N.m (18 lb in)
3	Inner Midgate Panel
4	Inner Midgate Panel Clips (Qty: 17)
