Hinge Replacement - Midgate
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Hinge Replacement - Midgate

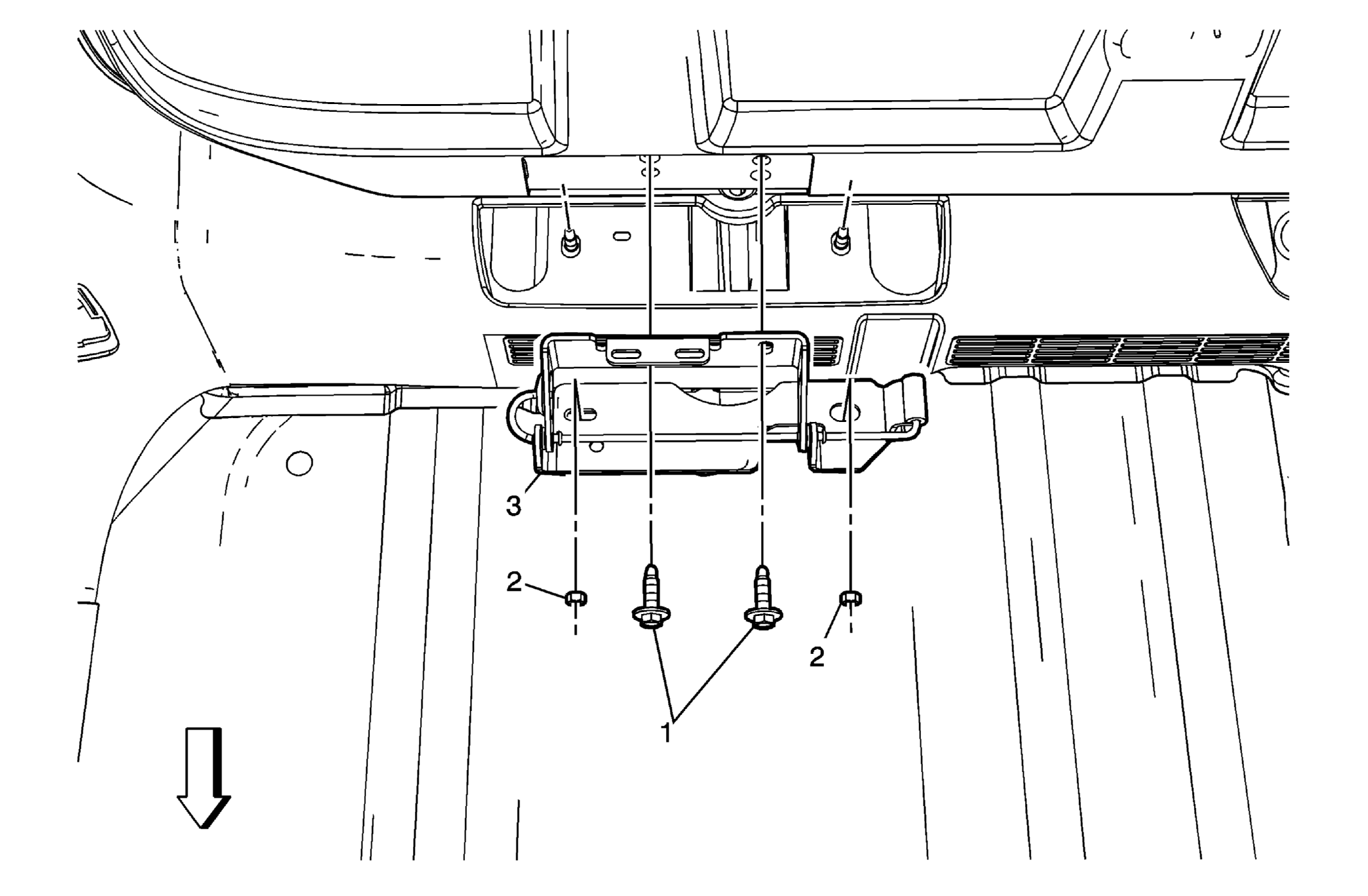

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the midgate hinge finish cover. Refer to Midgate Hinge Finish Cover Replacement . |
|
| 1 | Midgate Hinge Bolt (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 25 N.m (18 lb ft) |
| 2 | Midgate Hinge Nut (Qty: 2) Tighten: 25 N.m (18 lb ft) |
| 3 | Midgate Hinge |
