Front Side Door Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

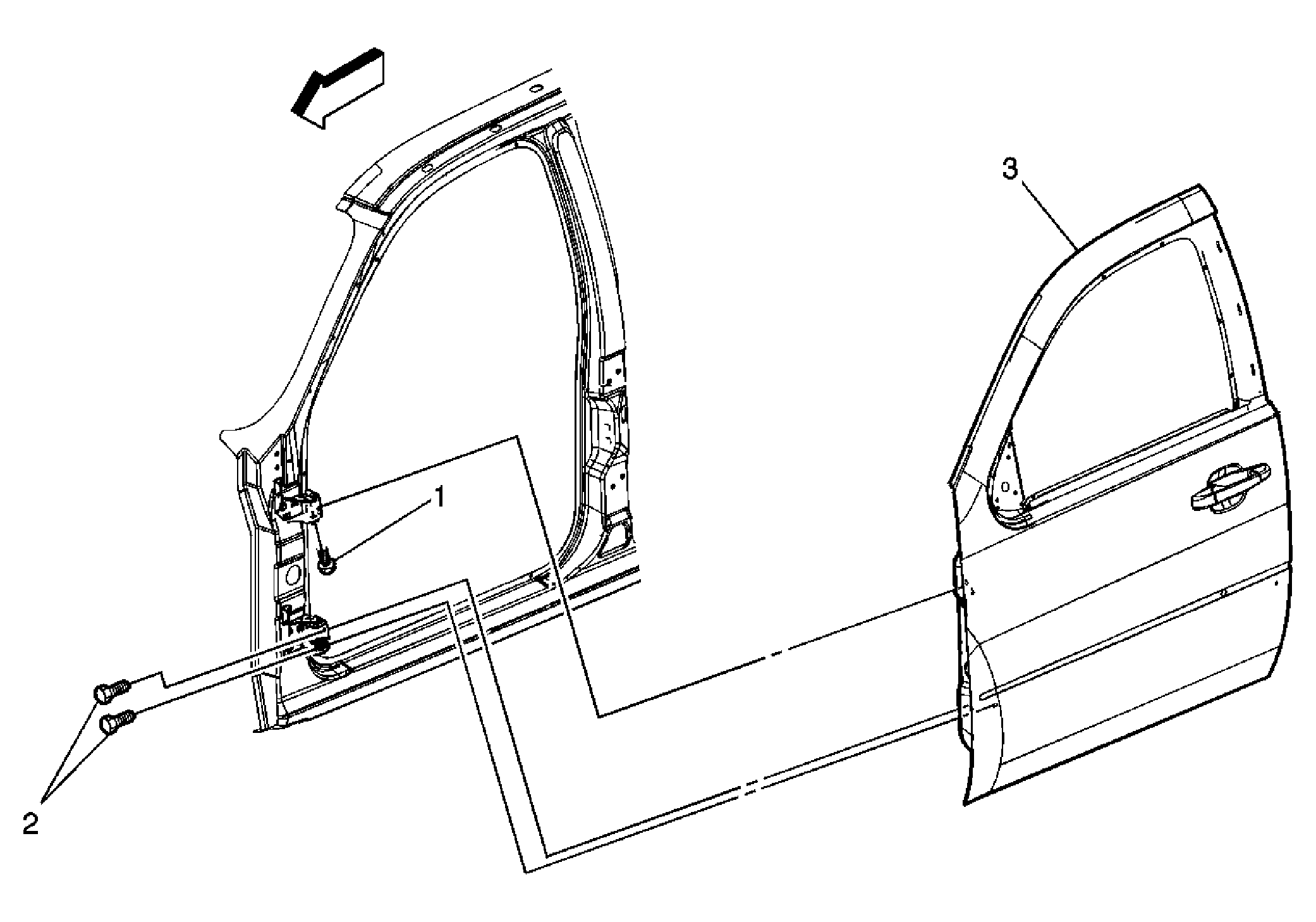

Fig 1: View Of Front Side Door & Components
GM1688508Courtesy of GENERAL MOTORS CORP.
Front Side Door Replacement

Callout Component Name
CAUTION: Refer to SIR Caution .

Preliminary Procedures

  1. Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
  2. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
1 Front Side Door Upper Hinge Bolts (Qty: 2)
NOTE: Refer to Fastener Notice .

Tighten:  25 N.m (18 lb ft)


Tip:  Support the door before removing the hinge bolts.
2 Front Side Door Lower Hinge Bolts (Qty: 2)

Tighten:  25 N.m (18 lb ft)
3 Front Side Door
Tip:  If replacing the door transfer door components as needed.
