Exterior Lights Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

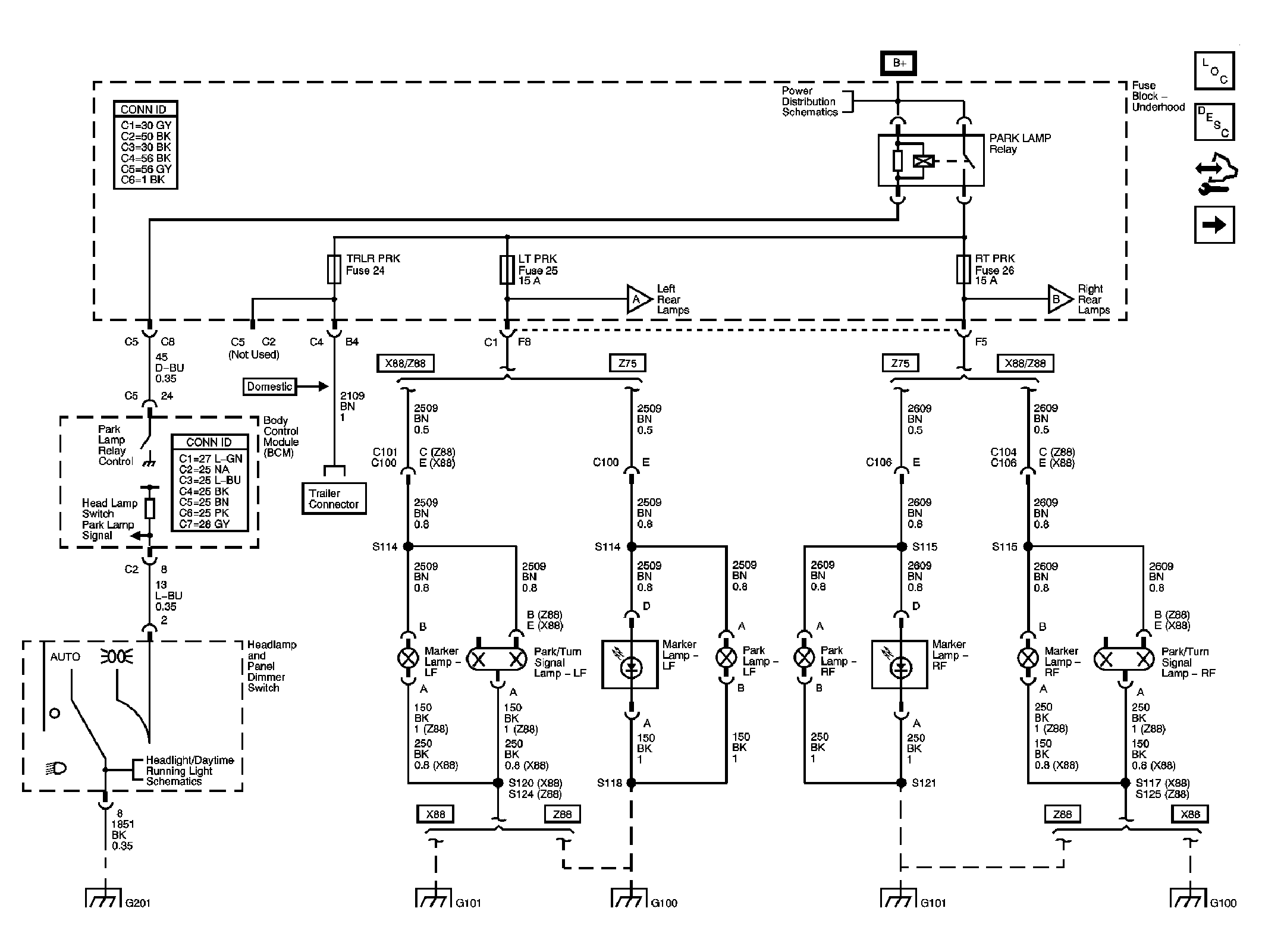

Fig 1: Park Lamp Controls and Front Park Lamps Schematic

GM1704917

Courtesy of GENERAL MOTORS CORP.

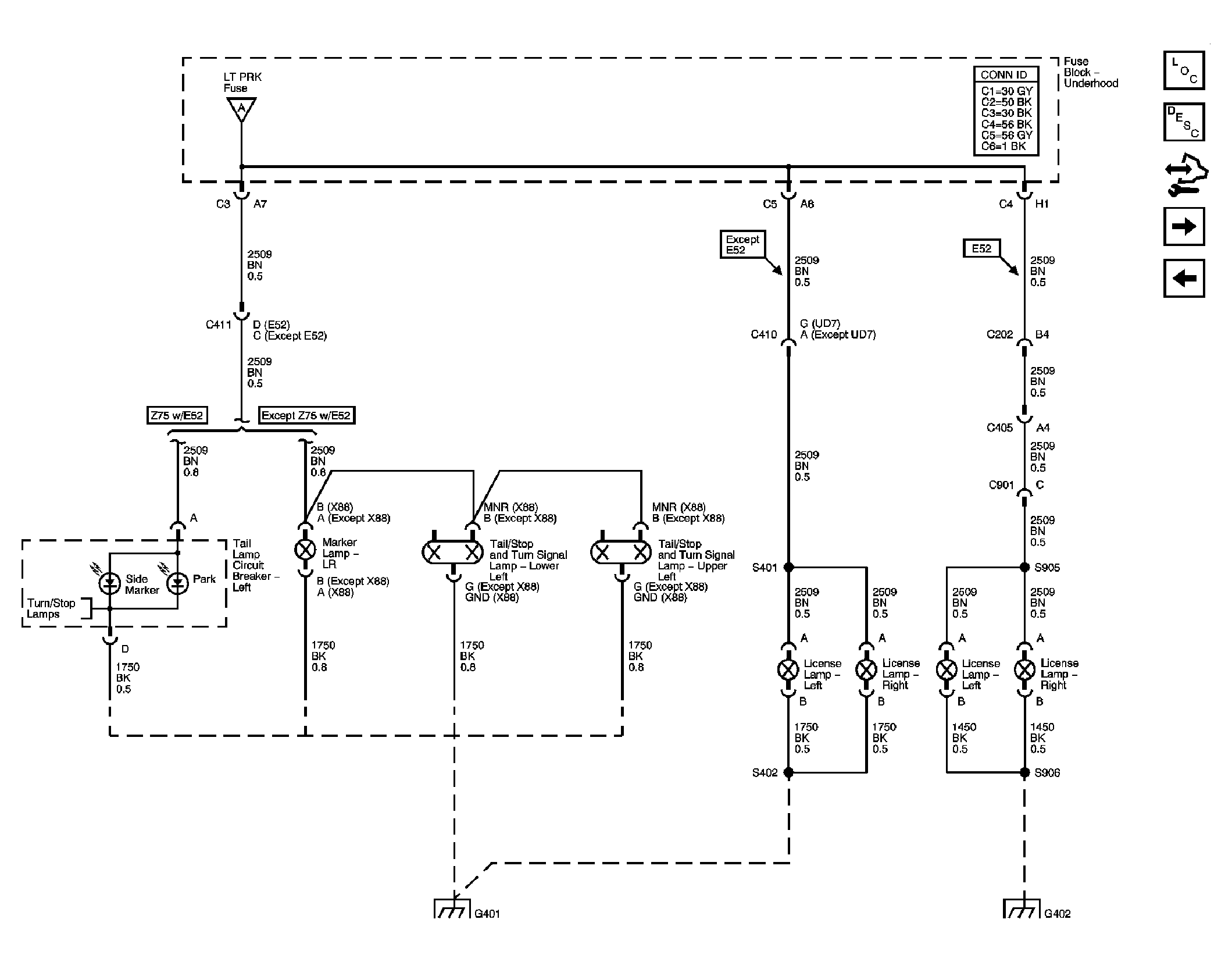

Fig 2: Left Rear Park Lamps Schematic

GM1704918

Courtesy of GENERAL MOTORS CORP.

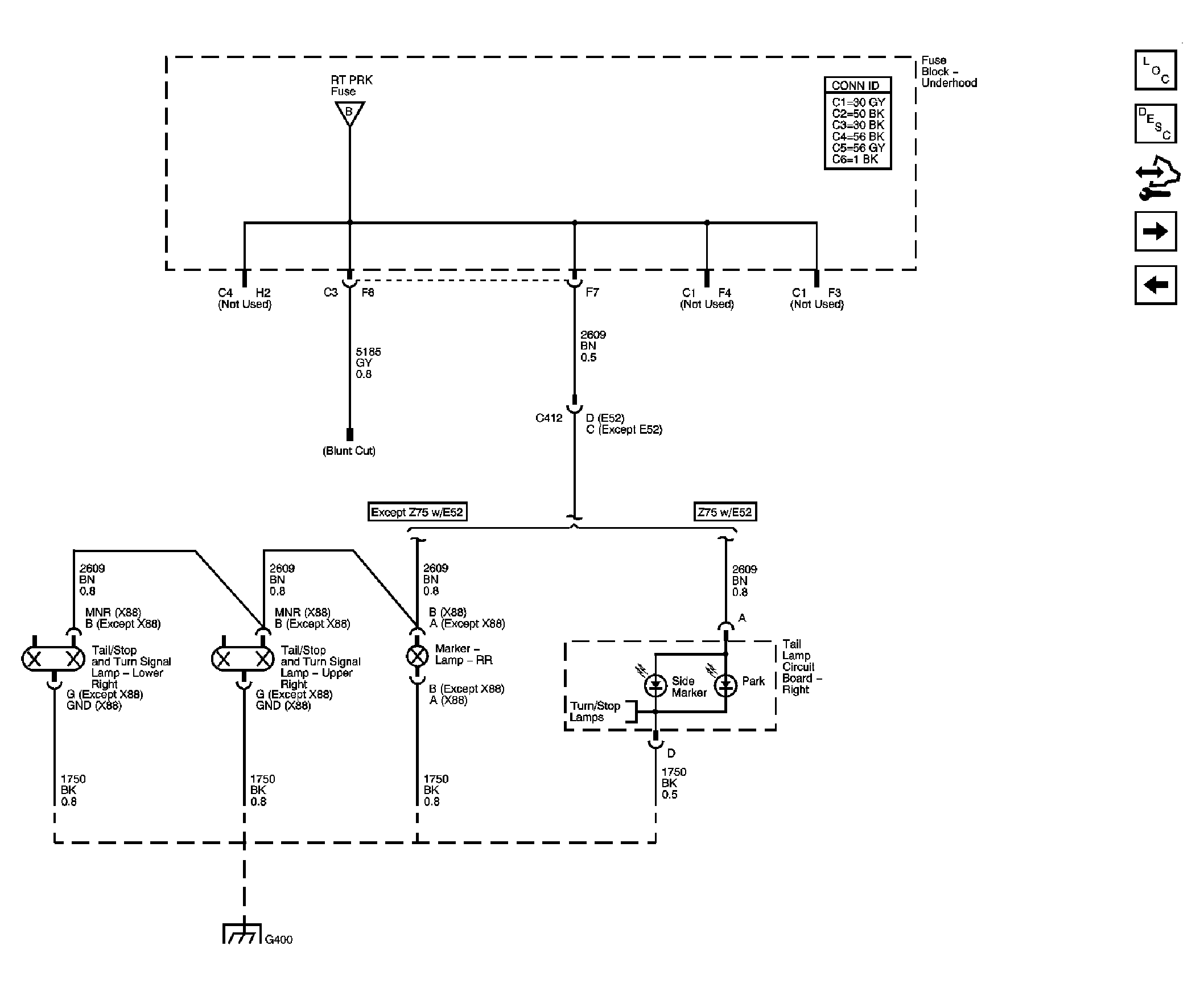

Fig 3: Right Rear Park Lamps Schematic

GM1704919

Courtesy of GENERAL MOTORS CORP.

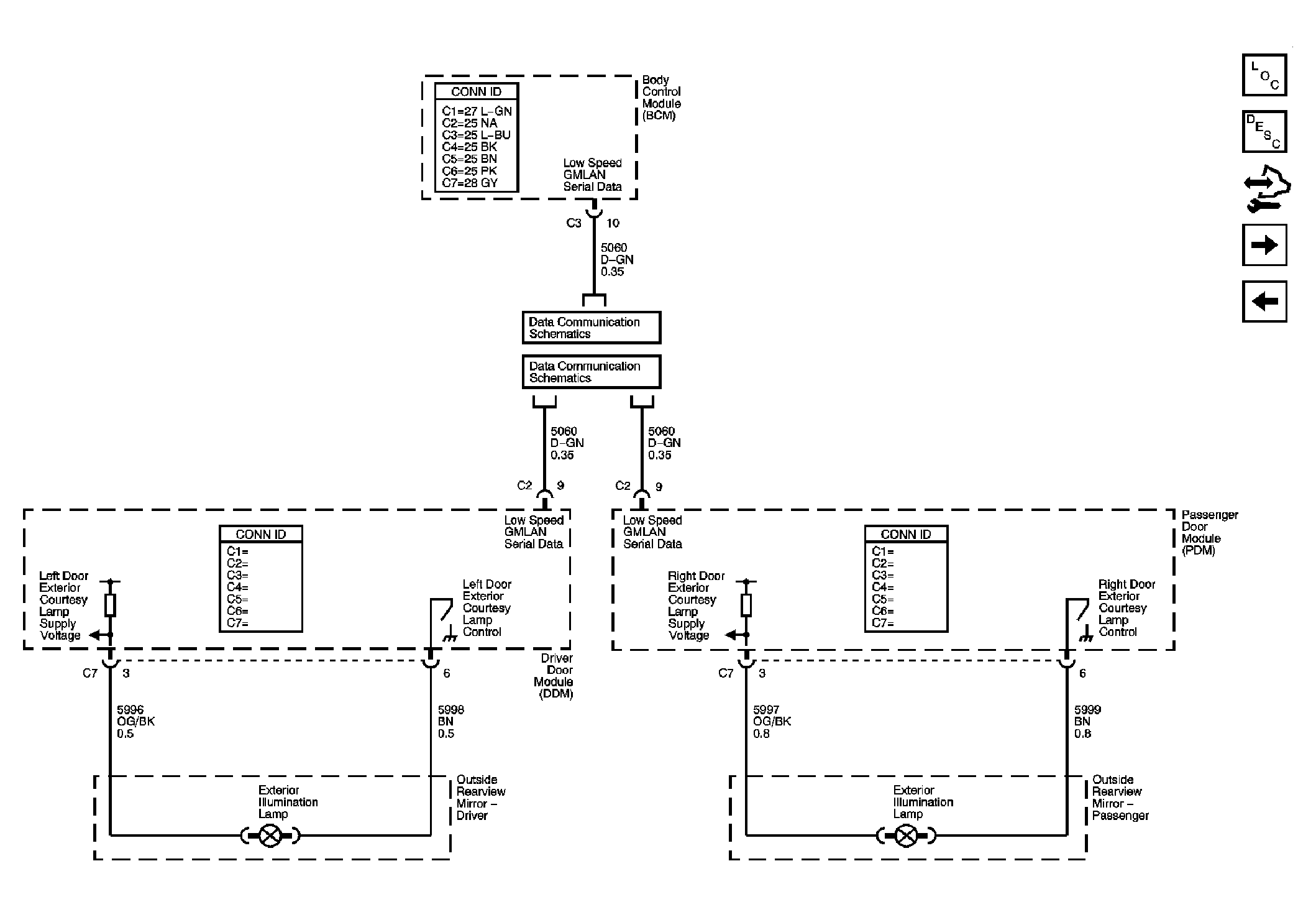

Fig 4: Exterior Illumination Lamps Schematic

GM1704920

Courtesy of GENERAL MOTORS CORP.

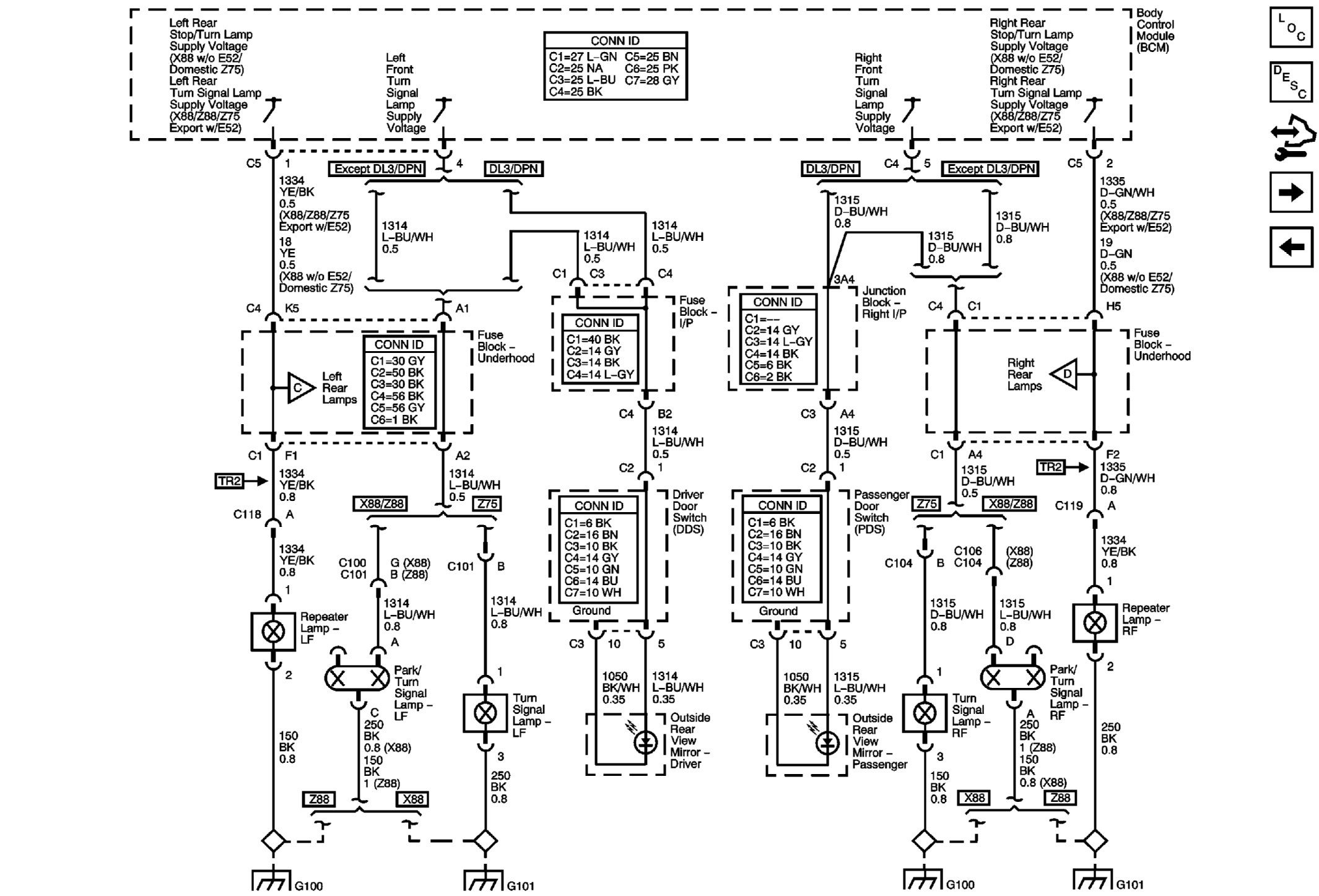

Fig 5: Turn Signal Lamp Control and Front Turn Lamps Schematic

GM1705146

Courtesy of GENERAL MOTORS CORP.

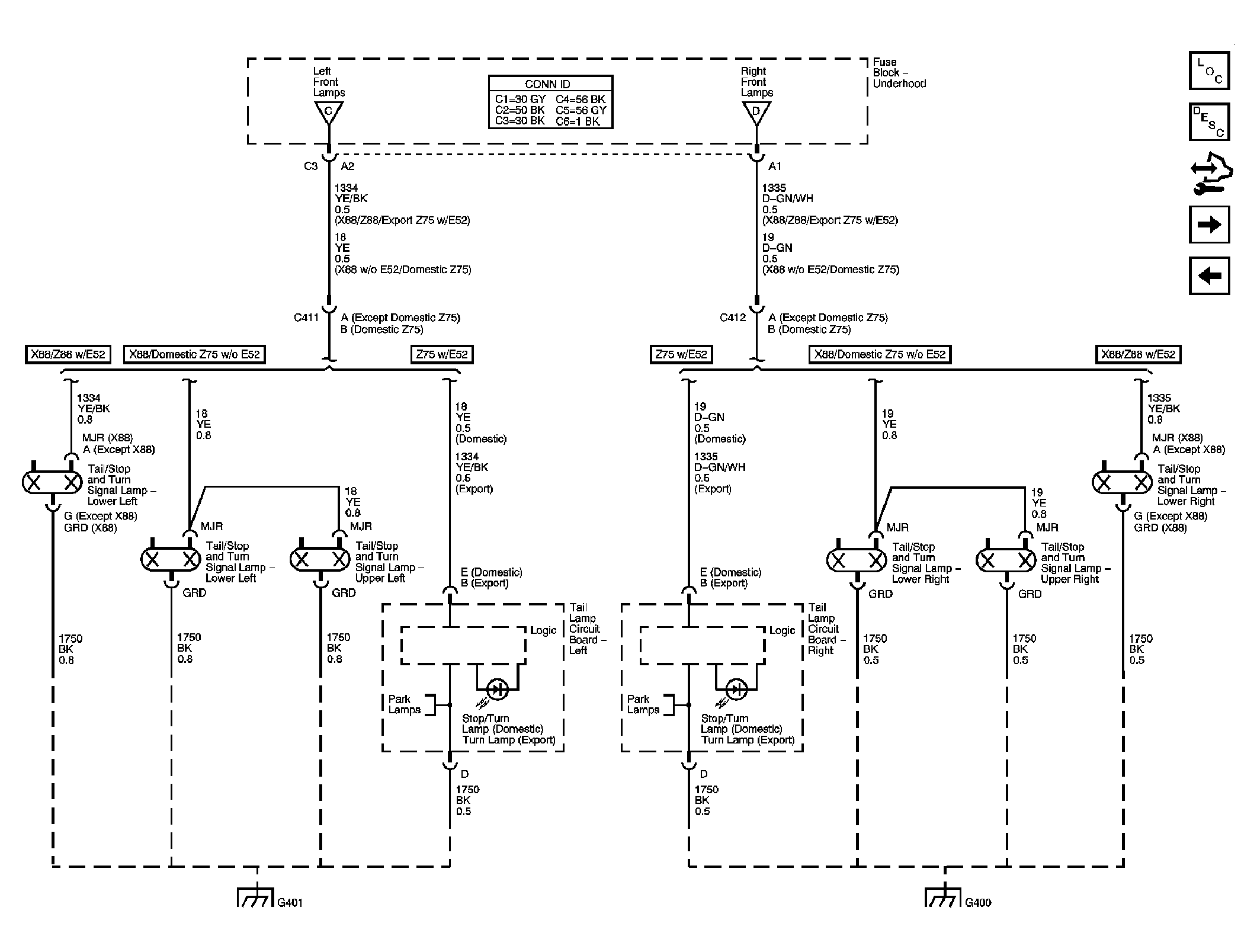

Fig 6: Rear Turn Signal Lamps Schematic

GM1705149

Courtesy of GENERAL MOTORS CORP.

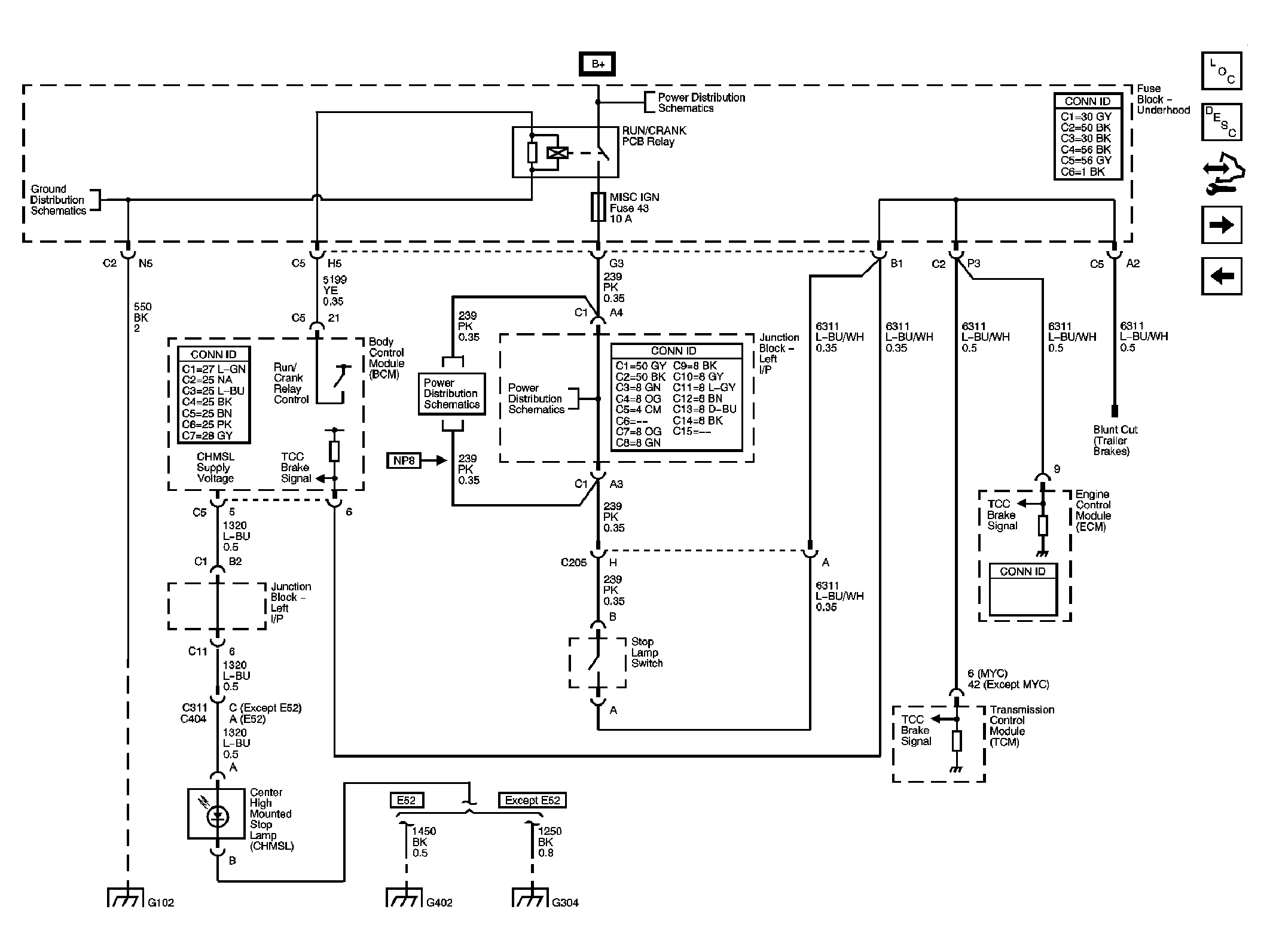

Fig 7: Stop Lamp Control and CHMSL Schematic

GM1705631

Courtesy of GENERAL MOTORS CORP.

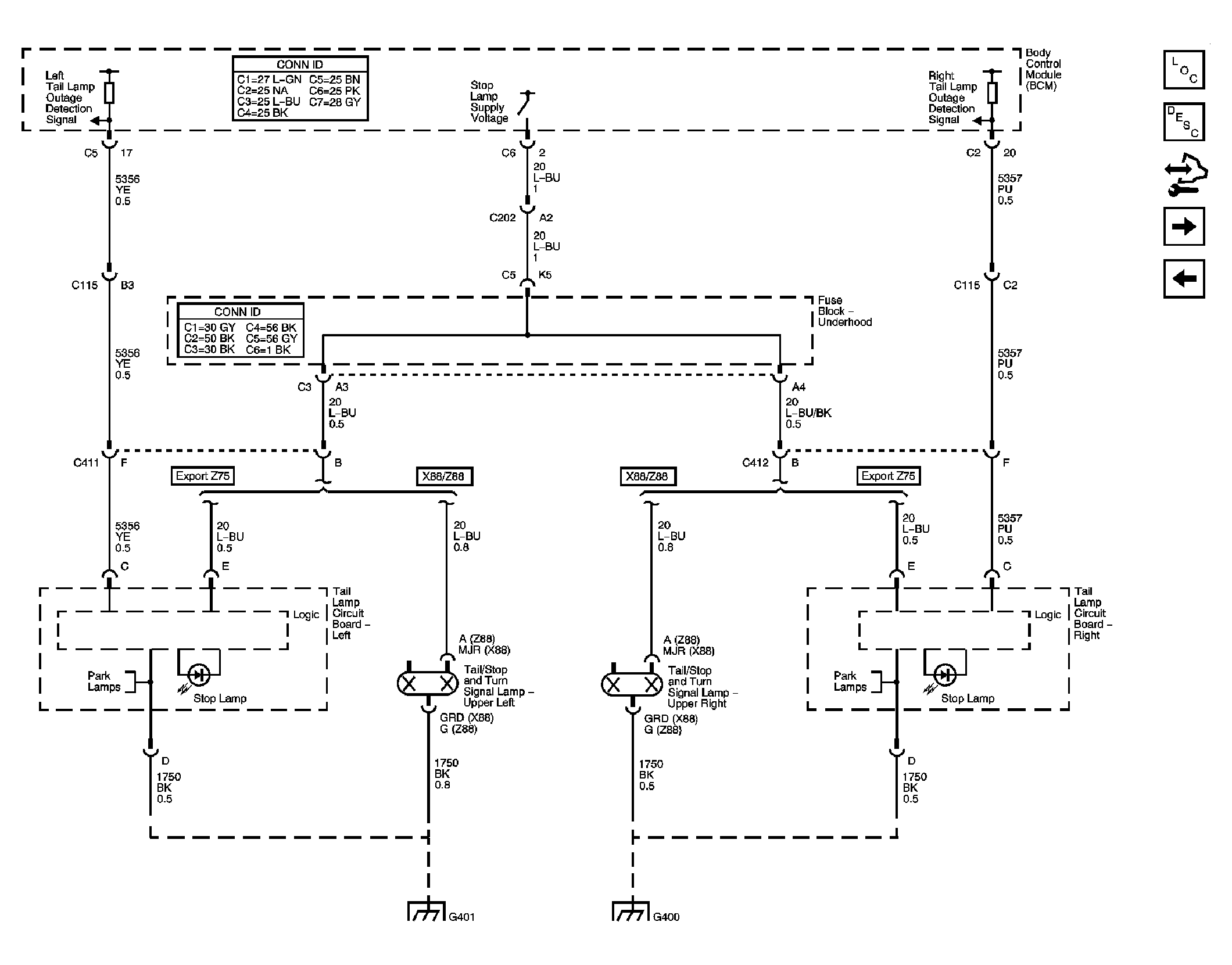

Fig 8: Stop Lamps - X88/Z88 and Export Z75 Schematic

GM1705632

Courtesy of GENERAL MOTORS CORP.

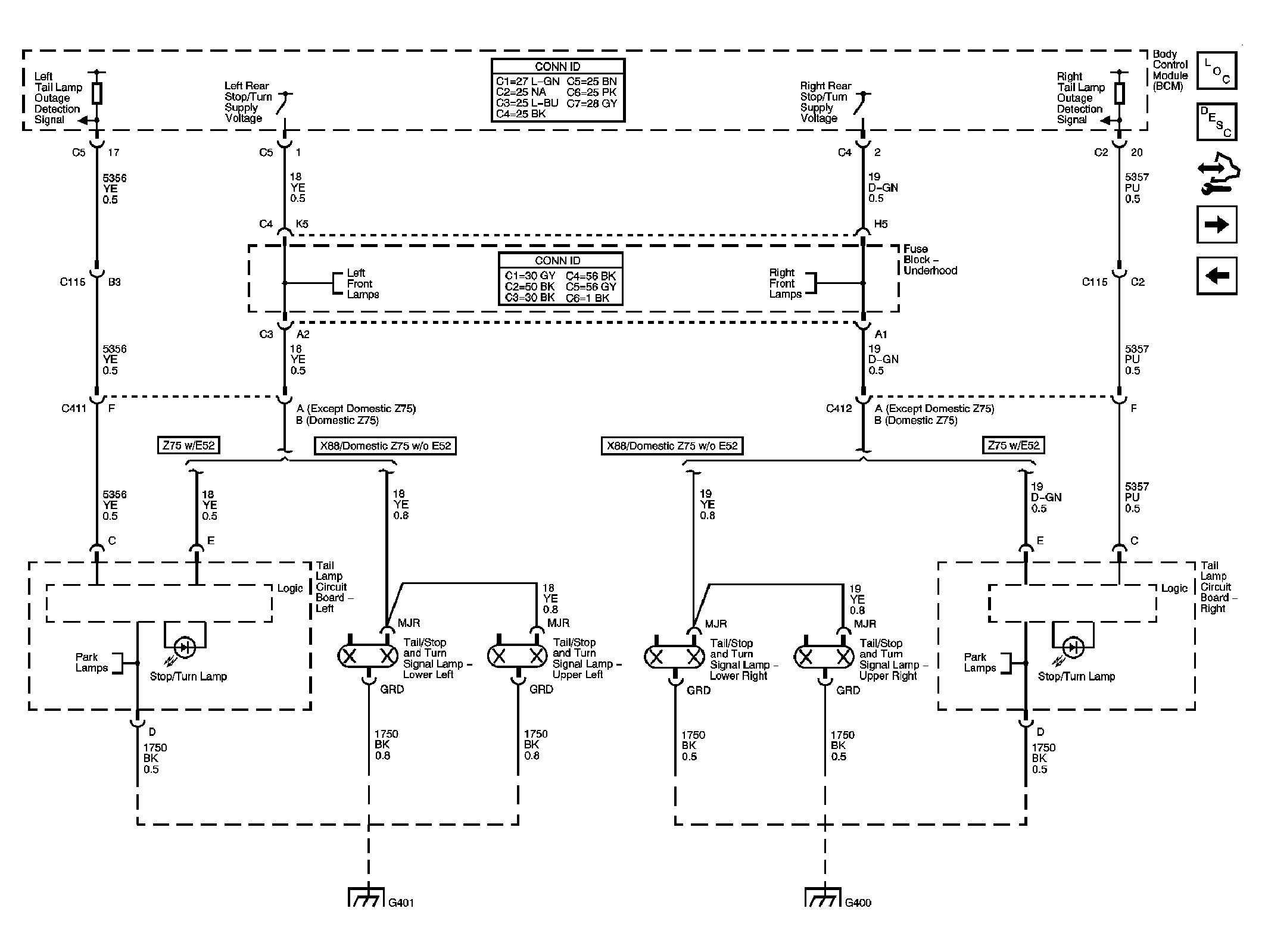

Fig 9: Stop Lamps - Domestic Z75 Schematic

GM1705633

Courtesy of GENERAL MOTORS CORP.

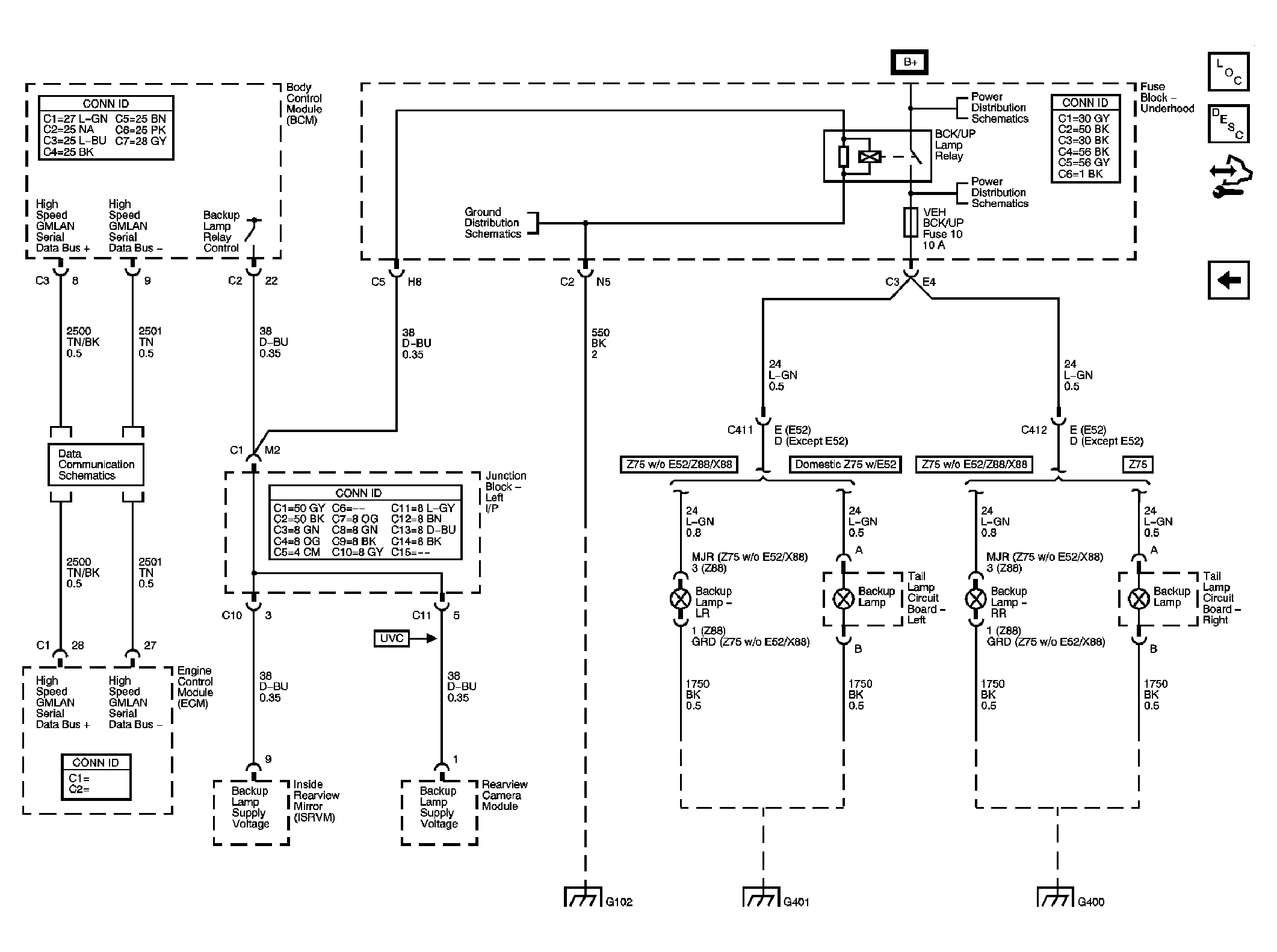

Fig 10: Backup Lamps Schematic

GM1705752

Courtesy of GENERAL MOTORS CORP.

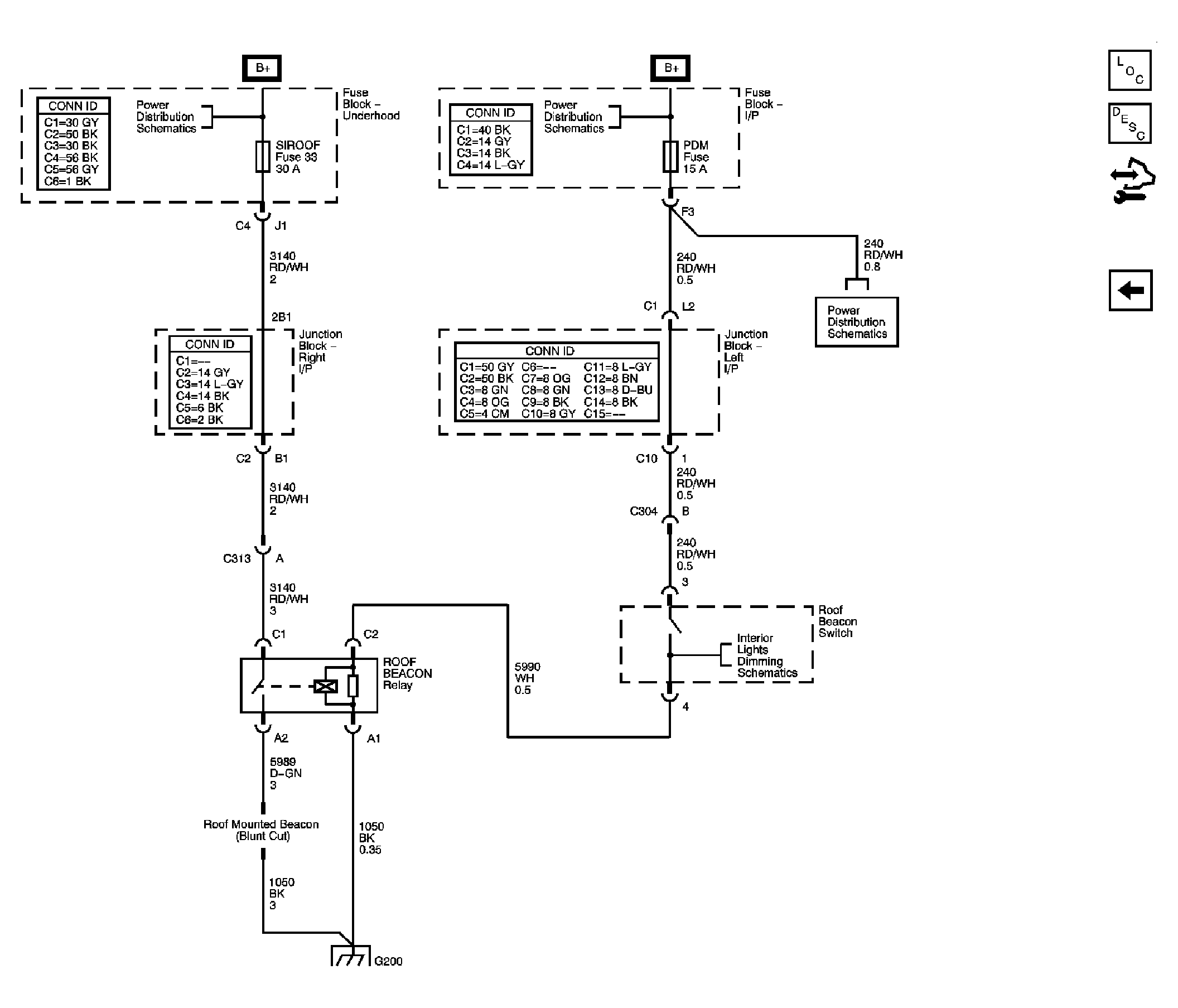

Fig 11: Roof Beacon - TRW/5G4 Schematic

GM1707062

Courtesy of GENERAL MOTORS CORP.
