Interior Lights Schematics

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

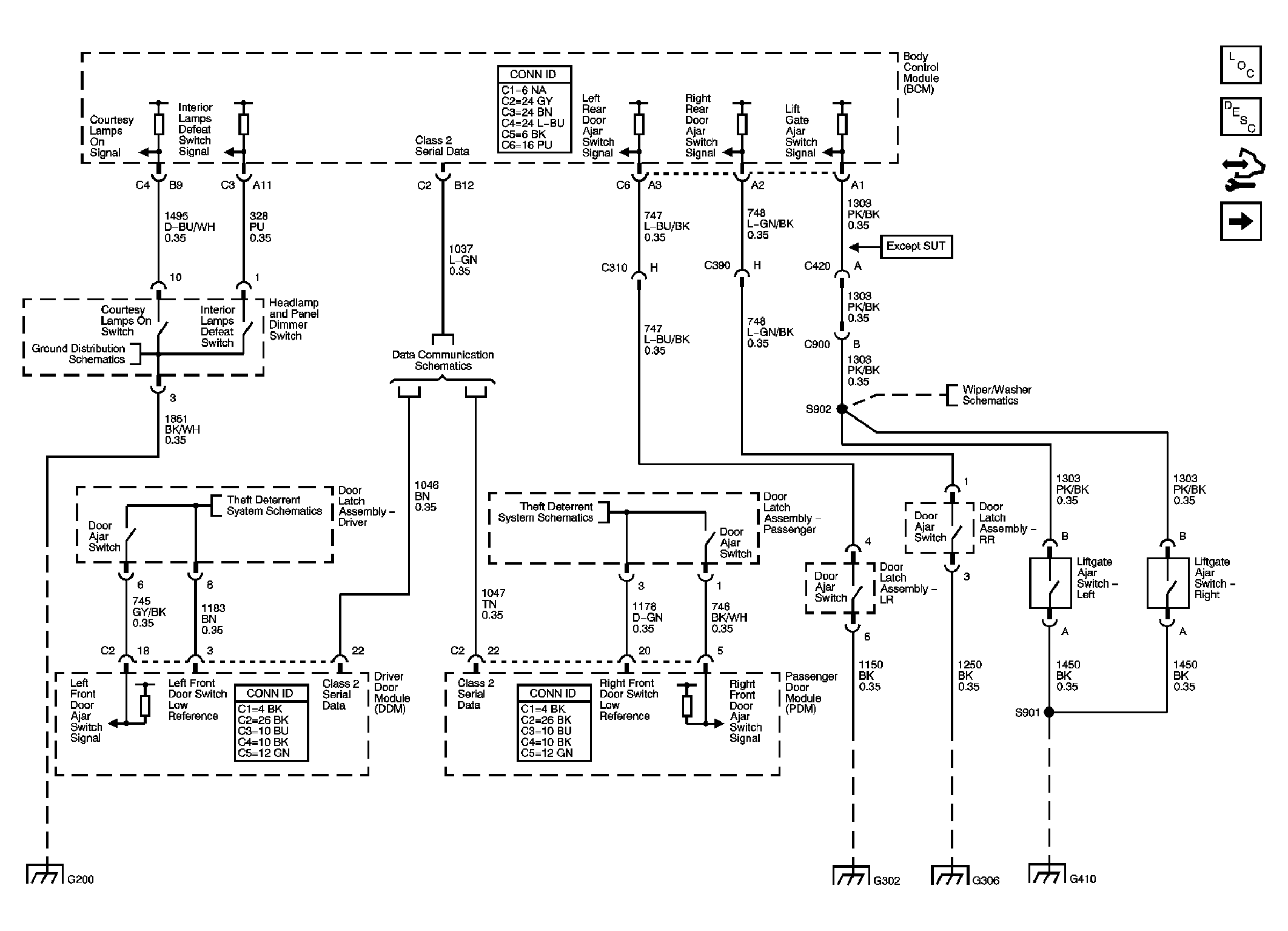

Fig 1: Interior Light Controls, BCM, and Door Ajar Switches Schematic

Courtesy of GENERAL MOTORS CORP.

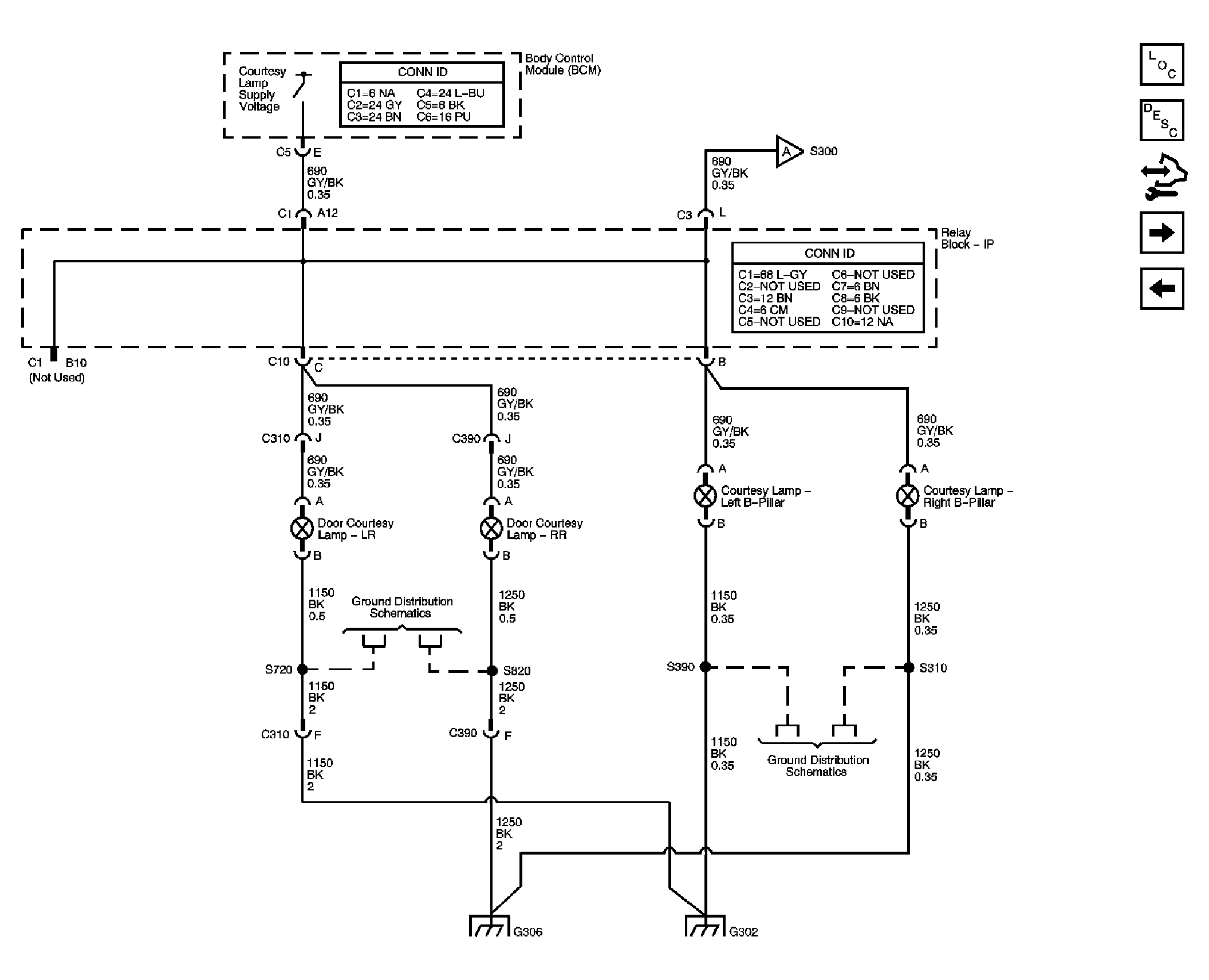

Fig 2: Courtesy Lamps - Rear Doors and B-Pillars Schematic

Courtesy of GENERAL MOTORS CORP.

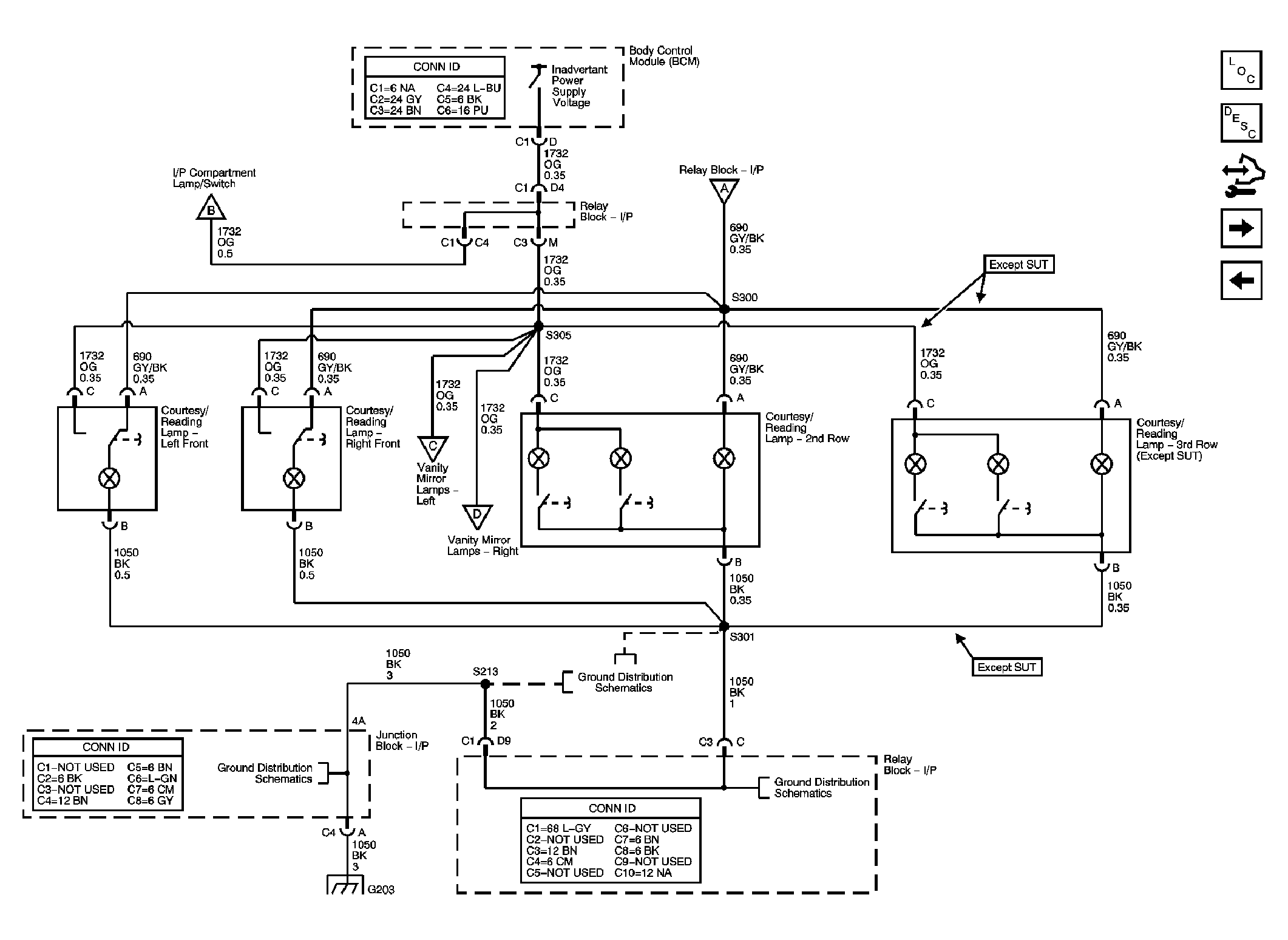

Fig 3: Courtesy Lamps - Headliner Schematic

Courtesy of GENERAL MOTORS CORP.

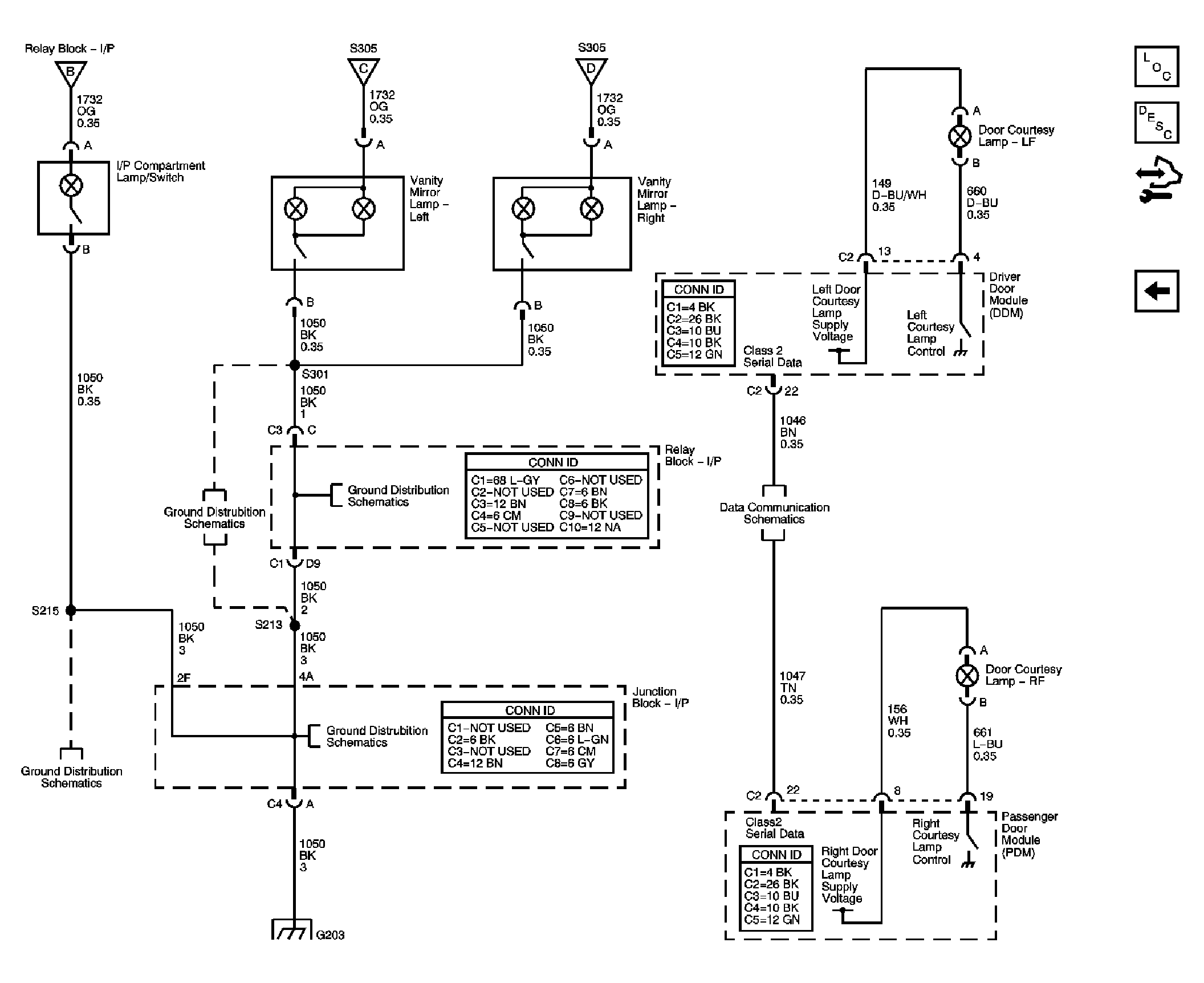

Fig 4: Courtesy Lamps - Front Doors, Vanity Mirrors, and I/P Compartment Lamp Schematic

Courtesy of GENERAL MOTORS CORP.
