Interior Lights Dimming Schematics

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

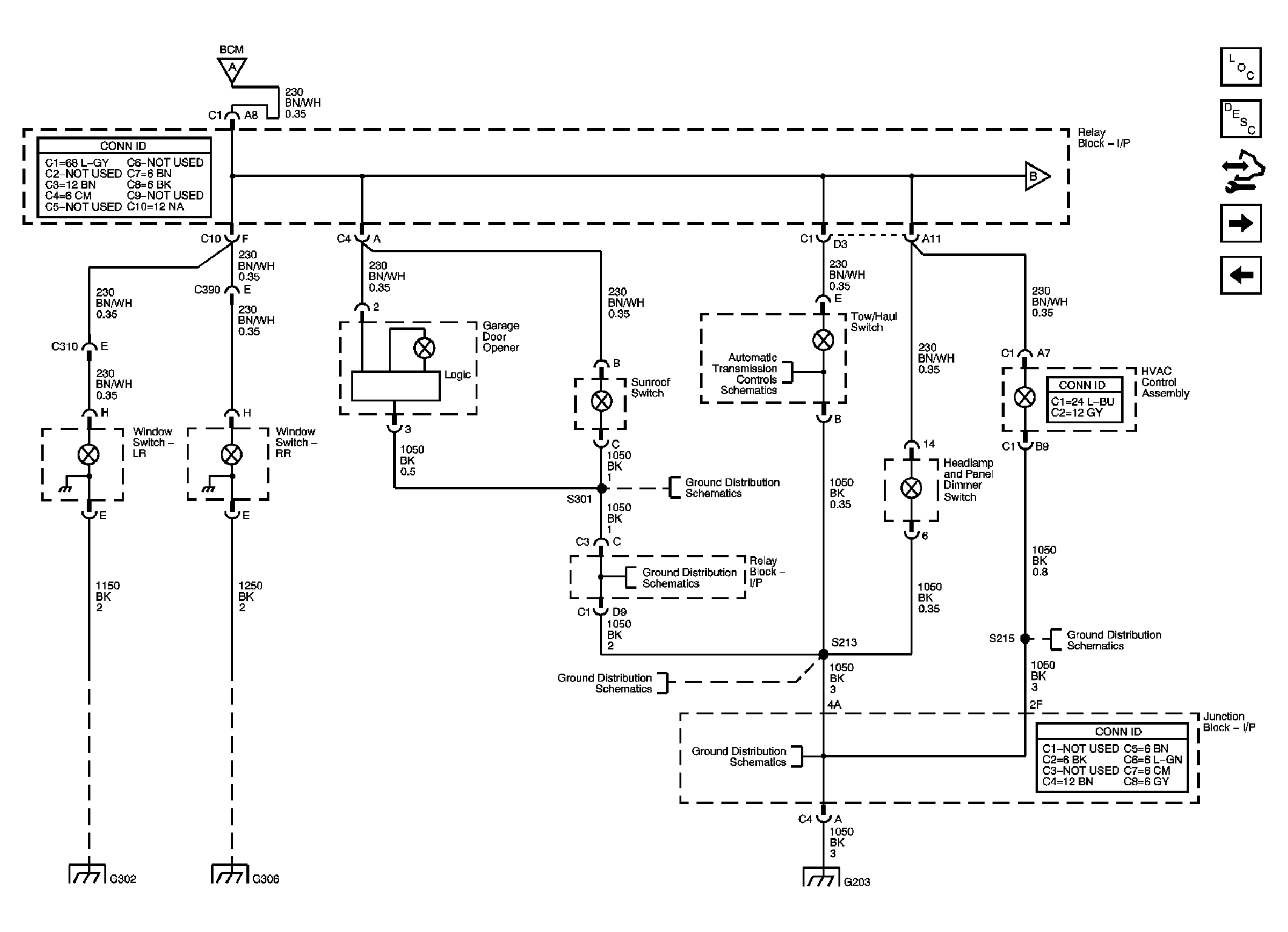

Fig 1: Instrument Panel Dimming - 1 of 5 and LED Dimming - 1 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Instrument Panel Dimming - 2 of 5 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Instrument Panel Dimming - 3 of 5 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Instrument Panel Dimming - 4 of 5 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Instrument Panel Dimming - 5 of 5 and LED Dimming - 2 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.
