Exterior Lights Schematics

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

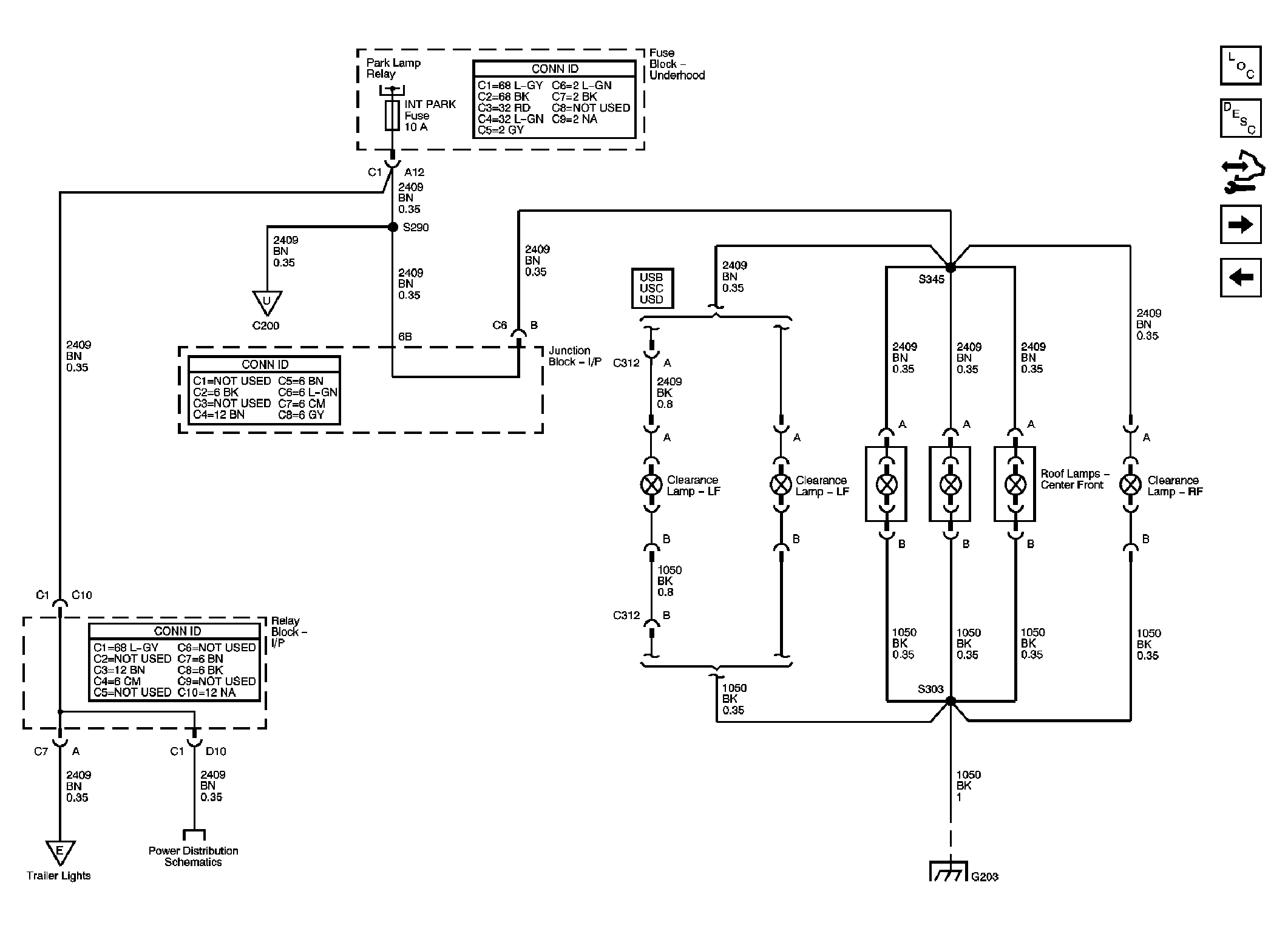

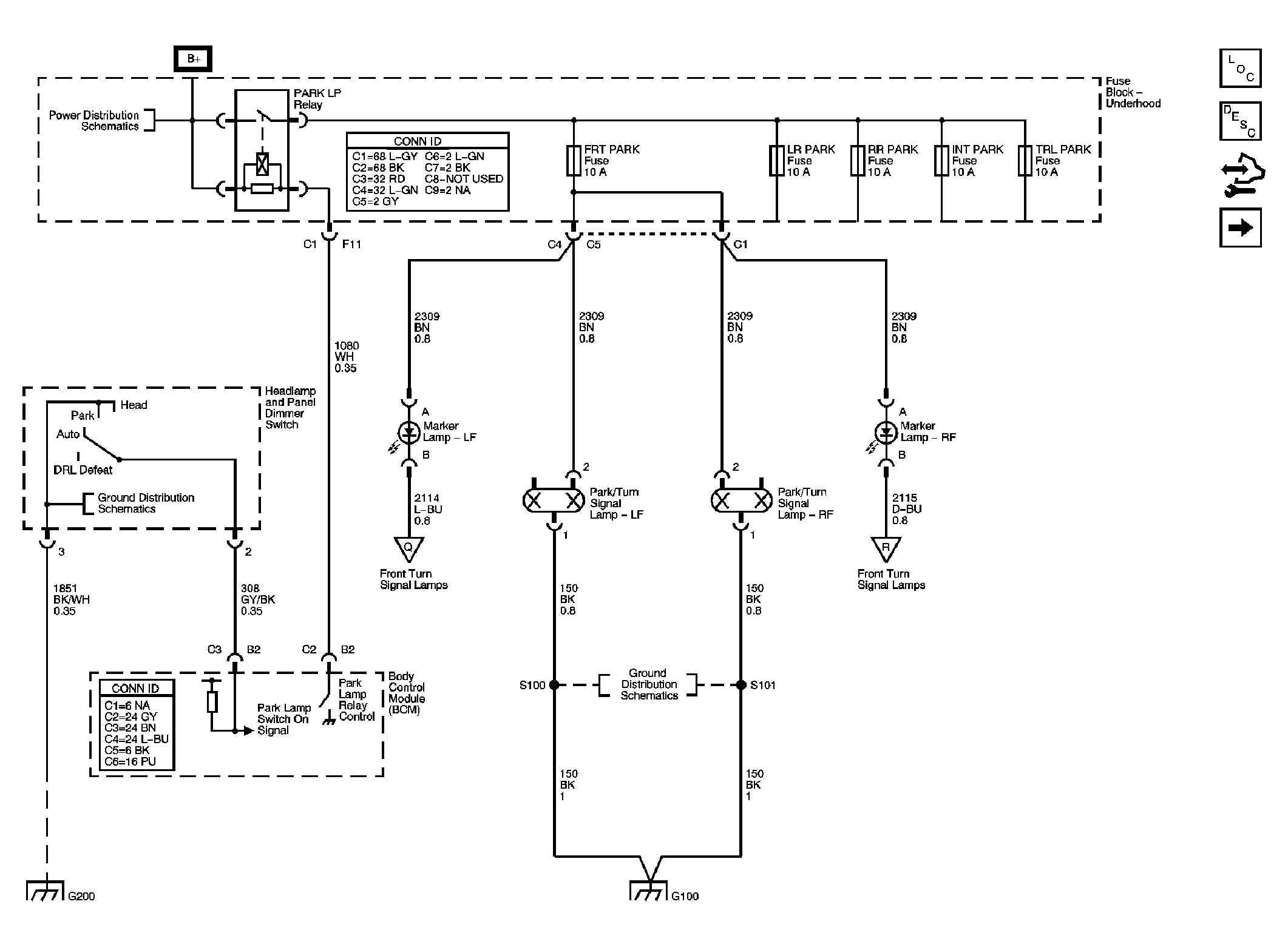

Fig 1: Park Lamp Relay, Front Park, and Marker Lamp Schematic

Courtesy of GENERAL MOTORS CORP.

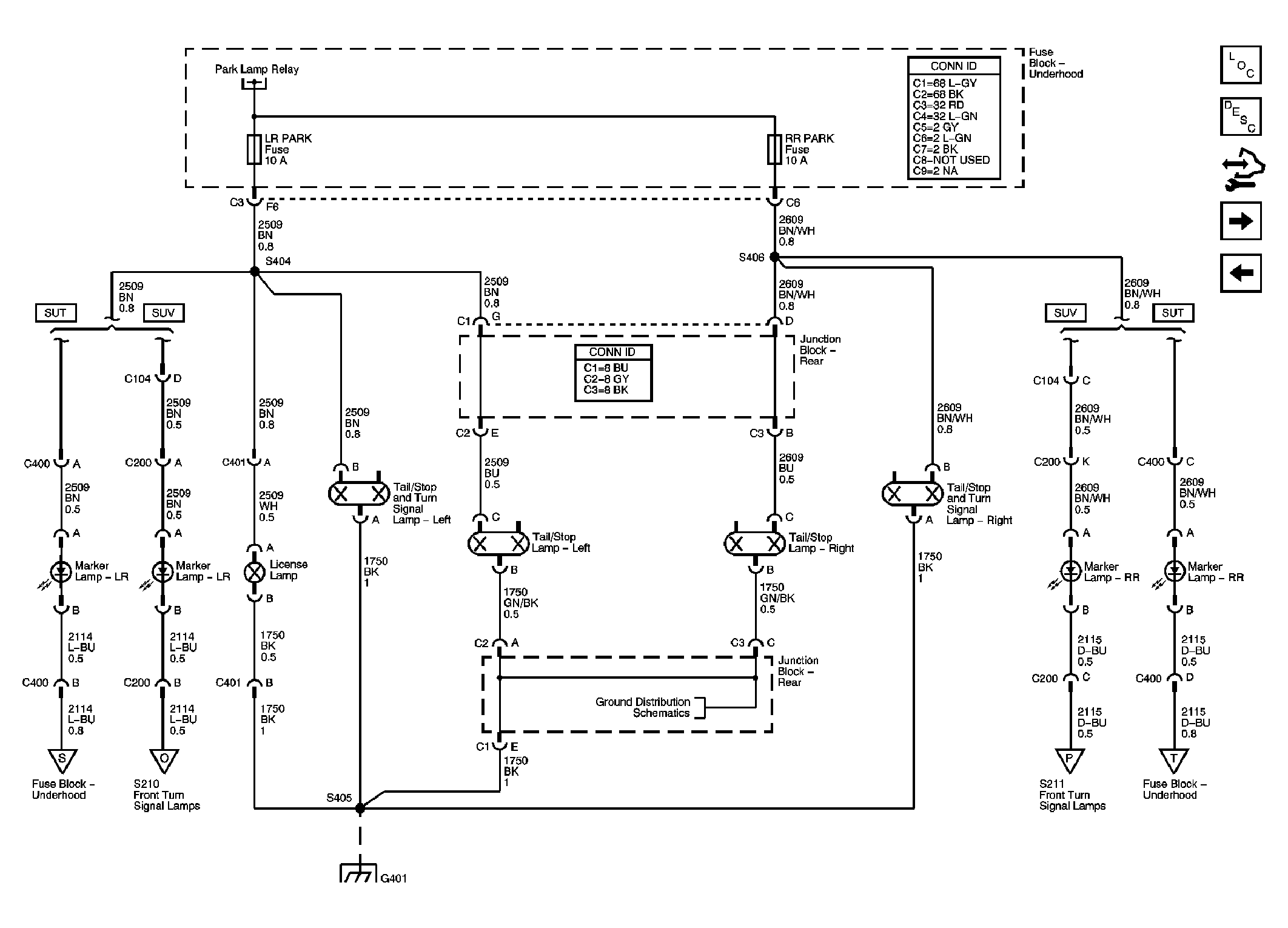

Fig 2: Tail Lamps, Rear Marker, and License Lamp Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Roof Lamps - Front Schematic

Courtesy of GENERAL MOTORS CORP.

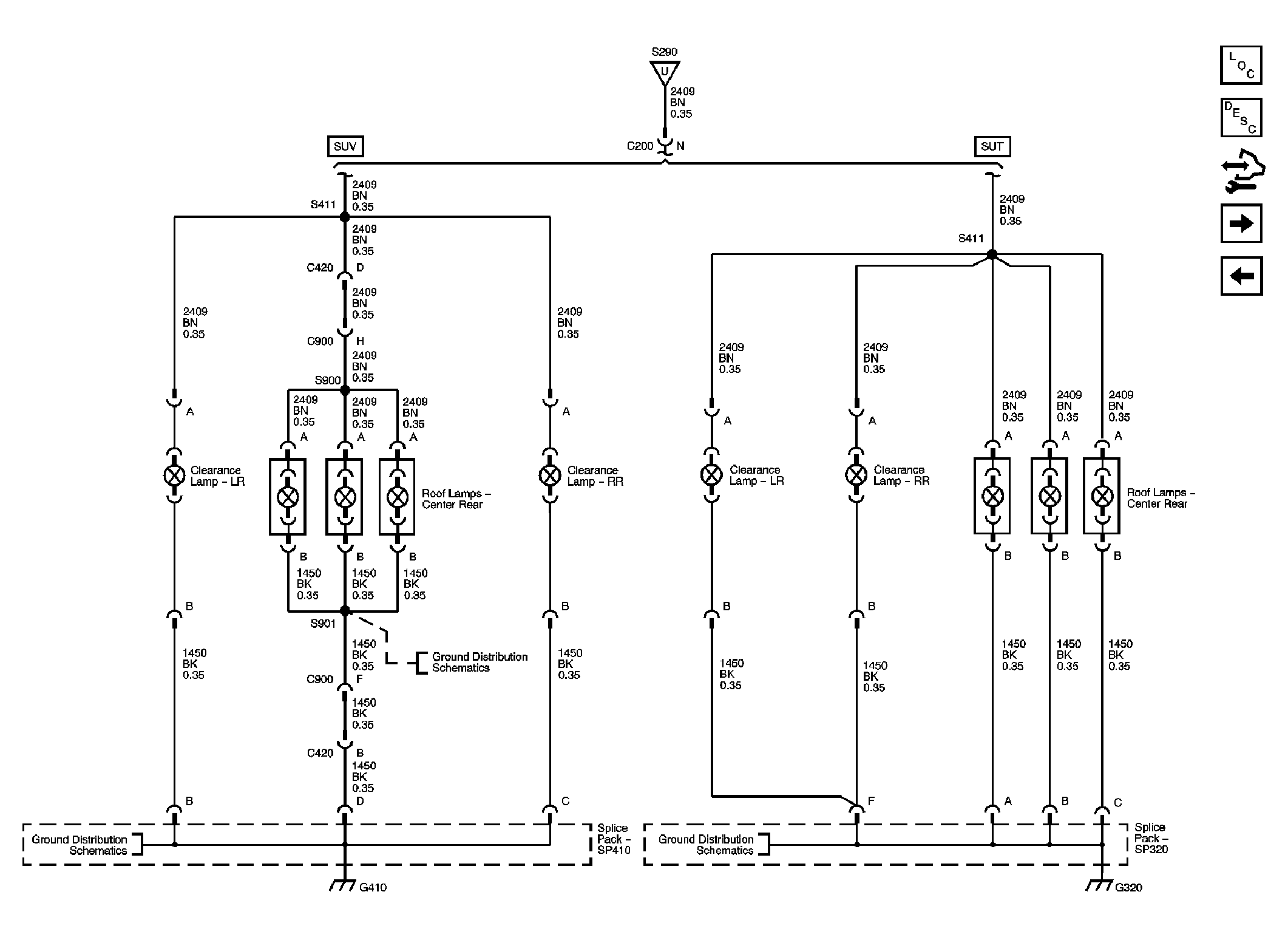

Fig 4: Roof Lamps - Rear Schematic

Courtesy of GENERAL MOTORS CORP.

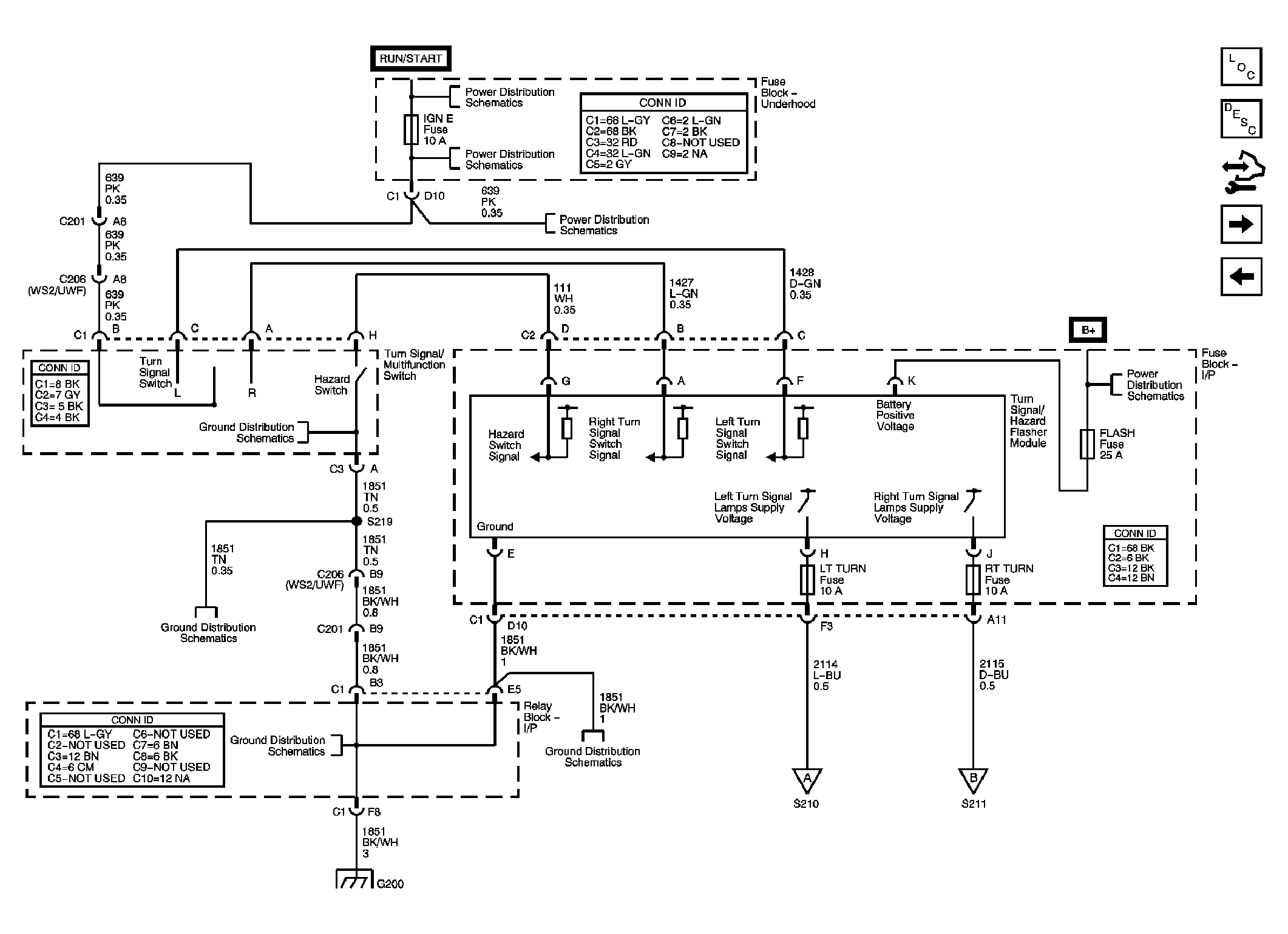

Fig 5: Turn Signal/Hazard Switch and Flasher Module Schematic

Courtesy of GENERAL MOTORS CORP.

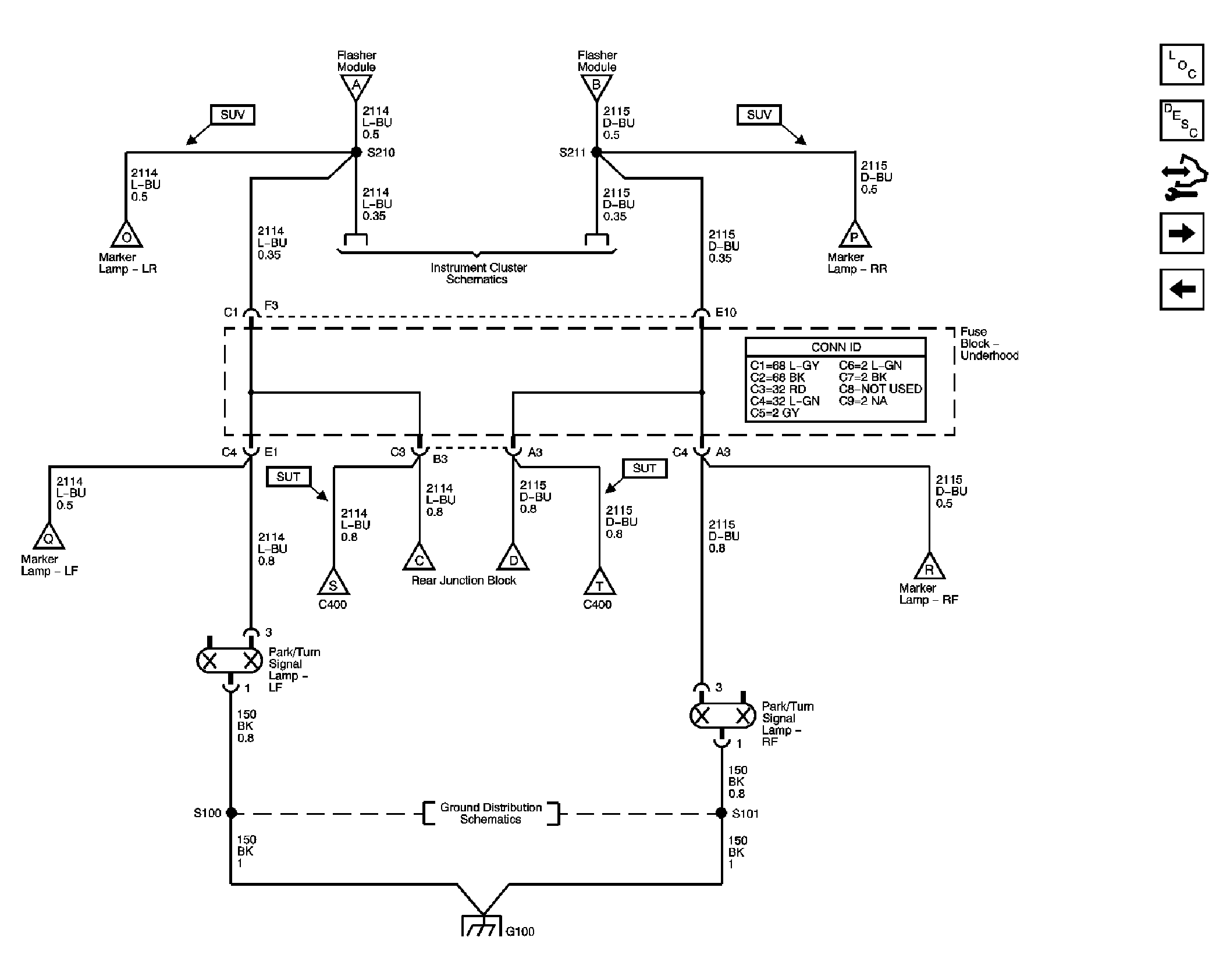

Fig 6: Marker Lamps and Front Turn Signal Lamp Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: Rear Turn Signal Lamp Schematic

Courtesy of GENERAL MOTORS CORP.

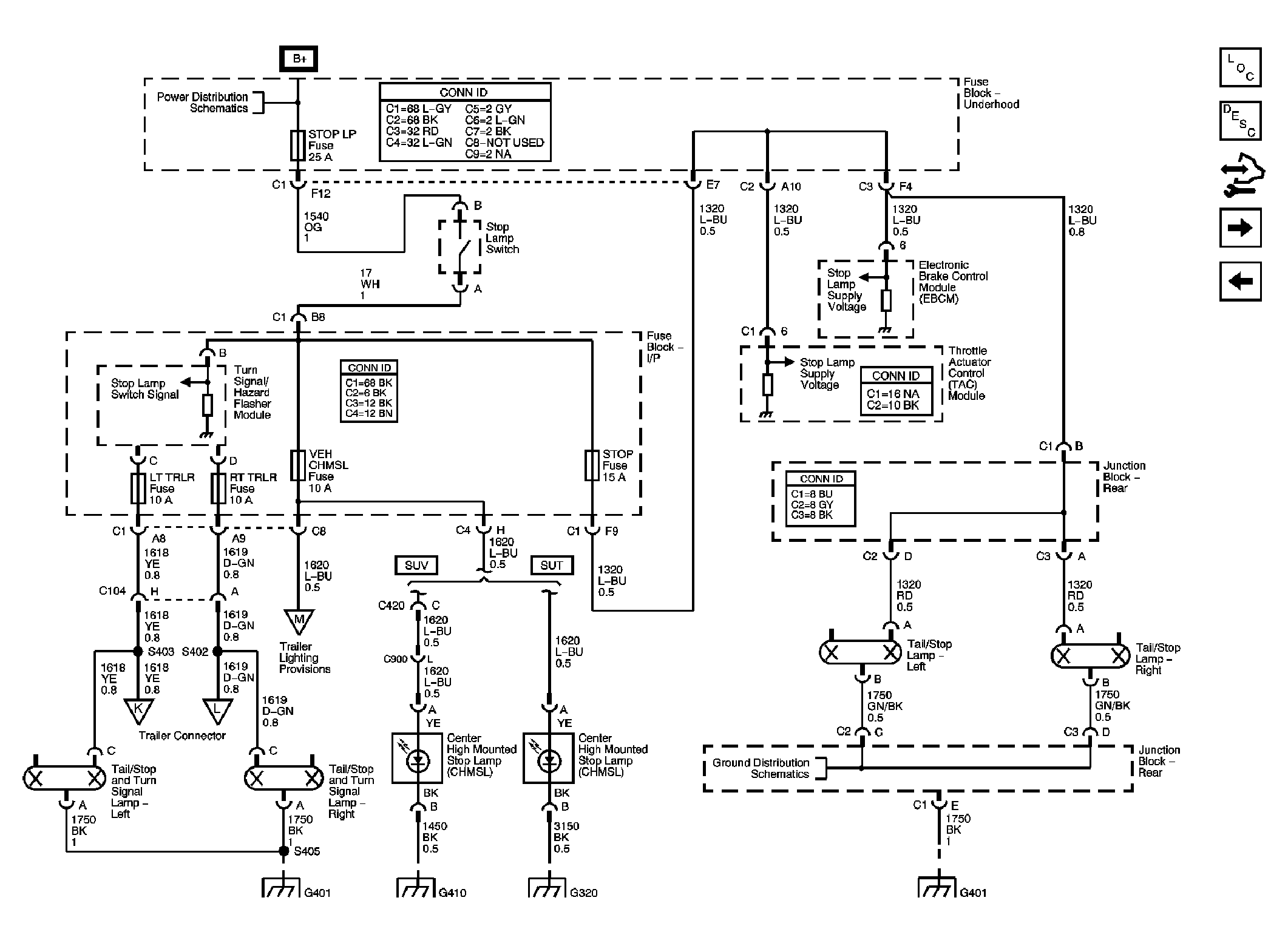

Fig 8: Stop Lamp Schematic

Courtesy of GENERAL MOTORS CORP.

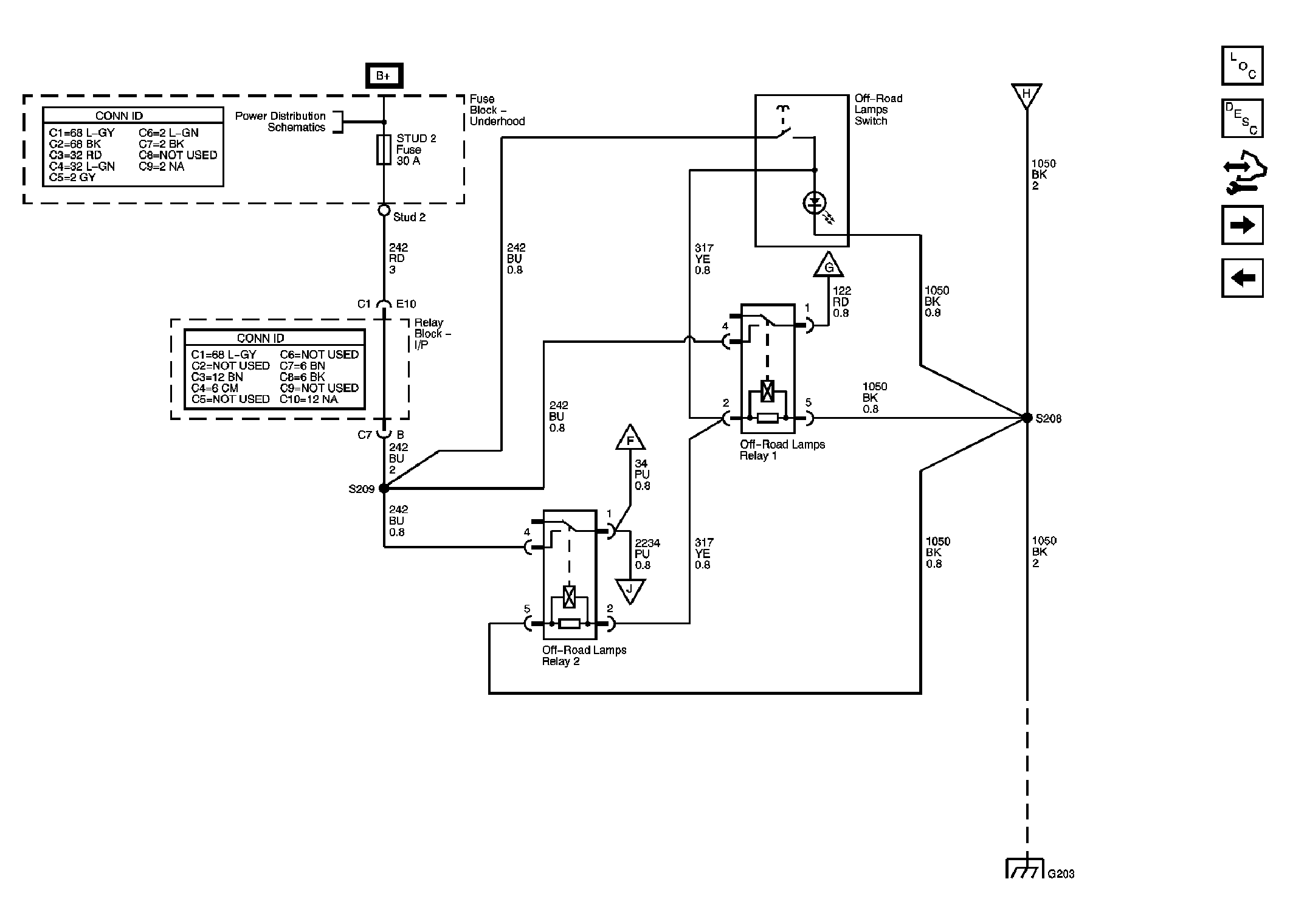

Fig 9: Off-Road Lighting Control (USB, USC) Schematic

Courtesy of GENERAL MOTORS CORP.

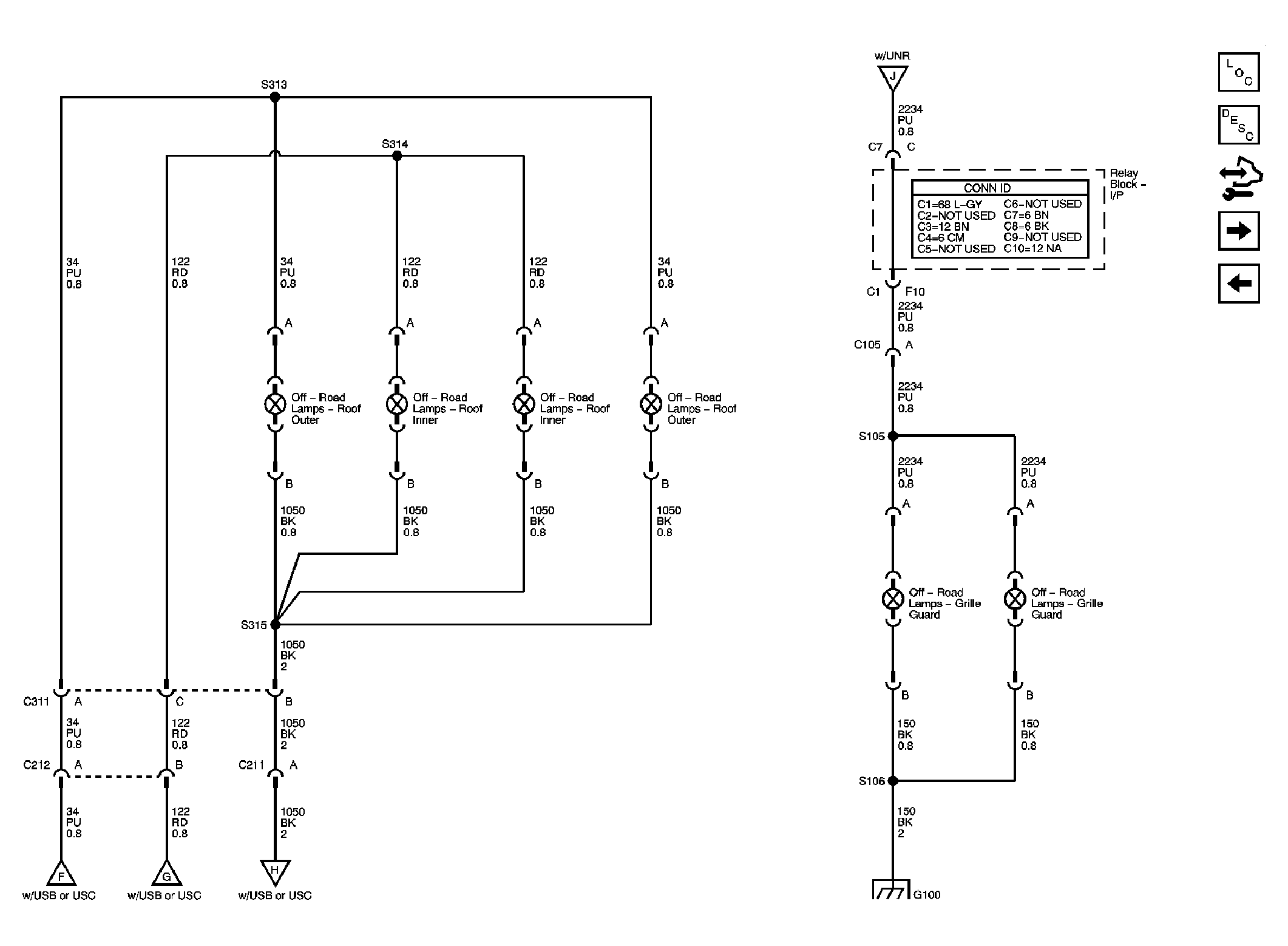

Fig 10: Off-Road Lights (USB, USC) Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 11: Off-Road Lights (USD) Schematic

Courtesy of GENERAL MOTORS CORP.

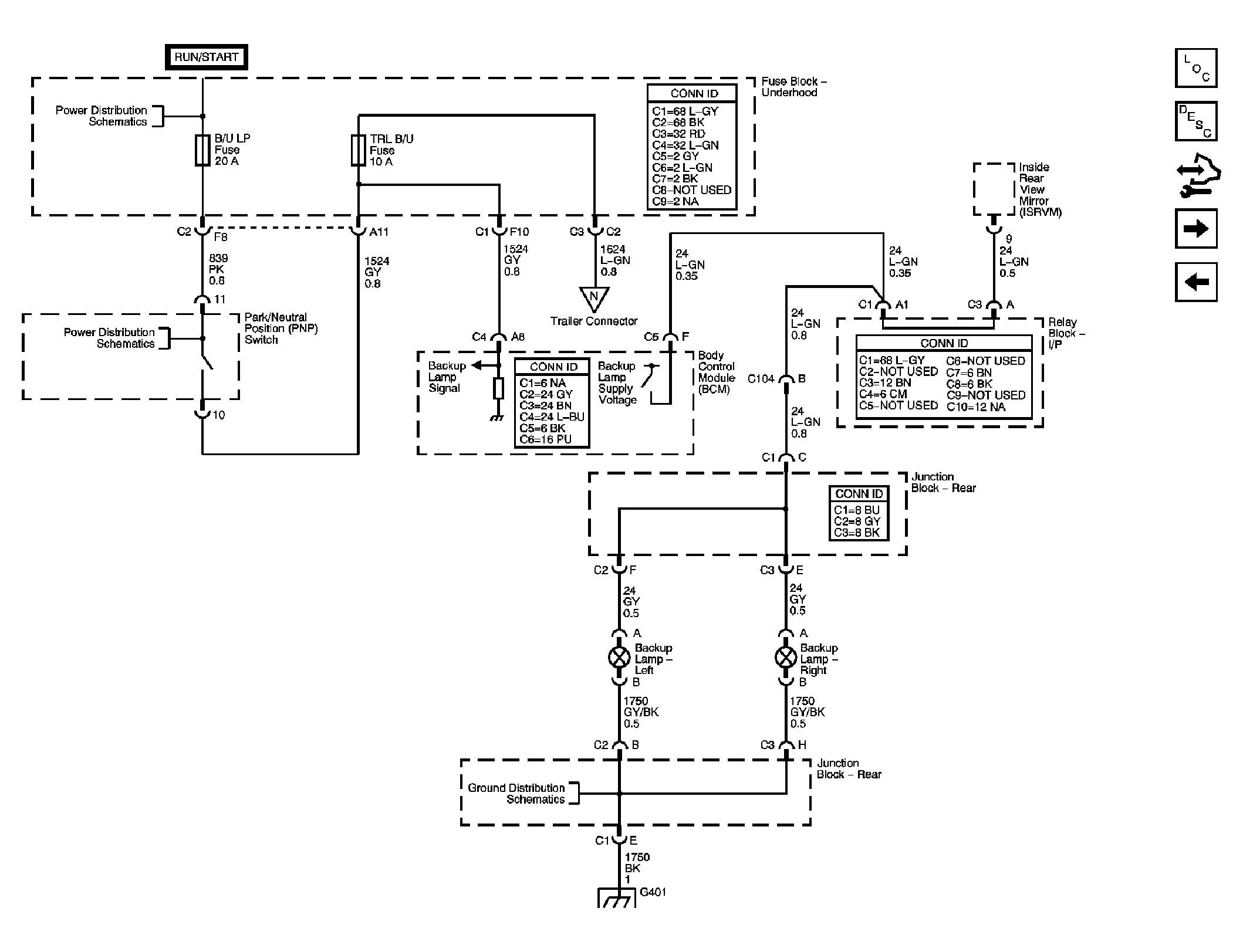

Fig 12: Backup Lamp Schematic

Courtesy of GENERAL MOTORS CORP.

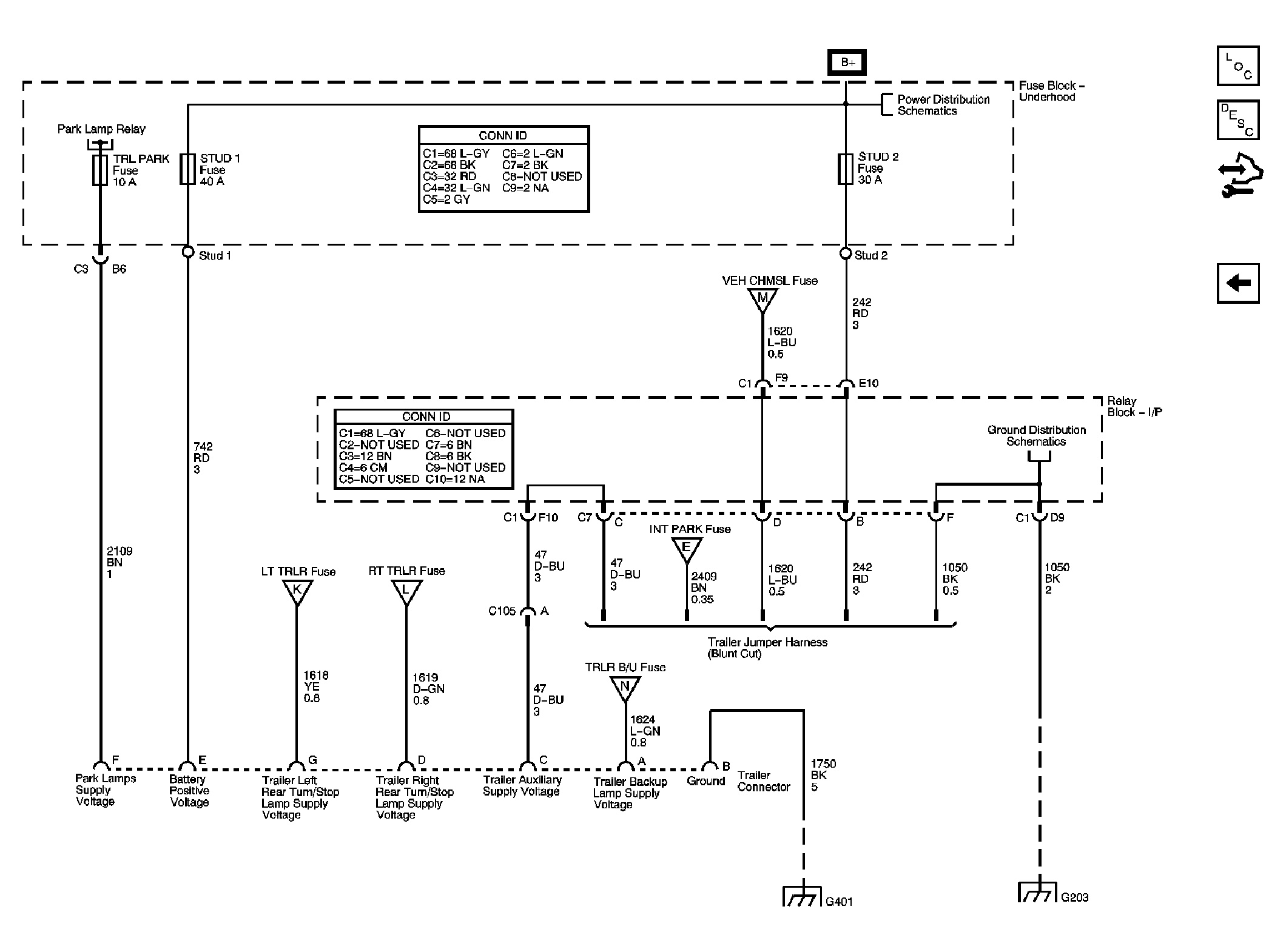

Fig 13: Trailer Lighting Provision Schematic

Courtesy of GENERAL MOTORS CORP.
