Liftgate Trim Panel Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

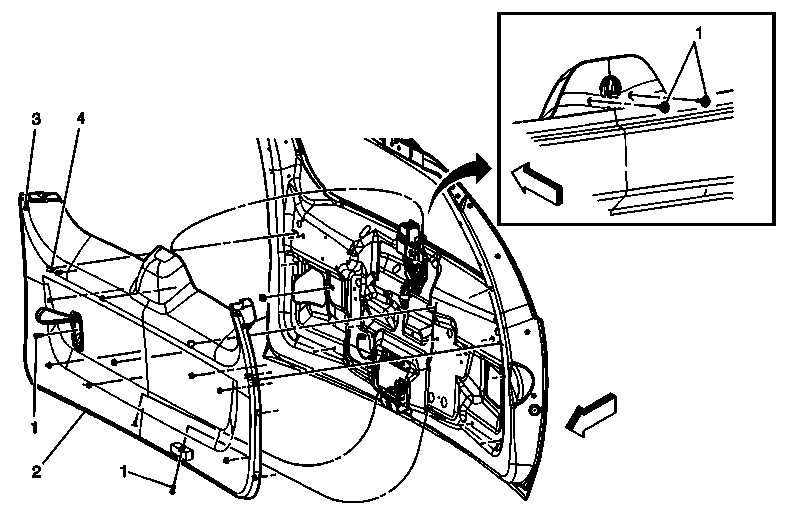

Fig 1: View Of Liftgate Trim Finish Panel Assembly & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove liftgate window upper garnish molding. Refer to Liftgate Garnish Molding Replacement .
1	Liftgate Trim Finish Panel Push Pin Retainer (Qty: 2) Tip: Raise liftgate window in order to access push pins.
2	Liftgate Trim Finish Panel Assembly Tip: Disconnect electrical connector.
3	Liftgate Trim Finish Panel Retainer (Qty: 12)
4	Liftgate Trim Finish Panel Clip (Qty: 5)
