Cup Holder Replacement - Front Floor Console - Rear (Cadillac)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

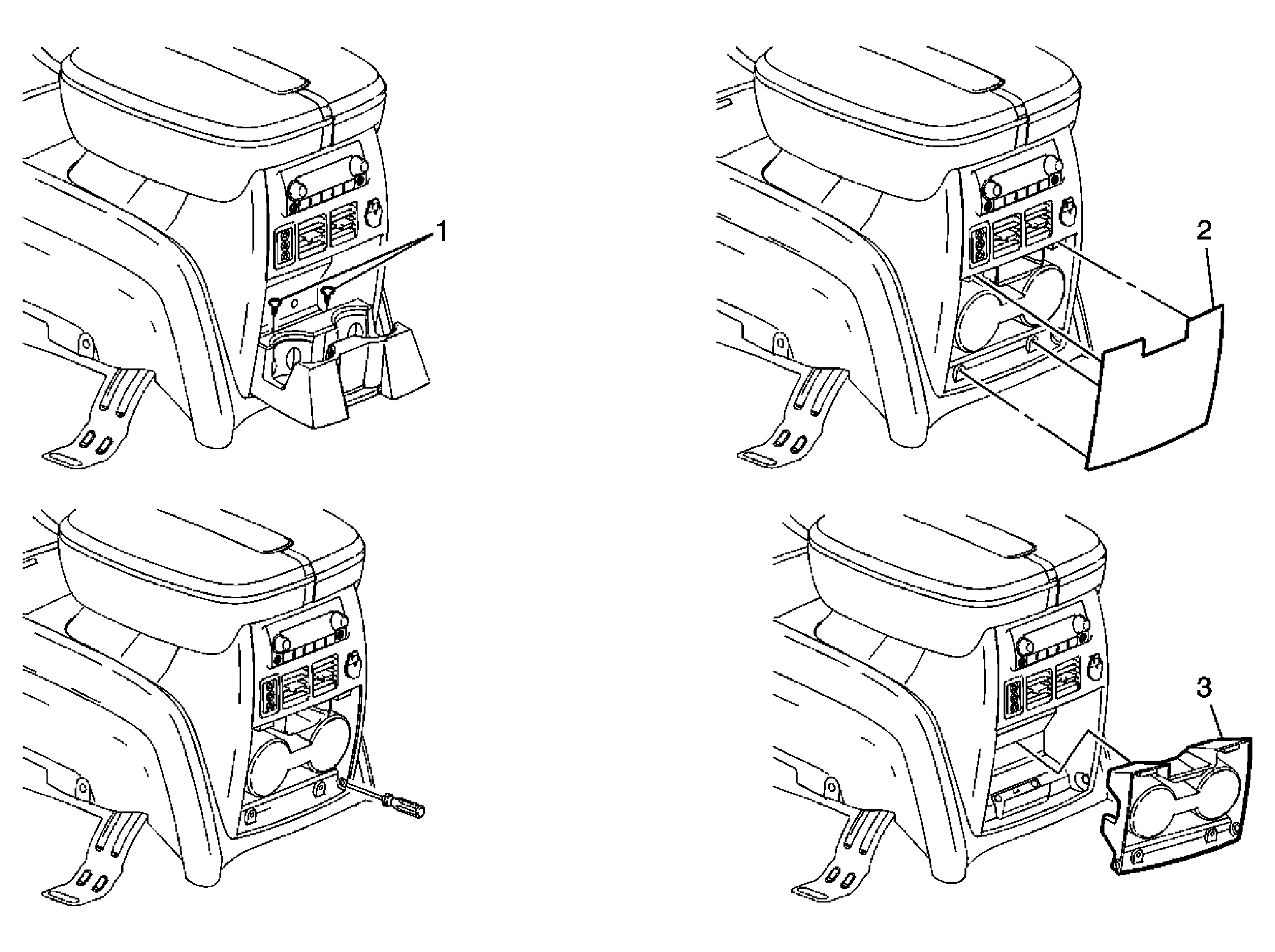

Fig 1: View Of Front Floor Console Rear Cupholder Assembly, Door & Screws
GM1703977Courtesy of GENERAL MOTORS CORP.
Cup Holder Replacement - Front Floor Console - Rear (Cadillac)

Callout Component Name
1 Front Floor Console Rear Cupholder Door Screws (Qty: 2)
NOTE: Refer to Fastener Notice .

Tighten:  2 N.m (18 lb in)


Tip:  Open the cupholder and remove the door screws.
2 Front Floor Console Rear Cupholder Door
Tip:
  1. Close the cupholder and remove the door.
  2. Insert a small flat-bladed tool and release the retainer tab.
3 Front Floor Console Rear Cupholder Assembly
