Instrument Panel Carrier Replacement (Except Cadillac)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

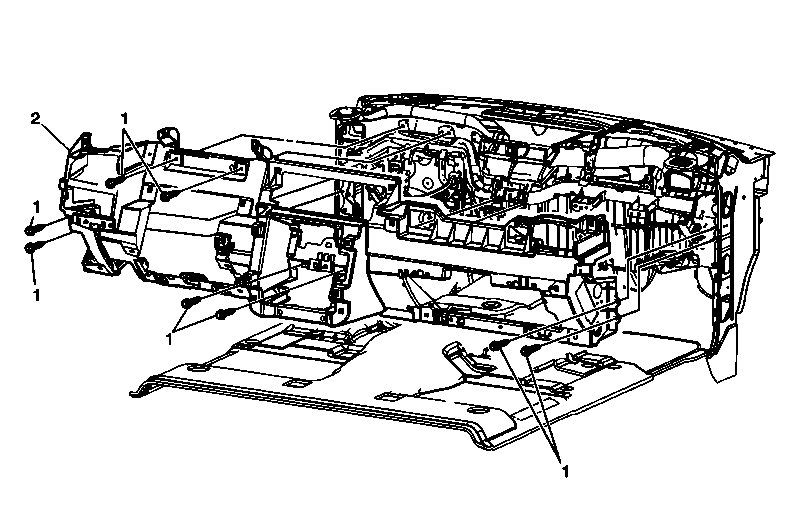

Fig 1: View Of Instrument Panel Carrier Assembly & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel compartment assembly (I/P lower trim panel). Refer to Instrument Panel Compartment Door Assembly Replacement (Except Cadillac) .
1	Instrument Panel Carrier Assembly Bolts (Qty: 8) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Instrument Panel Carrier Assembly
