Head Restraint Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

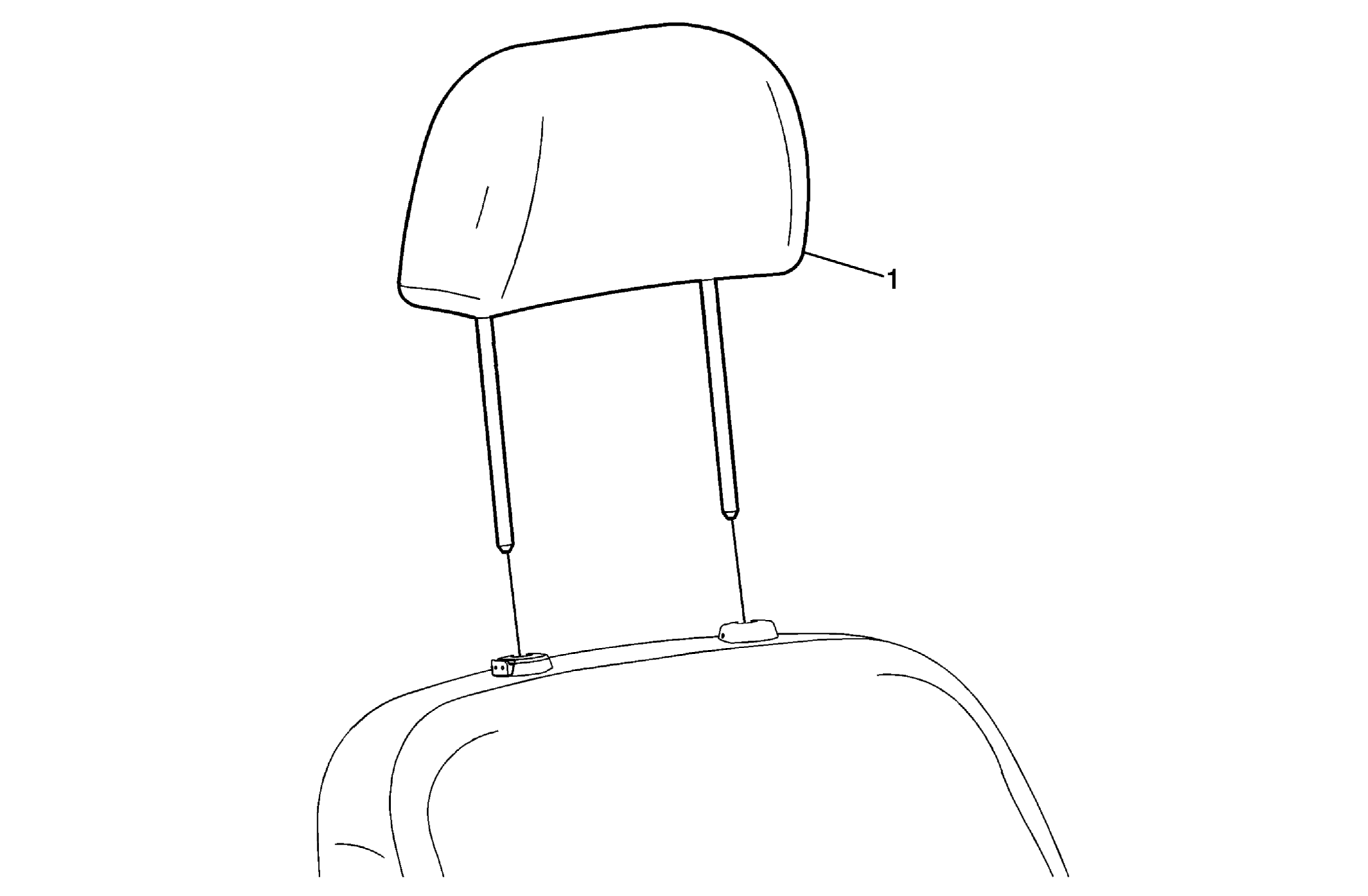

Fig 1: View Of Front Seat Head Restraint
GM1582964Courtesy of GENERAL MOTORS CORP.
Head Restraint Replacement

Callout Component Name
1 Restraint, Front Seat Head
Tip:
  1. Depress the button on the inboard head restraint guide to raise the head restraint to the full up position.
  2. Insert a small diameter tool into the hole on the inboard side of the outboard head restraint guide and pull upward to remove.
