Removal Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power port/lighter socket fuse.

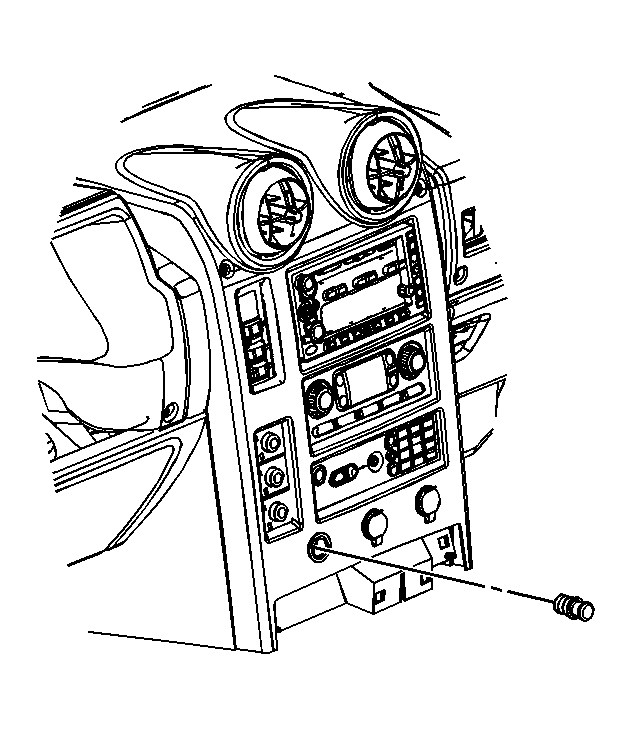

    2. Fig 1: Identifying Cigar Lighter
    GM815935Courtesy of GENERAL MOTORS CORP.
  2. Lift up the front cover of the power receptacle or remove the cigar lighter.
    3. Fig 2: Inserting J 42059
    GM378525Courtesy of GENERAL MOTORS CORP.
  3. Insert J 42059  into the slots on the sides of the receptacle sleeve. See Special Tools .
    4. Fig 3: Removing Receptacle Out Of Assembly
    GM378524Courtesy of GENERAL MOTORS CORP.
  4. Hold the plastic ring in place. Pull the receptacle out of the assembly in order to remove the outlet.
    5. Fig 4: Removing Cigar Housing Using Grinding Tool
    GM1120988Courtesy of GENERAL MOTORS CORP.
  5. If J 42059  tool fails to release the lighter socket from the retainer, perform the following alternate method. See Special Tools .
    1. Insert a small grinding tool with a cutoff wheel into the socket.
    2. Remove the plastic latches in the 3 mm (0.11 in) square windows.
    3. Use the J 42059  as directed above to remove the socket. See Special Tools .
  6. Remove the electrical connector from the socket.
