Removal Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

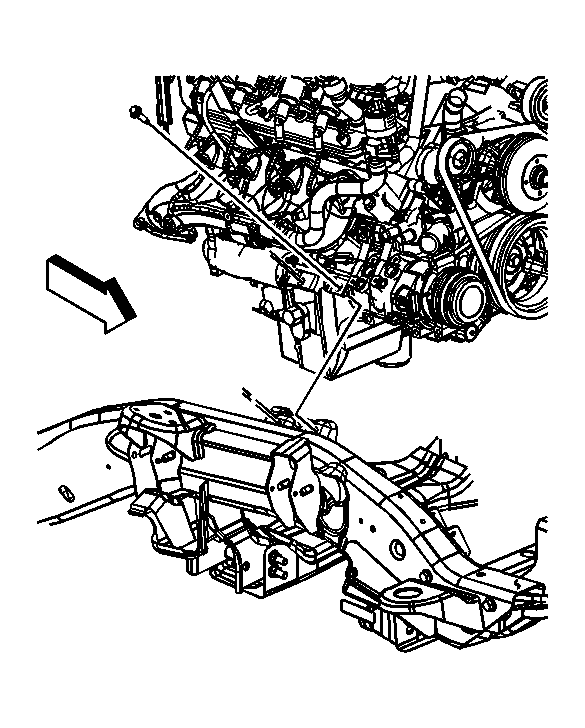

    Fig 1: Engine Mount-To-Frame Bracket Bolts (Right)
    GM794678Courtesy of GENERAL MOTORS CORP.
  1. Remove the engine mount-to-frame bracket bolts.
  2. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
    3. Fig 2: Engine Protection Shield
    GM794711Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine shield bolts.
  4. Remove the engine shield.
  5. Remove the air conditioning (A/C) compressor. Refer to Compressor Replacement .
  6. Remove the starter motor. Refer to Starter Motor Replacement .
    IMPORTANT: DO NOT raise and/or support the engine by the crankshaft balancer, or oil pan.
  7. Raise and suitably support the engine using adjustable (screw type) jack stands.

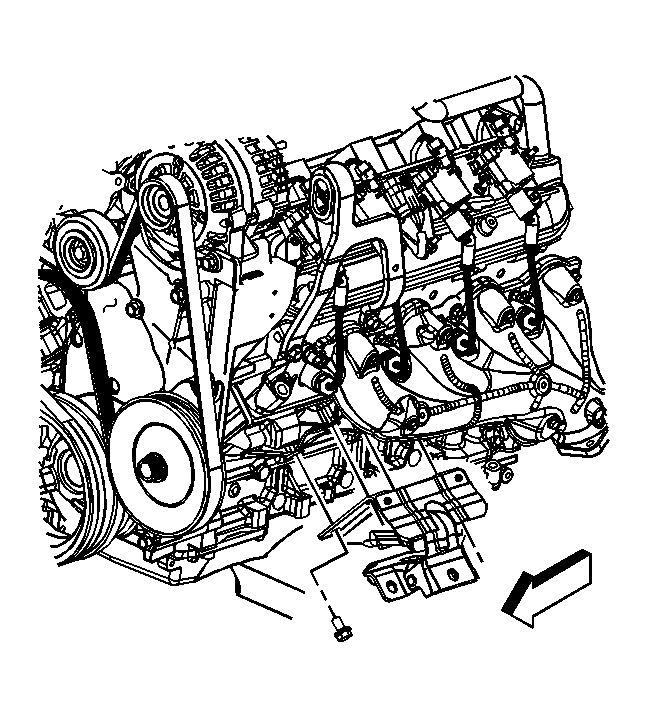

    8. Fig 3: Engine Mount (Left)
    GM794679Courtesy of GENERAL MOTORS CORP.
  8. Remove the engine mount bolts (left side shown, right side similar).
  9. Remove the right engine mount.
