Water Pump Cleaning and Inspection
WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the old gasket from the water pump sealing surfaces. Refer to Replacing Engine Gaskets .
- Clean all excess dirt and debris from the water pump housing.

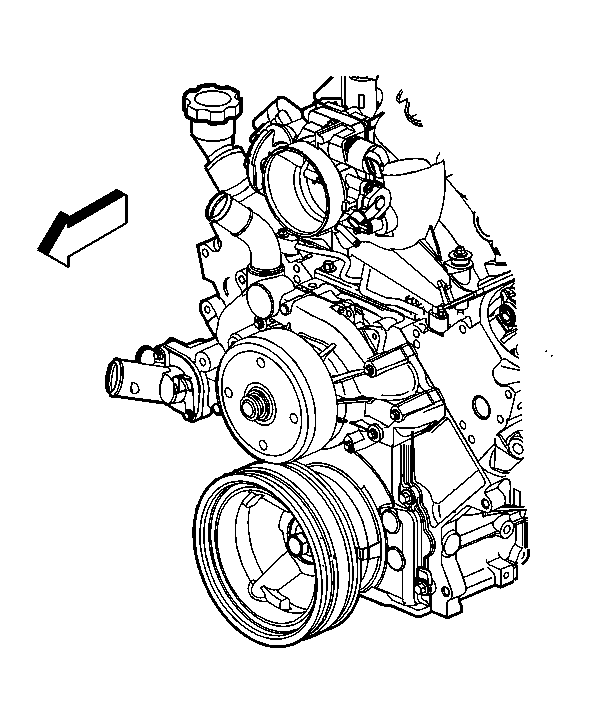

- Inspect the water pump for the following conditions:
- Gasket and hose sealing surfaces for excessive scratches or gouging
- Restrictions within the internal coolant passages
- Excessive side-to-side play in the pulley shaft
- Leakage at the water outlet housing or rear cover gasket
- Leakage at the water pump vent hole
A stain around the vent hole is acceptable. If leakage, dripping, occurs with the engine running and the cooling system pressurized, replace the water pump.
- Inspect the water pump pulley for wear or damage in the belt tracking area.
