Piston and Connecting Rod Assemble

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Retaining Clip In Pin Bore Groove

Courtesy of GENERAL MOTORS CORP.

Install the retainer. The retainer should be seated in the groove of the pin bore.

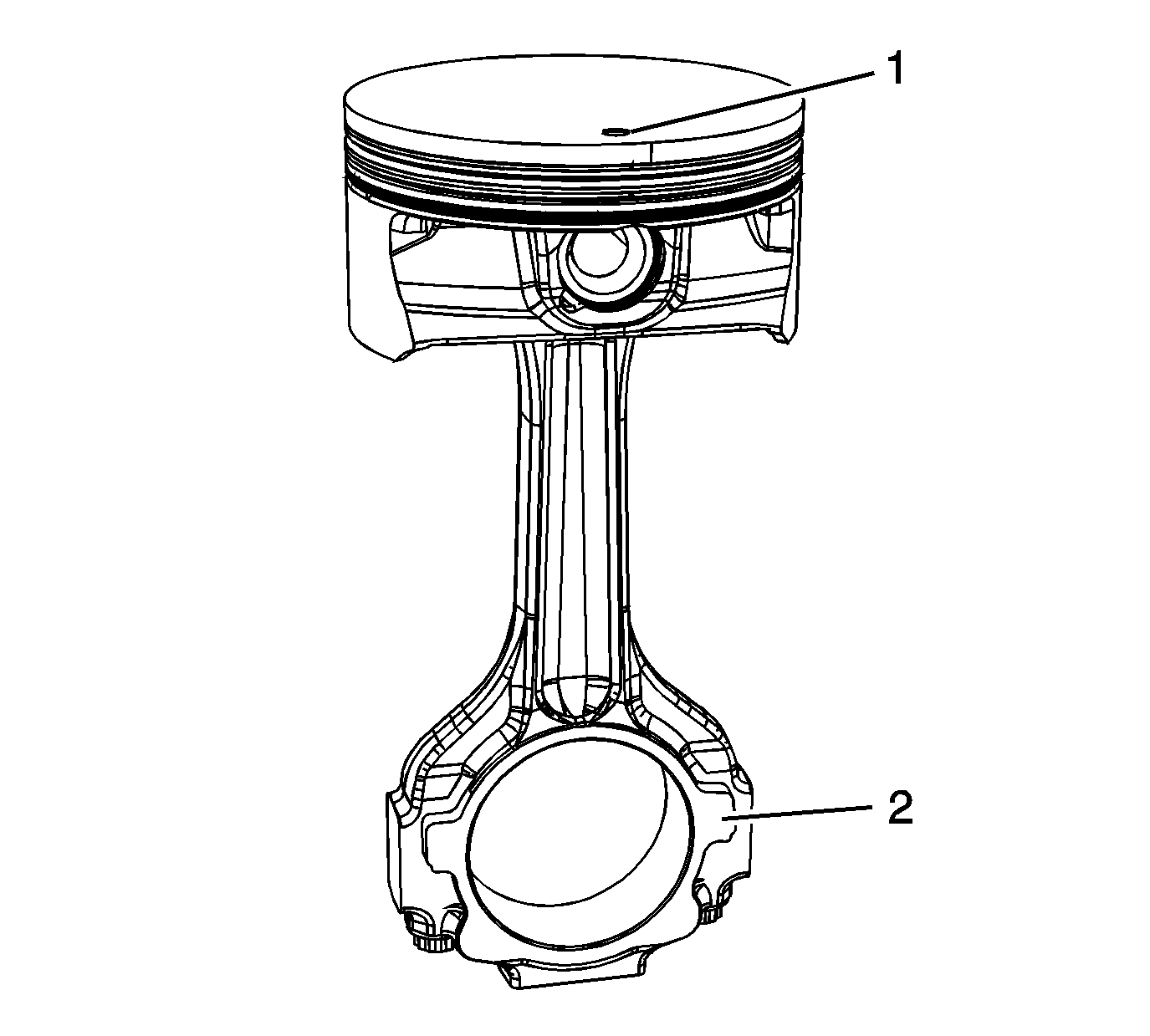

Fig 2: Locating Mark On Top Of Piston & Connecting Rod Tab

Courtesy of GENERAL MOTORS CORP.

Assemble the piston and connecting rod. The mark (1) on the top of the piston and the tab (2) on the side of the connecting rod should be facing the same direction.

Fig 3: Piston Pin, Piston & Connecting Rod

Courtesy of GENERAL MOTORS CORP.

Install the piston pin to the piston and connecting rod.
Install the retainers. The retainers should be seated in the groove of the pin bore.

Fig 4: Removing/Installing Piston Rings

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: When installing piston rings, use a ring expander plier type tool. Do not roll the rings into the grooves of the piston. Use caution and care to expand the rings only slightly larger than the outside diameter (OD) of the piston.

Using piston ring pliers, install the piston rings onto the piston. The dimple or mark on the piston ring should face the top of the piston.
Position the oil control ring end gaps a minimum of 25 mm (1.0 in) from each other.
Position the compression ring end gaps 180 degrees opposite each other.

Fig 5: View Of Piston, Connecting Rod & Bearing Assembly

Courtesy of GENERAL MOTORS CORP.

Install the connecting rod bearings to the rod and cap.
