Oil Level Indicator and Tube Installation

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

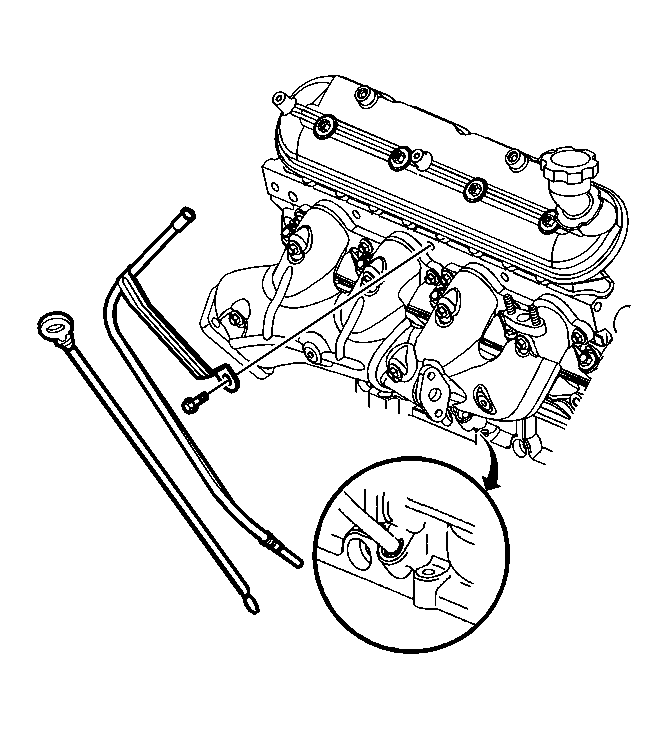

    Fig 1: View Of Oil Level Indicator & Tube
    GM260114Courtesy of GENERAL MOTORS CORP.
  1. Inspect the O-ring seal for cuts or damage. If the oil level indicator tube O-ring seal is not cut or damaged, it may be reused.
  2. Lubricate the O-ring seal with clean engine oil.
  3. Install the O-ring seal onto the oil level indicator tube.
  4. Install the oil level indicator tube into the engine block and rotate into proper position.
    5. NOTE: Refer to Fastener Notice .
  5. Install the tube bolt.

    Tighten:  Tighten the oil level indicator tube bolt to 25 N.m (18 lb ft).

  6. Install the oil level indicator into the tube.
