Intake Manifold Removal

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of PCV Hose
    GM1201537Courtesy of GENERAL MOTORS CORP.
    IMPORTANT:
    • The intake manifold, throttle body, fuel injection rail, and fuel injectors may be removed as an assembly. If not servicing the individual components, remove the manifold as a complete assembly.
    • DO NOT use the intake manifold-to-cylinder head gaskets again.
  1. Remove the positive crankcase ventilation (PCV) hose - dirty air.
    2. Fig 2: View Of Throttle Body To Valve Rocker Arm Cover PCV Hose
    GM1235681Courtesy of GENERAL MOTORS CORP.
  2. Remove the PCV hose - fresh air.
    3. Fig 3: View Of MAP Sensor
    GM1277093Courtesy of GENERAL MOTORS CORP.
  3. Remove the manifold absolute pressure (MAP) sensor (714), if required.
  4. Remove the engine coolant air bleed clamp and hose from the throttle body, if applicable.
    5. Fig 4: View Of EVAP Purge Solenoid, Bolt & Isolator
    GM1277094Courtesy of GENERAL MOTORS CORP.
  5. Remove the evaporative (EVAP) emission canister purge solenoid valve (708), bolt (710), and isolator (709).

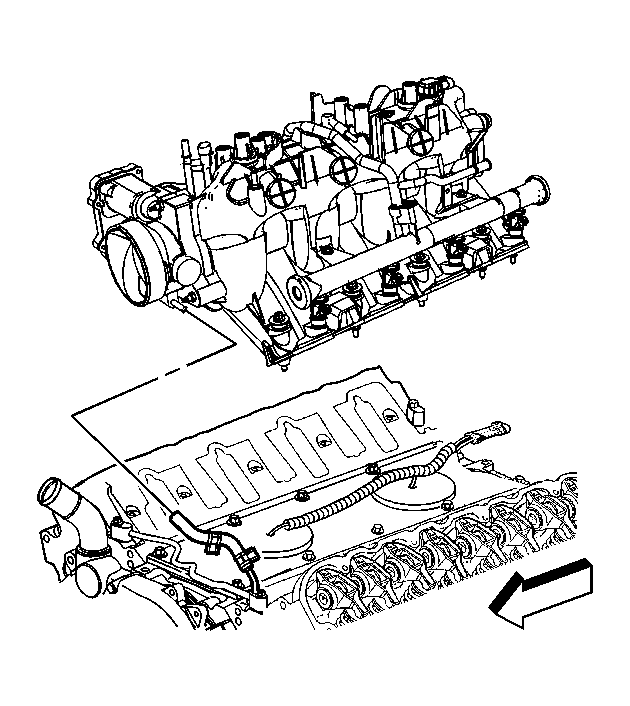

    6. Fig 5: View Of Intake Manifold & Bolts
    GM1201541Courtesy of GENERAL MOTORS CORP.
  6. Remove the intake manifold bolts.
  7. Remove the intake manifold with gaskets.
    8. Fig 6: View Of Intake Manifold-To-Cylinder Head Gasket
    GM1277097Courtesy of GENERAL MOTORS CORP.
  8. Separate the intake manifold-to-cylinder head gaskets (514) from the manifold.
  9. Discard the intake manifold gaskets.
