Oil Pressure Diagnosis and Testing

Tools Required

• EN-47971  Oil Pressure Gage Adapter. See Special Tools .
• J 21867  Pressure Gage. See Special Tools .

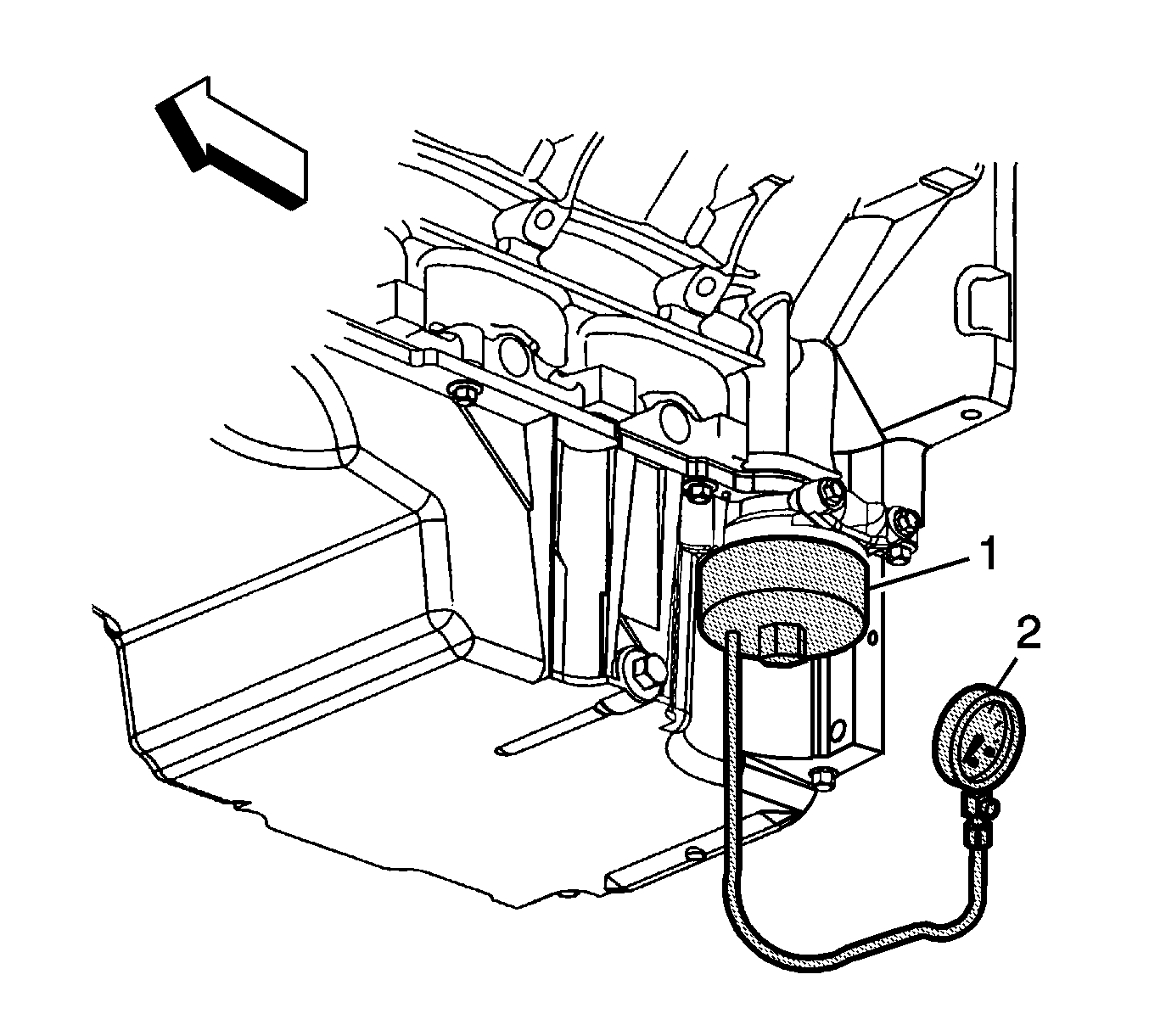

Fig 1: Using Special Tools EN-47971 & J 21867 To Check Oil Pressure
Courtesy of GENERAL MOTORS CORP.
1. With the vehicle on a level surface, run the vehicle for a few minutes. Allow adequate drain down time, 2-3 minutes, and measure the oil level.
2. If required, add the recommended grade engine oil and fill the crankcase until the oil level measures full on the oil level indicator.
3. Run the engine briefly, 10-15 seconds, and verify low or no oil pressure on the vehicle gage or light.
4. Listen for a noisy valve train or a knocking noise.
5. Inspect for the following conditions:
   • Oil diluted by water or glycol antifreeze
   • Foamy oil
6. Remove the oil filter and install the EN-47971  (1). See Special Tools .
7. Install the J 21867  (2), or equivalent to the EN-47971  (1). See Special Tools .
8. Run the engine and measure the engine oil pressure.
9. Compare the readings to Engine Mechanical Specifications .
10. If the engine oil pressure is below specifications, inspect the engine for 1 or more of the following conditions:
    • Oil pump worn or dirty

      Refer to Oil Pump Cleaning and Inspection .

    • Oil pump-to-engine block bolts loose

      Refer to Oil Pump, Screen and Crankshaft Oil Deflector Installation .

    • Oil pump screen loose, plugged, or damaged
    • Oil pump screen O-ring seal missing or damaged
    • Malfunctioning oil pump pressure relief valve
    • Excessive bearing clearance
    • Cracked, porous, or restricted oil galleries
    • Oil gallery plugs missing or incorrectly installed

      Refer to Engine Block Plug Installation .

    • Broken valve lifters

      Repair as necessary.

11. If the oil pressure reading on the J 21867  , or equivalent, is within specifications, inspect for the following conditions: See Special Tools .
    • Plugged or incorrect oil filter and/or malfunctioning oil bypass valve

      The valve is now internal to the filter.

    • Malfunctioning oil pressure gage or sensor

      Repair, as necessary.
